YRT-D200B DOUBLE-END TENON MACHINE | THUONG NGUYEN WOOD MCB

📕 MODEL: YRT-D200B
▶︎ Cutting length: 185~2000 mm
▶︎ Shaft speed: 12,000 R.P.M.
▶︎ Maximum mortise width: 130 mm
▶︎ Maximum mortise depth: 40 mm
▶︎ Minimum mortise depth: 10 mm
▶︎ Maximum mortise thickness 30 mm
▶︎ Knife can be tilted: -10˚~45˚
▶︎ Cutter rotation angle: 0˚~45˚
▶︎ Shaft motor: 6KWx2
▶︎ Dust outlet diameter: ø4″ x 2
▶︎ Air pressure: 6 kg/cm²
▶︎ Total capacity: 19.7 kw 26.3 HP
▶︎ Machine size: 3740x3000x1970 mm
▶︎ Packing machine size: 4000x2180x2350 mm
▶︎ Machine weight: 3450 kg / 3600 kg

🔰 CNC Double-Head Mortising Machine Model: YRT-200B, Made in Taiwan – Brand YOW CHERNG, famous brand Top Taiwan in Woodworking Machine technology as well as for the Vietnamese market
🌏 Double Head Oval Positive Mortising CNC Machine – Automated production model:
✅ The dual-head cutter system operates independently and has strong capacity, allowing simultaneous machining of two positive oval mortises on the same wood workpiece, doubling work efficiency.

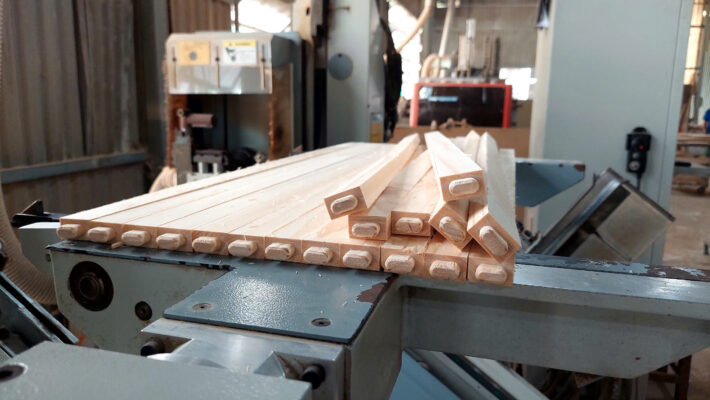

✅ Ability to cut oval mortise and tenon with exact size and shape as required, meeting all your design needs.
✅ High precision, small error, ensuring perfect joints, increasing durability and aesthetics of the product.
✅ Save time and money:
☑️ The machine operates automatically, eliminating manual operations, saving time and labor.
☑️ Fast and precise processing, reducing wood waste and improving efficiency.
☑️ High durability, low failure rate, saving repair and maintenance costs.
✅ Easy to use, safe for operators:
☑️ The machine is integrated with intelligent control software, intuitive interface, easy to use.
☑️ Modern safety protection system ensures operator safety during use.
☑️ Compact design, easy to move and install.
