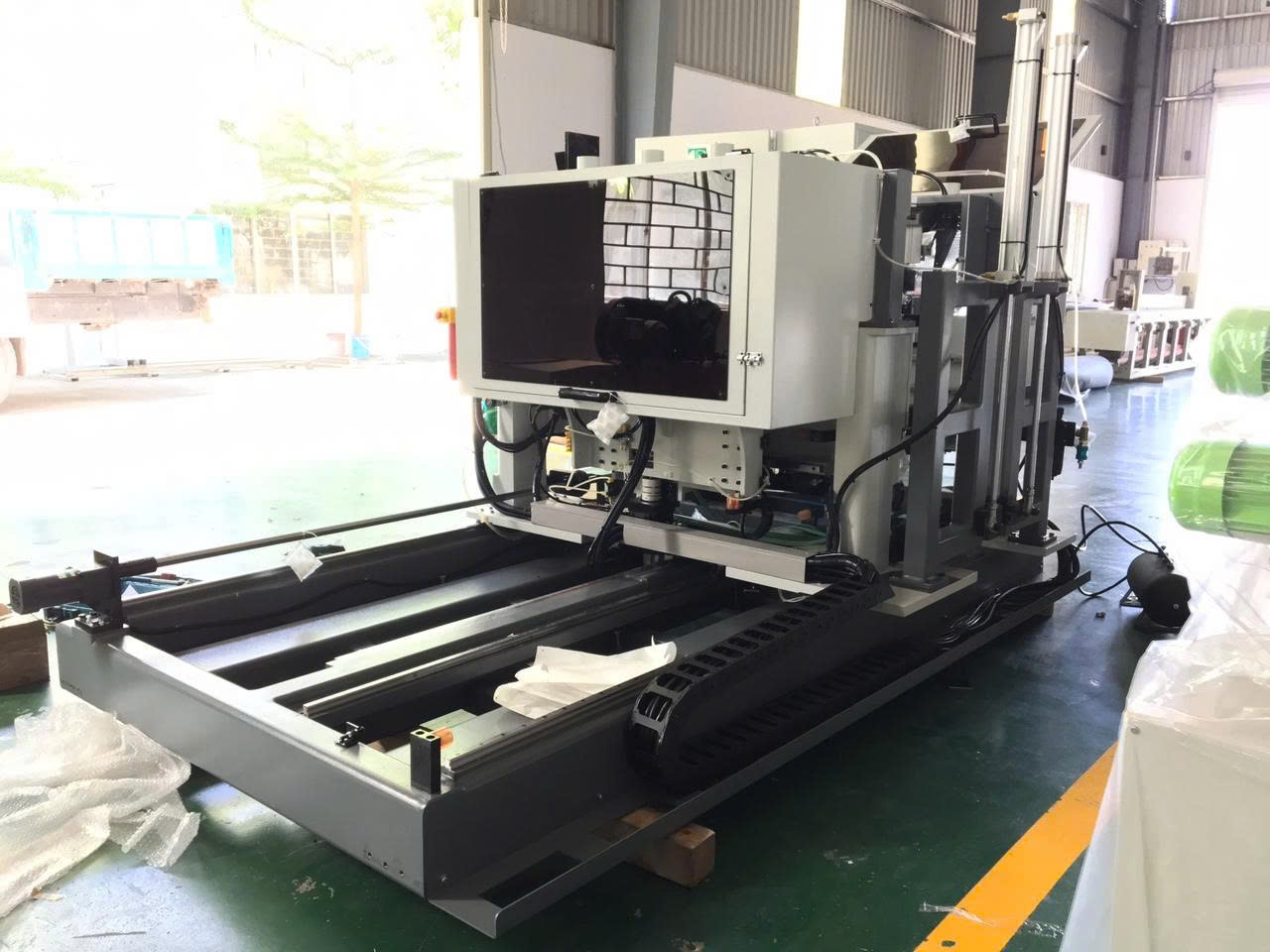

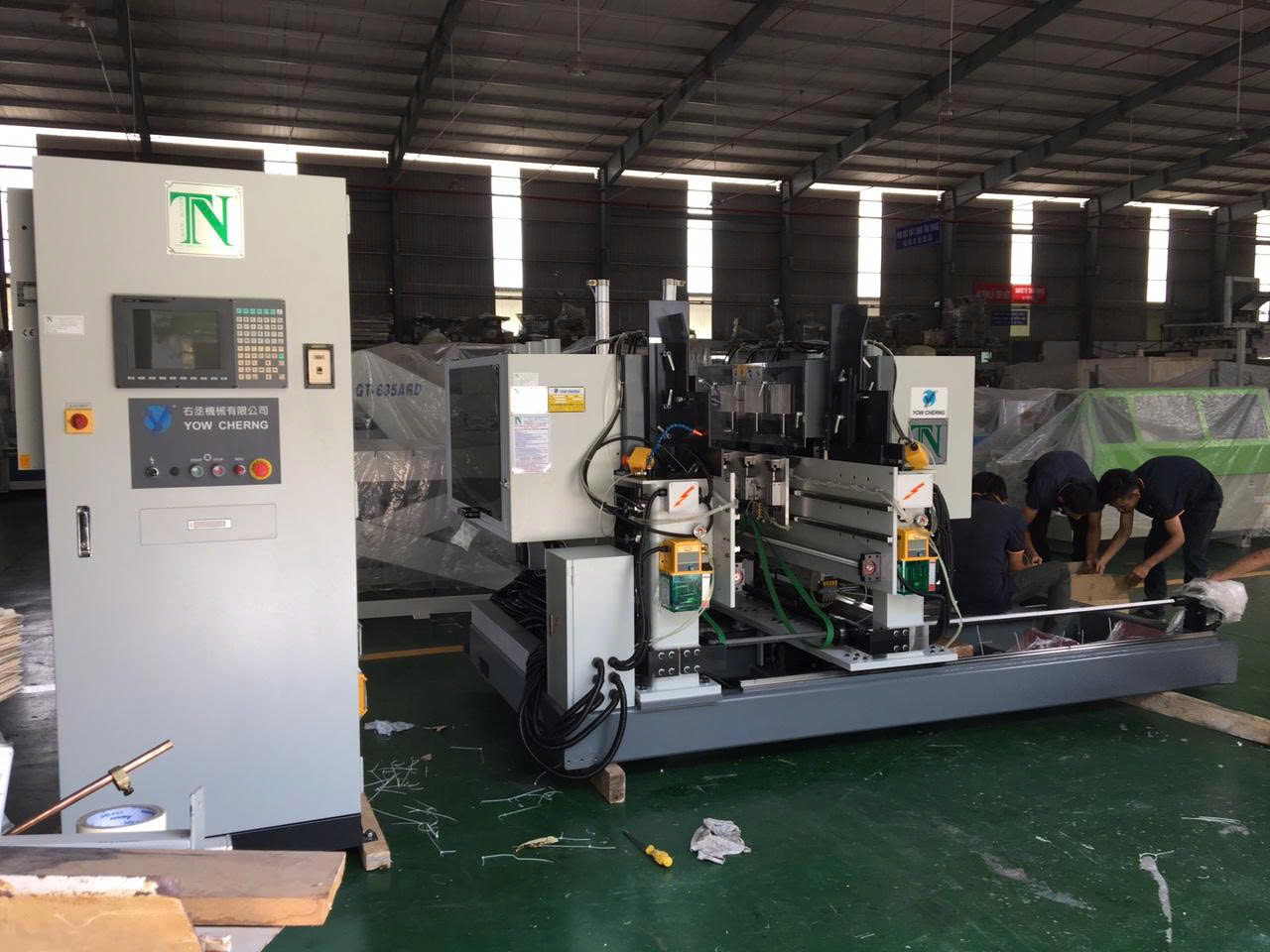

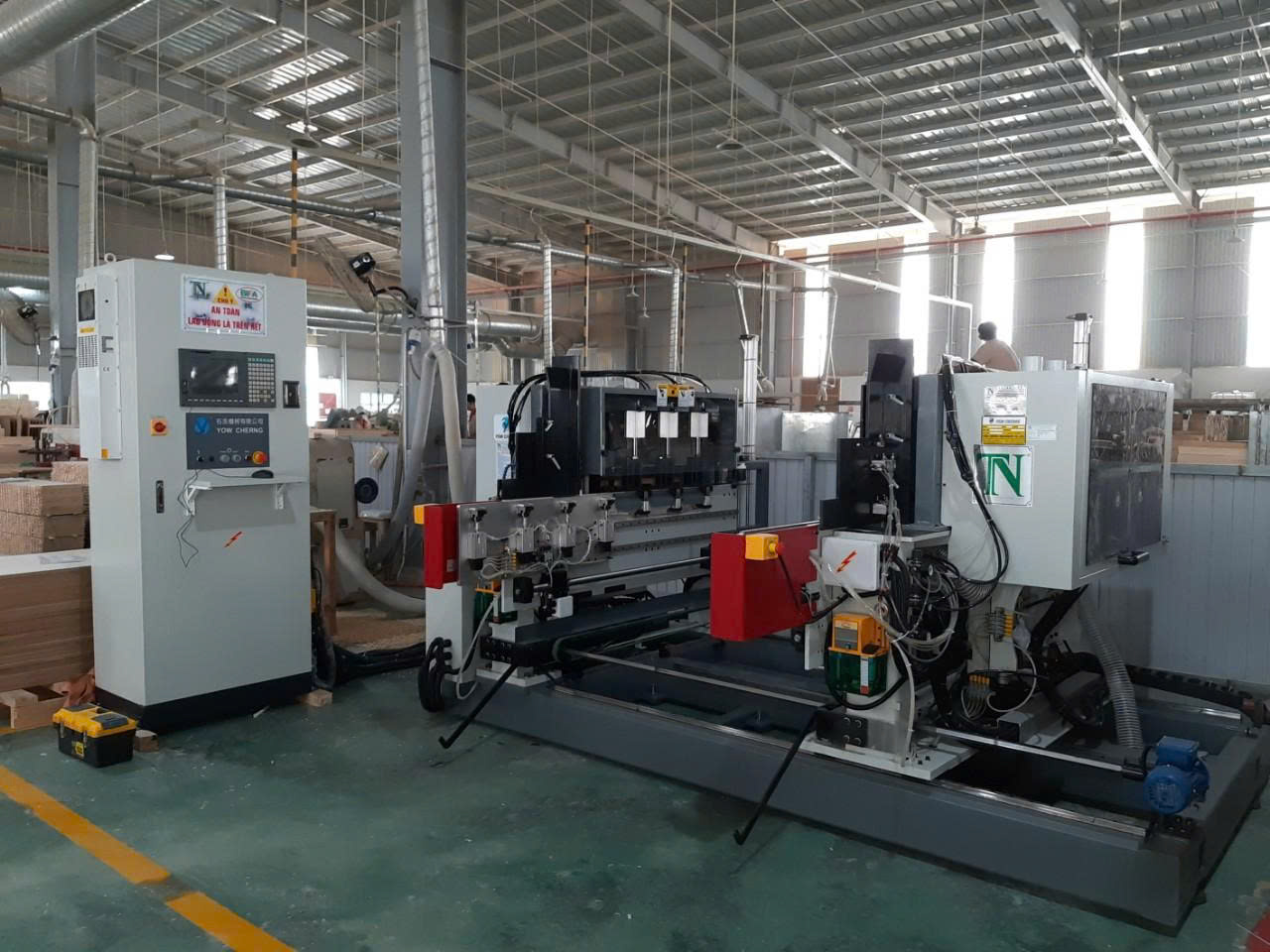

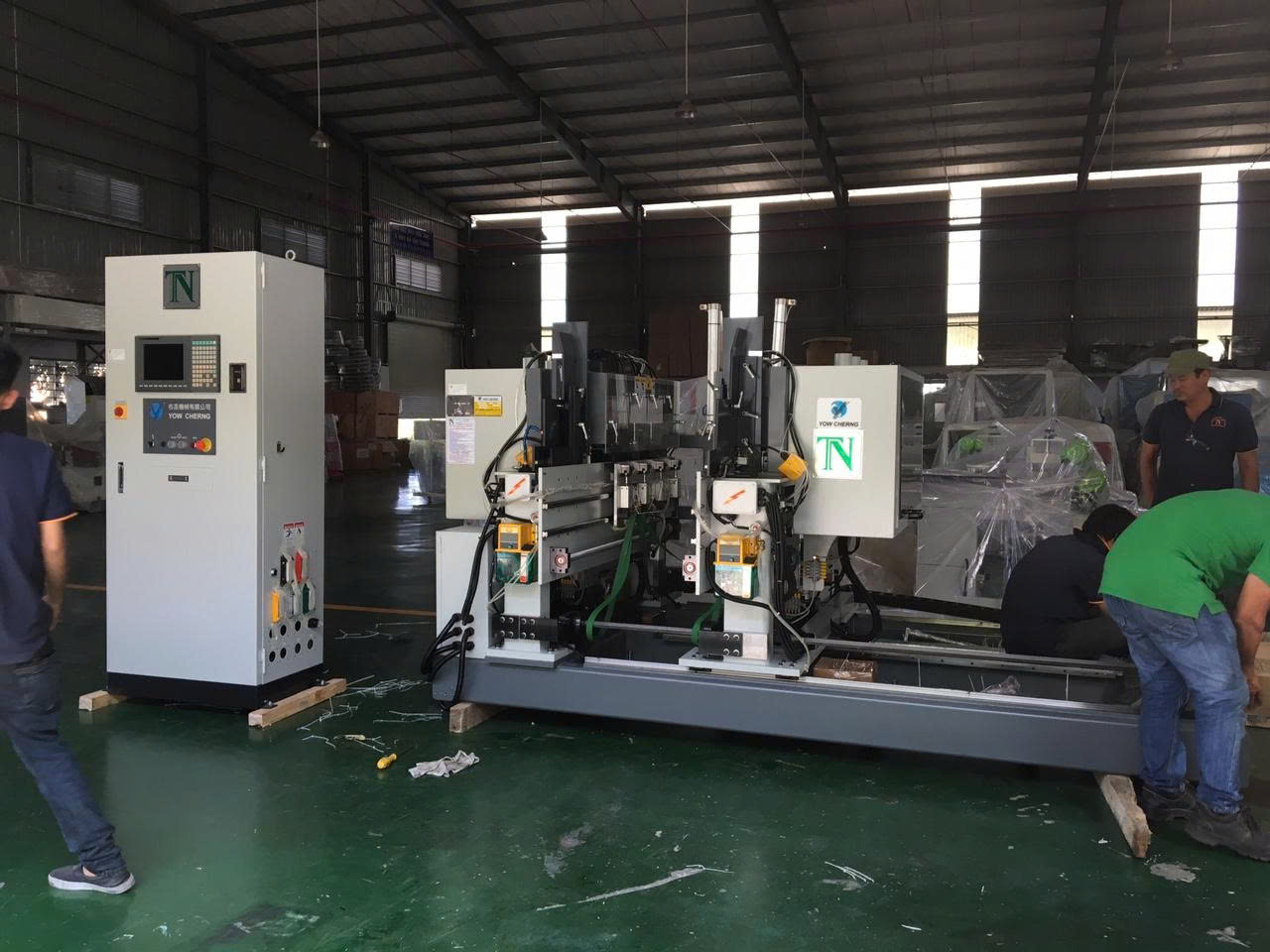

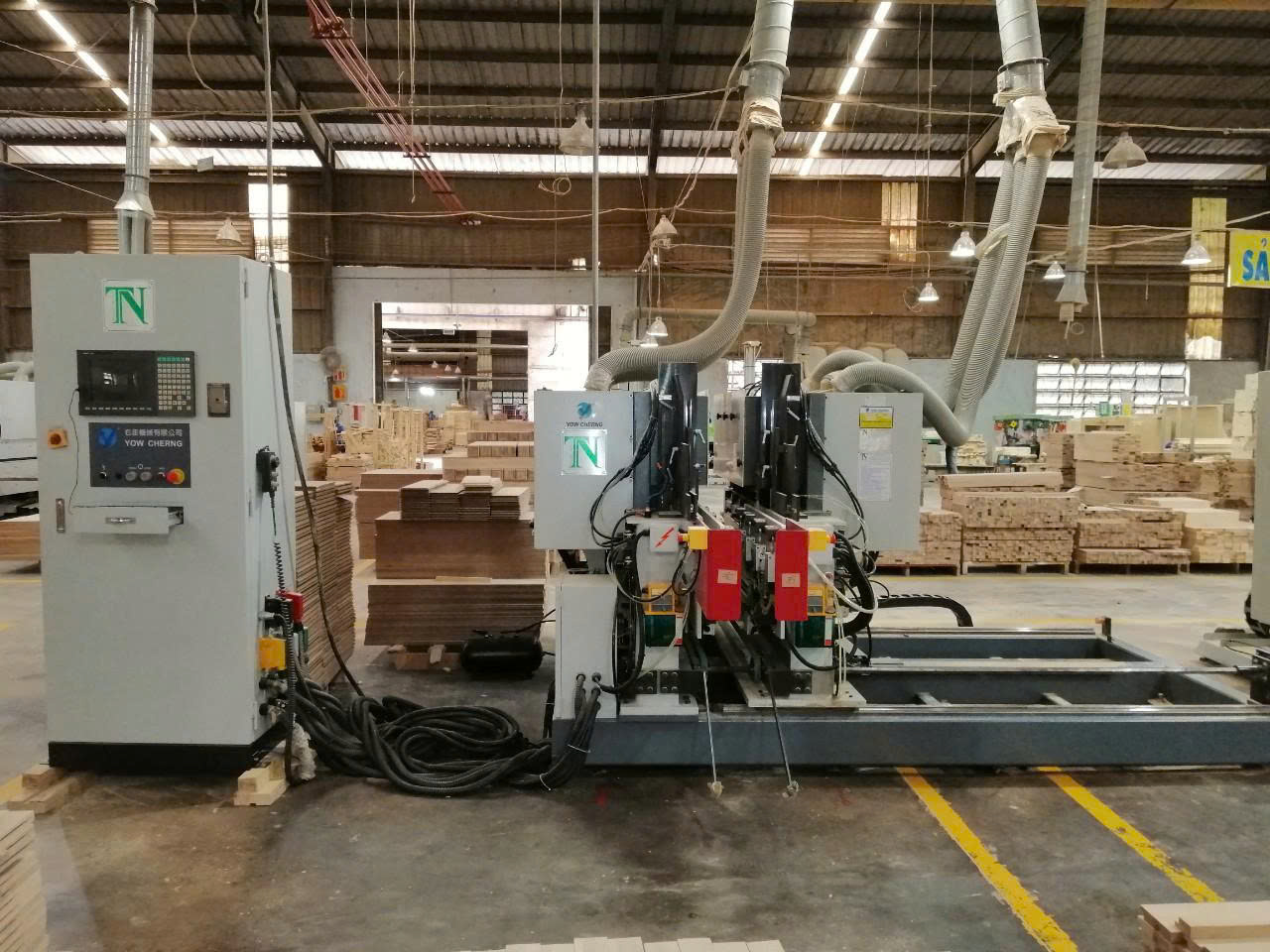

YC-TD3 DOUBLE-HEAD TENON MACHINE | THUONG NGUYEN WOOD MCB

🔧 HEAVY-DUTY OVAL TENONING MACHINE – 100% BRAND NEW

✅ BRAND: YOWCHERNG
🌍 ORIGIN: TAIWAN
📦 MODEL: YC-TD3

🛠 TECHNICAL SPECIFICATIONS

• Cutting length: 280 – 2080 mm

• Max. working width: 145 mm

• Tenon depth: 10 – 40 mm

• Max. thickness (with fixed cutter): 30 mm

• Max. thickness (with optional cutter): 40 mm

• Spindle speed: 9000 rpm

⚙️ POWER SYSTEM

• Main motors: 3 + 3 units (Total 7.5 HP)

• Inverters: 6 units (Total 7.5 HP)

• Total power consumption: 40 kW (53.6 HP)

• Compressed air requirement: 6 kg/cm²

🧰 MACHINE DIMENSIONS & WEIGHT

• Machine dimensions (L×W×H): 3950 × 2600 × 1980 mm

• Packing dimensions: 4110 × 2100 × 1980 mm

• Machine weight: 3800 – 3900 kg

• Dust outlet diameter: Ø3” × 6 ports

💡 FEATURE HIGHLIGHTS

• Specially designed for oval tenon cutting in mass production environments

• High spindle speed of 9000 rpm ensures smooth, clean cuts

• Robust and reliable machine structure for long-term industrial use

• Energy-efficient and powered by advanced inverter technology

• Supports customization with optional tooling for up to 40mm thickness

✅ APPLICATIONS

Ideal for manufacturing:

• Wooden furniture joints

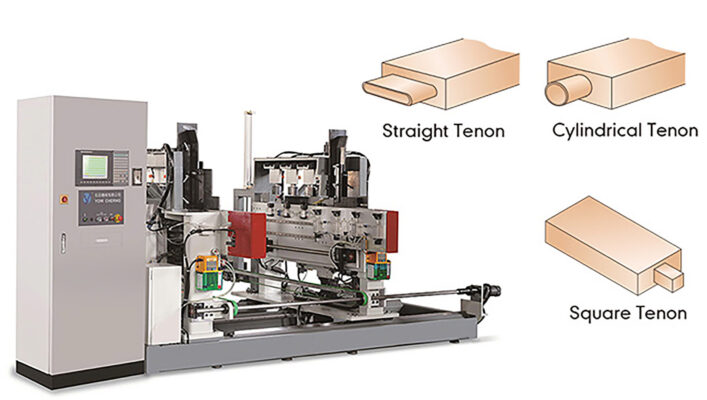

• Oval mortise and tenon structures

• High-precision frame and panel components
