TOP BOX SANDER WITH PLANING SHAFT KL-1350PRR-U | MCB THUONG NGUYEN WOOD
SKU: KL-1350PRR-U
Produced by: CHIA LUNG
Country of origin: Taiwan
Status: 100%
Warranty: 12 months
Product details
🔹 TOP WIDE BELT SANDER WITH PLANER HEAD – 100% BRAND NEW BRAND: CHIA LUNG – ORIGIN: TAIWAN MODEL: KL-1350PRR-U
🪵 PROFESSIONAL 3-IN-1 SANDING SOLUTION: PLANING + ROUGH + FINISHING

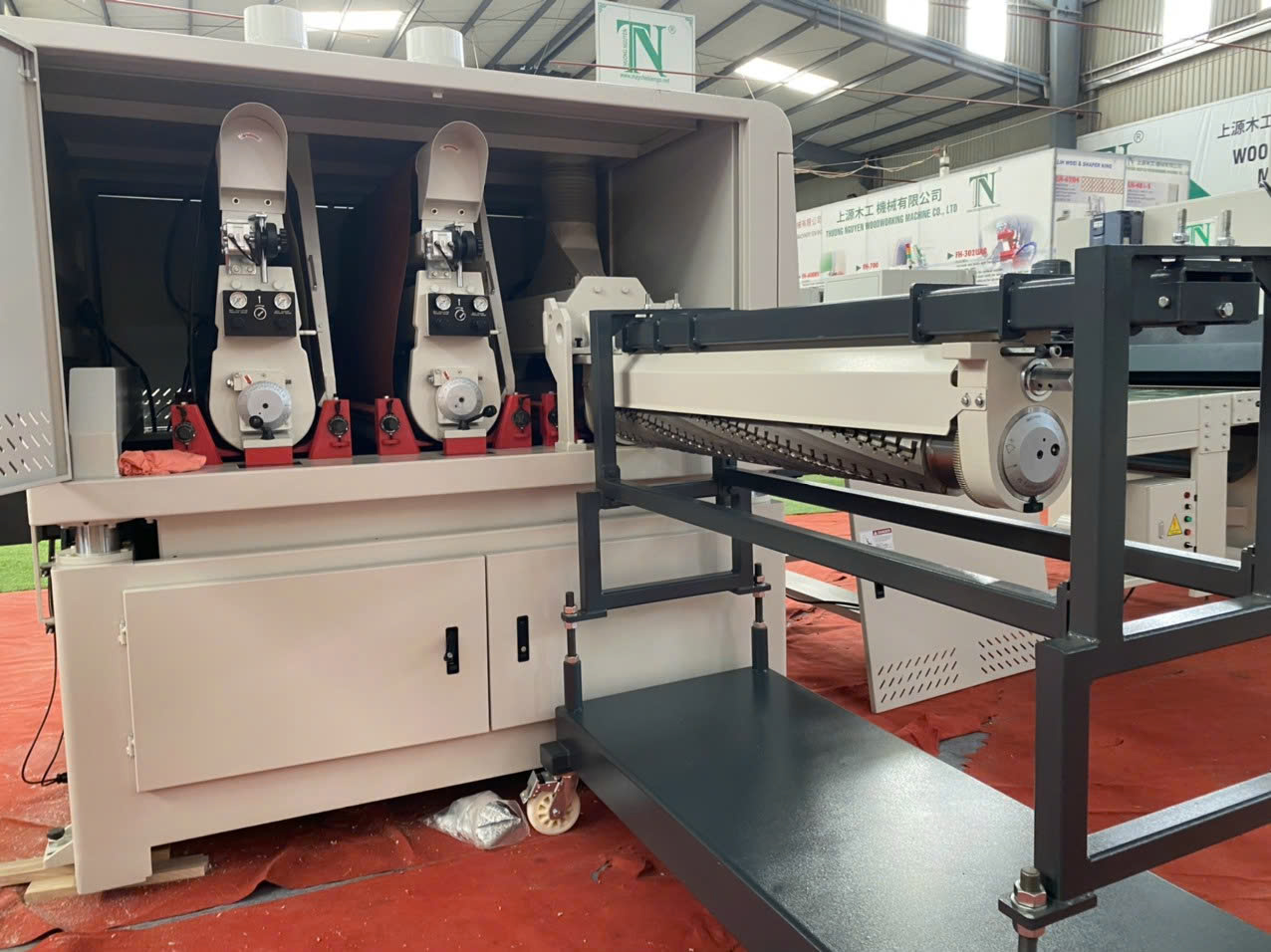

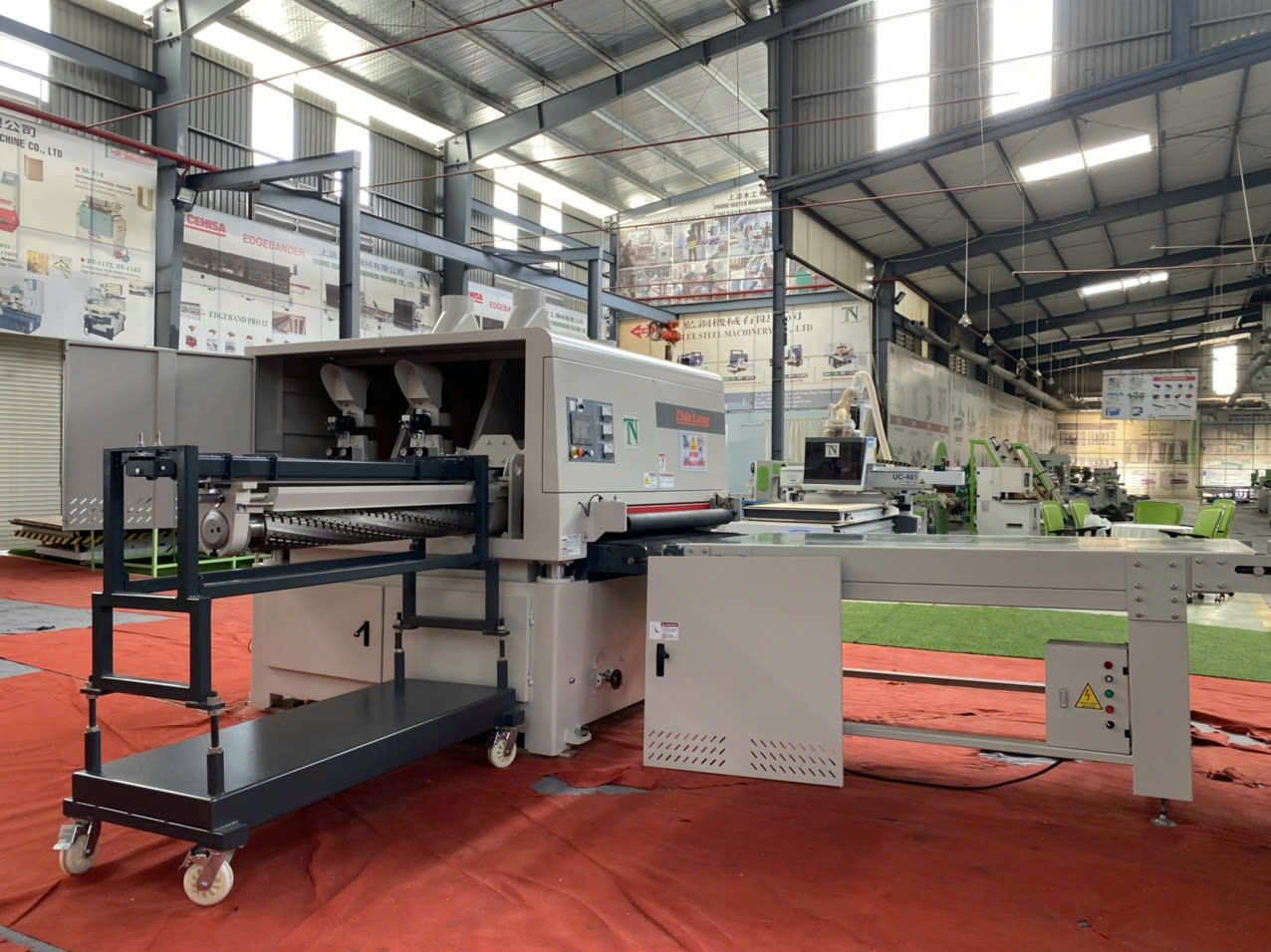

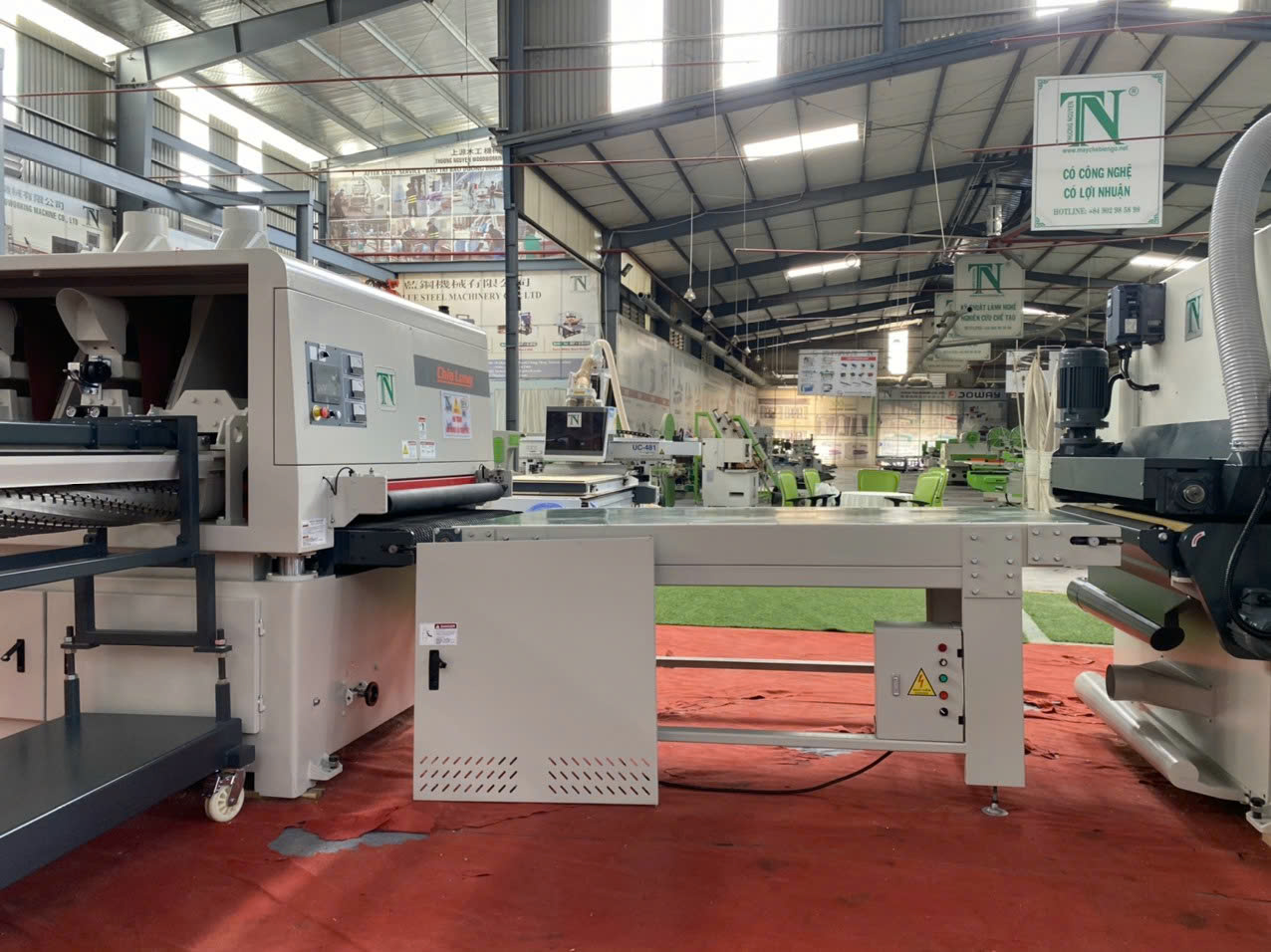

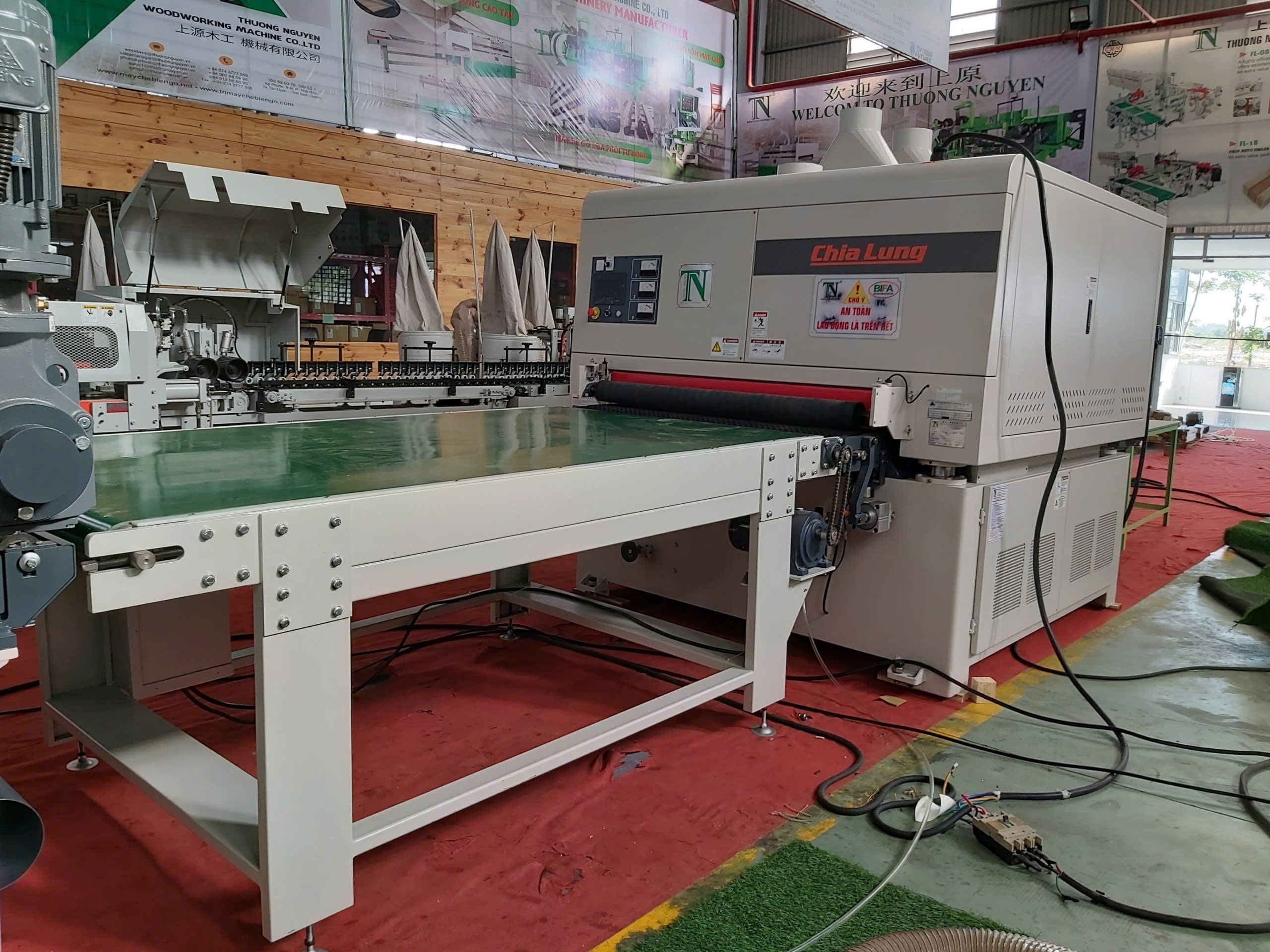

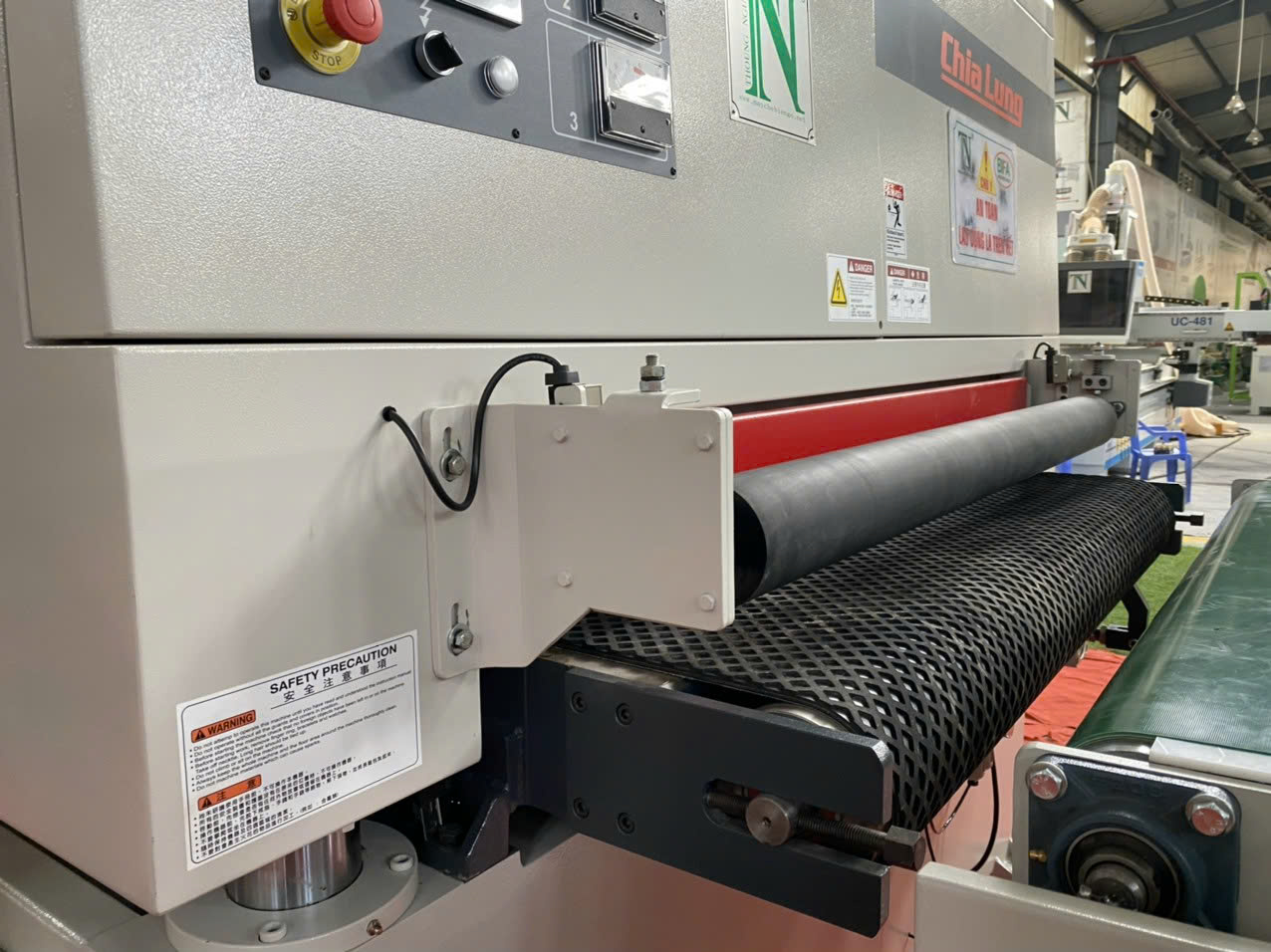

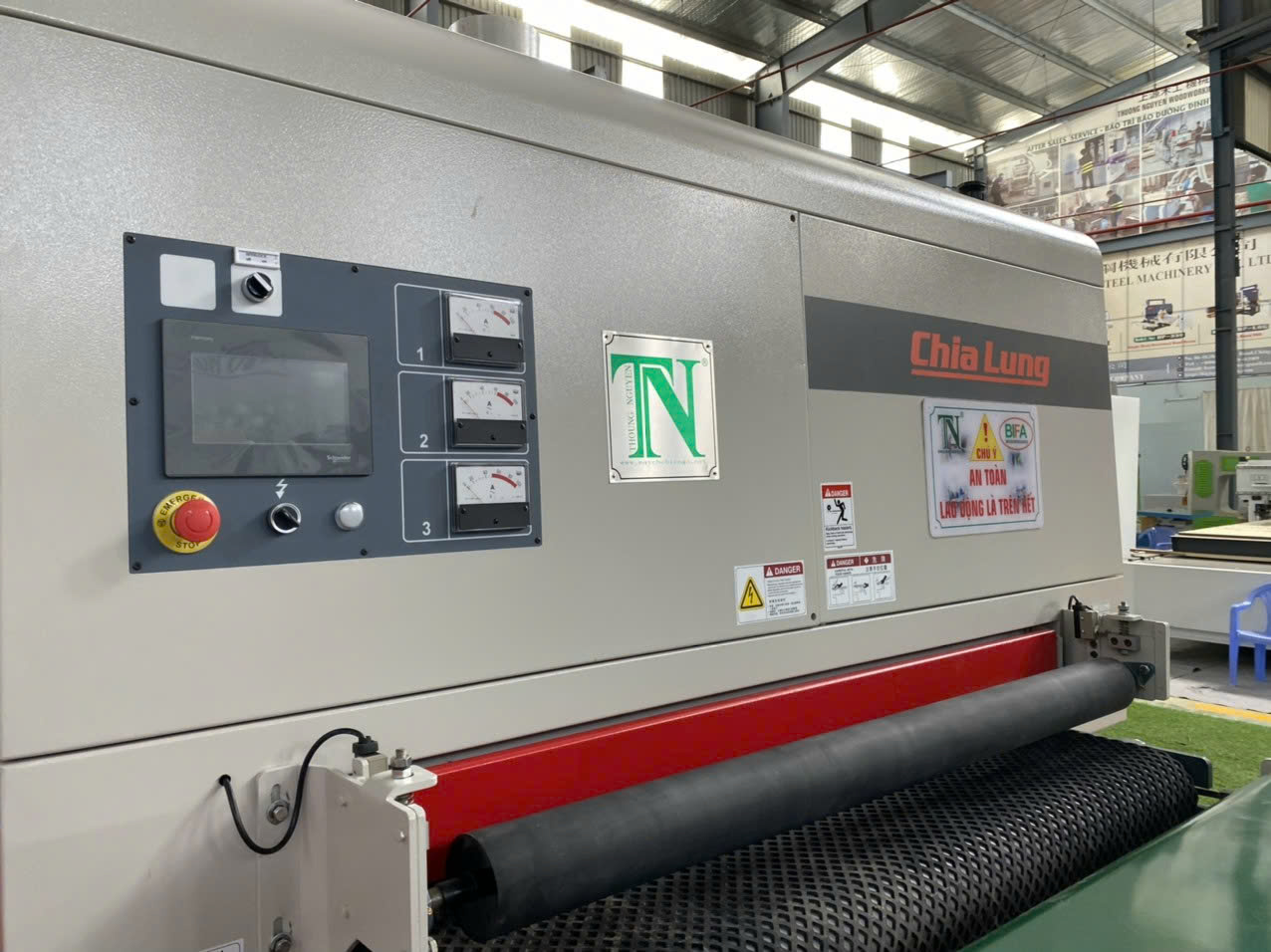

The CHIA LUNG KL-1350PRR-U is a heavy-duty top wide belt sander equipped with a planer head (P) and dual rubber rollers (R-R), designed for precise surface calibration and smooth finishing. Ideal for solid wood, finger joint boards, and laminated panels.
⚙️ TECHNICAL SPECIFICATIONS:
Max. working width: 1350 mm
Working thickness range: 8 – 125 mm
Abrasive belt size: 1370 x 2110 mm
Fixed working height from floor: 1000 mm
🔧 SHAFT CONFIGURATION:

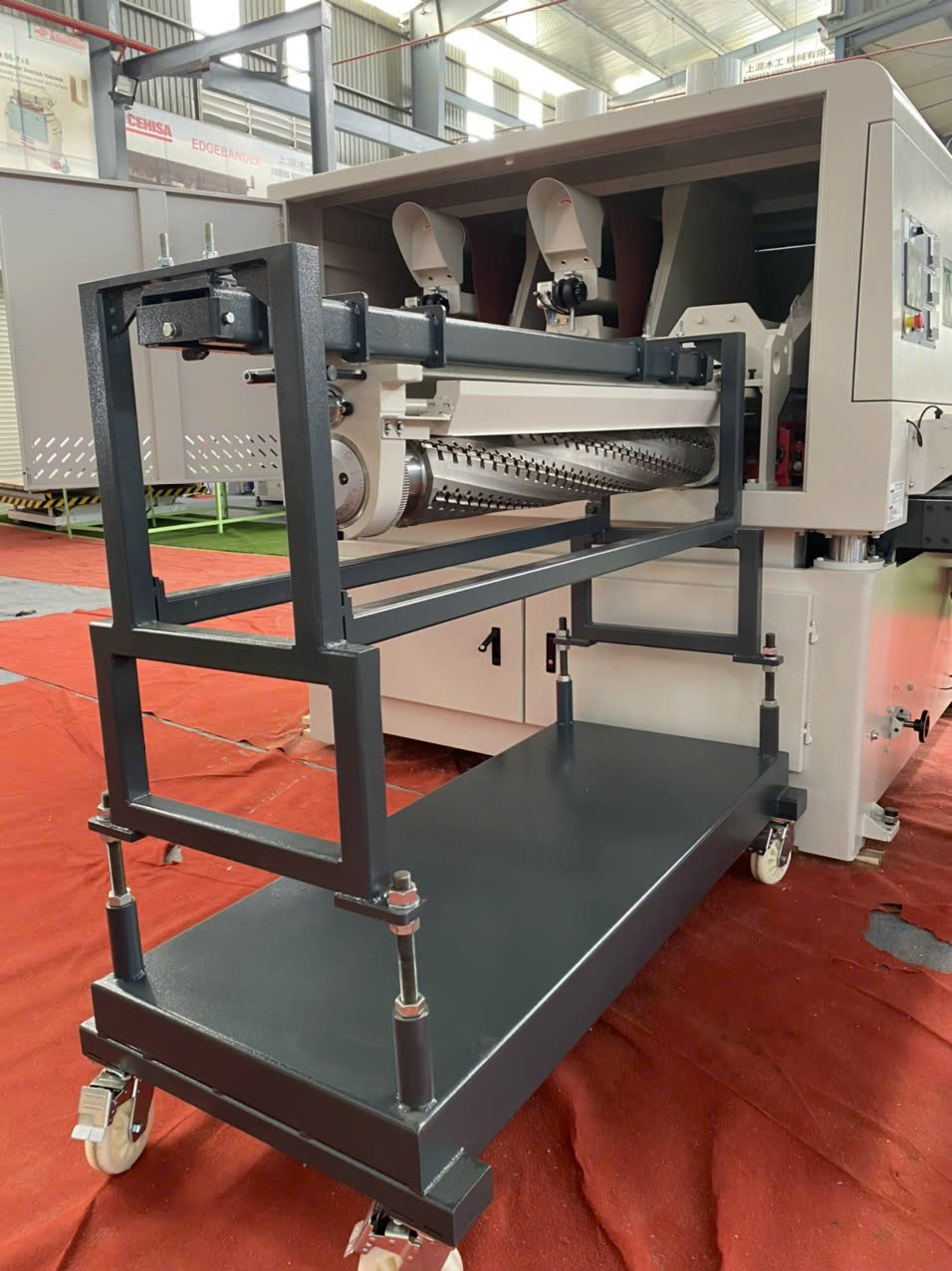

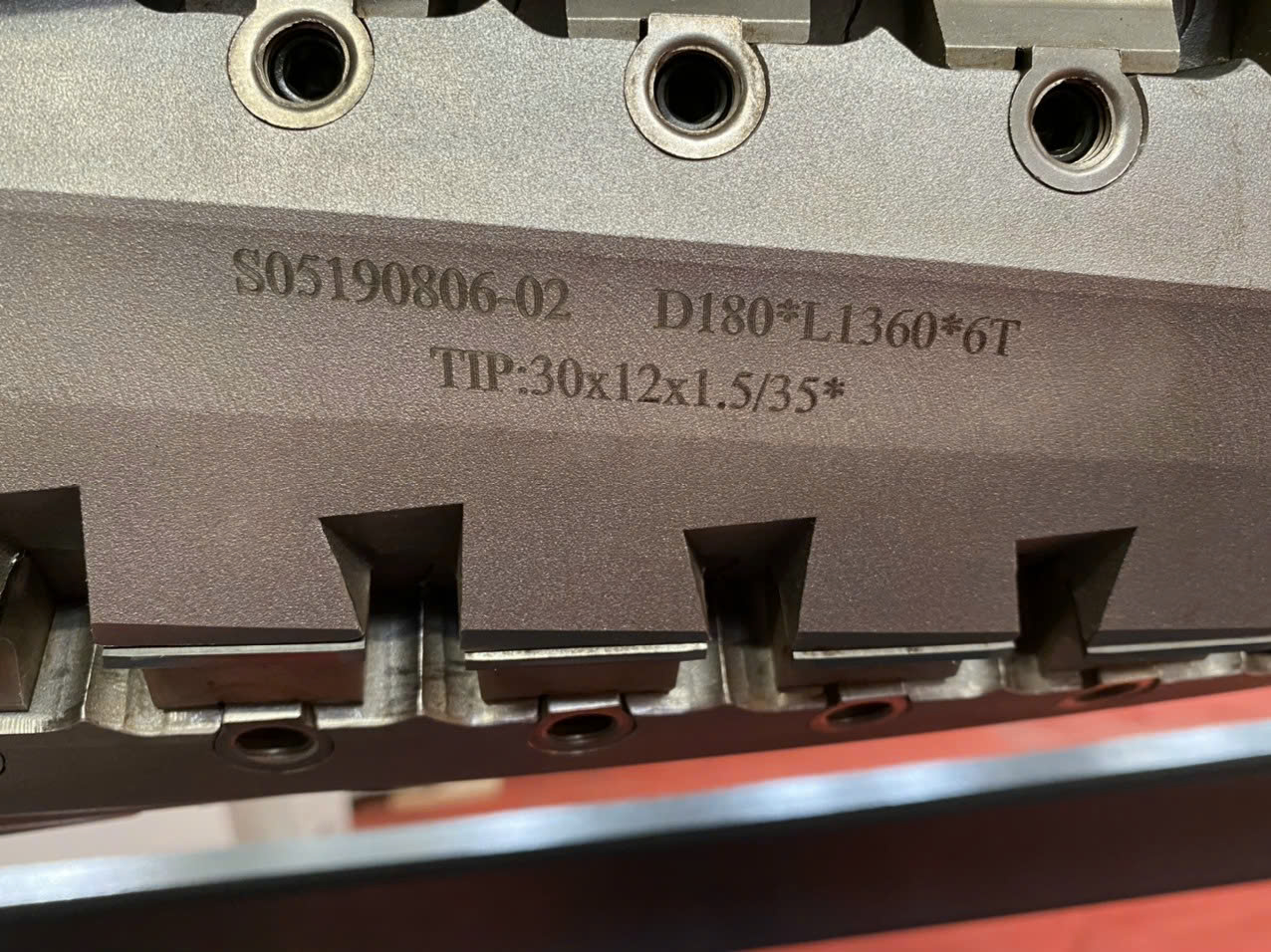

✅ P Shaft – Spiral Planer Head:
Diameter: Ø180 mm
Cutter size: 30 x 12 x 1.5 mm
Motor: 40 HP

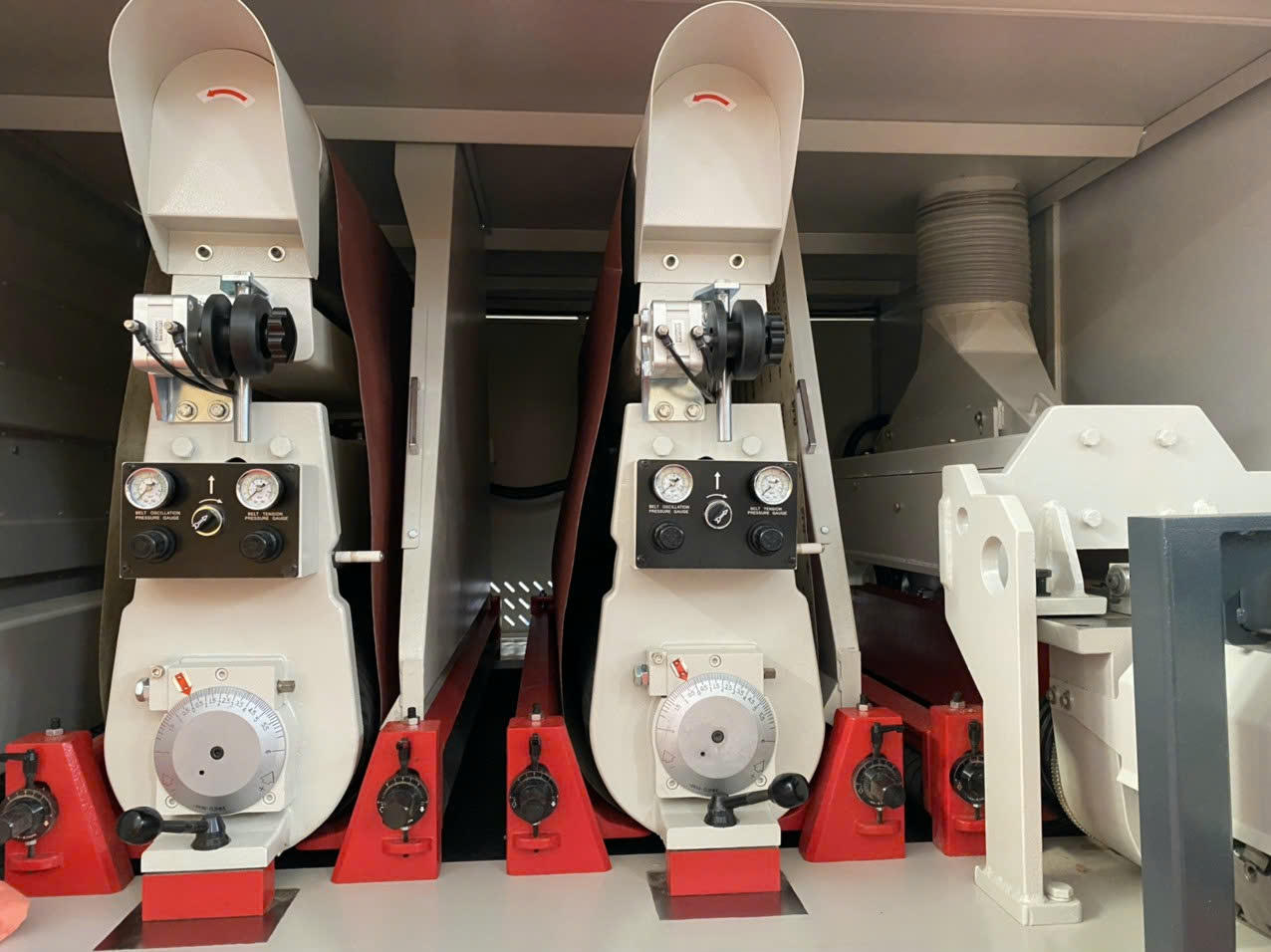

✅ 2nd Shaft – R (Calibrating Roller):
Diameter: Ø280 mm
Rubber hardness: 85 SH
Motor: 40 HP
✅ 3rd Shaft – R (Finishing Roller):
Diameter: Ø280 mm
Rubber hardness: 65 SH
Motor: 30 HP
⚙️ FEEDING & SUPPORT SYSTEM:
Feeding speed: 3 – 20 m/min (controlled by inverter)
Feeding motor: 5 HP
Vacuum table motor: 5 HP

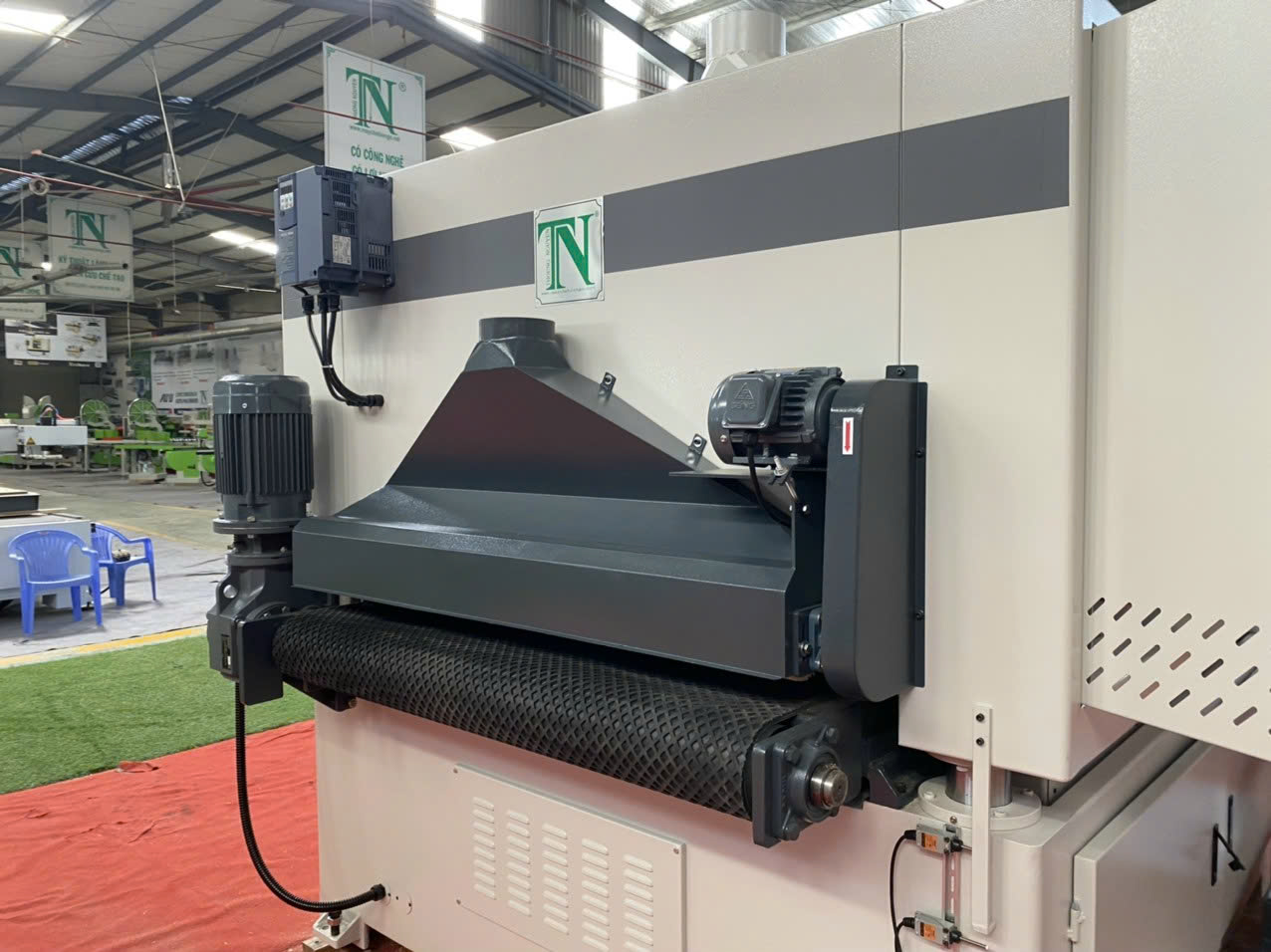

Brush roller diameter: Ø150 mm
Brush motor: 0.5 HP
Voltage: 380V / 50Hz
🌟 OUTSTANDING FEATURES:
✔️ Equipped with a powerful planer head for rough stock removal ✔️ Dual sanding rollers for calibration and fine finish ✔️ Inverter-controlled feeding speed for precise operation ✔️ Vacuum table enhances material stability during sanding ✔️ Durable and stable performance for industrial-scale production
