🔹 TOP SANDING MACHINE – 100% BRAND NEW BRAND: CHIA LUNG – ORIGIN: TAIWAN MODEL: KL-1350PRC-U
🪵 OPTIMAL SANDING SOLUTION FOR THE WOODWORKING INDUSTRY

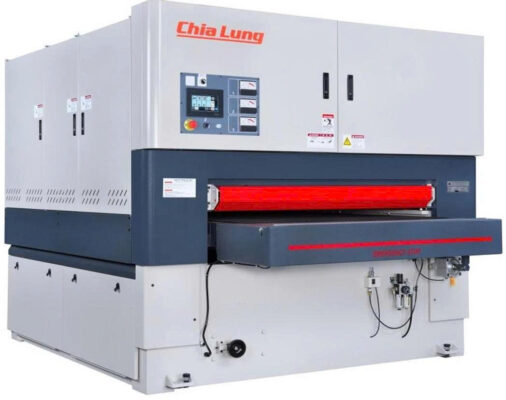

The CHIA LUNG KL-1350PRC-U is a premium heavy-duty top sanding machine, equipped with a powerful 3-shaft system (P – R – C) and an intuitive touch screen control panel, delivering outstanding efficiency and high-precision surface finishing.
📌 KEY TECHNICAL SPECIFICATIONS:
Maximum working width: 1350 mm
Working thickness: 8 – 150 mm
Abrasive belt size: 1370 x 2110 mm
Working height from floor: 920 mm
⚙️ POWERFUL TRIPLE-ROLLER SYSTEM

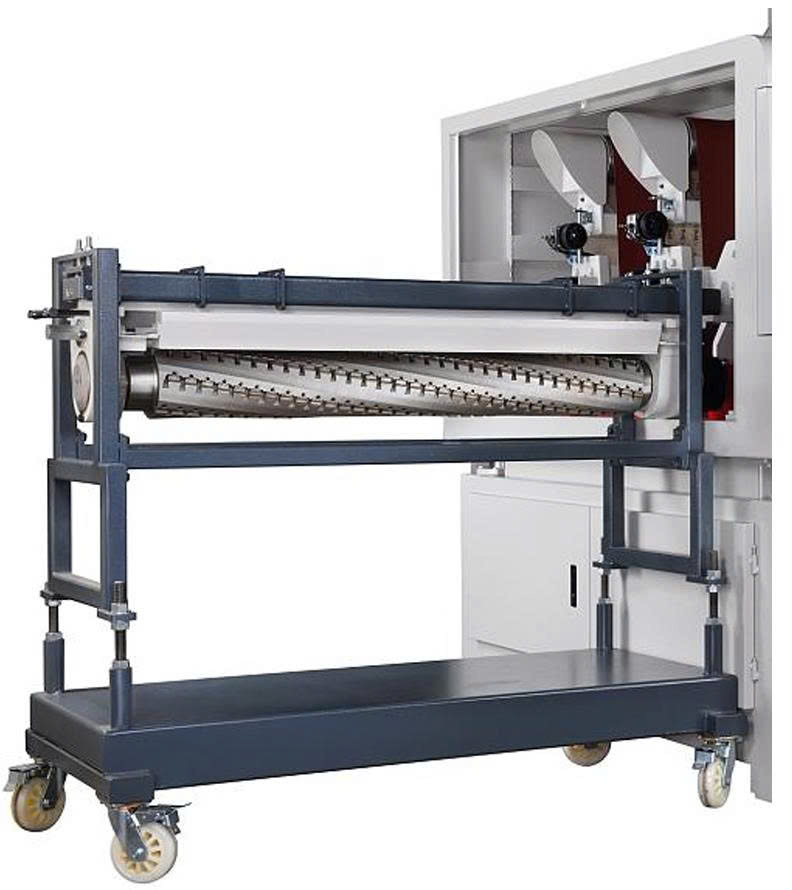

🔪 P Shaft – Cutterhead:
Cutter diameter: Ø180 mm
Knife size: 30 x 12 x 1.5 mm
Motor power: 40HP
🔩 R Shaft – Rubber Roller:
Roller diameter: Ø280 mm
Hardness: 85 shore
Motor power: 40HP
🔩 C Shaft – Finishing Roller:
Hardness: 55 shore
Motor power: 25HP
🔧 SUPPORTING FEATURES:
Control system: Touchscreen interface
Conveyor belt motor: 1HP
Feeding motor: 5HP
Feeding speed: 3 – 16 m/min
Cleaning brush diameter: Ø150 mm – Motor: 0.5HP
Abrasive cleaning system: Installed at shaft 2 and 3
Power supply: 380V / 50Hz – Industrial standard
🌟 OUTSTANDING ADVANTAGES:
✅ Rough cutting with P shaft – ensures even material surface ✅ R shaft sanding – precise surface processing ✅ C shaft finishing – delivers smooth final finish ✅ Integrated abrasive belt cleaning – extends belt lifespan ✅ Ideal for large-scale wood processing factories ✅ Stable operation, easy maintenance
👨🔧 Contact us now for free consultation and attractive offers!
