SINGLE-HEAD VERTICAL DRILLING MACHINE SS-037 | MCB GO THUONG NGUYEN

SKU: SS-037
Produced by: YOW CHENG
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

🛠️ PRODUCT INTRODUCTION – SINGLE-SPINDLE VERTICAL DRILLING MACHINE

BRAND: YOW CHENG – ORIGIN: TAIWAN
MODEL: SS-037

The YOW CHENG SS-037 is a compact and powerful single-spindle vertical drilling machine, designed for woodworking and furniture manufacturing. Built with a solid frame, high-performance motor, and easy-to-use features, it is ideal for precise and stable drilling in materials such as wood, aluminum, and light-gauge steel.

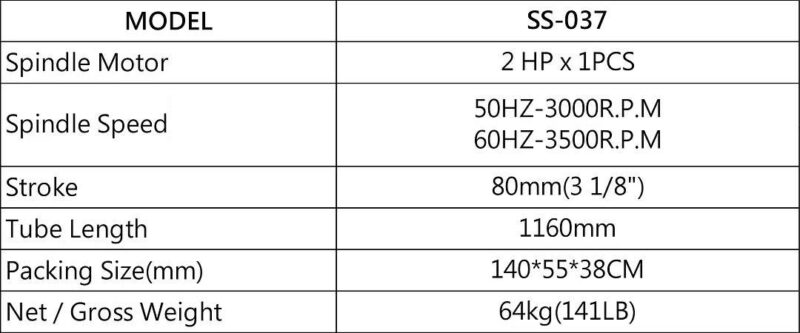

🔧 TECHNICAL SPECIFICATIONS:

✅ Main Motor: 2 HP × 1 unit
✅ Motor Speed:
• 50Hz: 3000 RPM
• 60Hz: 3500 RPM
✅ Drilling Stroke: 80 mm (3 1/8″)
✅ Column Length: 1160 mm
✅ Packing Dimensions: 1400 × 550 × 380 mm
✅ Net / Gross Weight:
• Net: 64 kg
• Gross: 141 lbs (approx. 64 kg)

💼 KEY ADVANTAGES & APPLICATIONS:

🎯 Compact design – saves workshop space.
⚙️ High-power motor suitable for a wide range of materials.
🧰 Easy to operate with minimal maintenance, ideal for both skilled and entry-level operators.
🪑 Suitable for drilling cam holes, dowel holes, cabinet panels, and structural joints in wood, aluminum, and thin steel components.
