PROFILE SANDING MACHINE MMZ-S2W4 | MCB THUONG NGUYEN WOOD

SKU: MMZ-S2W4
Produced by: GOODTECH
Country of origin: China
Status: 100%
Warranty: 12 months

Product details

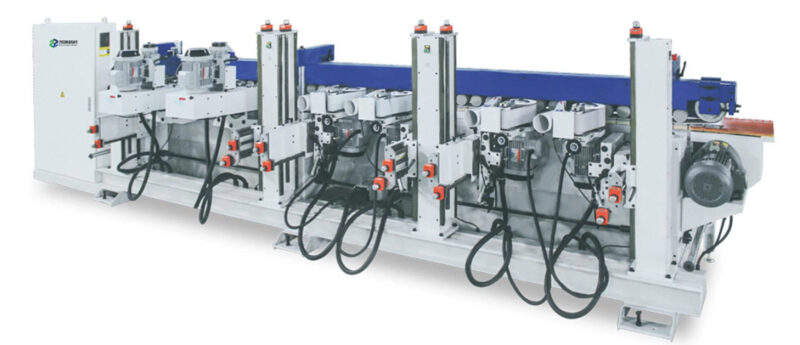

🟧 PROFILE SANDING MACHINE – GOODTECH MMZ-S2W4
100% Brand New | Brand: GOODTECH | Origin: China

🔧 PRODUCT OVERVIEW
The GOODTECH MMZ-S2W4 is a specialized profile sanding machine, designed to process wooden components with intricate curves and decorative patterns. Built with a sturdy structure, equipped with multiple high-performance motors and an automatic feed system, this machine is ideal for woodworking shops, especially for finishing processes after primer coating or achieving smooth surfaces on profiled wood parts.

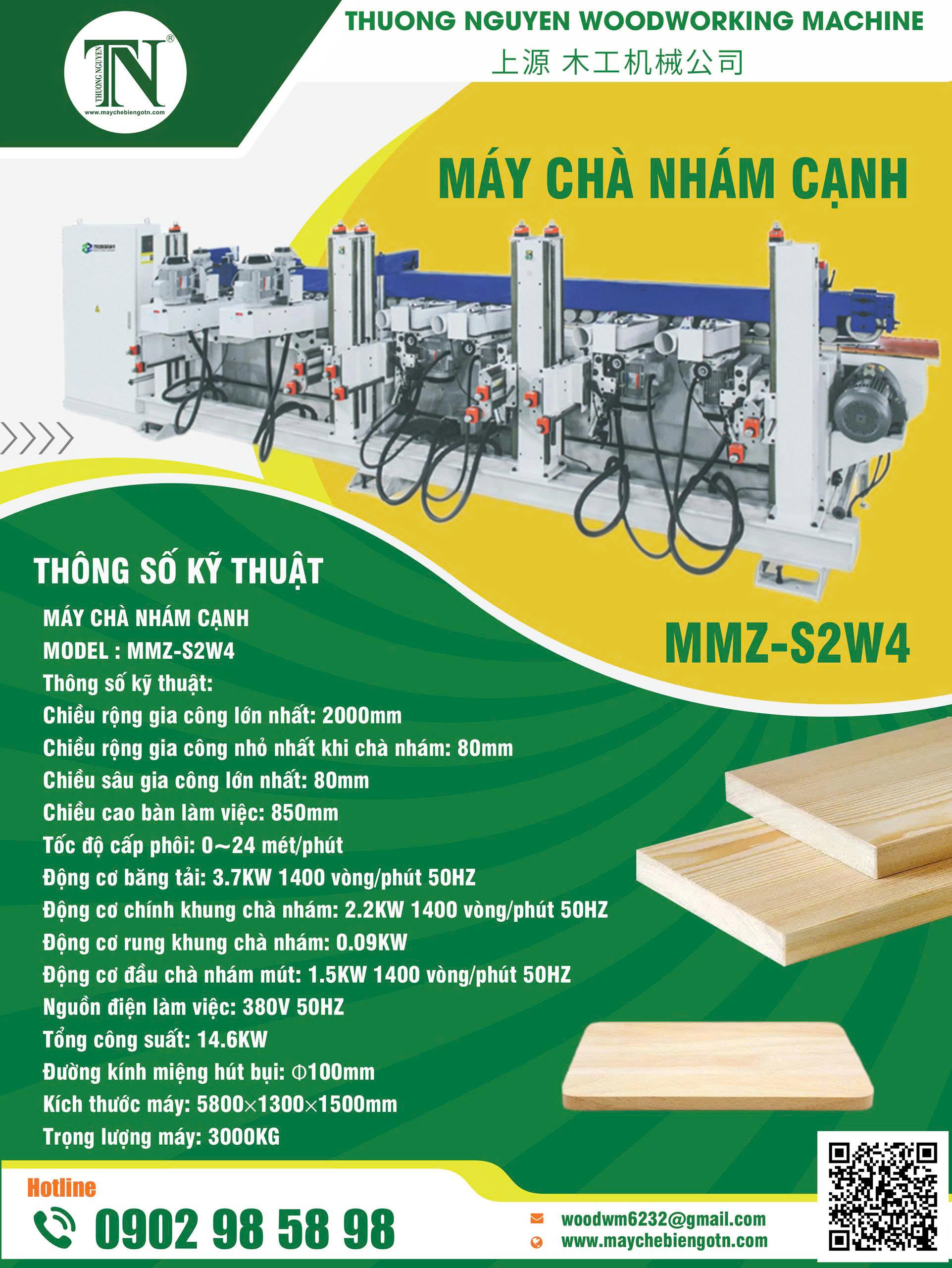

⚙️ KEY TECHNICAL SPECIFICATIONS
➤ Working Capacity:

Maximum workpiece width: 2000 mm
Minimum workpiece width: 80 mm
Maximum workpiece depth: 80 mm
Working table height: 850 mm
Feeding speed: 0 – 24 m/min

➤ Motor Configuration:

Conveyor motor: 3.7 kW – 1400 rpm – 50Hz
Main sanding frame motor: 2.2 kW – 1400 rpm – 50Hz
Sanding frame oscillation motor: 0.09 kW
Sponge sanding shaft motor: 1.5 kW – 1400 rpm – 50Hz
Total power: 14.6 kW
Operating voltage: 380V – 50Hz

➤ Machine Size & Weight:

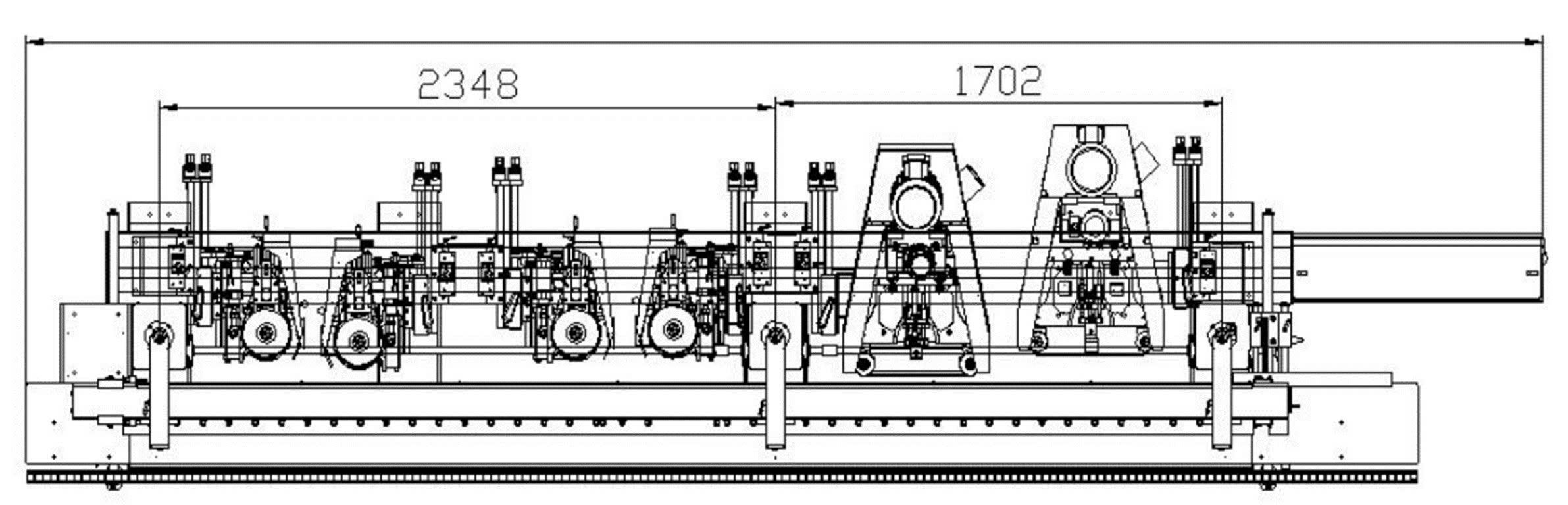

Overall dimensions: 5800 × 1300 × 1500 mm
Weight: 3000 kg
Dust extraction port: Ø100 mm

🌟 HIGHLIGHT FEATURES
✔️ Specially designed for sanding complex wood profiles, curves, and decorative surfaces
✔️ Robust machine frame ensures high precision and stability during operation
✔️ High-powered motors enhance sanding performance and surface smoothness
✔️ Automatic feeding conveyor saves labor and increases productivity
✔️ Adjustable speed to suit various wood types and processing requirements

🎯 IDEAL APPLICATIONS

Sanding and finishing of decorative moldings, trims, and profiled wooden parts
Primer sanding in PU industrial finishing lines
Perfect for high-end furniture factories, wooden door workshops, and woodcraft manufacturers
