PANEL CURVING MACHINE CGM-30II | TS-DSQ-120TSX | MCB THUONG NGUYEN WOOD

SKU: CGM-30II | TS-DSQ-120TSX
Produced by: CANGAO
Country of origin: China
Status: 100%
Warranty: 12 months

Product details

COMPLETE WOOD BENDING SOLUTIONS – OPENS NEW DESIGN PATHS FOR HIGH-CLASS FURNITURE!

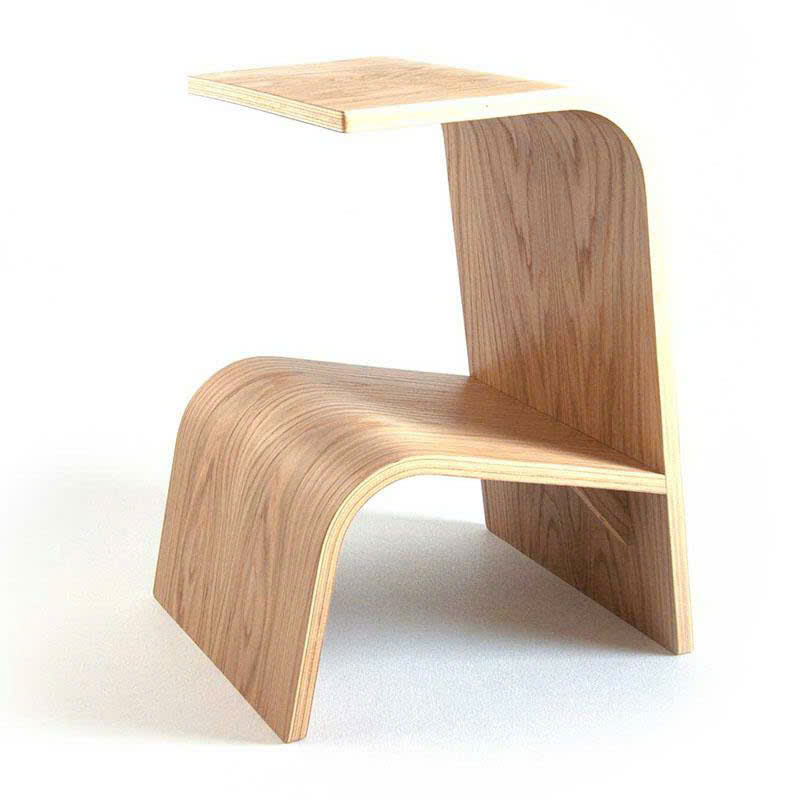

👉 Do you want to create artistic furniture products with soft, unique curves?

👉 In the modern interior industry, “curves” are the language of creativity and class.

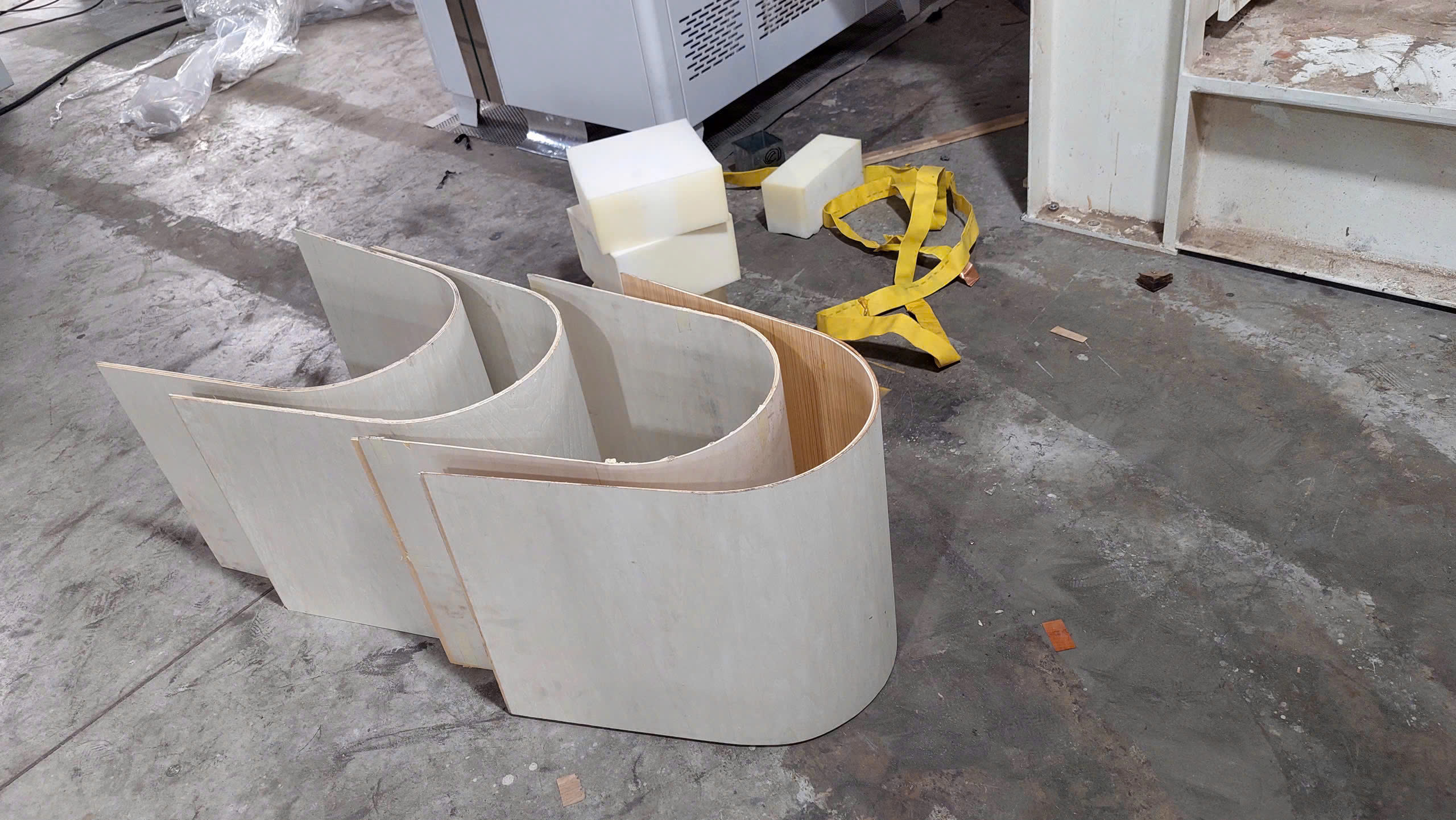

➡️ The solution just for you: Combo of 2 professional wood bending presses, helping to turn straight wood into classy curved works.

🏡 Thuong Nguyen is always proud to be a pioneer in technology, updating domestic and foreign furniture production trends, meeting the requirements as well as ensuring the quality of production services for large and small businesses.

⚙️ SPECIFICATIONS

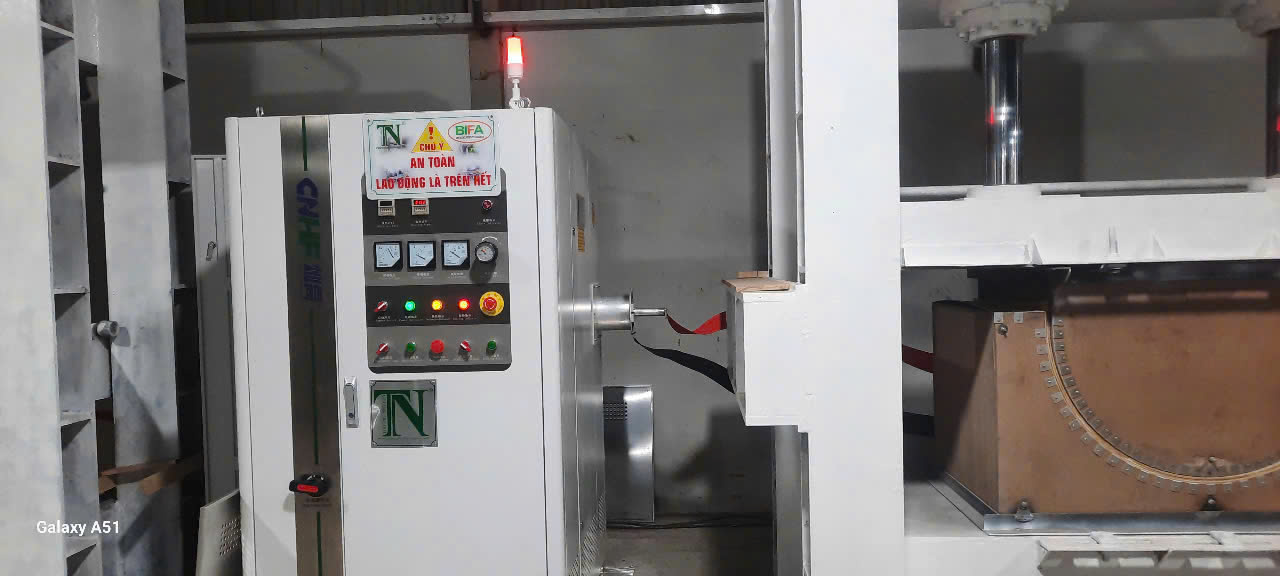

HIGH FREQUENCY CABINET

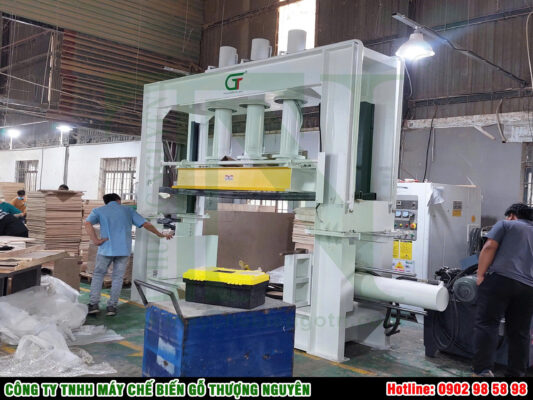

COLD PRESS

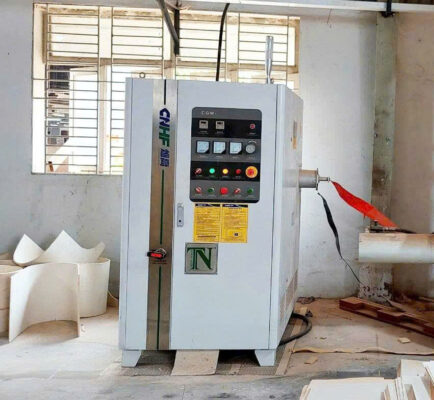

HIGH FREQUENCY CABINET – 100%
BRAND: CANGAO – ORIGIN CHINA
MODEL: CGM-30II
Power source: 3 phase, 50Hz, AC380V
Input voltage: 40KVA
Output voltage: 30KW
Rectifier type: 03 phase
Cooling: by cooling fan

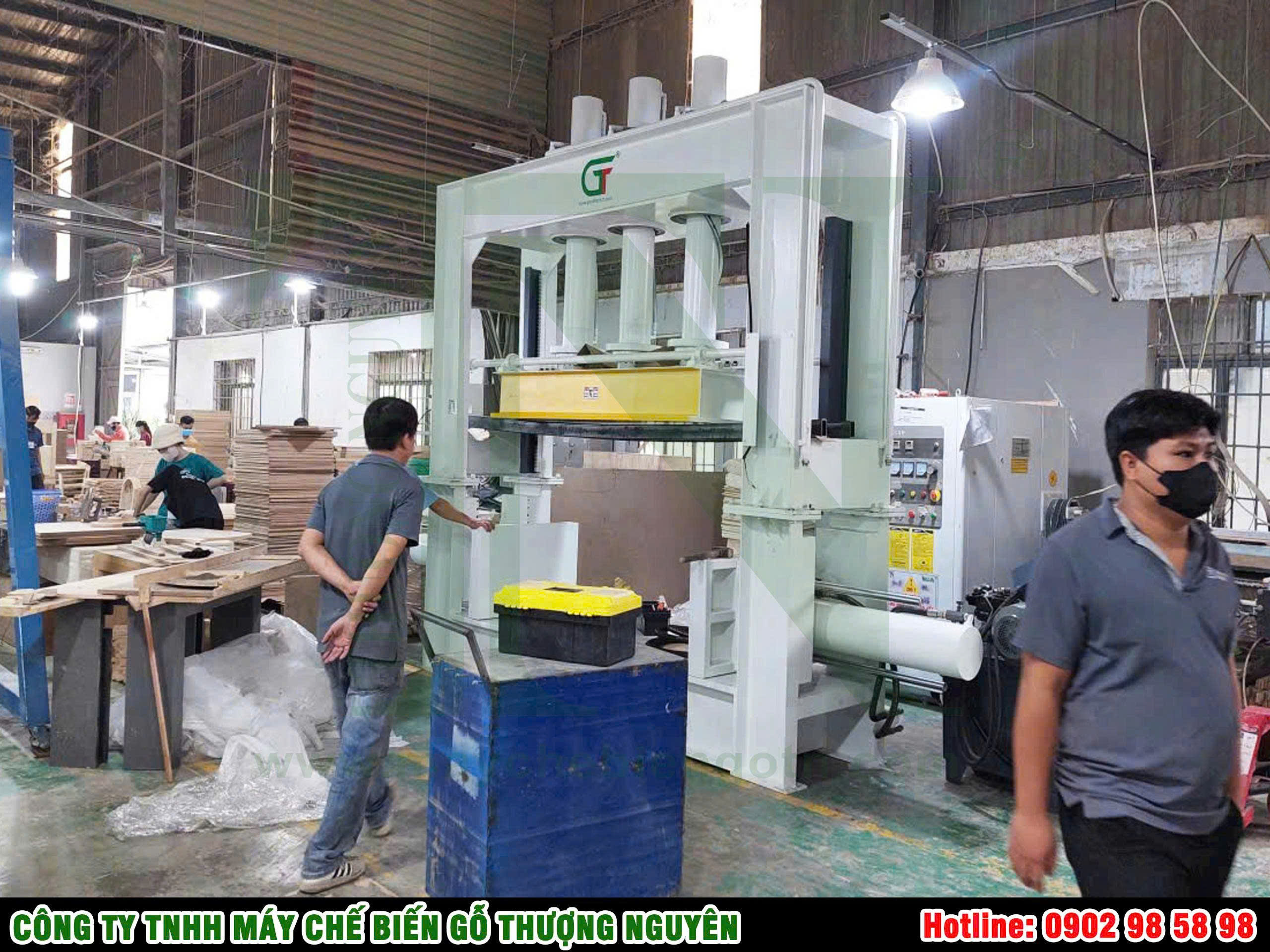

COLD PRESS – 100%
MADE IN CHINA
MODEL: TS-DSQ-120TSX
Working table: 1800×800mm
Maximum pressure of vertical cylinder: 120T/table
Maximum opening distance between top and bottom: 1800mm
Vertical cylinder stroke: 1200mm
Maximum pressure of side cylinder: 50T/stripSide cylinder stroke: 800mm
Motor power: 7.5kw
Structure: steel plate
Working mode: top to bottom pressure
Conventional circuit
Using high frequency machine
Two three-way presses one oil station to form one pull two
Oil station for one pull four oil stations
The press can be disassembled (convenient for storage)
Weight: 4800kg/set.

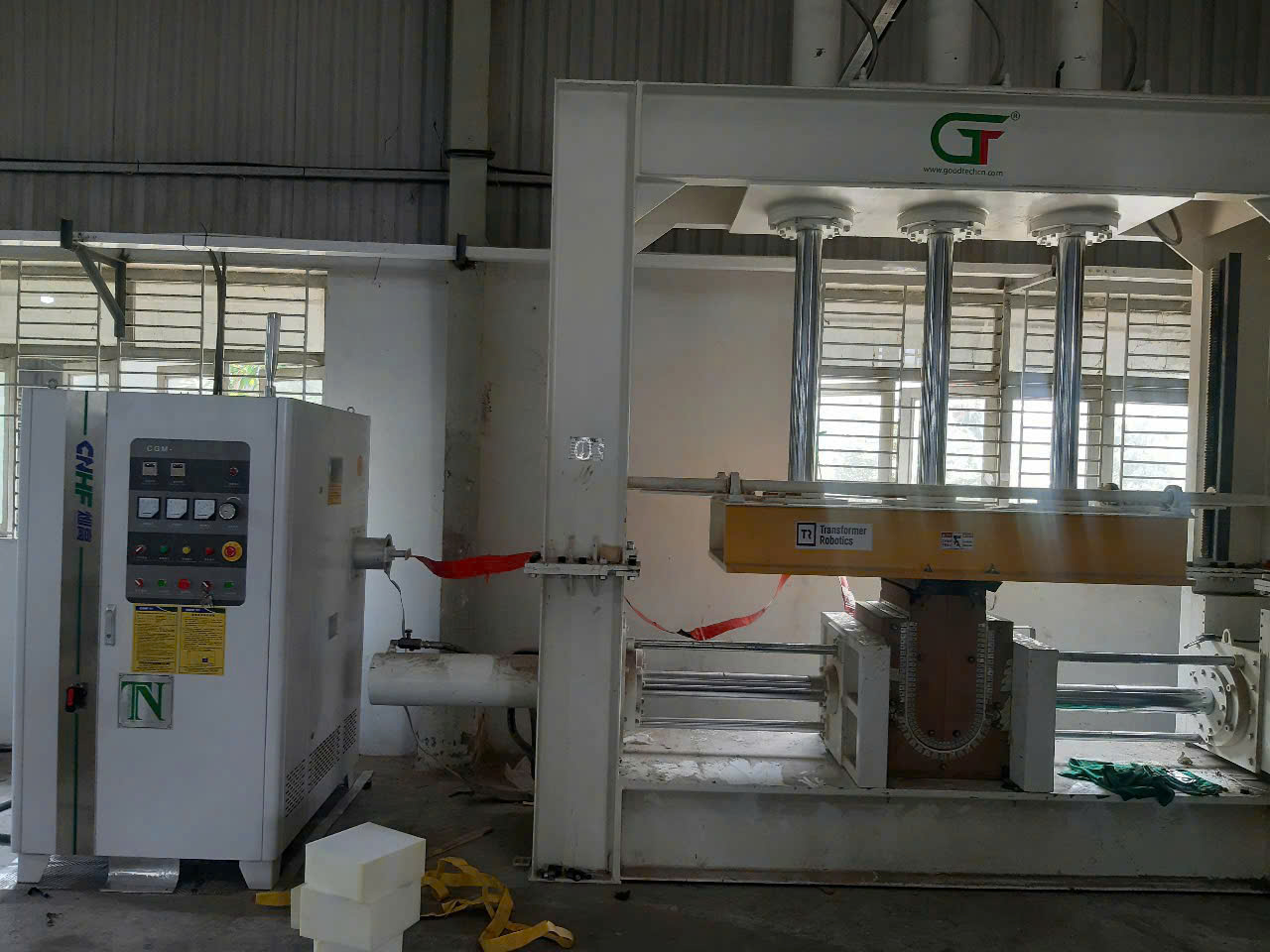

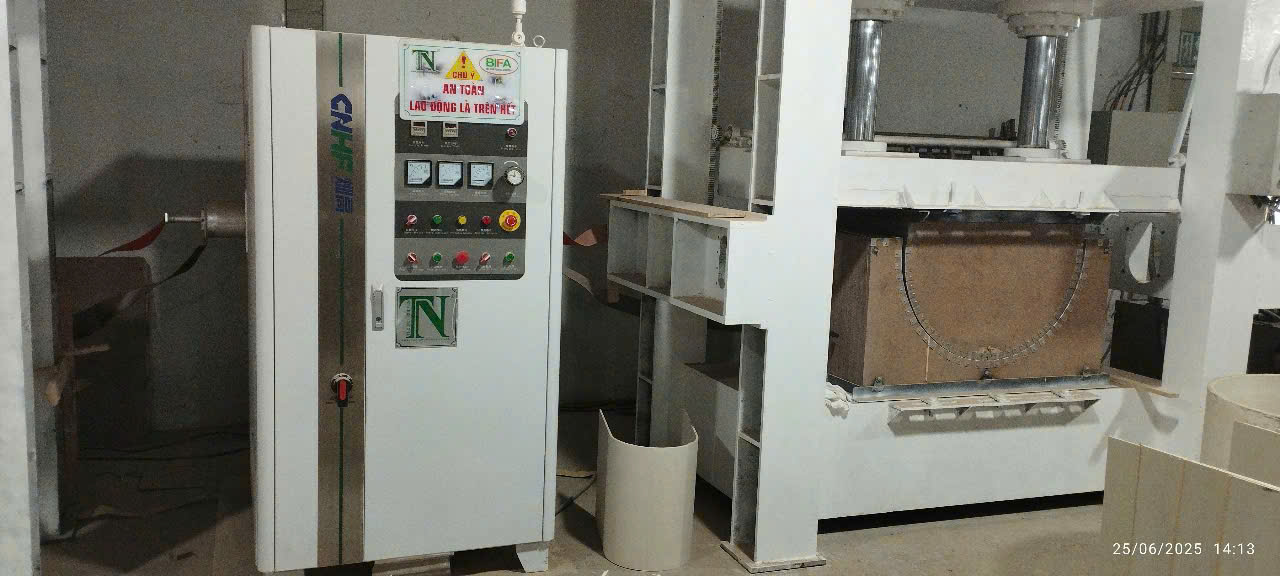

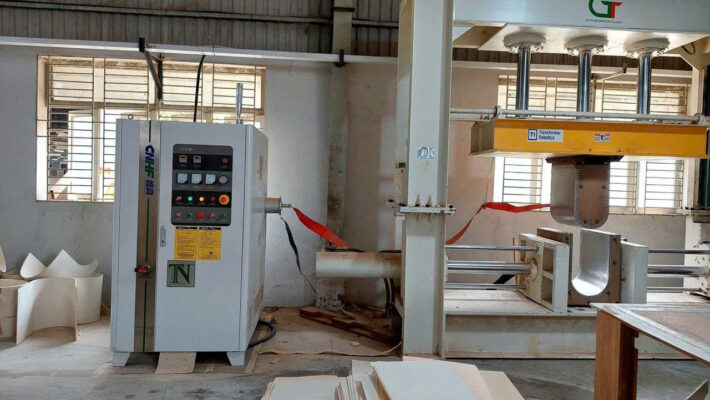

COMBO OF 2 SPECIALIZED WOOD BENDING MACHINES:

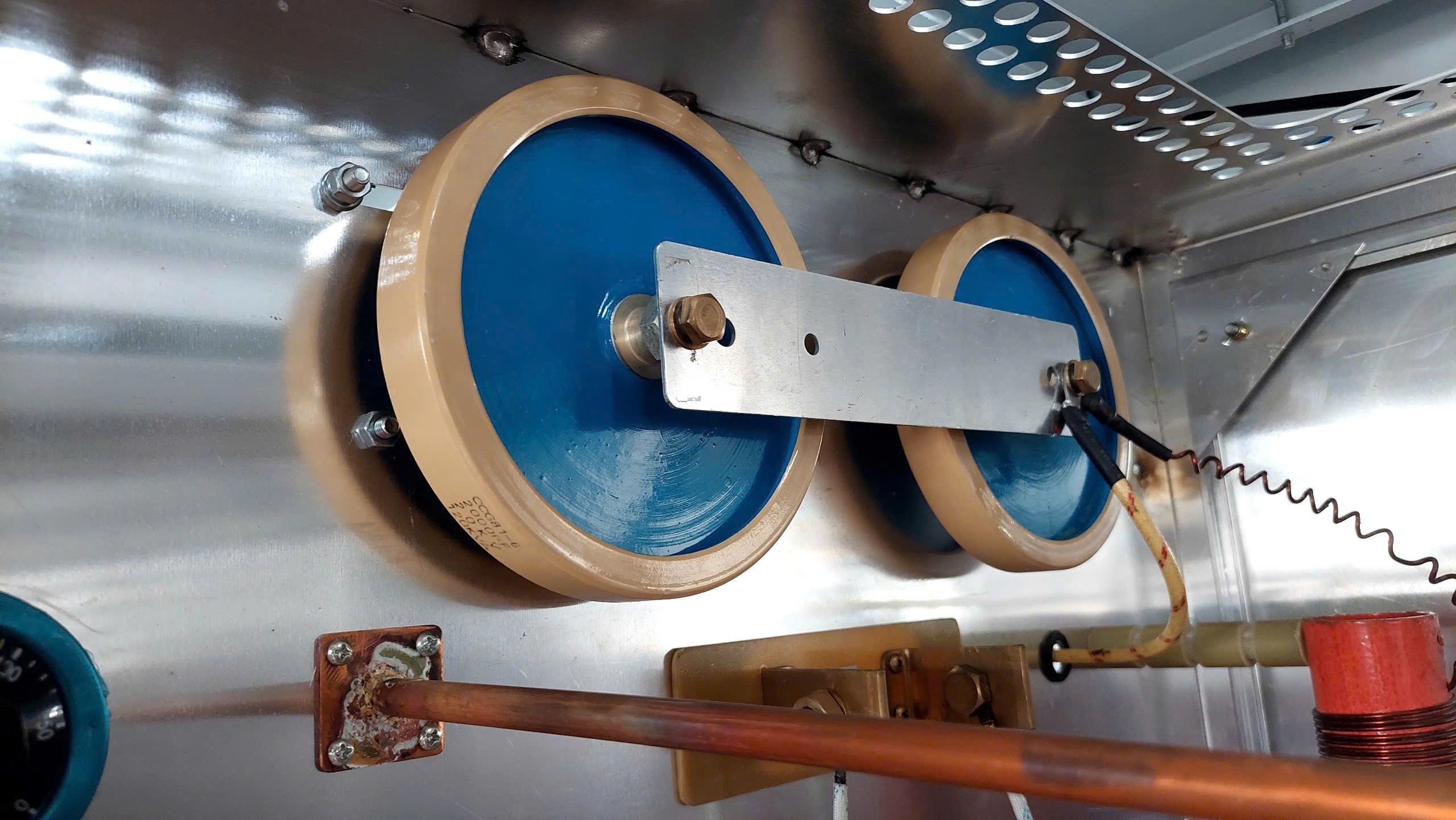

🔥 HIGH FREQUENCY CABINET (HEAT TREATMENT): Heating by high frequency waves

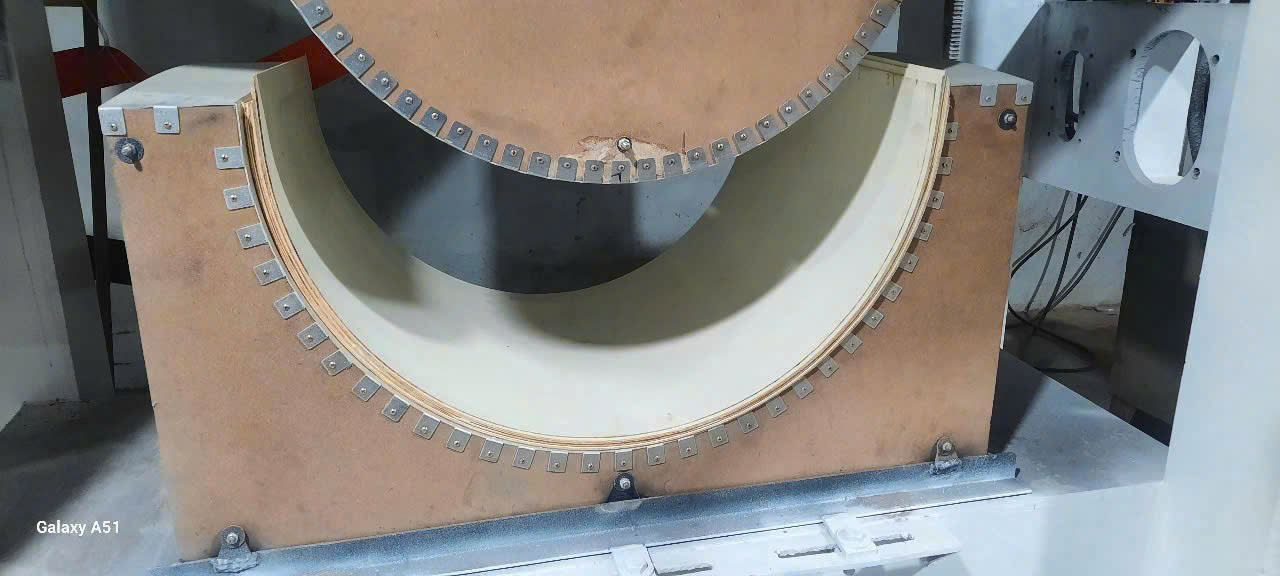

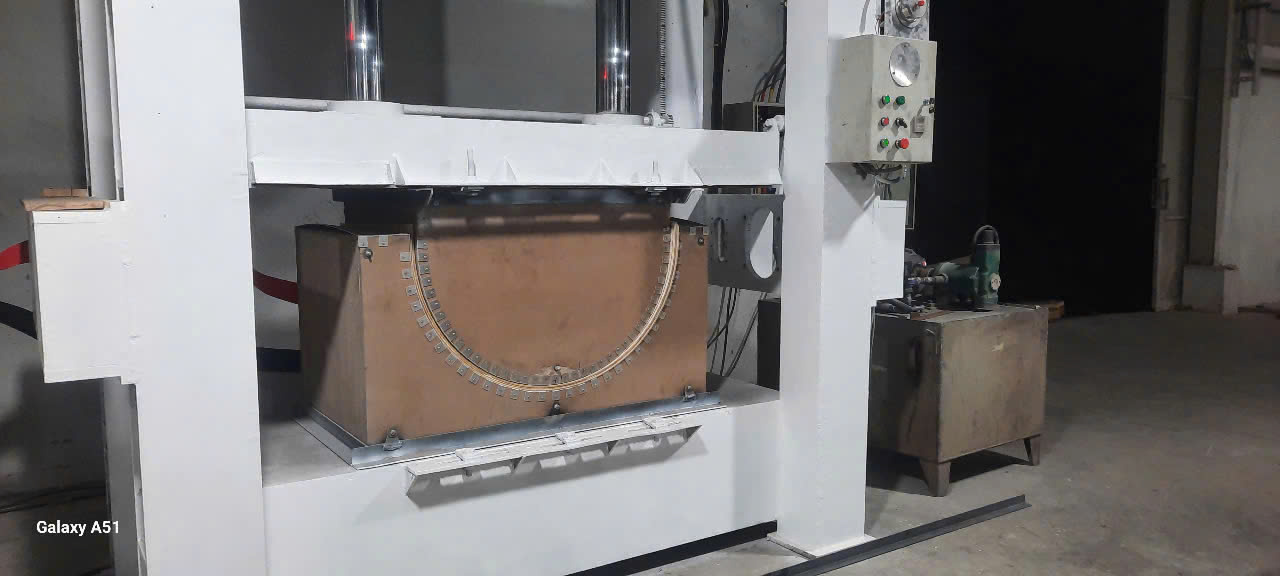

🧊 COLD PRESS MACHINE (WITH SHAPING MOLD): Using mold to keep the curved shape fixed during the cooling process, ensuring the accuracy – stability – durability of the product.
