MYP-S1W3 DISC SANDING MACHINE | MCB THUONG NGUYEN WOOD

SKU: MYP-S1W3
Produced by: GOODTEK
Country of origin: China
Status: 100%
Warranty: 12 months

Product details

🟧 DISC SANDING MACHINE – GOODTEK MYP-S1W3
100% Brand New | Brand: GOODTEK | Origin: China

🔧 PRODUCT OVERVIEW
The GOODTEK MYP-S1W3 is a high-end disc sanding machine equipped with a modern electric in/out adjustment system, enabling fast, accurate, and user-friendly operation. Designed to handle wide and deep wooden workpieces, the machine combines disc sanding with sponge sanding heads to deliver exceptional surface quality – smooth, even, and ready for finishing. It is an ideal solution for industrial furniture production lines.

⚙️ KEY TECHNICAL SPECIFICATIONS
➤ Working Capacity:

Workpiece width: 350 – 800 mm
Maximum workpiece depth: 80 mm
Working table height: 850 mm
Feeding speed: 0 – 12 m/min
Size adjustment: Electric in/out control

➤ Motor Configuration:

Main sanding frame motors: 2.2 kW × 2, 1400 rpm – 50Hz
Sanding frame oscillation motor: 0.12 kW × 1
Sponge sanding head motor: 1.5 kW × 1, 1400 rpm – 50Hz
Power supply: 380V – 50Hz
Total power: 12.5 kW

➤ Dimensions & Weight:

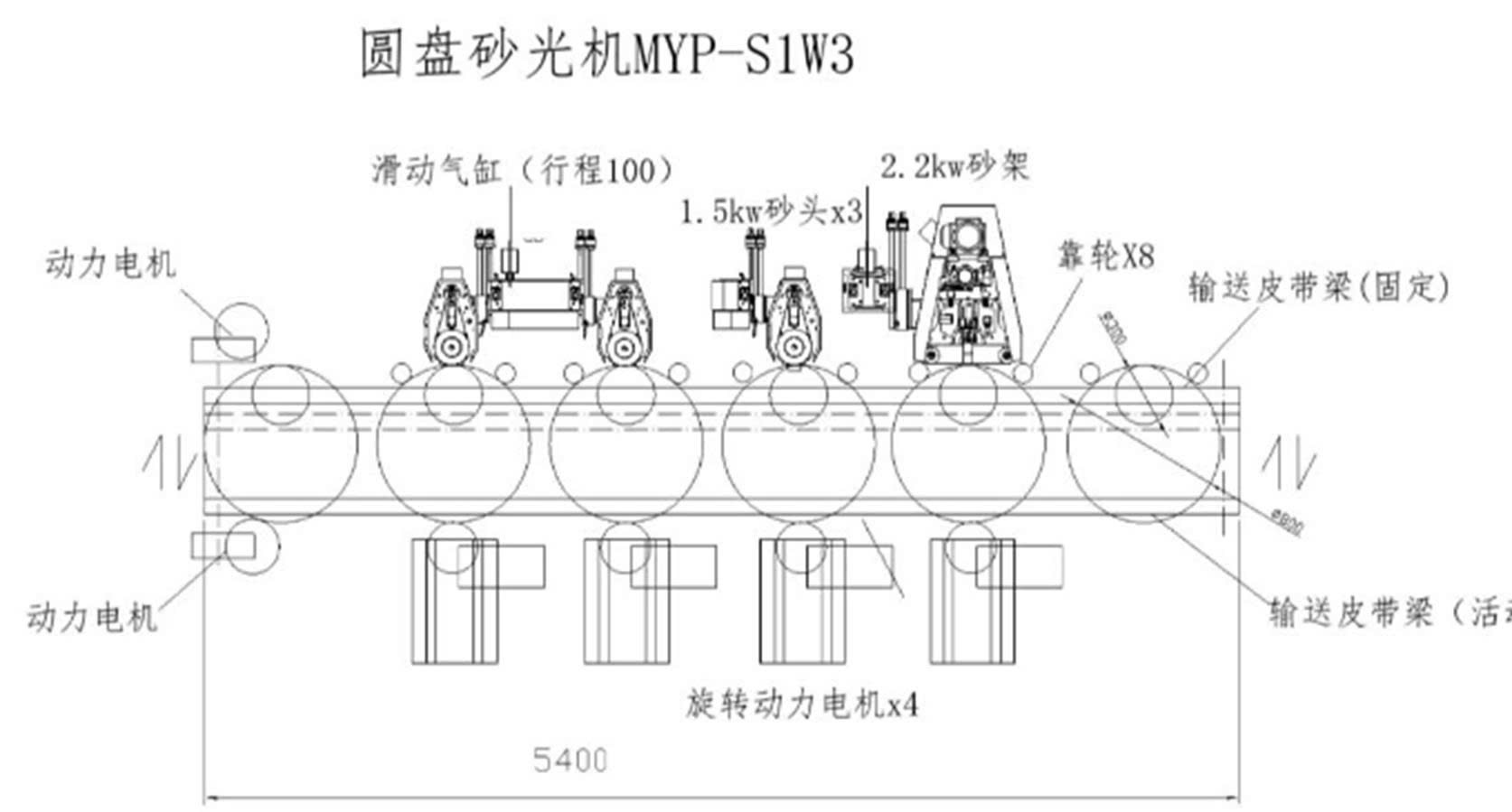

Overall machine size: 5500 × 2000 × 1500 mm
Machine weight: 2500 kg
Dust extraction port: Ø100 mm

🌟 HIGHLIGHT FEATURES
✔️ Electric size adjustment system for fast and precise setup
✔️ Specially designed for wide workpieces with high sanding quality

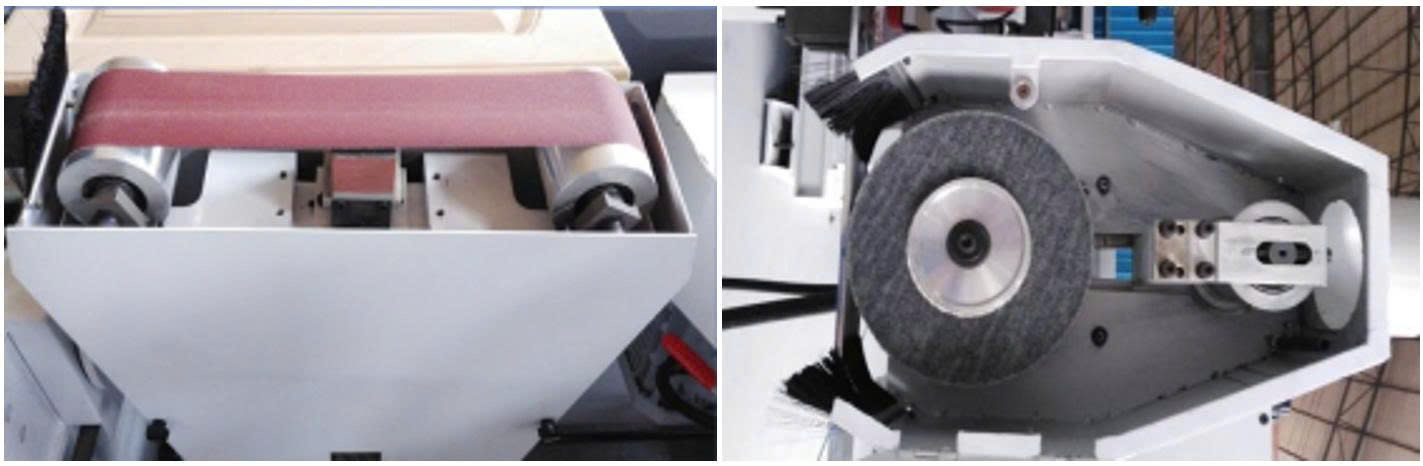

✔️ Combines disc and sponge sanding for ultra-smooth, evenly toned surfaces
✔️ Strong, industrial-grade build ensures reliable operation in continuous production
✔️ User-friendly design with easy maintenance

🎯 IDEAL APPLICATIONS

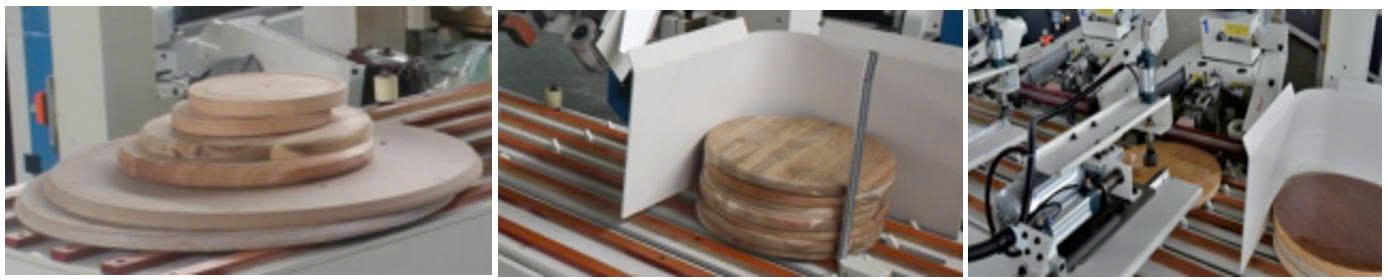

Sanding large wooden panels such as cabinet doors and tabletops before or after priming
Suitable for industrial PU coating lines
Ideal for furniture manufacturers, industrial wood processing facilities, and woodworking workshops
