MVP 31.14 flex laminator | MCB GO THUONG NGUYEN

SKU: MVP 31.14 flex
Produced by: MVP
Country of origin: Austria
Status: 100%
Warranty: 12 months

Product details

🎉 INTRODUCING MVP 31.14 FLEX MEMBRANE PRESS MACHINE – 100% IMPORTED FROM EUROPE

BRAND: MVP – ORIGIN: AUSTRIA

MODEL: MVP 31.14 FLEX

🌟 THE PERFECT SOLUTION FOR VENEERING, BENDING, LAMINATING, AND SHAPING SPECIAL WOOD PARTS

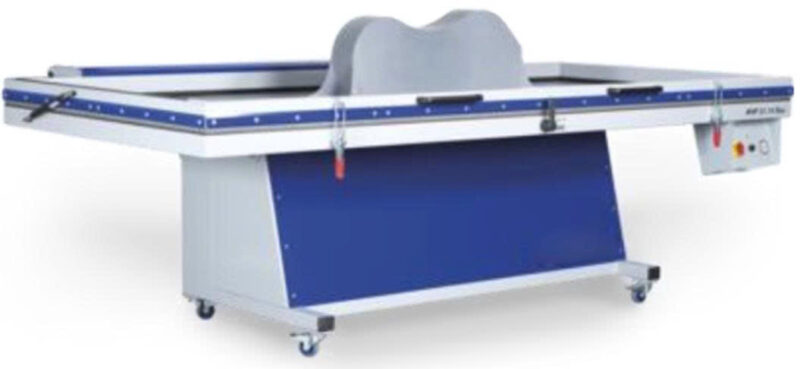

The MVP 31.14 Flex membrane press machine is the ideal choice for furniture workshops requiring high precision. Utilizing advanced vacuum technology, the rubber membrane naturally forms around the workpiece, creating precise pressure for perfect material bonding – ensuring sharp, strong, and peel-resistant finished products.

⚙️ TECHNICAL SPECIFICATIONS:

Power supply: 3 x 400V – 50Hz
Rotary table size: 3290 × 1560 mm
Inner frame size: 3170 × 1440 mm
Rubber membrane thickness: 2 – 2.5 mm, stretchable up to 700%
Rotary vane vacuum pump U5.40 – Capacity 40 m³/h
Vacuum tank: 100L
Machine dimensions: 3370 × 1865 × 1100 mm
Packing dimensions: 3360 × 760 × 2020 mm
Machine weight: 480 kg

🚀 OUTSTANDING FEATURES:

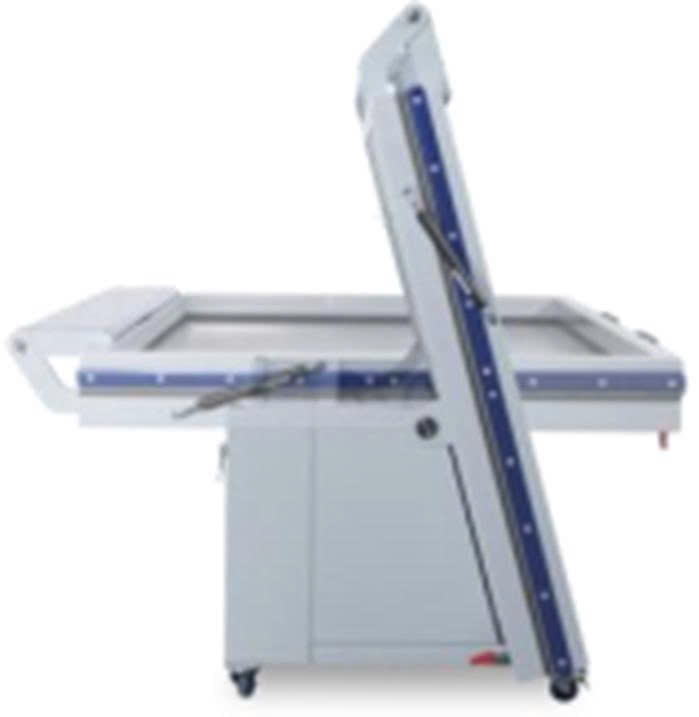

✅ TILTING ROTARY TABLE – SPACE-SAVING DESIGN
Flexible rotating worktable allows compact machine setup without sacrificing efficiency.

✅ HPL WORKSURFACE WITH VACUUM CHANNELS
Worktable surface designed with vacuum channels ensures even negative pressure – ideal for handling larger workpieces.

✅ OIL-LUBRICATED VACUUM PUMP
Delivers strong pressing force and quickly reaches optimal vacuum levels. Ensures durability and peak performance, even at altitudes above 800m.

✅ PRESS FRAME WITH STRETCHABLE MEMBRANE
Robust steel frame paired with a 700%-stretch industrial rubber membrane allows efficient processing of large, tall workpieces.

✅ SIMPLE AND USER-FRIENDLY OPERATION
Straightforward control panel offers intuitive operation for all users.
