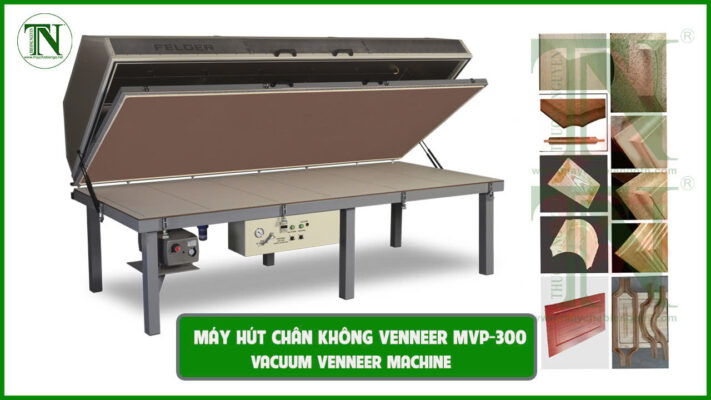

🎉 INTRODUCING THE MVP 300 MEMBRANE PRESS MACHINE – 100% IMPORTED FROM AUSTRIA

MODEL: MVP 300 – BRAND: MVP – ORIGIN: AUSTRIA

🔥 THE ULTIMATE SOLUTION FOR PRESSING VENEER, CURVED PANELS, AND LAMINATED MATERIALS – STRONG BONDING – FASTER DRYING TIME

The MVP 300 membrane press is a perfect solution for furniture manufacturers needing to press veneers, laminated surfaces, or curved components with precision.
Using advanced vacuum technology, the rubber membrane forms tightly around the workpiece, delivering consistent and powerful pressure. Combined with heated hood, the machine significantly reduces glue drying time—enhancing both productivity and final product quality.

⚙️ TECHNICAL SPECIFICATIONS

• Power Supply: 3 x 400V – 50Hz

• Industrial Rubber Membrane: 8.3A – 3mm thick

• Operating Pressure: 9000 kg/m² (0.9 Bar)

• Max Temperature: 50°C

• Vacuum Pump: Becker Rotary Vane Type VT 4.25 – 25 m³/h

• Motor Power: 0.75 kW – 3 Phase

• Working Area: 3000 × 1500 mm

• Machine Dimensions: 3050 × 1500 × 1400 mm

• Weight: 360 kg

🌟 KEY FEATURES

✅ HEATED COVER – FASTER GLUE DRYING
The heating system under the hood accelerates glue curing time, optimizing the production process.

✅ HIGH-CAPACITY VACUUM PUMP – STRONG PRESSURE
Equipped with Becker VT 4.25 pump, providing vacuum pressure up to 0.9 Bar, ensuring consistent, powerful pressing force.

✅ VACUUM BLOCK-INTEGRATED WORKTABLE
The working surface is integrated with vacuum blocks to ensure even pressure—especially useful for large or complex workpieces.

🧱 APPLICATIONS

• Pressing veneer, laminate, PVC onto MDF or HDF

• Pre-forming curved wooden parts

• Laminating various surface materials

• Ideal for high-end furniture workshops and interior manufacturers

📞 CONTACT US NOW for expert consultation and the best pricing offer!

MVP 300 – EUROPEAN QUALITY – PRECISION PRESSING DOWN TO THE SMALLEST DETAIL!
