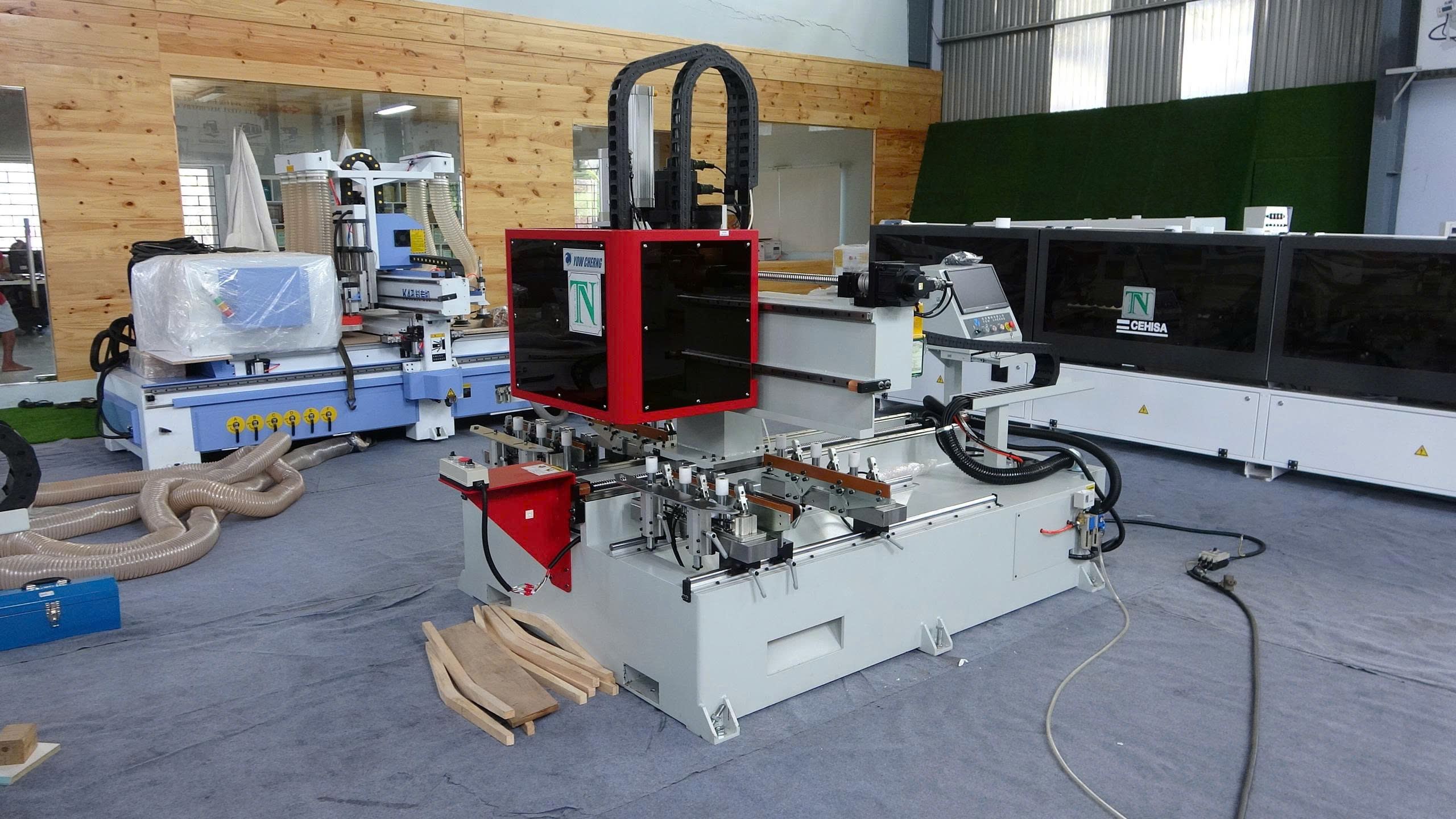

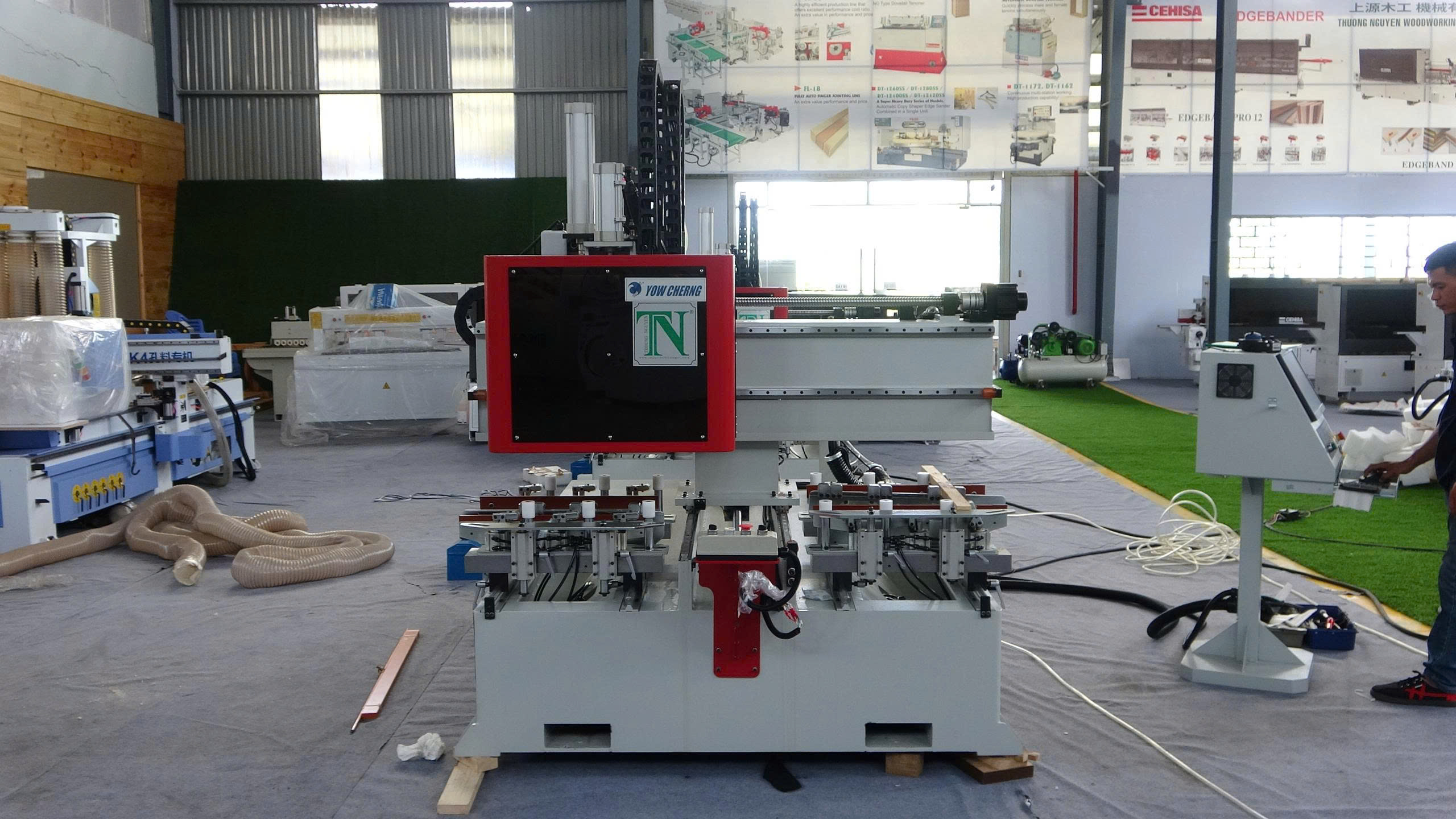

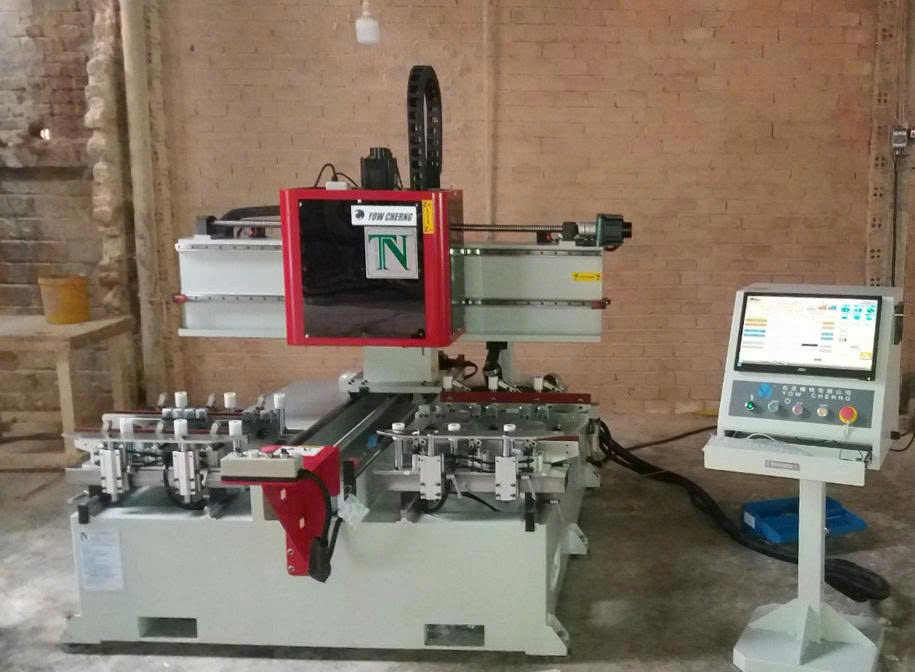

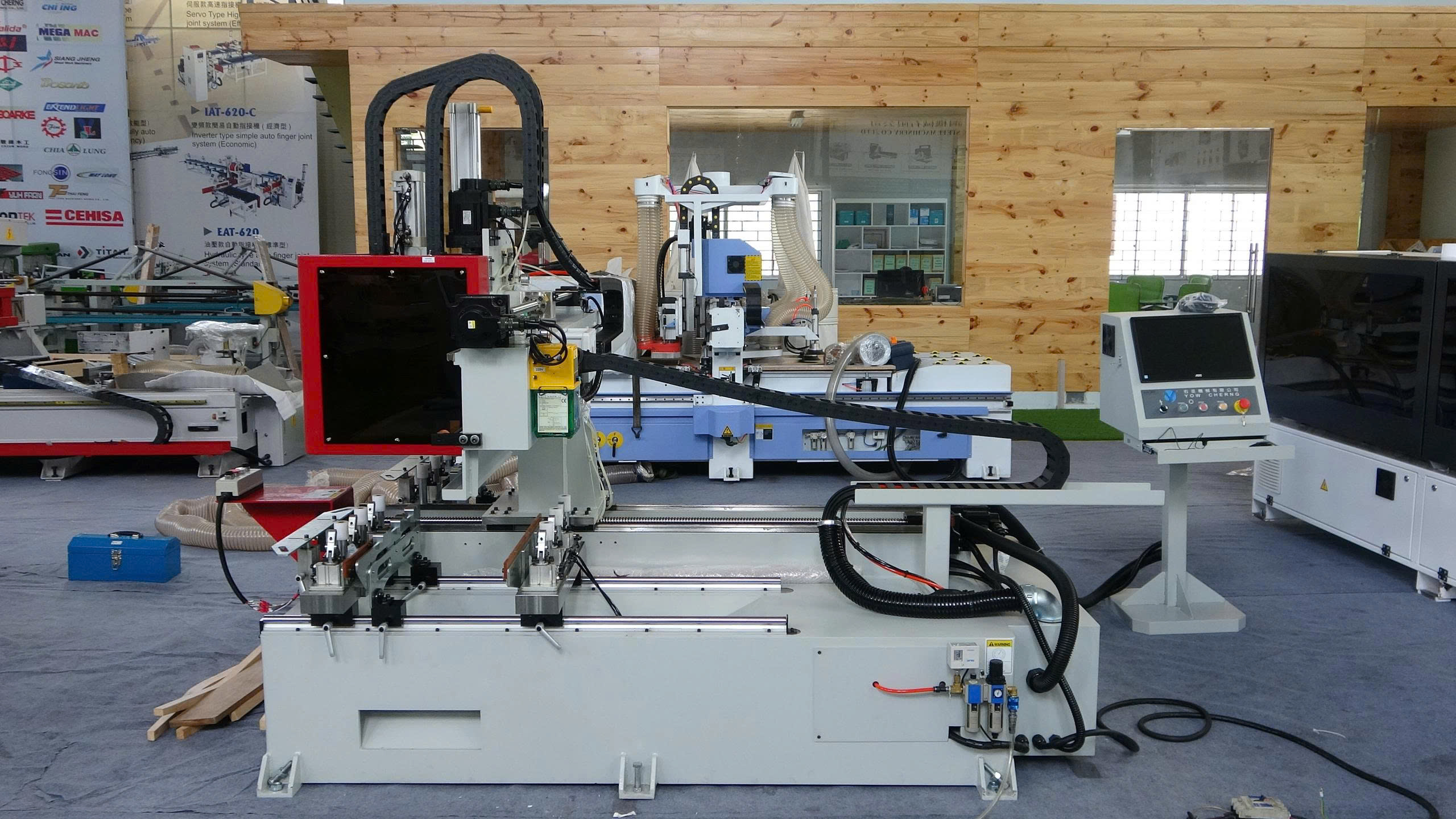

MULTI-AXIS CNC MORTAR MACHINE | TWO TABLES | DOM-3 / DOM-3D | MCB GO THUONG NGUYEN

  • SKU: DOM-3 / DOM-3D
  • Produced by:
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

CHARACTERISTIC:

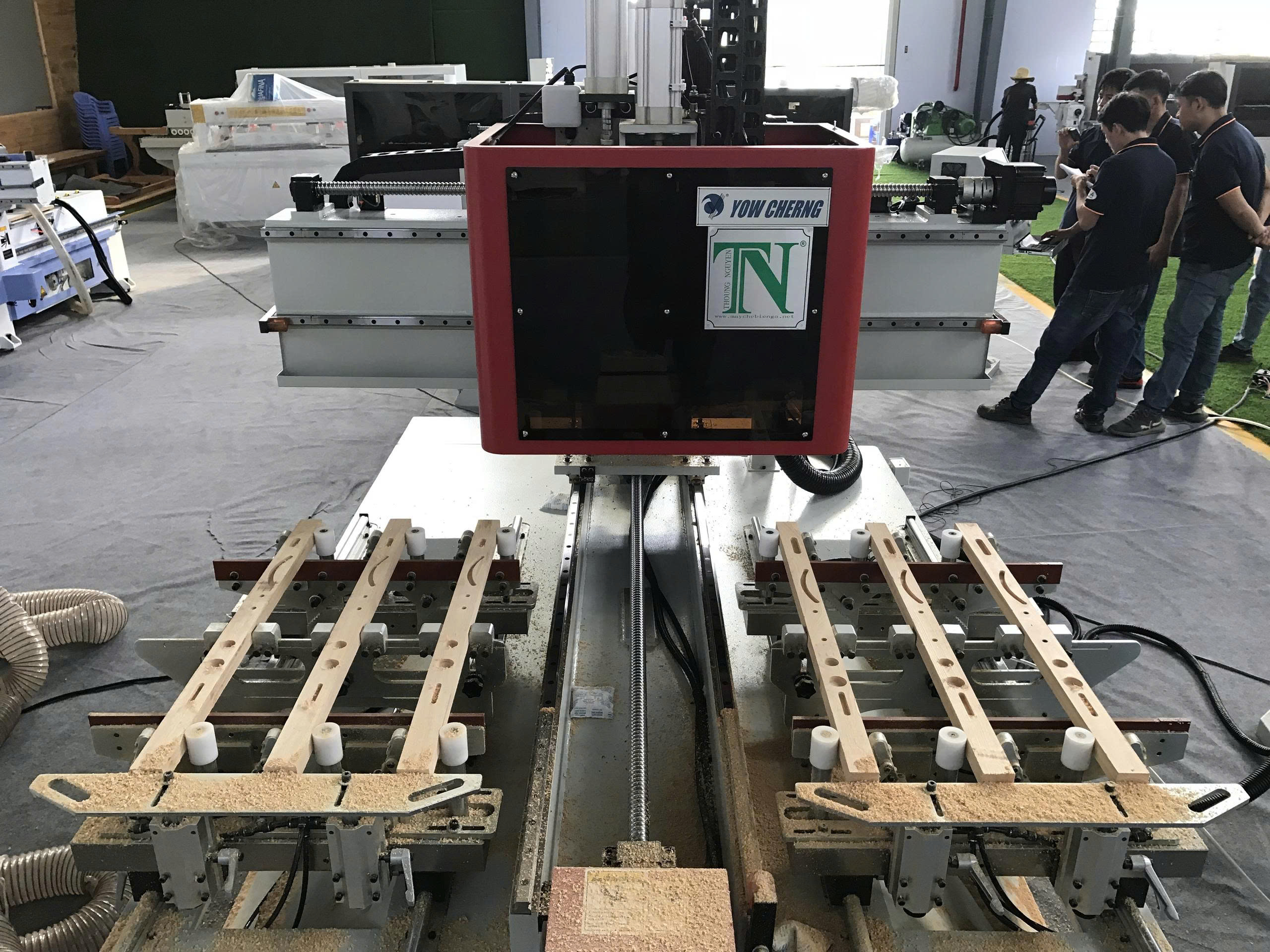

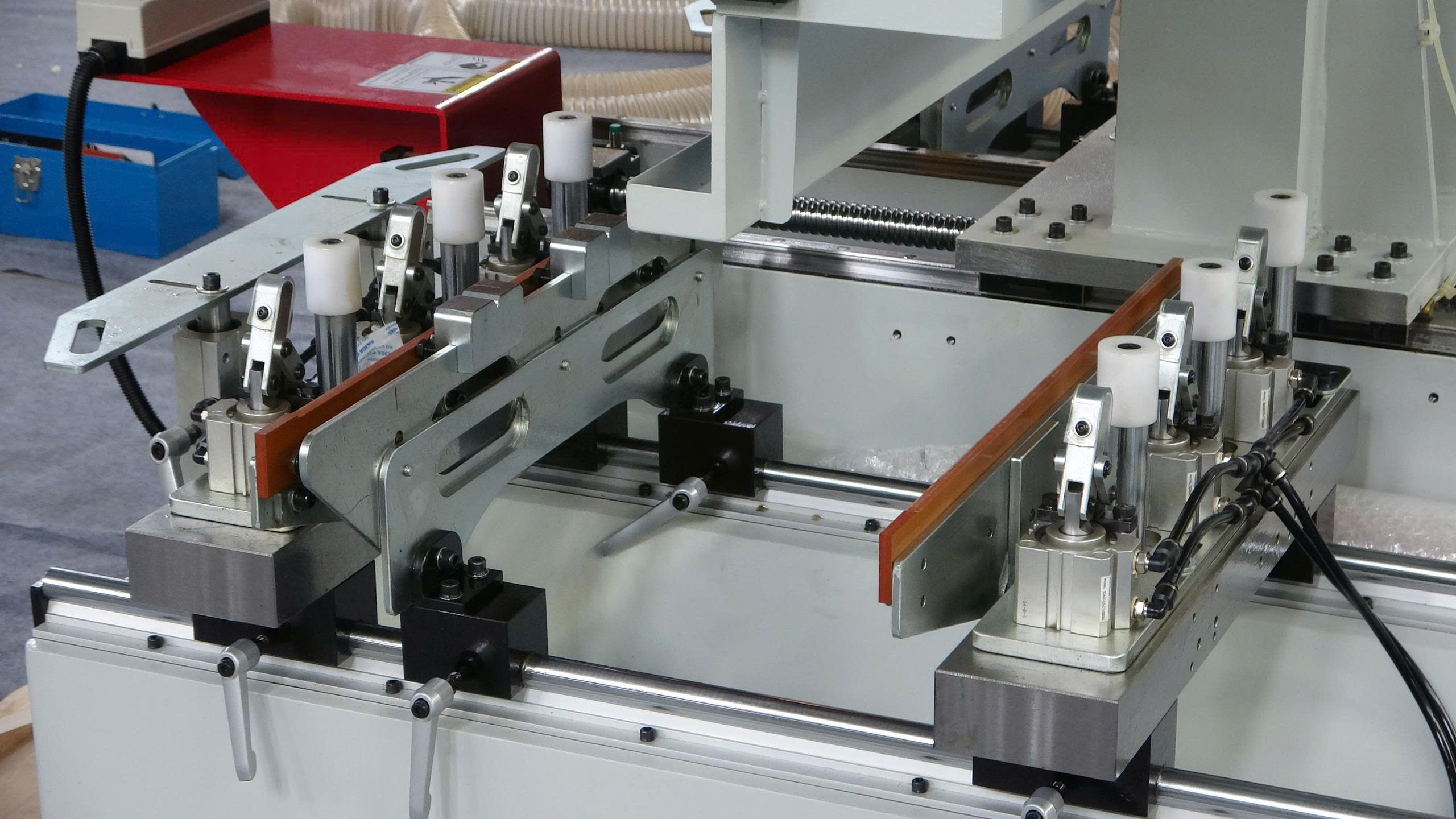

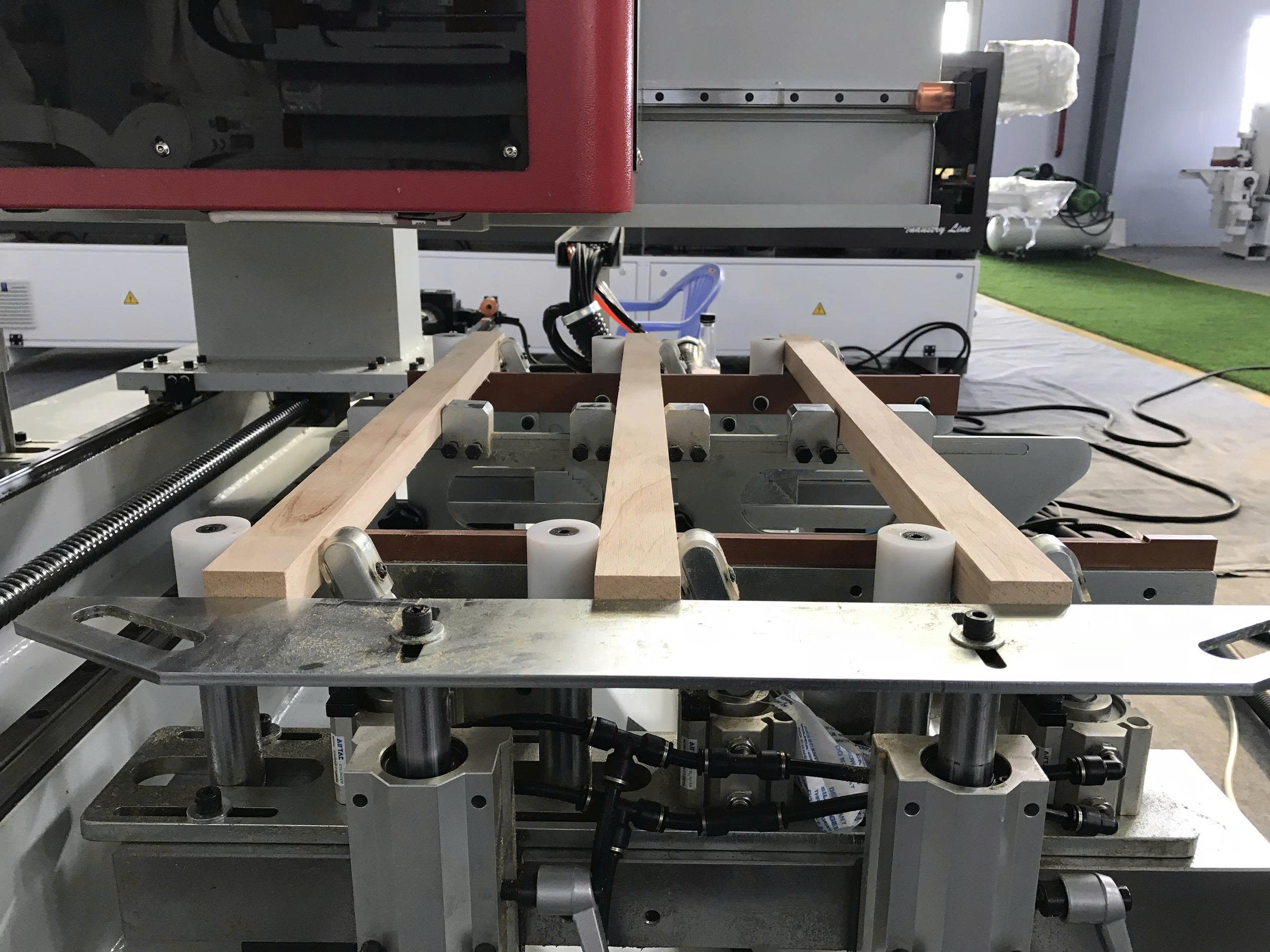

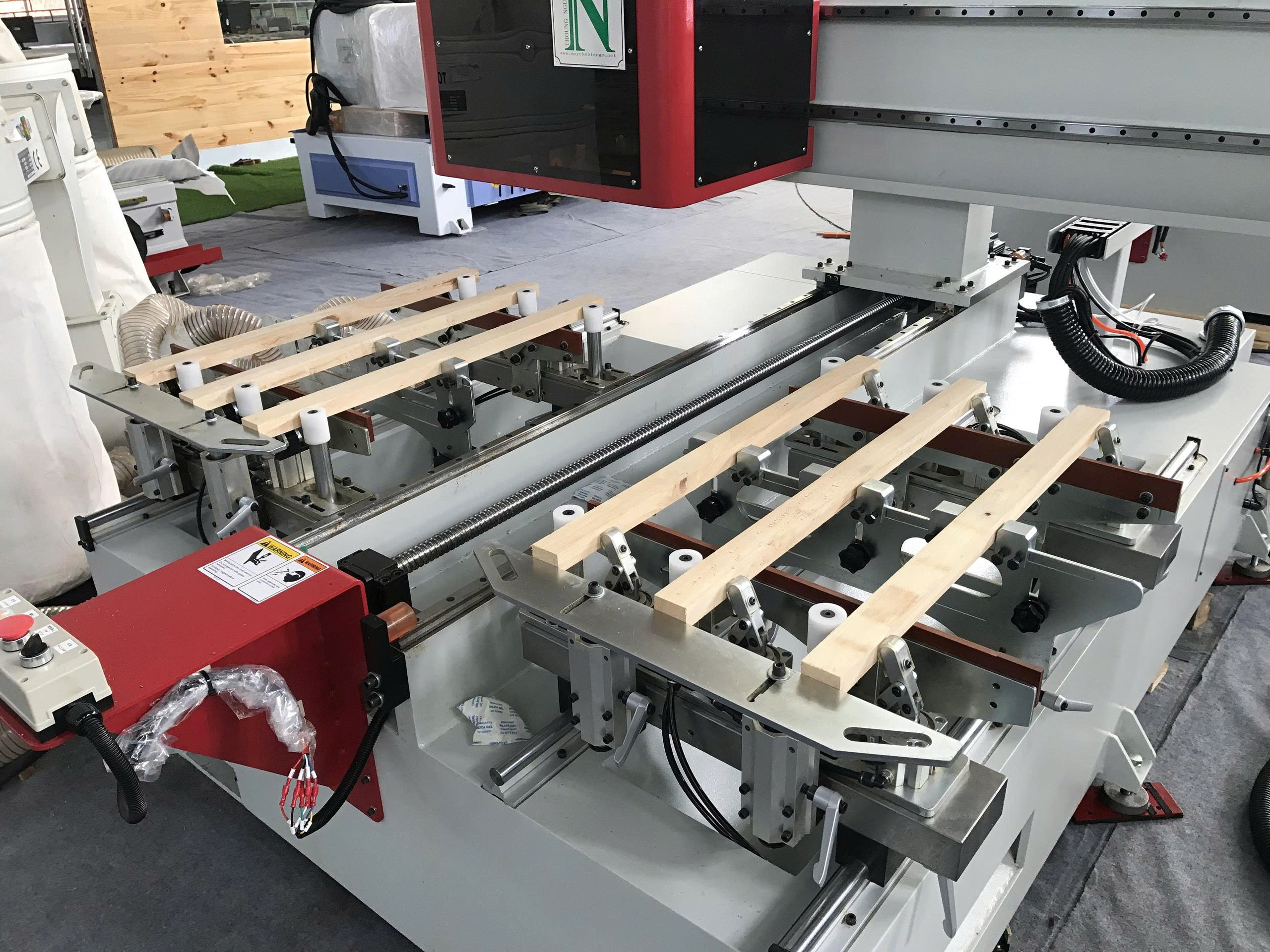

  • Equipped with two desks, increasing work productivity.
  • 3 axes are controlled at the same time. Each axis is controlled by Inverter.

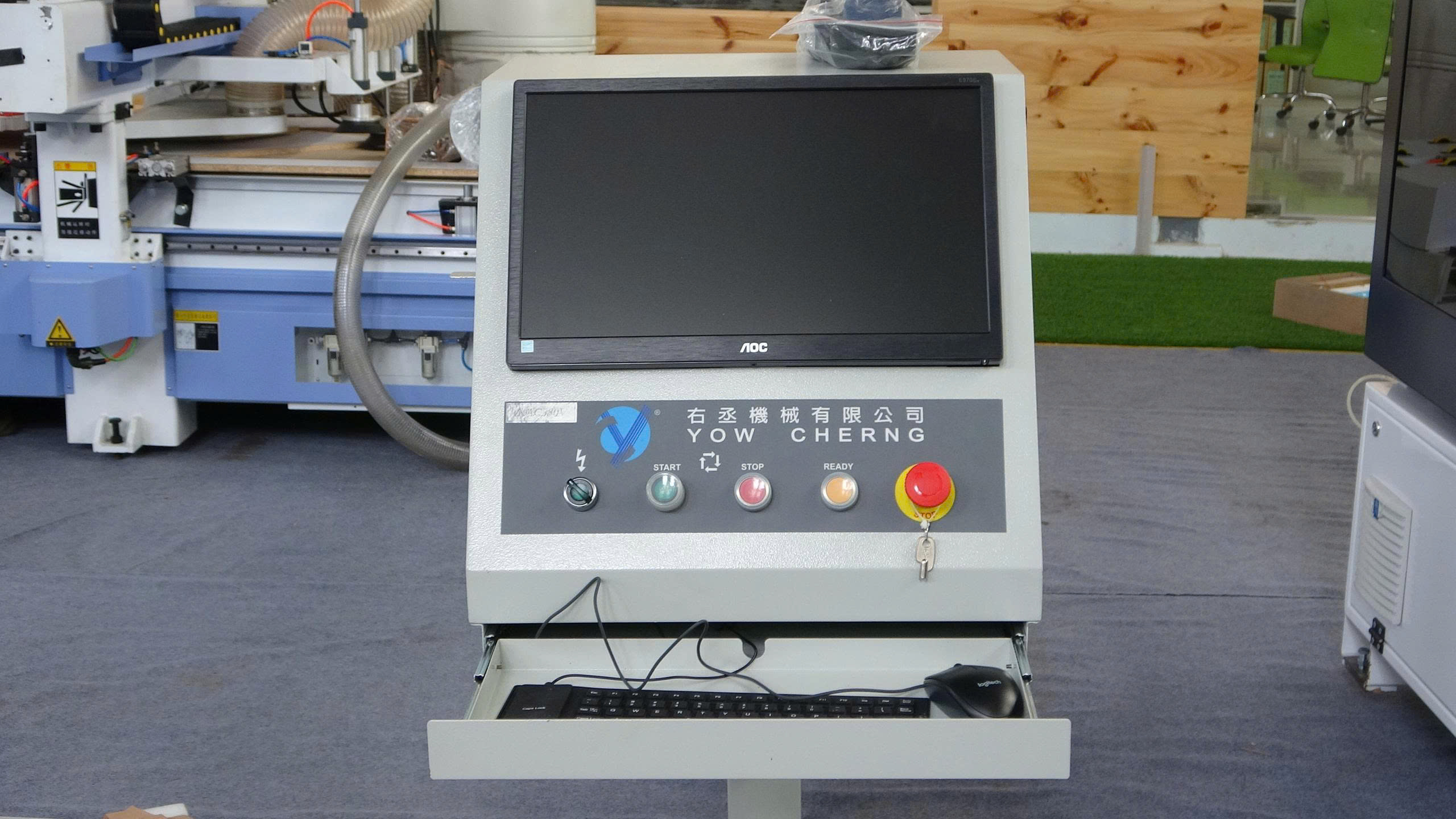

  • CNC controlled, convenient and easy to use.
  • X-Y-Z axis moves by servo motor, with high speed and precision.

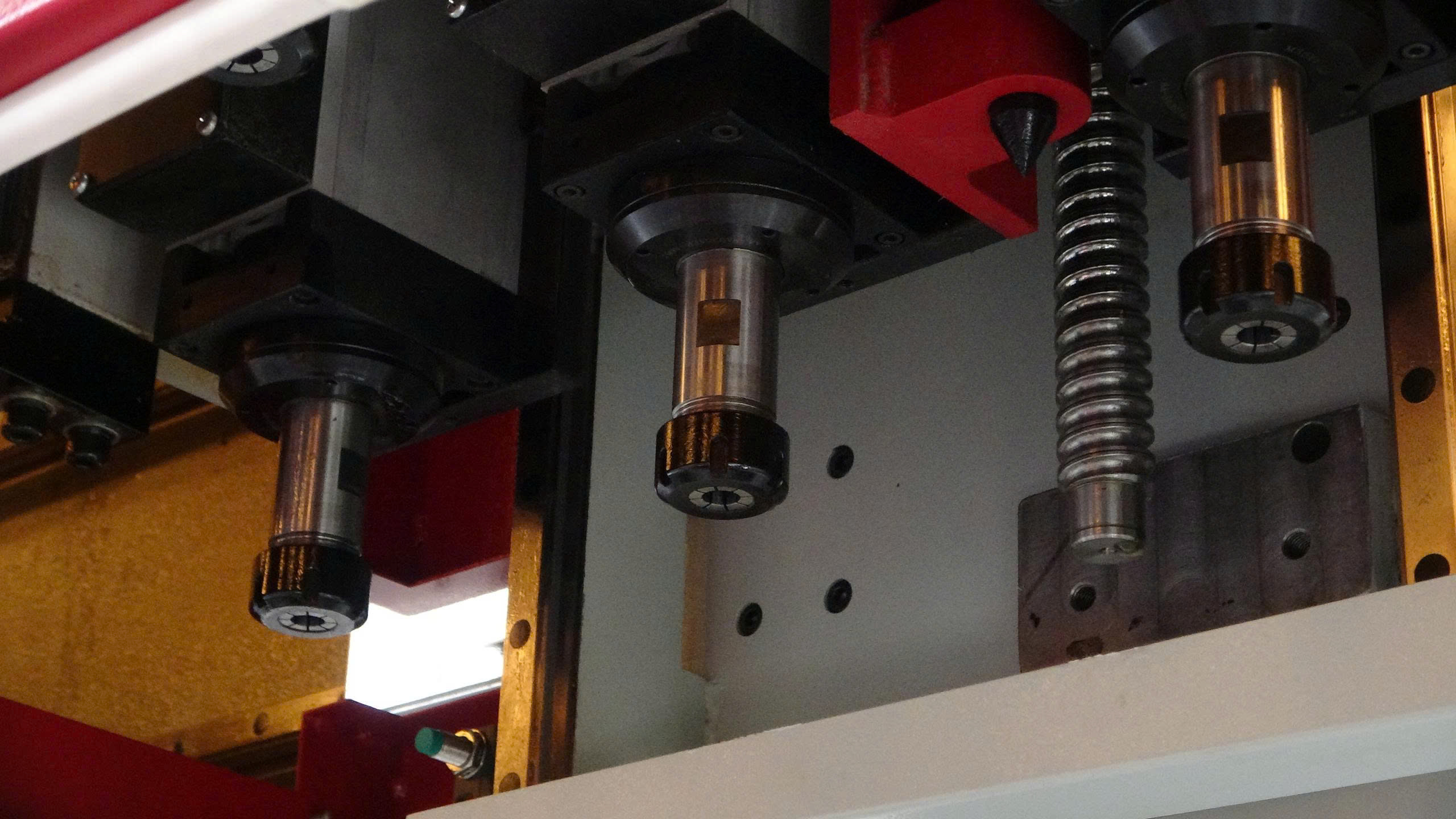

  • Can quickly change 2 sets of axes, allowing to quickly process two different sizes. (DOM-3D)

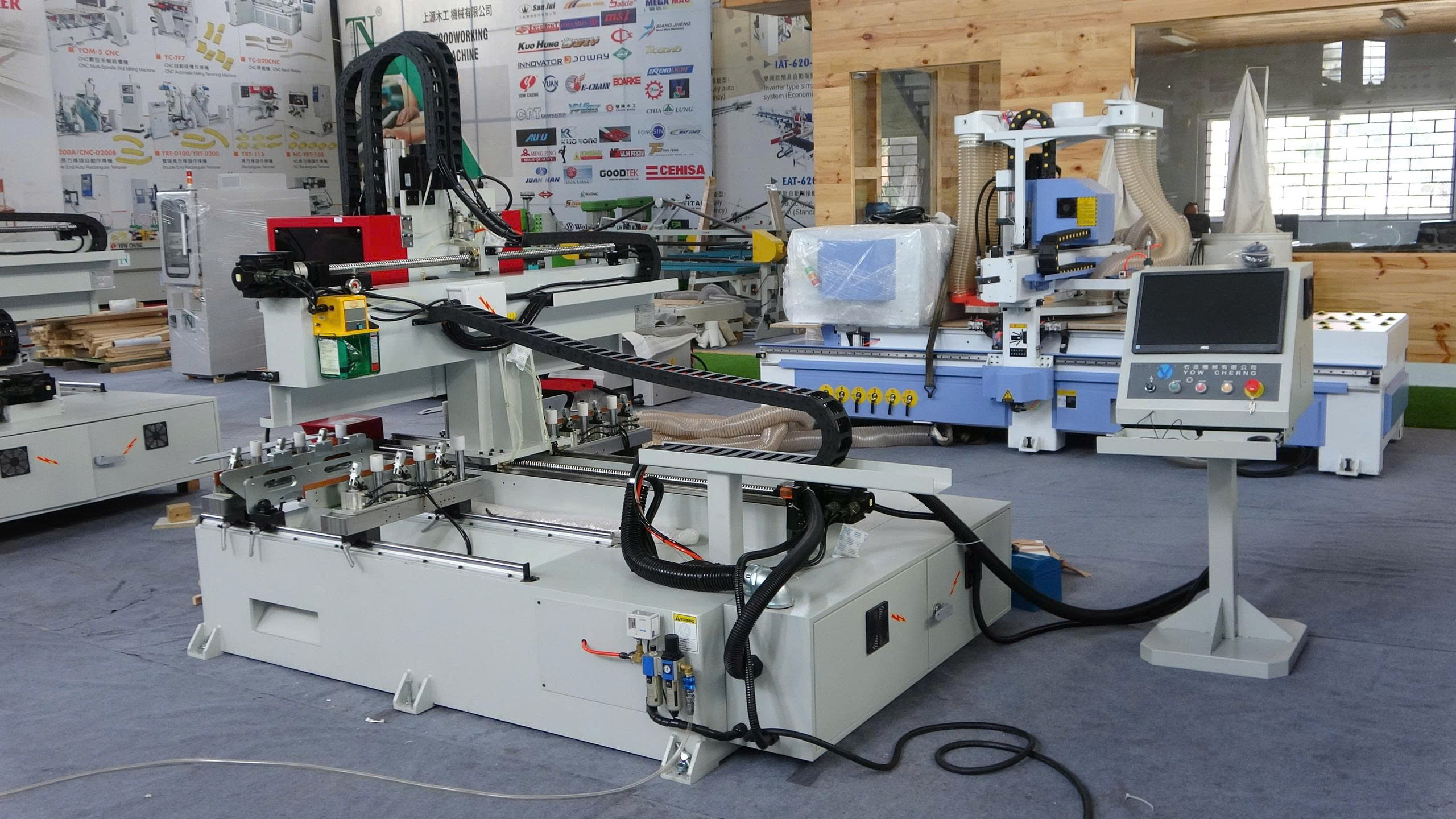

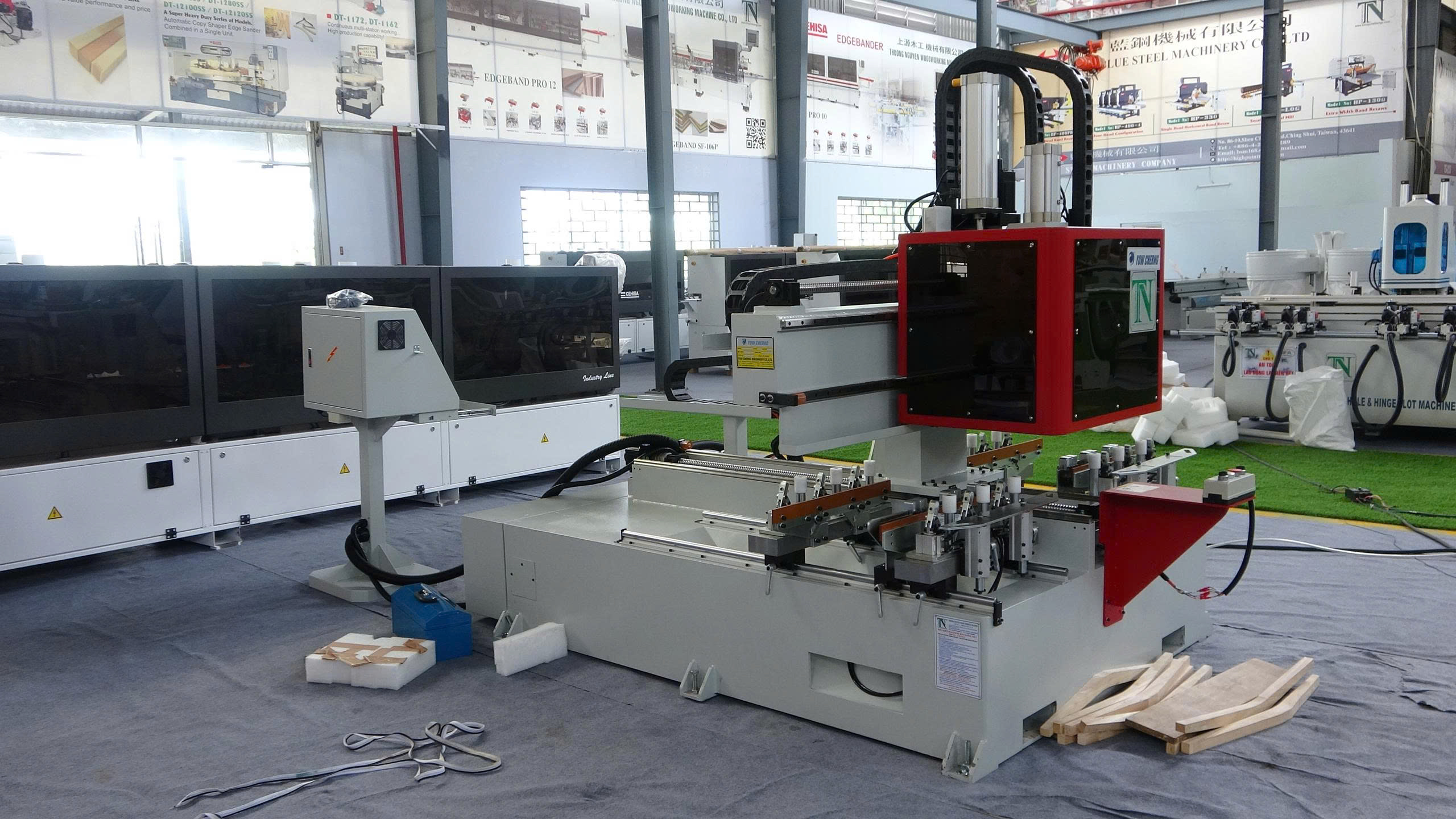

CNC Mortising Machine | 6 Axis | 2 Worktables | DOM-3D CNC Mortising Machine | 3 Axis | 2 Worktables | DOM-3



SPECIFICATIONS: CNC TWO WORK TABLE MORTIZING MACHINE

MODEL DOM-3 DOM-3D
Maximum workpiece size  1200 x 85 x 100 mm  1200 x 85 x 100 mm
Number of axles 3 trục 6 trục
Maximum mortise width 85 mm 85 mm
Maximum mortise depth 40 mm 40 mm
Drilling depth 100 mm 100 mm
Shaft speed 16000 R.P.M 16000 R.P.M
Shaft motor 3 HP x3 6 HP x6
Axis X 1.5 kw x1 1.5 kw x1
Axis Y 1 kw x1 1 kw x1
Axis Z 1 kw x1 1 kw x1
Total capacity 10.25 kw (13.7 HP) 17 kw (22.7 HP)
Compressed air 6 kg/cm2 6 kg/cm2
