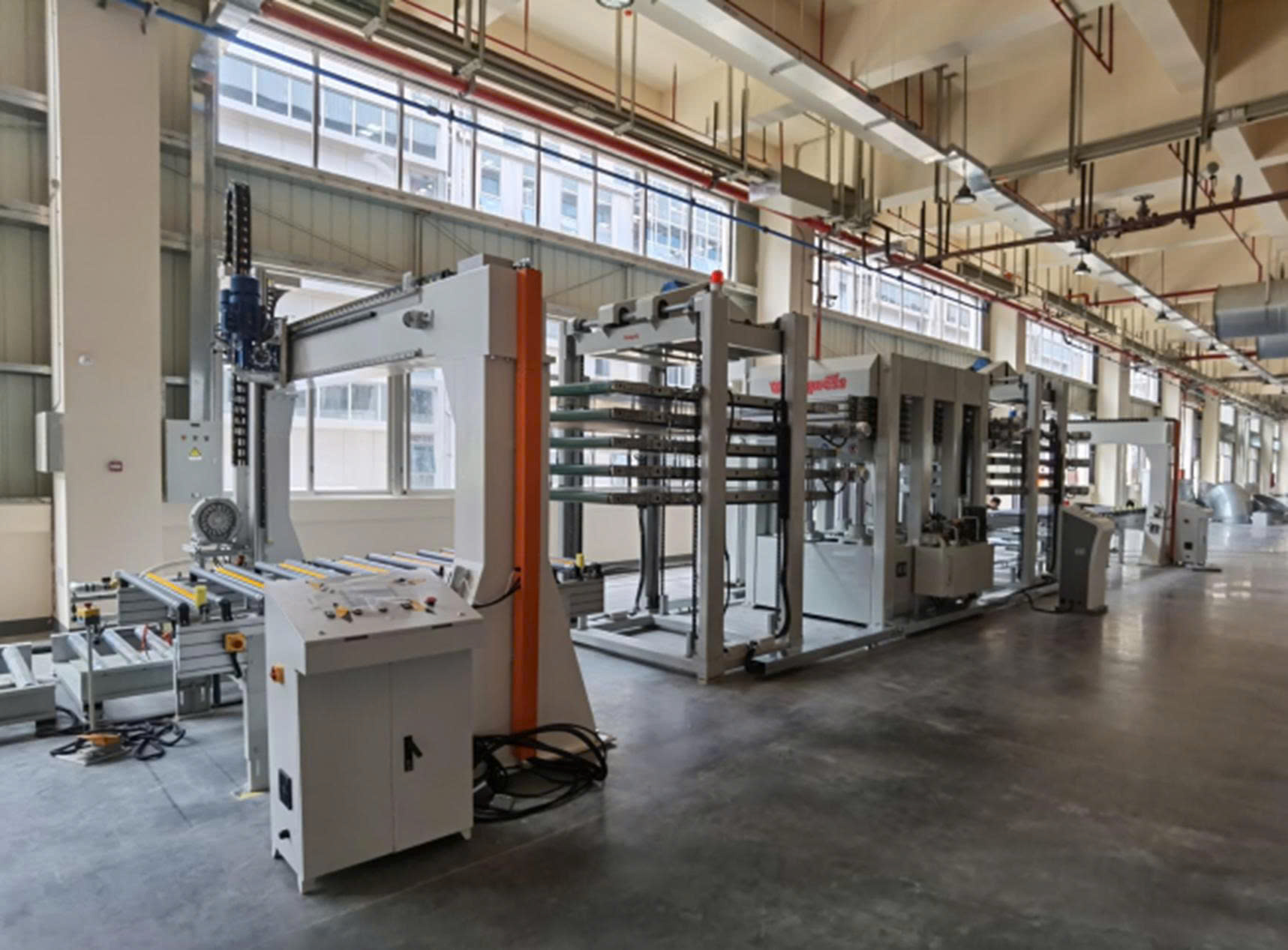

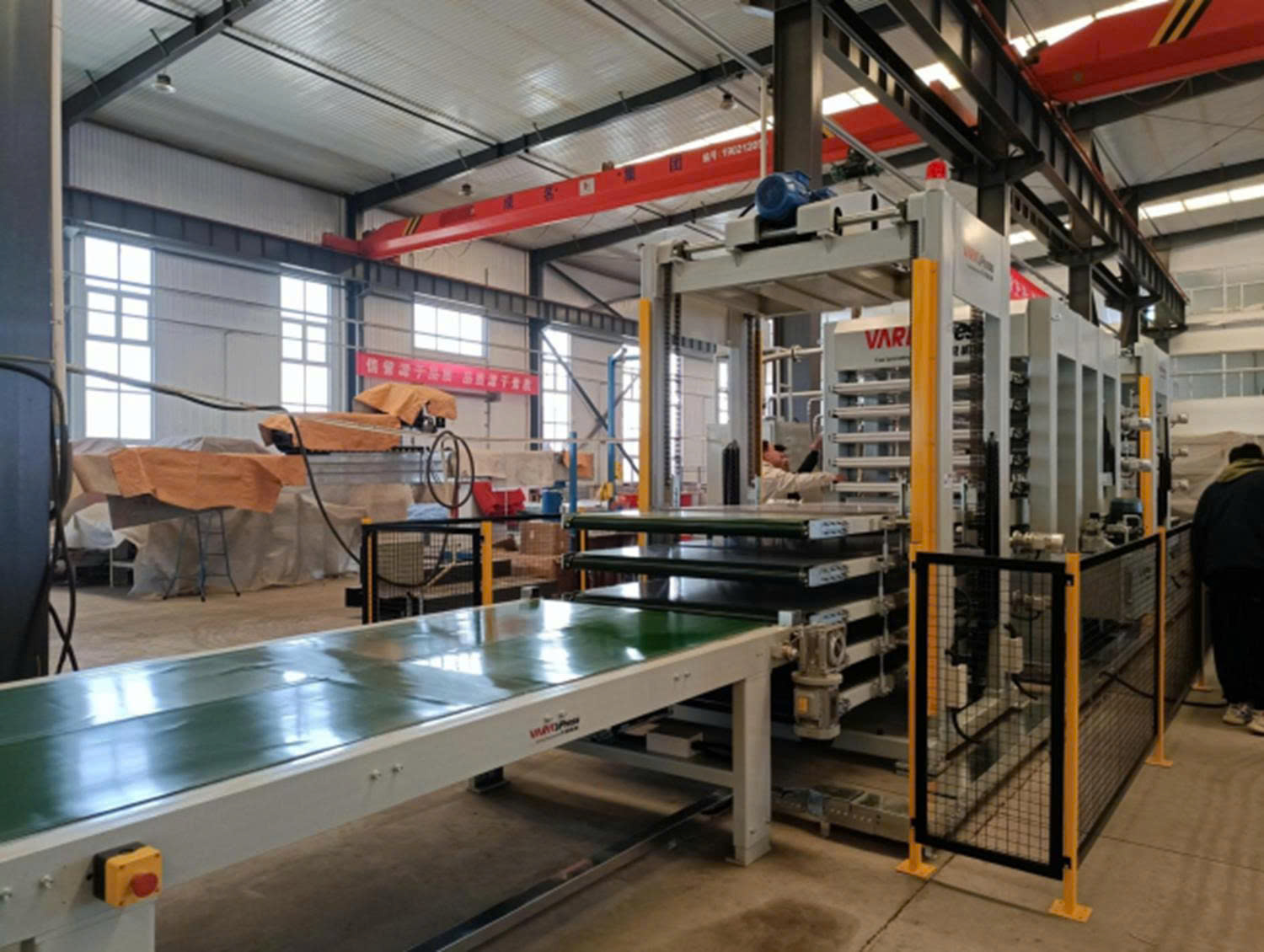

🔥 AUTOMATIC 5-LAYER HOT PRESS LINE – MODEL: MT5-01

A Comprehensive Automation Solution for Veneer Pressing and Multi-layer Panel Laminating!

Engineered for smart automation and high performance, the MT5-01 hot press line optimizes productivity, reduces labor costs, and ensures uniform product quality throughout the feeding – pressing – unloading processes. Ideal for factories producing plywood, engineered wood, and high-end furniture panels.

⚙️ MT5-01 LINE CONFIGURATION INCLUDES 5 MAIN COMPONENTS

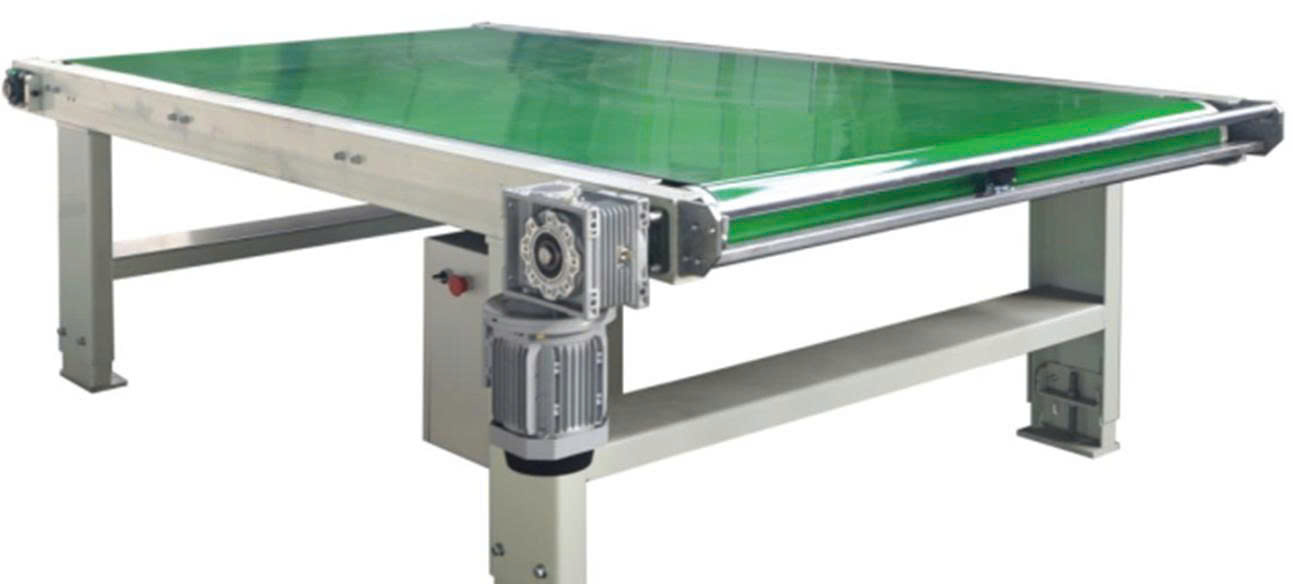

1. FEEDING CONVEYOR MZYL3813/25/850

• Conveyor size: 1300 × 2500 mm

• Conveyor speed: 5 – 18 m/min

• Motor power: 0.75 kW

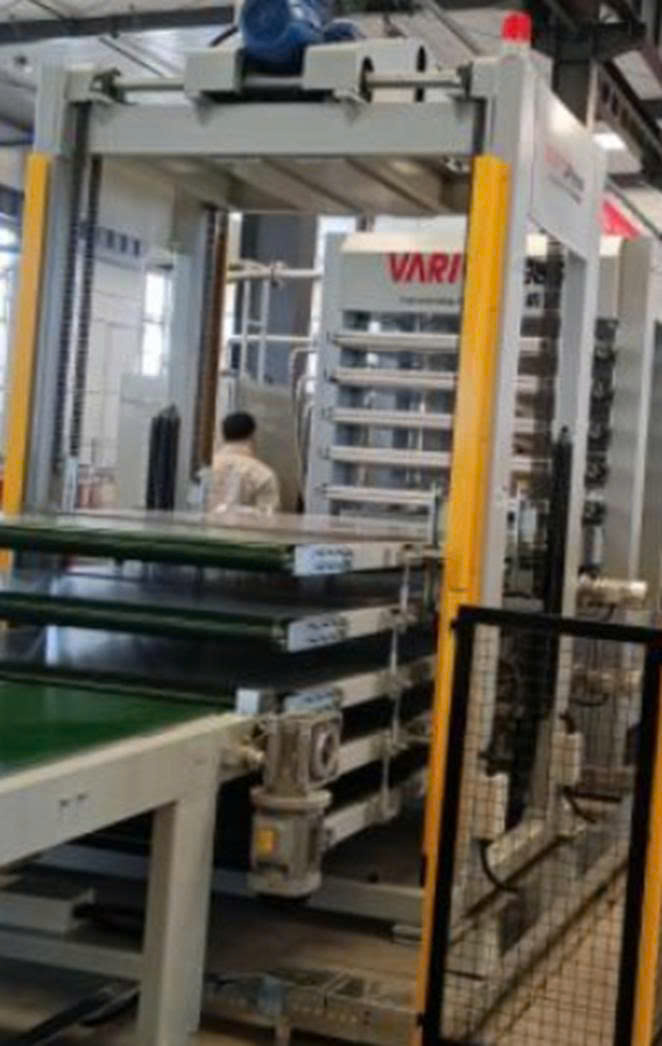

2. 5-LAYER LOADING CONVEYOR MZX164X8(5)C

• Working width: 1300 mm

• Working length: 2500 mm

• Number of layers: 5

• Gap between layers: 80 mm

• Loading method: vertical stacking – automatic multi-layer – frequency adjustable

• Conveyor speed: 5 – 15 m/min

• Lifting speed: 6 m/min

• Total power: 8.25 kW

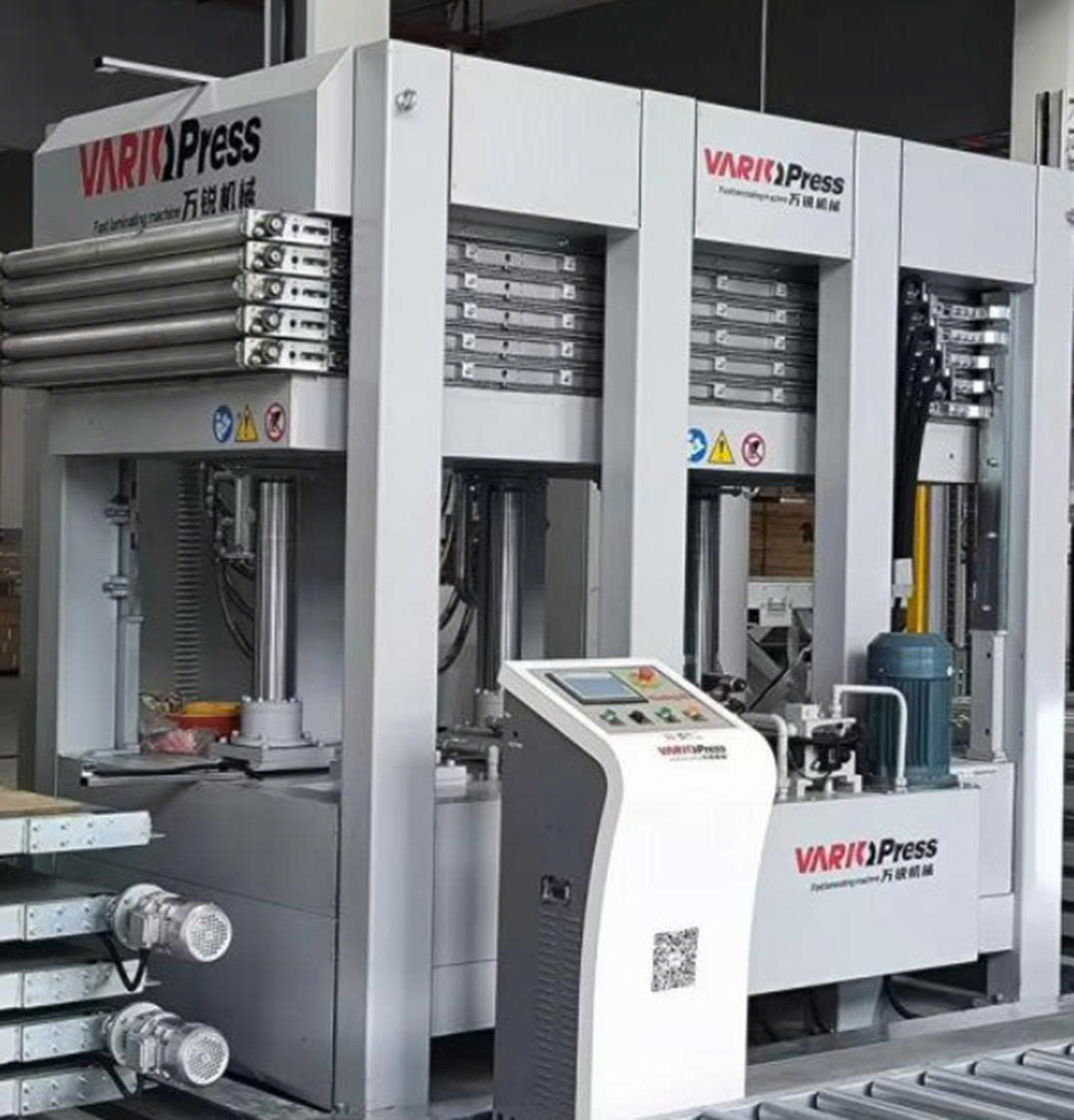

3. 5-LAYER HOT PRESS MACHINE MY144X8/16(5)

• Total pressing force: 1600 kN

• Number of press layers: 5

• Max surface pressure: 4.1 kgf/cm²

• Oil pressure: 23 MPa

• Press plates:

  • 5 pcs: 2500 × 1300 × 80 mm

  • 1 pc: 2500 × 1300 × 42 mm

• Gap between layers: 80 mm

• Max temperature: 120°C

• Loading speed: 12 m/min

• Feeding method: automatic vertical stacking – mylar film drive – frequency controlled

• Power: 8.25 kW

• Note: Hydraulic oil not included

• Overall machine size: 2900 × 2500 × 3100 mm

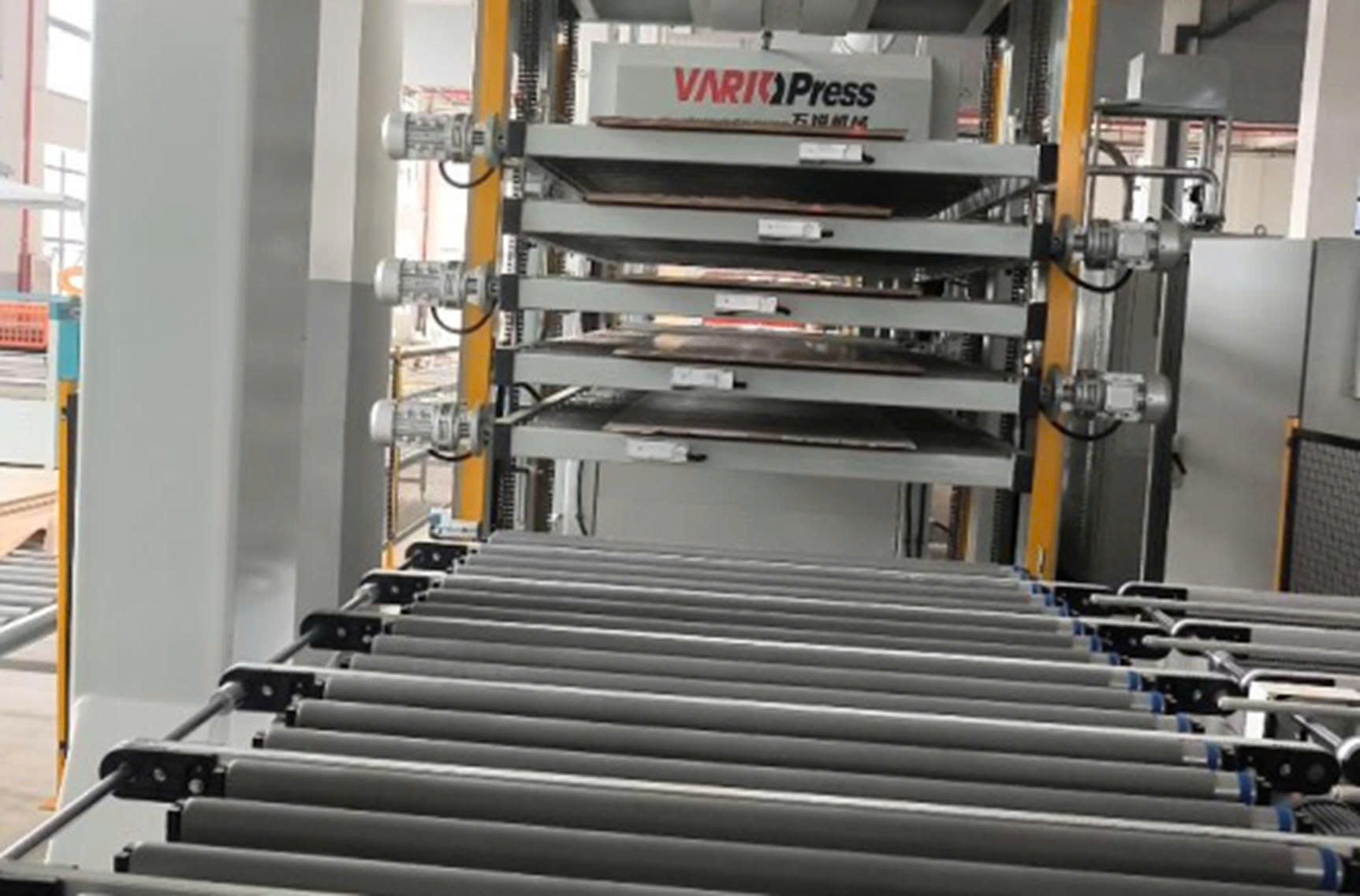

4. 5-LAYER UNLOADING CONVEYOR MZX154X8(5)

• Max working size: 2500 × 1300 mm

• Number of layers: 5

• Gap between layers: 80 mm

• Unloading method: vertical stacking – automatic multi-layer – frequency controlled

• Conveyor speed: 5 – 15 m/min

• Lifting speed: 6 m/min

• Power: 8.25 kW

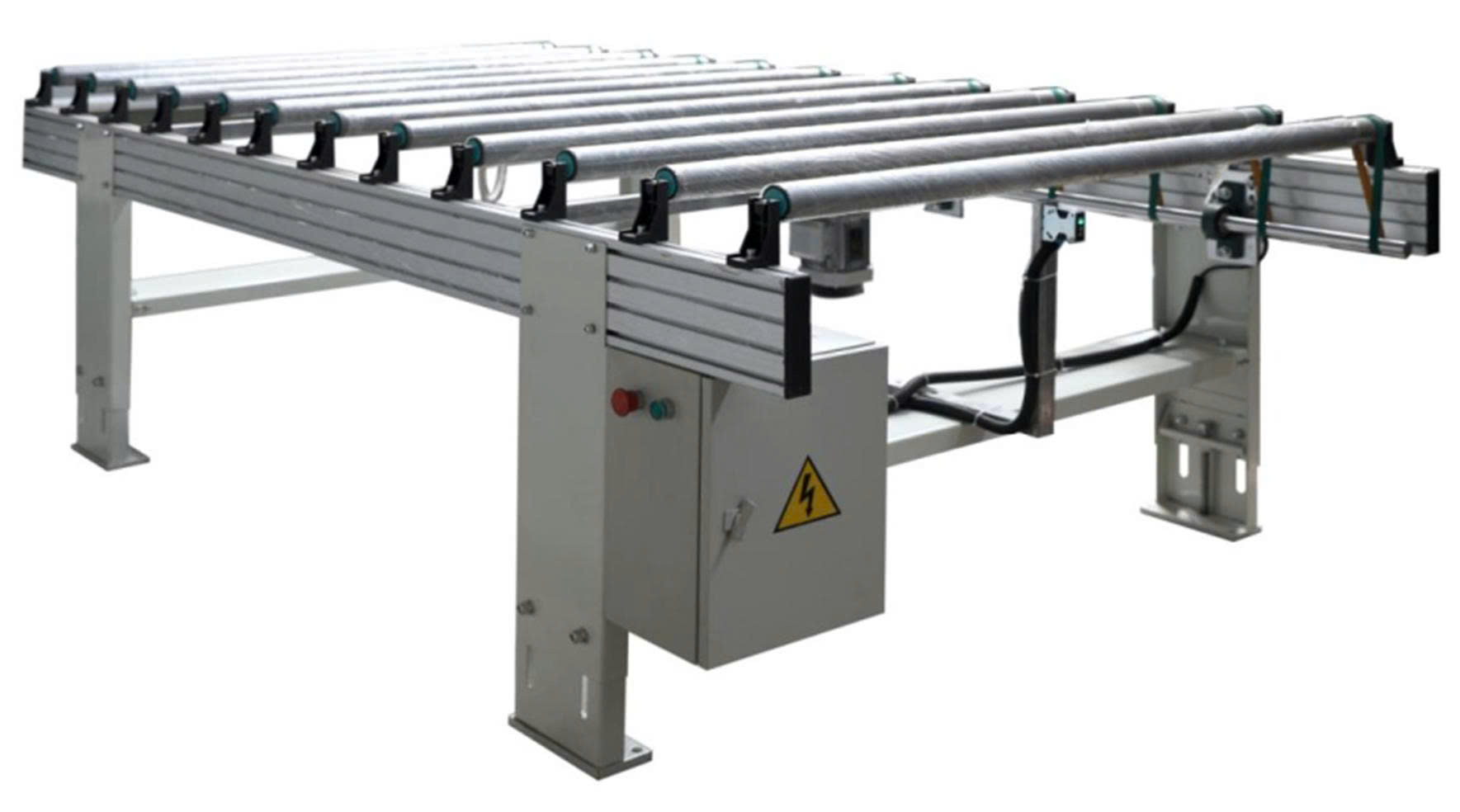

5. ROLLER UNLOADING CONVEYOR MZYL3613/25/950

• Max conveyor width: 1300 mm

• Max conveyor length: 2500 mm

• Speed: 5 – 18 m/min (with inverter)

• Power: 0.75 kW

✅ KEY ADVANTAGES

• Fully automated line: feeding – hot pressing – unloading

• Drastically reduces labor, boosts productivity by 30–50%

• Heavy-duty construction for stable and long-term operation

• Smart control via frequency inverters, precise lifting, and safe handling

• Ideal for manufacturing engineered wood, interior panels, plywood with veneer, and more
