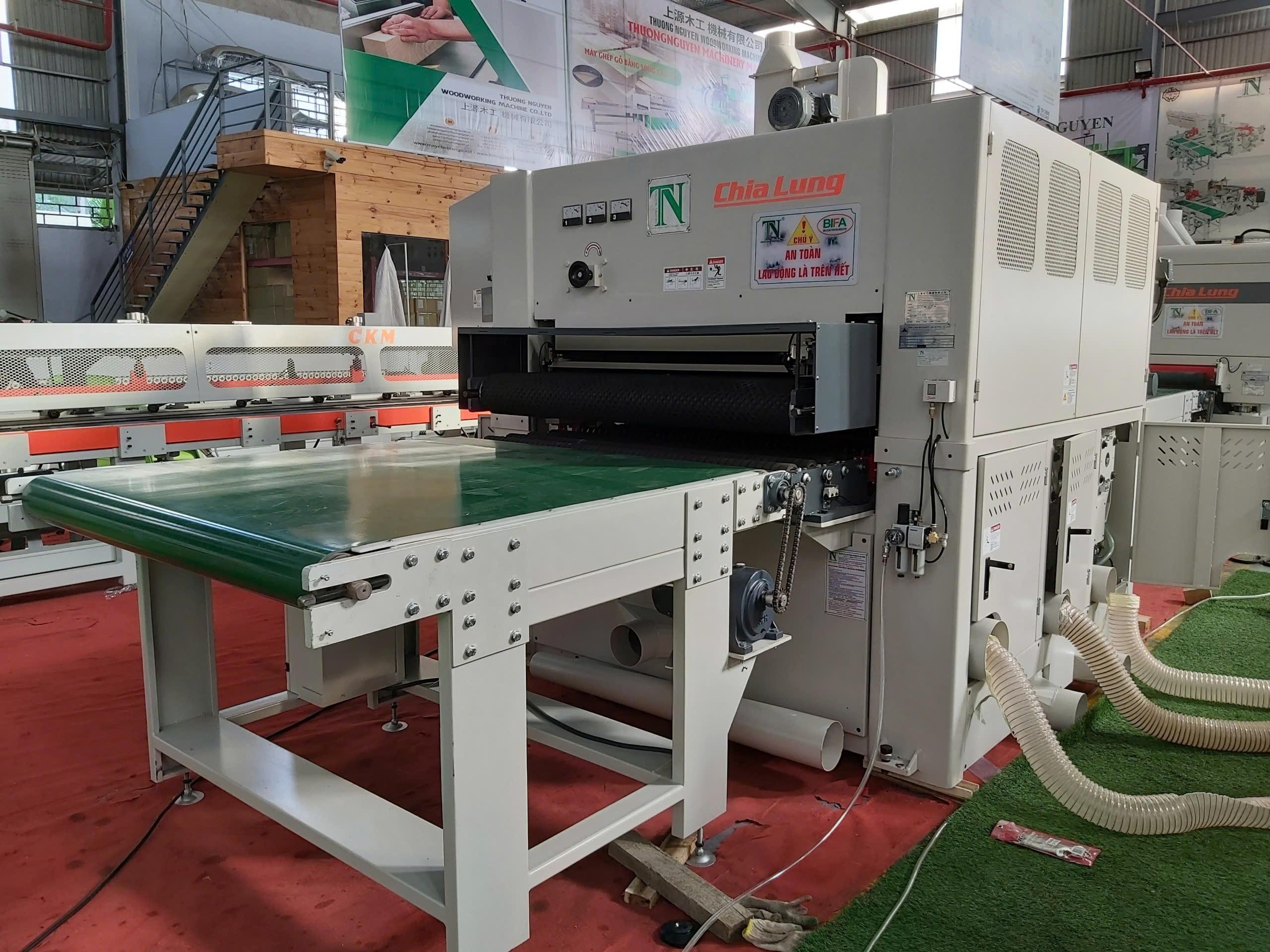

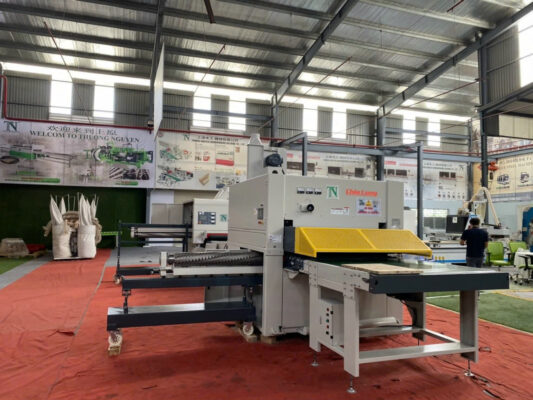

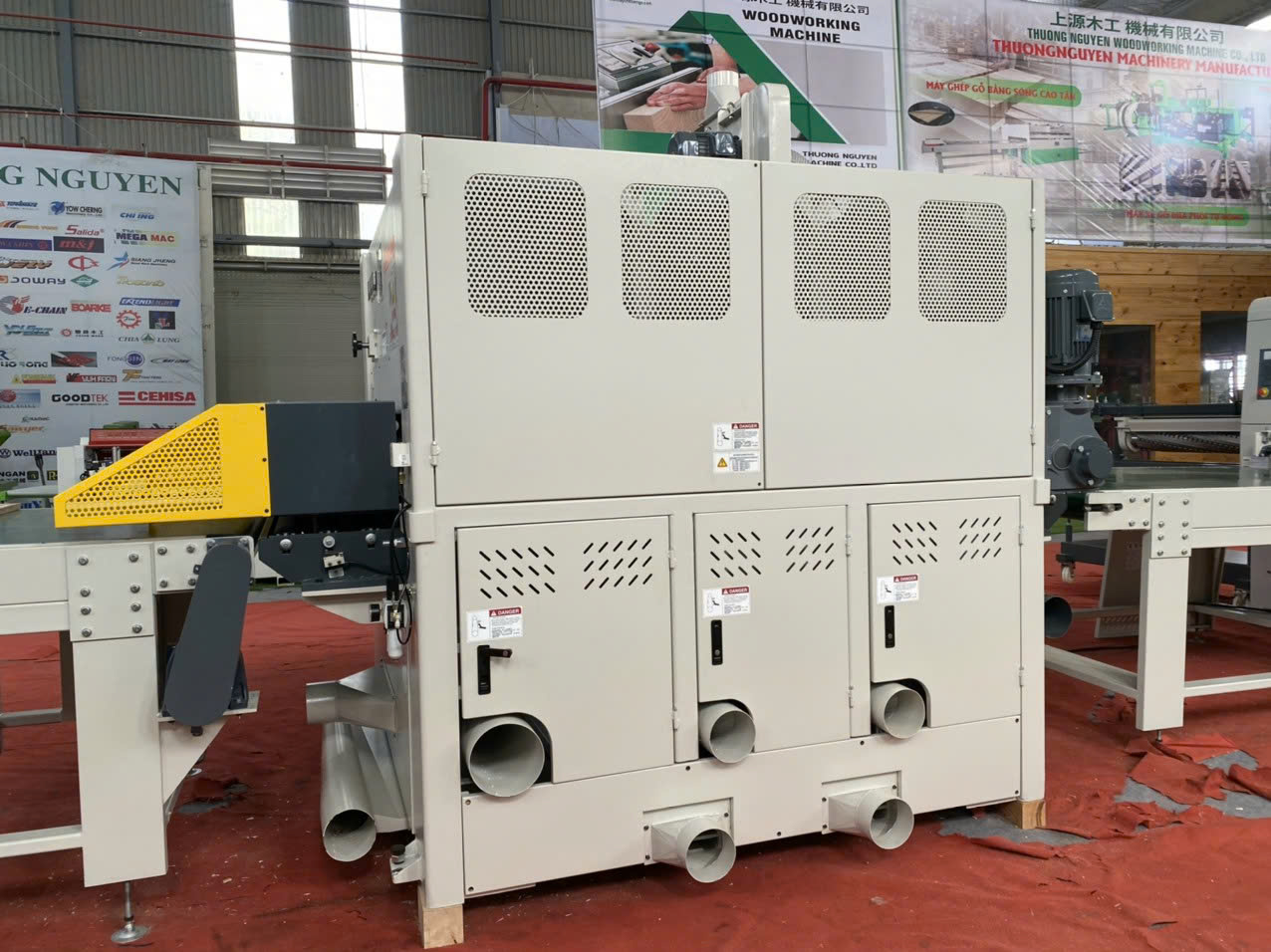

The KL-1350PRR-B is a high-performance bottom sanding machine equipped with a planer shaft and two sanding rollers underneath, allowing for smooth and precise processing of wood surfaces in a single pass. Ideal for solid wood, laminated boards, MDF with veneer, and more.
⚙️ TECHNICAL SPECIFICATIONS:
Maximum working width: 1350 mm
Working thickness: 8 – 100 mm
Max sanding belt size: 1370 x 2110 mm
Fixed working height from floor: 1000 mm
🔧 ROLLER CONFIGURATION:

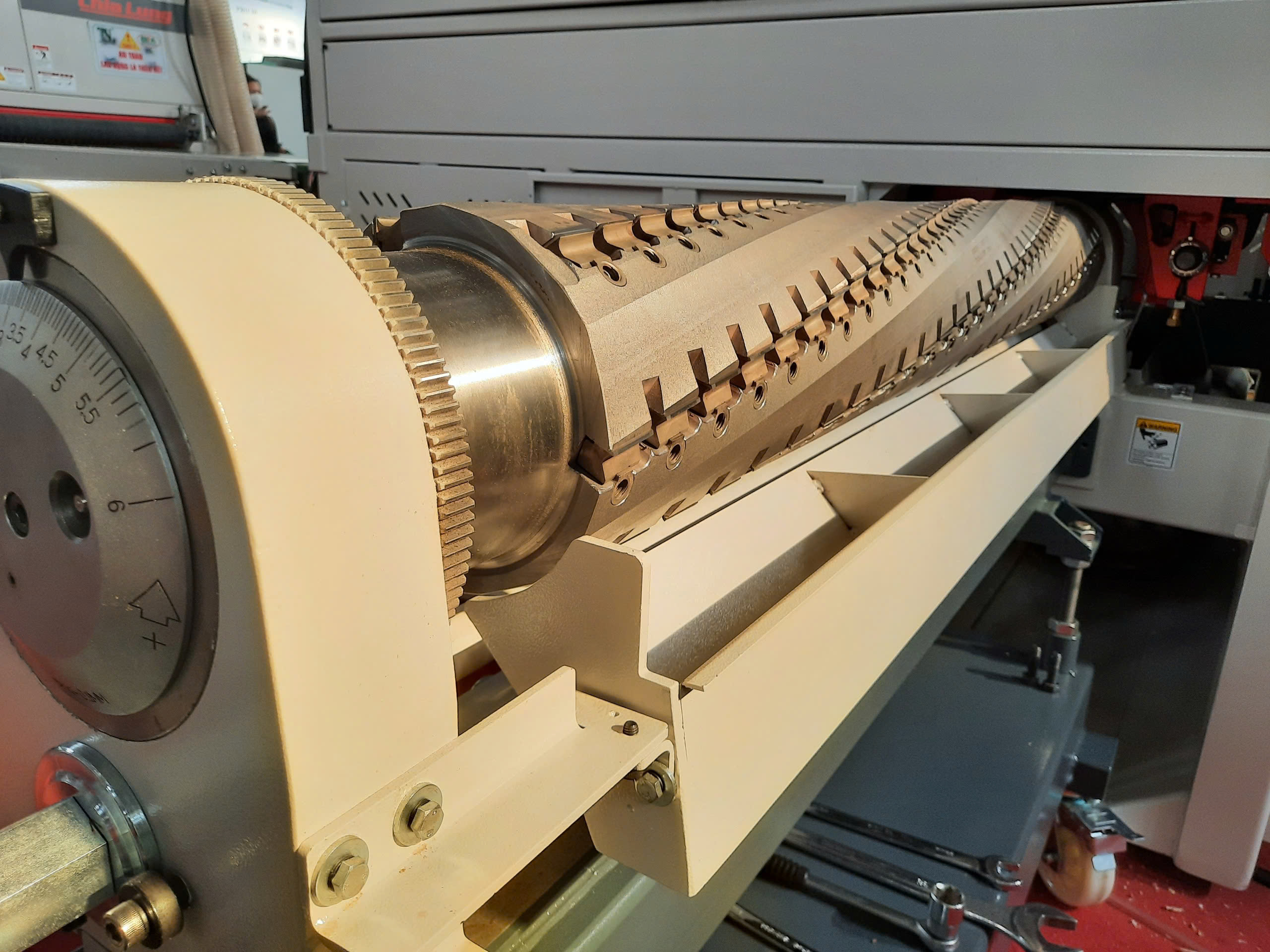

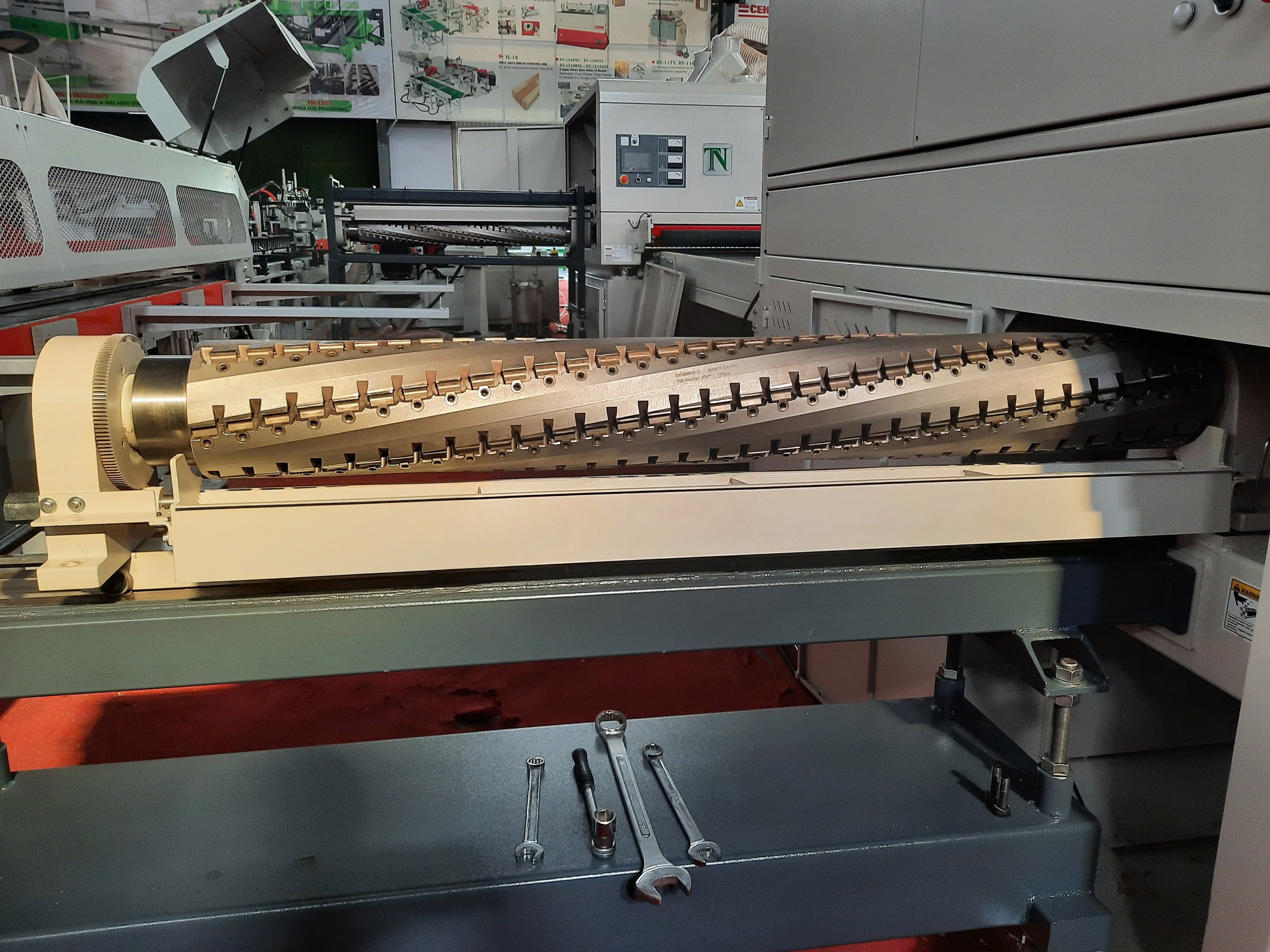

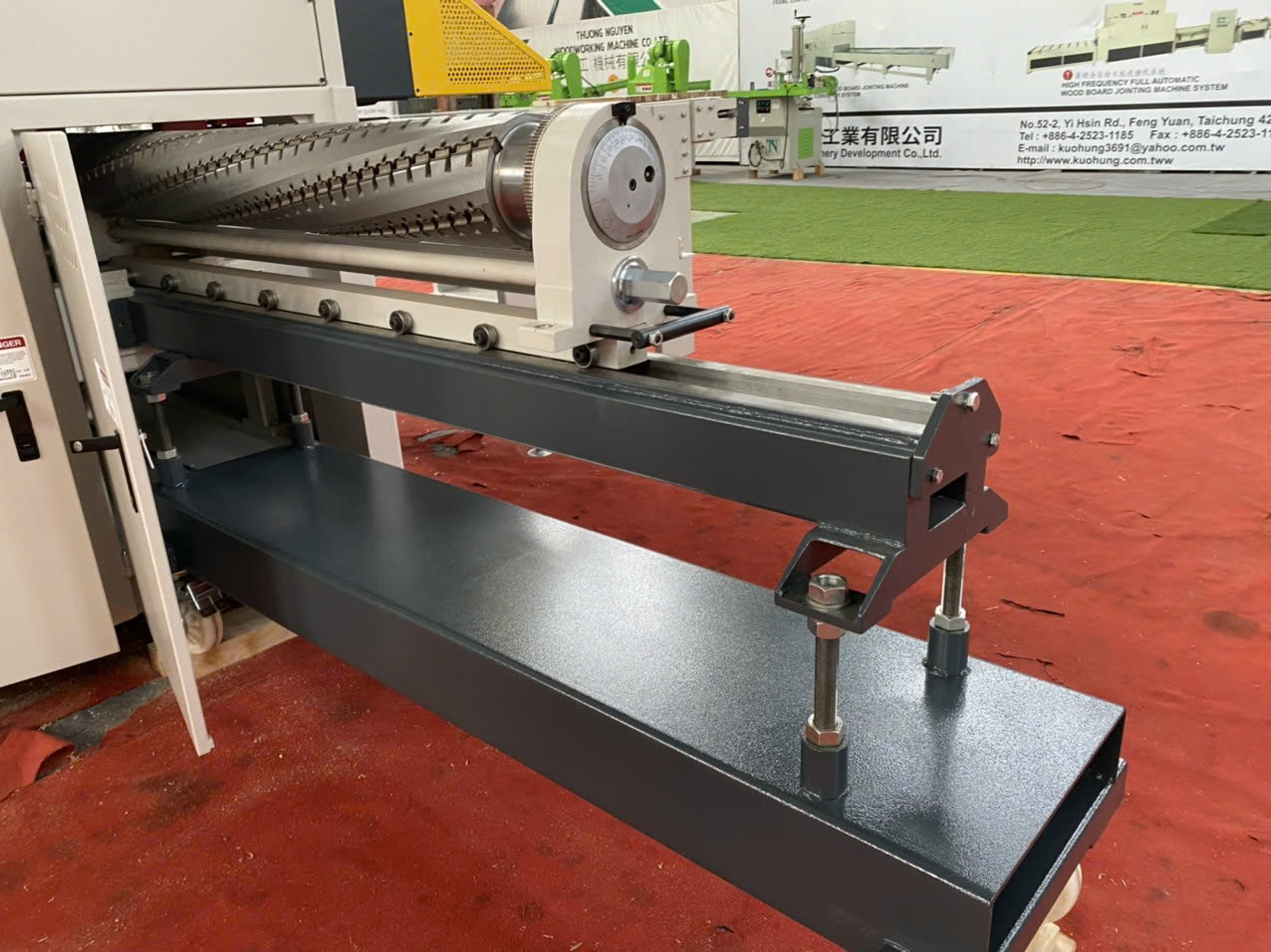

✅ Planer Shaft (P):
Diameter: Ø180 mm
Knife size: 30 x 12 x 1.5 mm
Drive motor: 40 HP
✅ 2nd Roller (R) – Coarse Sanding:
Diameter: Ø280 mm
Rubber hardness: 85 SH
Drive motor: 40 HP
✅ 3rd Roller (R) – Fine Sanding:
Diameter: Ø280 mm
Rubber hardness: 65 SH
Drive motor: 30 HP
⚙️ FEEDING & SUPPORT SYSTEM:
Feeding speed: 3 – 20 m/min (controlled by inverter)
Feeding motor: 5 HP
Vacuum table motor: 5 HP

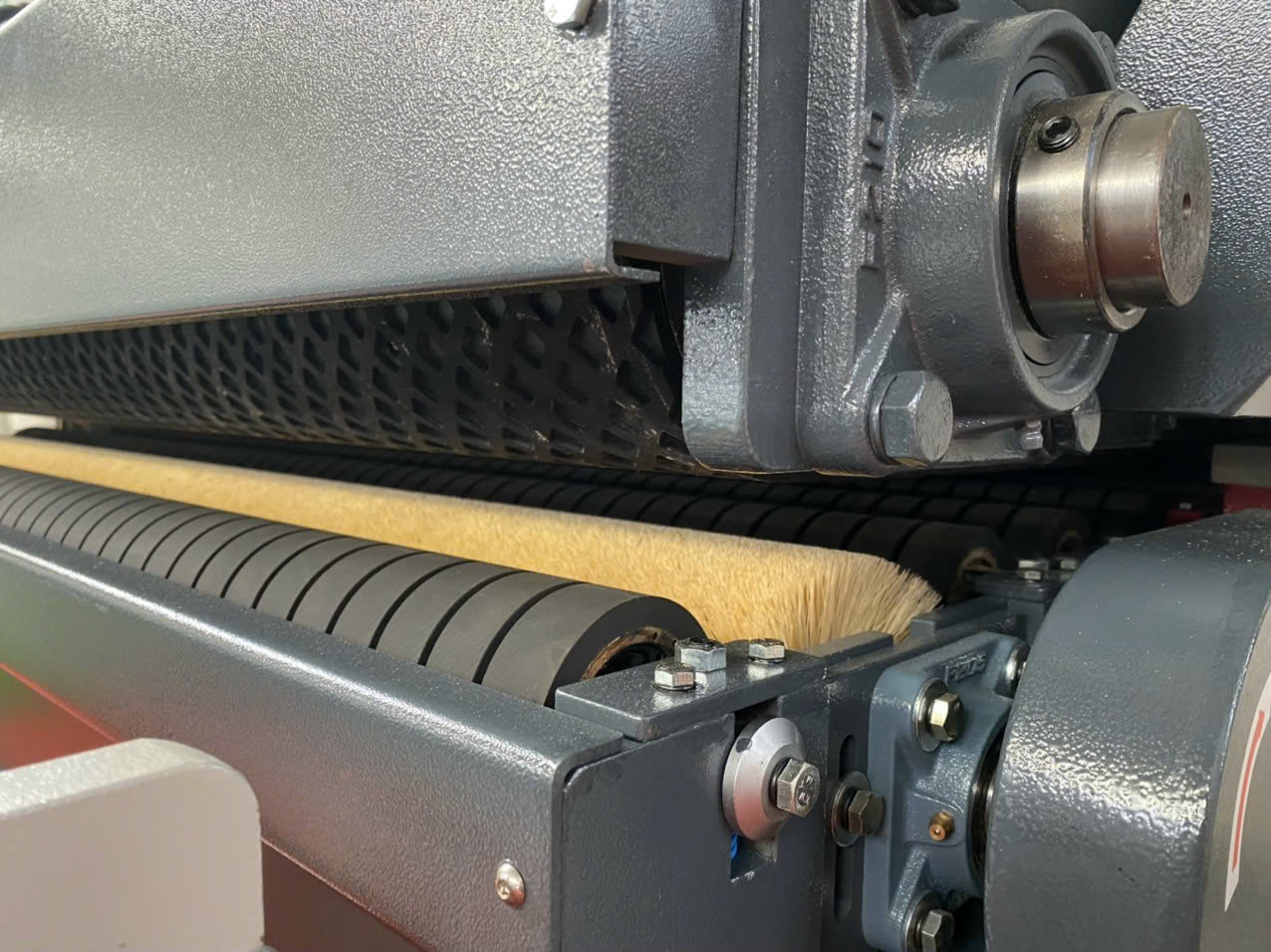

Cleaning brush shaft diameter: Ø150 mm
Brush motor: 0.5 HP
Power supply: 380V / 50Hz
🌟 OUTSTANDING FEATURES:
✔️ Bottom roller design for optimal stability and performance ✔️ Integrated planing + rough sanding + fine sanding in one run ✔️ Variable speed via inverter for flexible production ✔️ Vacuum table system for stable and accurate feeding ✔️ Robust and durable construction, ideal for continuous industrial use
