HYDRAULIC HORIZONTAL JOINT JOINT MACHINE ACP-20850-100TH | MCB GO THUONG NGUYEN

SKU: ACP-20850-100TH
Produced by: JUAN NAN
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

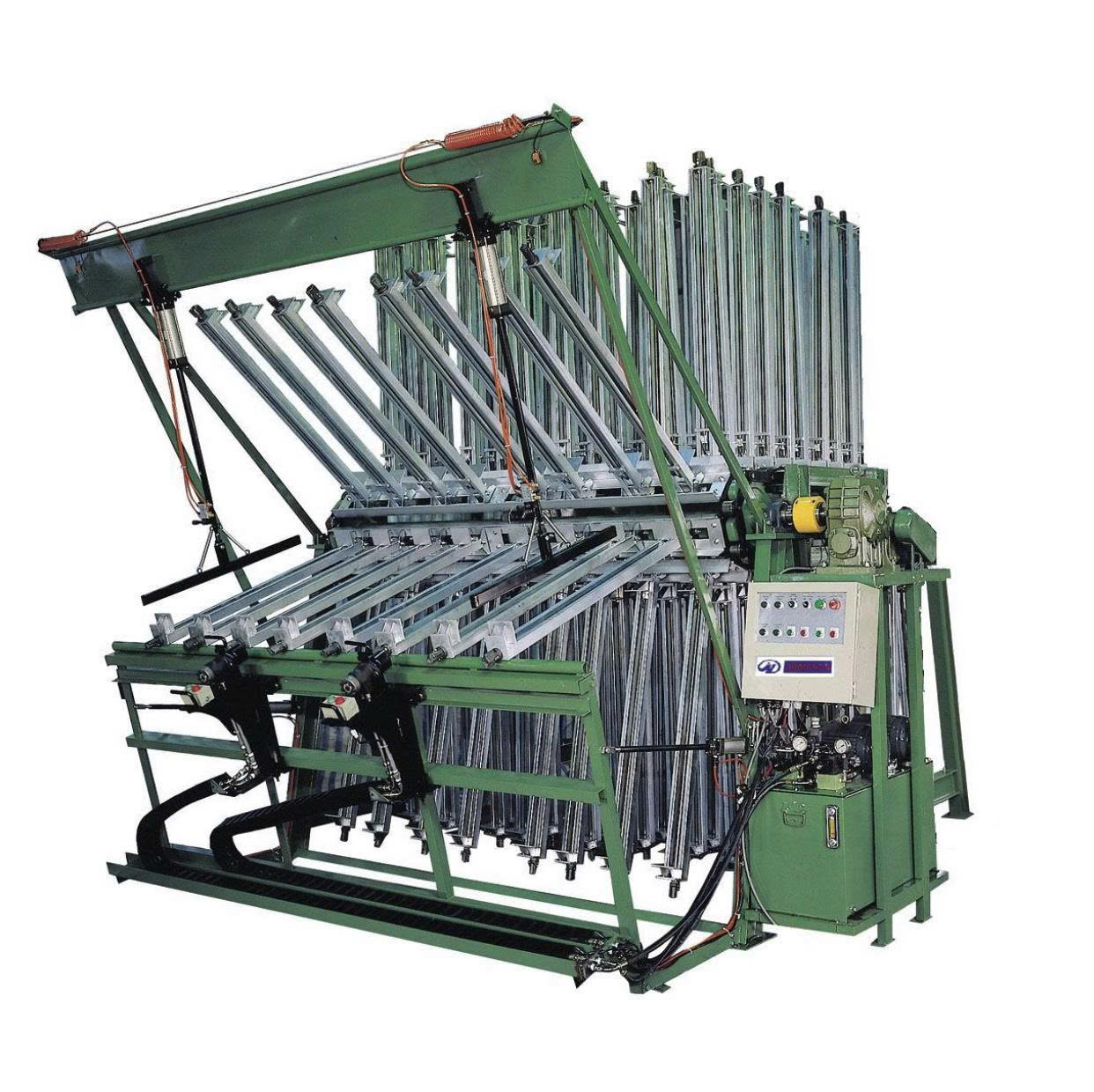

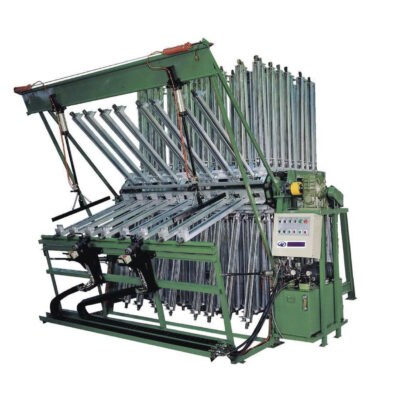

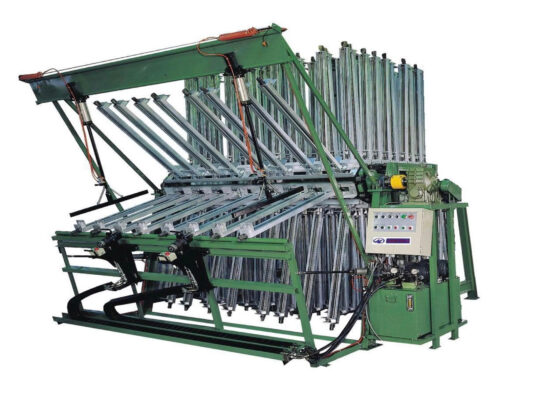

📢 INTRODUCING THE 100% HYDRAULIC EDGE GLUING MACHINE
🔧 Brand: JUAN NAN – Origin: Taiwan
📌 Model: ACP-20850-100TH

The JUAN NAN hydraulic edge gluing machine is an ideal solution for wood processing workshops requiring fast, strong, and stable panel joining. With a powerful hydraulic system combined with pneumatic support, the machine delivers maximum efficiency and high precision.

⚙️ Key Specifications:

✅ Number of gluing tables: 20
✅ Clamping screws (spindles): 8 per table (Total: 160)
✅ Maximum working length: 1270 mm
✅ Maximum working width: 2500 mm
✅ Maximum working thickness: 90 mm
✅ Gear reducer: #135 ~ 600:1
✅ Screw drive motor: 2 HP
✅ Hydraulic pump motors: 3 HP × 2 sets
✅ 2 pneumatic flattening units
✅ 2 hydraulic hand-tightening wrenches
✅ Clamps made of square steel tubes – strong and durable

💡 Special Feature:
The machine is uniquely designed so the front and rear clamps do not hook into each other during operation. This prevents deformation of the clamp support bars, ensuring precision and durability over time.
