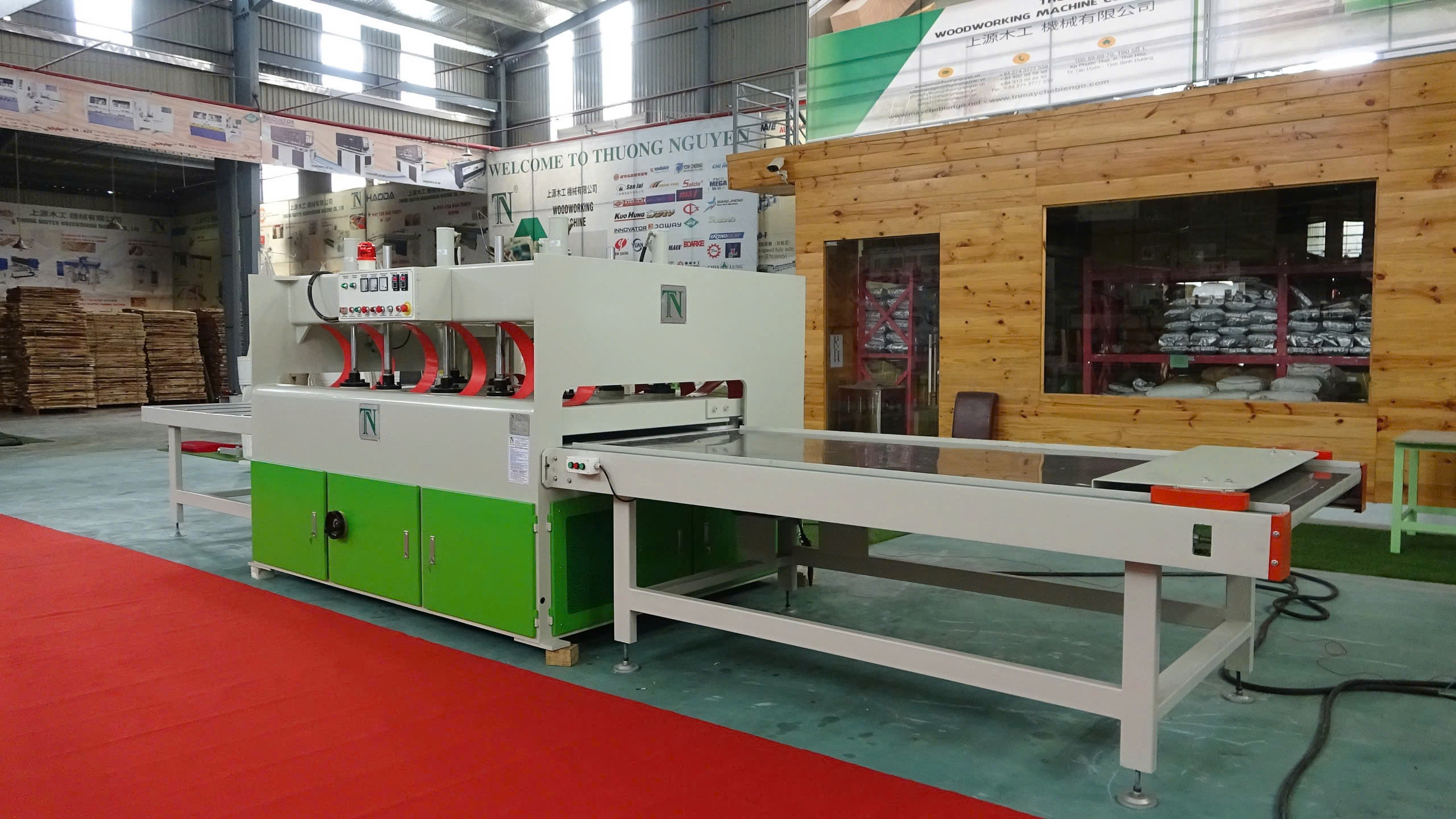

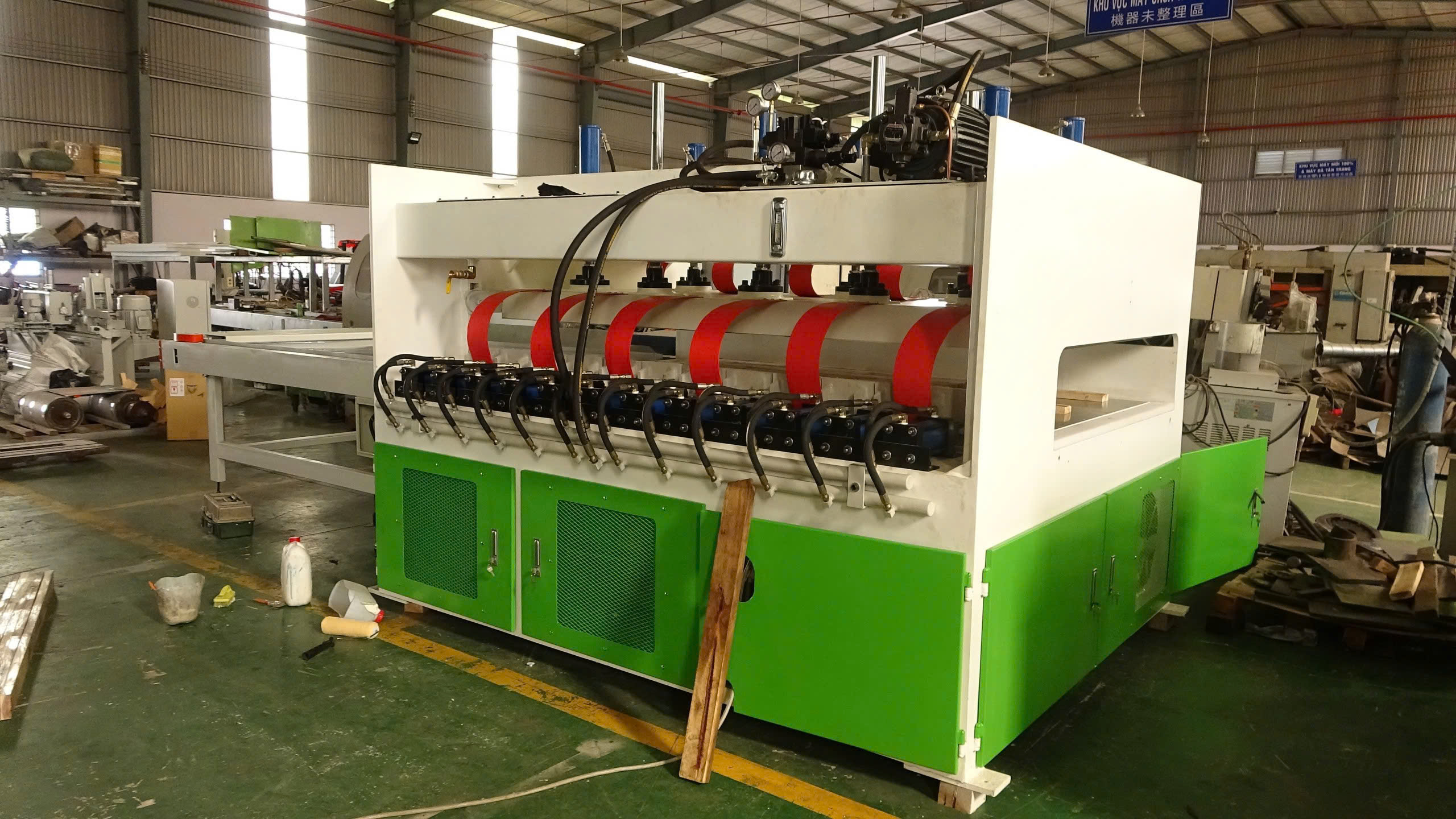

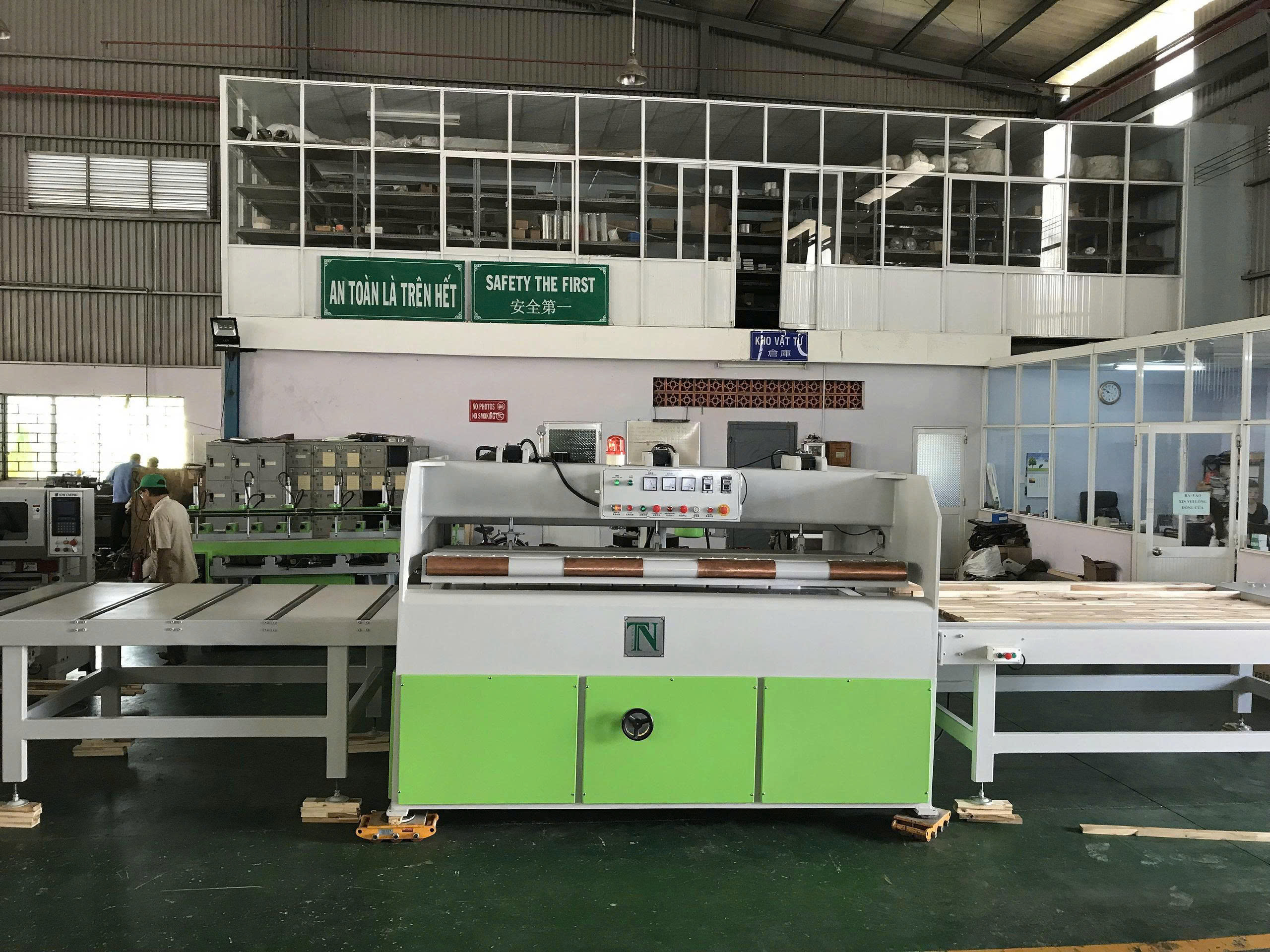

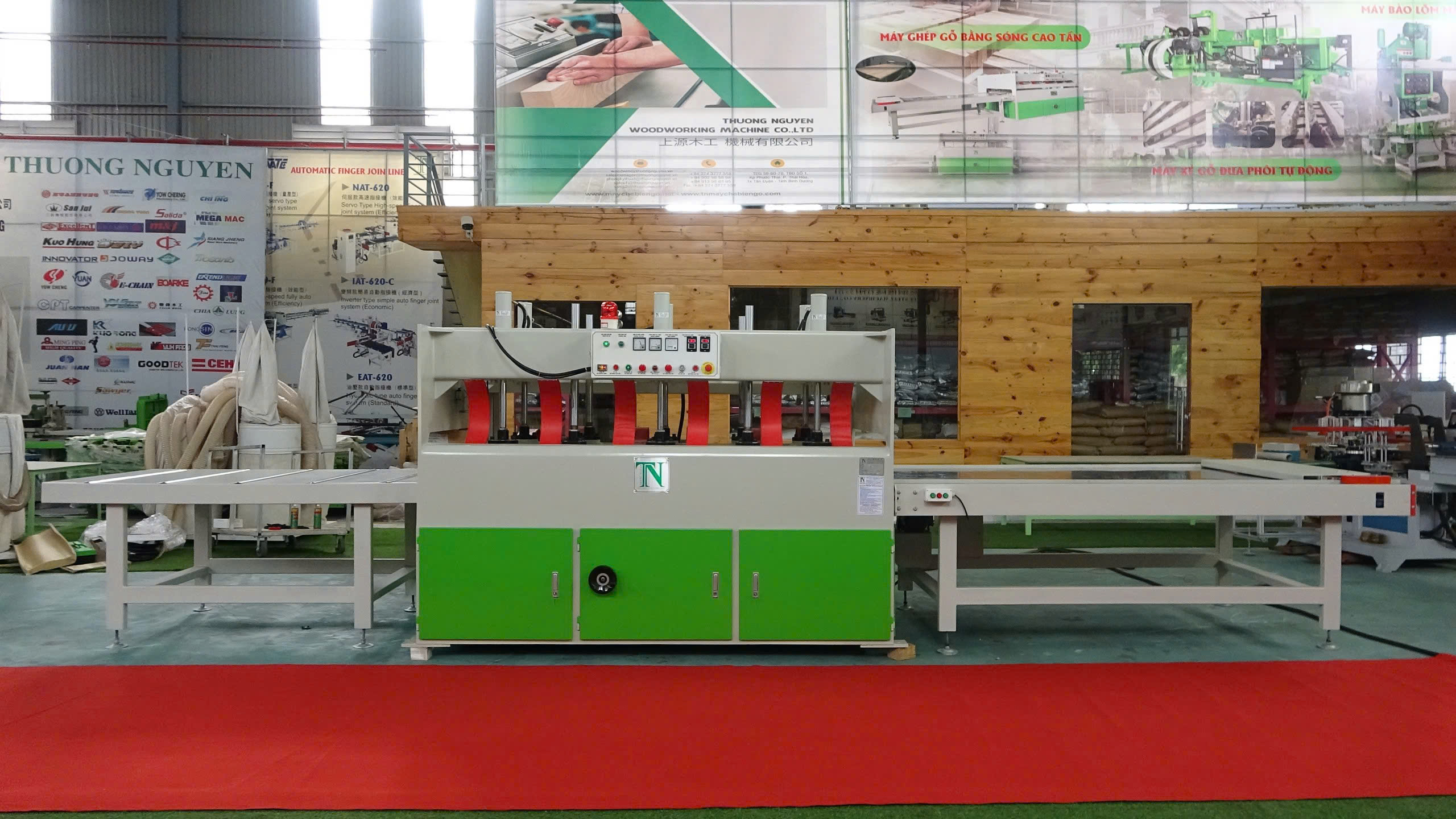

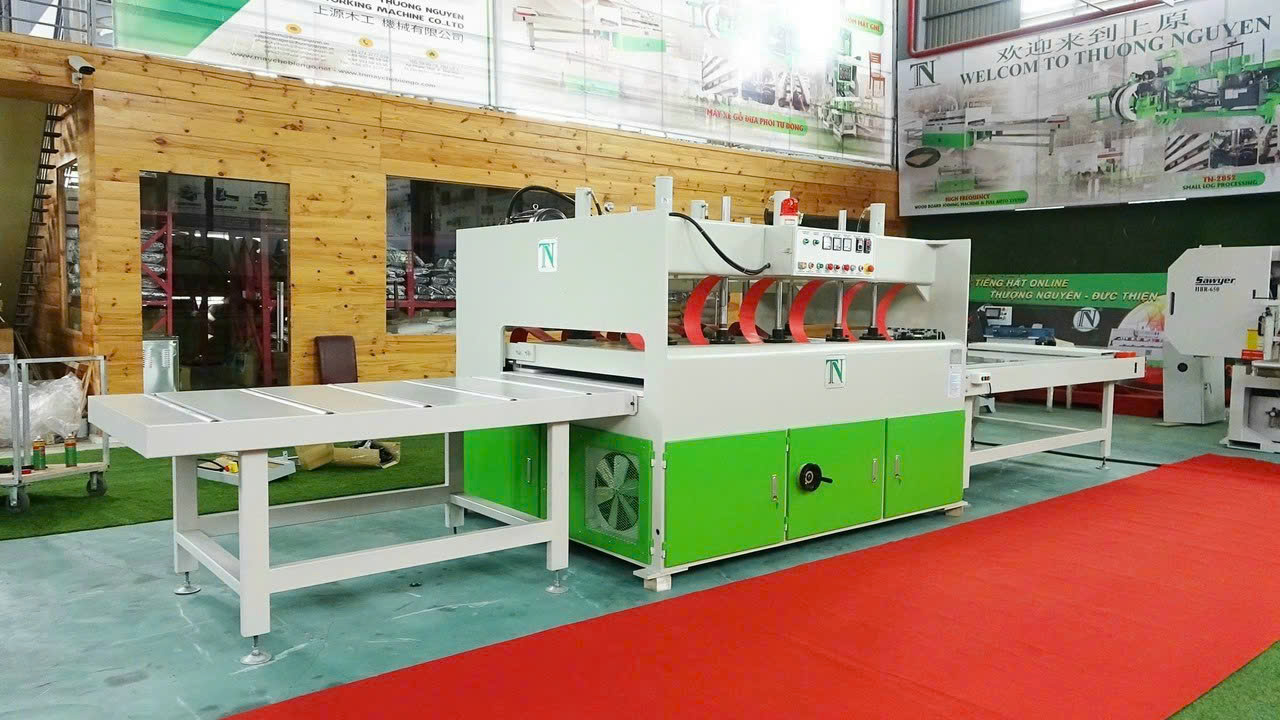

HIGH FREQUENCY WOOD JOINTING MACHINE – TN-1030H | THUONG NGUYEN WOOD PROCESSING MACHINE

MODEL: TN-1030H

Voltage: 380V

Power source: 3 phase

Frequency: 50Hz

Working size: 1300 x 2500 mm

Pressing thickness: 20 – 120 mm

Hydraulic pump motor: 5HP

Cylinder 80mm x 250mm x 3 pieces

Cylinder 80mm x 100mm x 12 pieces

Hydraulic pump head: 70kgf/cm2

Machine weight: 5800 Kg

Table weight: 880 Kg

Machine size: 7800 x 2300 x 2250 mm

– FRAME uses thick, sturdy iron.

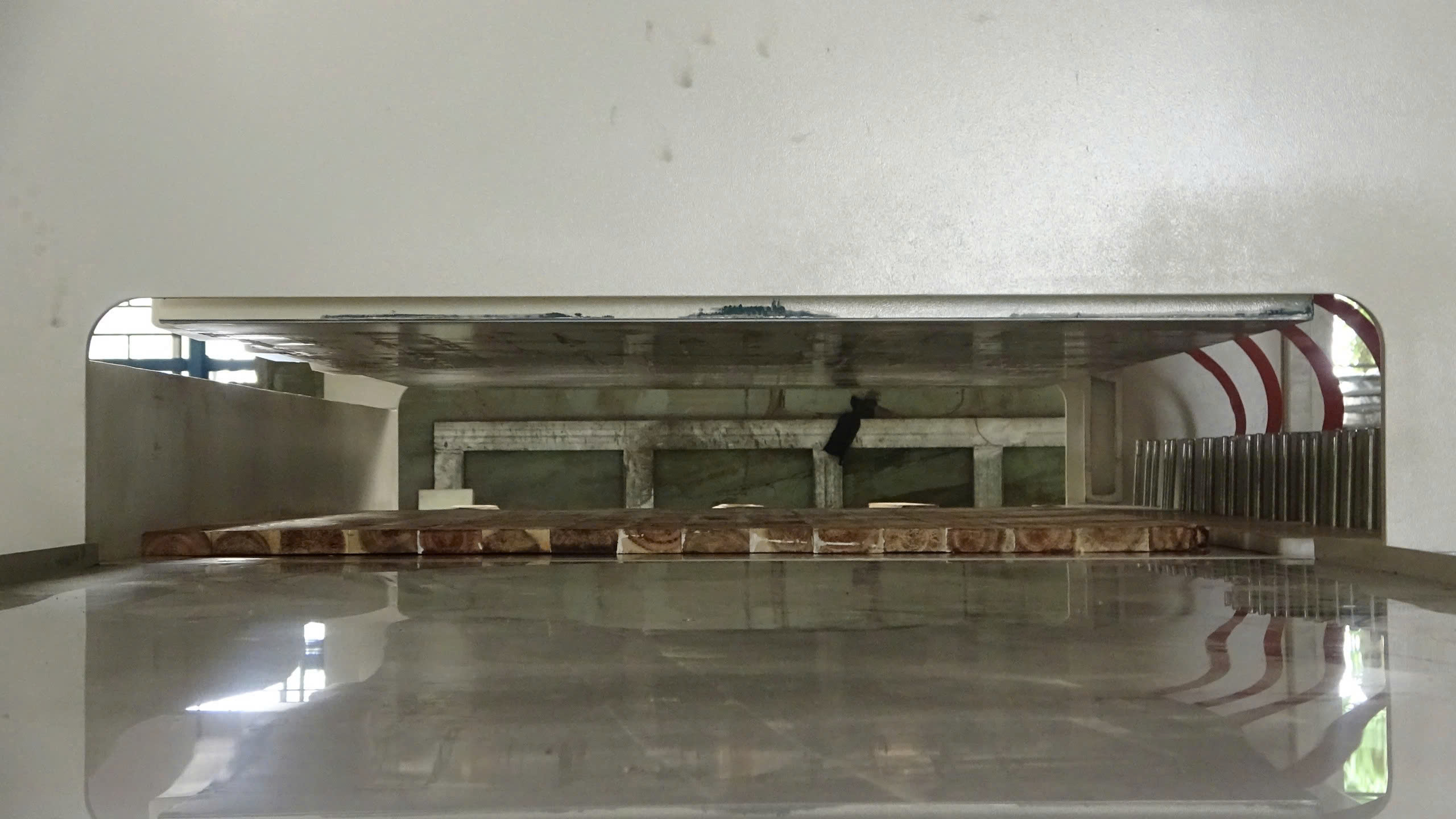

– The pressing table is lined with 2 3mm thick 304 stainless steel plates, the output table is lined with 2mm thick 304 stainless steel, anti-rust, anti-glue adhesion and easy to operate. The table top is covered with high anti-stick 304 stainless steel.

– The output table is equipped with a roller to help remove the blank more easily

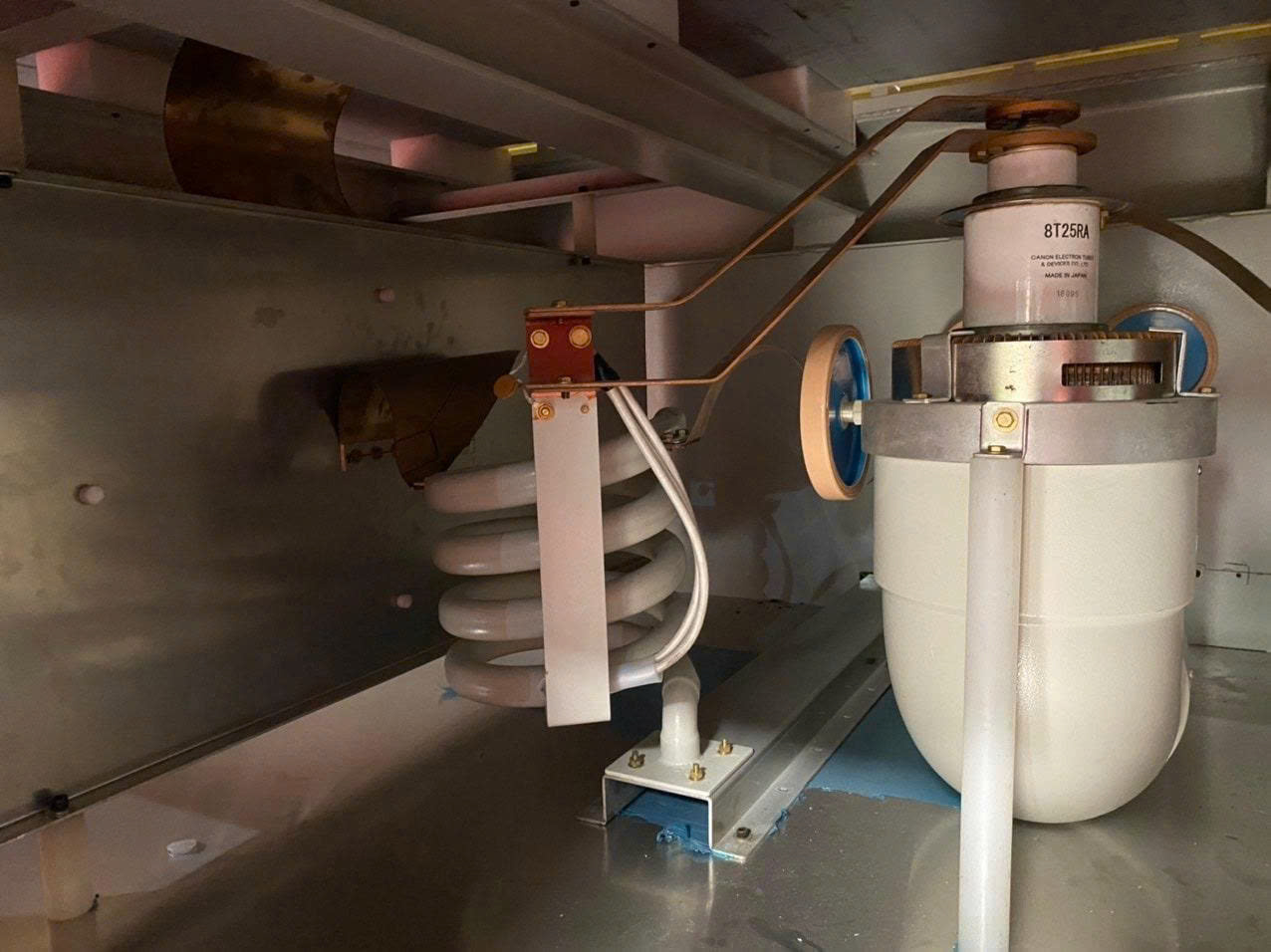

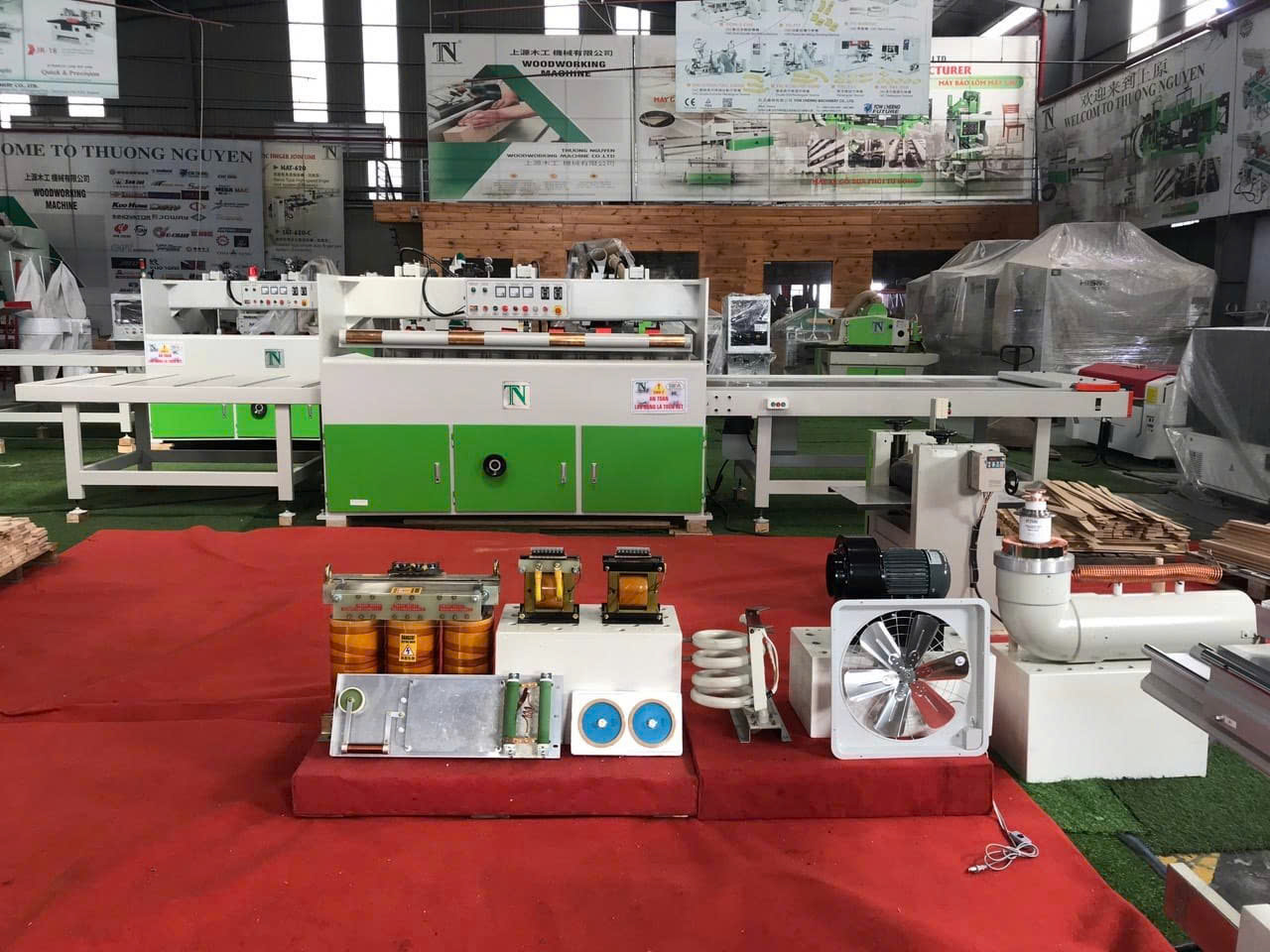

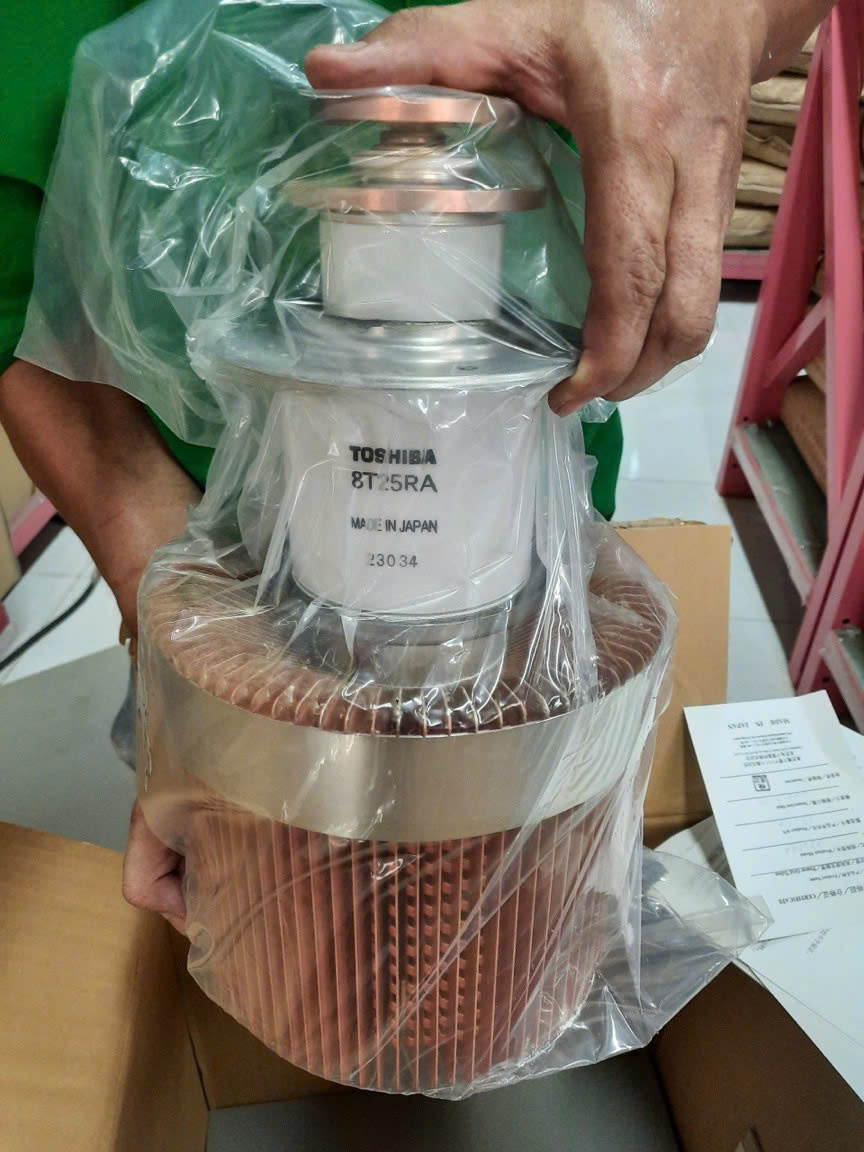

– CANON brand LAMP – Made in Japan. Bulb life span 4-5 years (8h/1 day)

– DIOT imported from Kuo Hung (Taiwan)

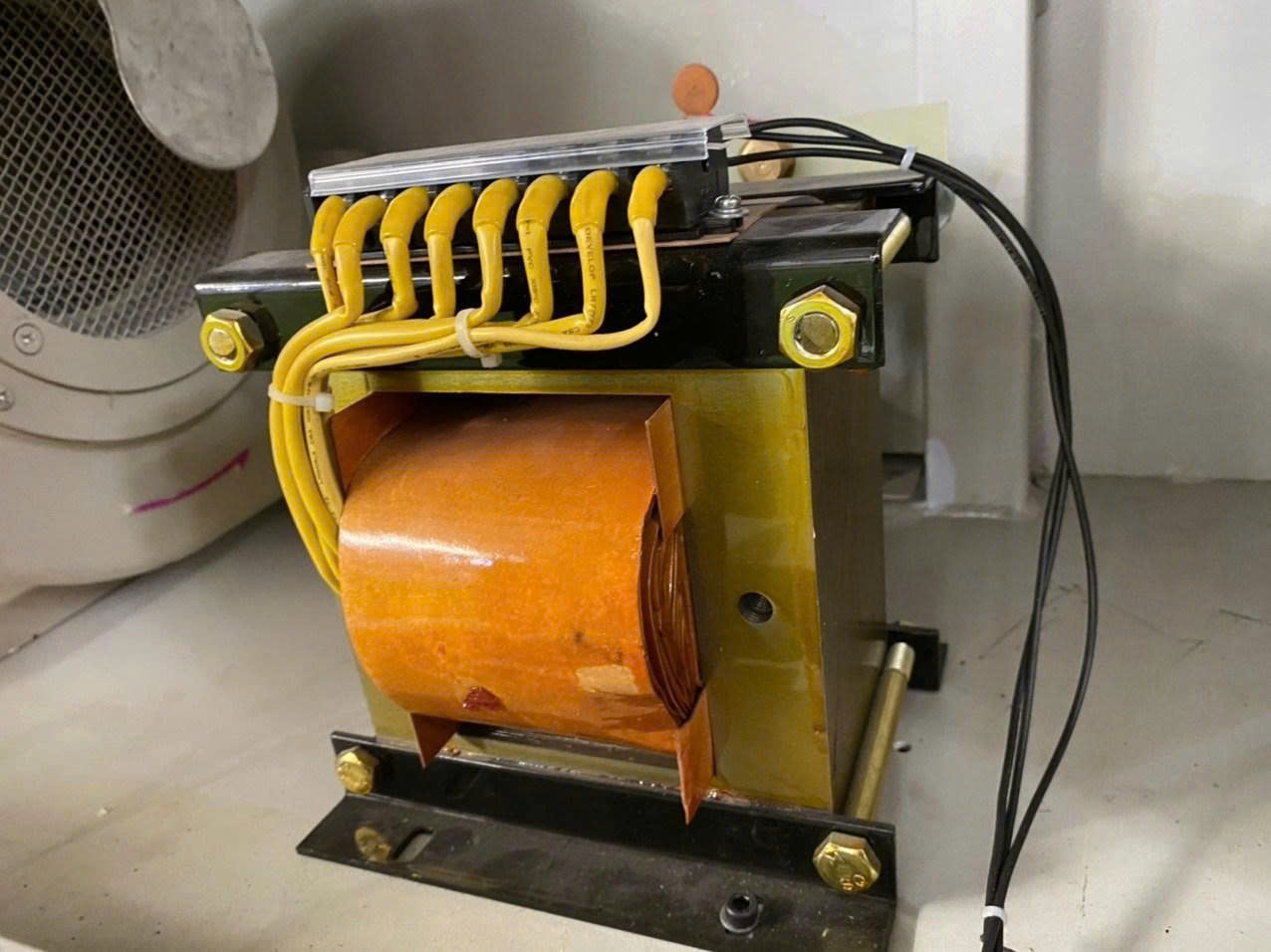

– TRANSFORMER has 3 ports, imported from Kuo Hung (Taiwan)

– UP-DOWN PRESS: Cylinder diameter 80mm x stroke 250mm x 3 rods

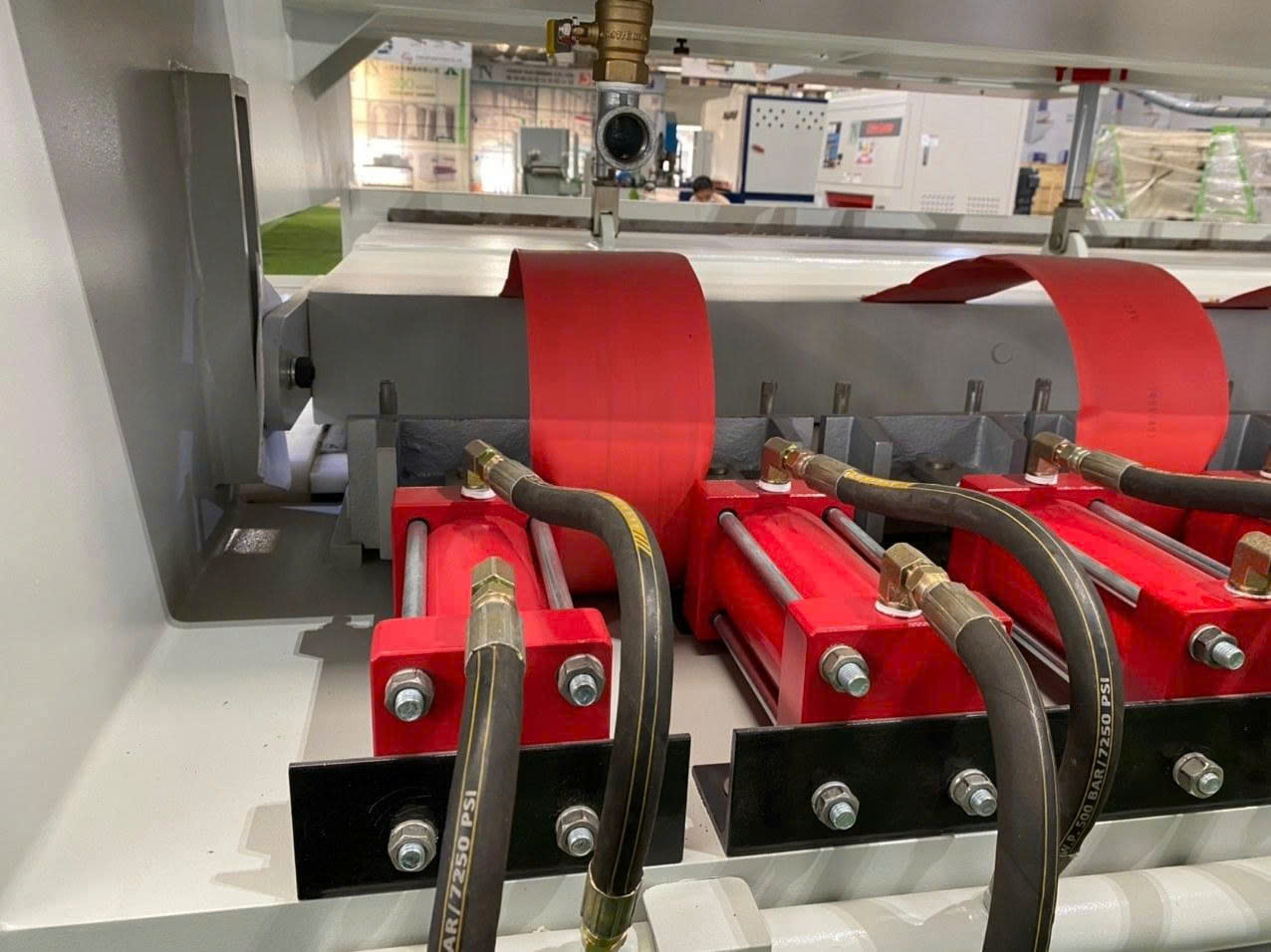

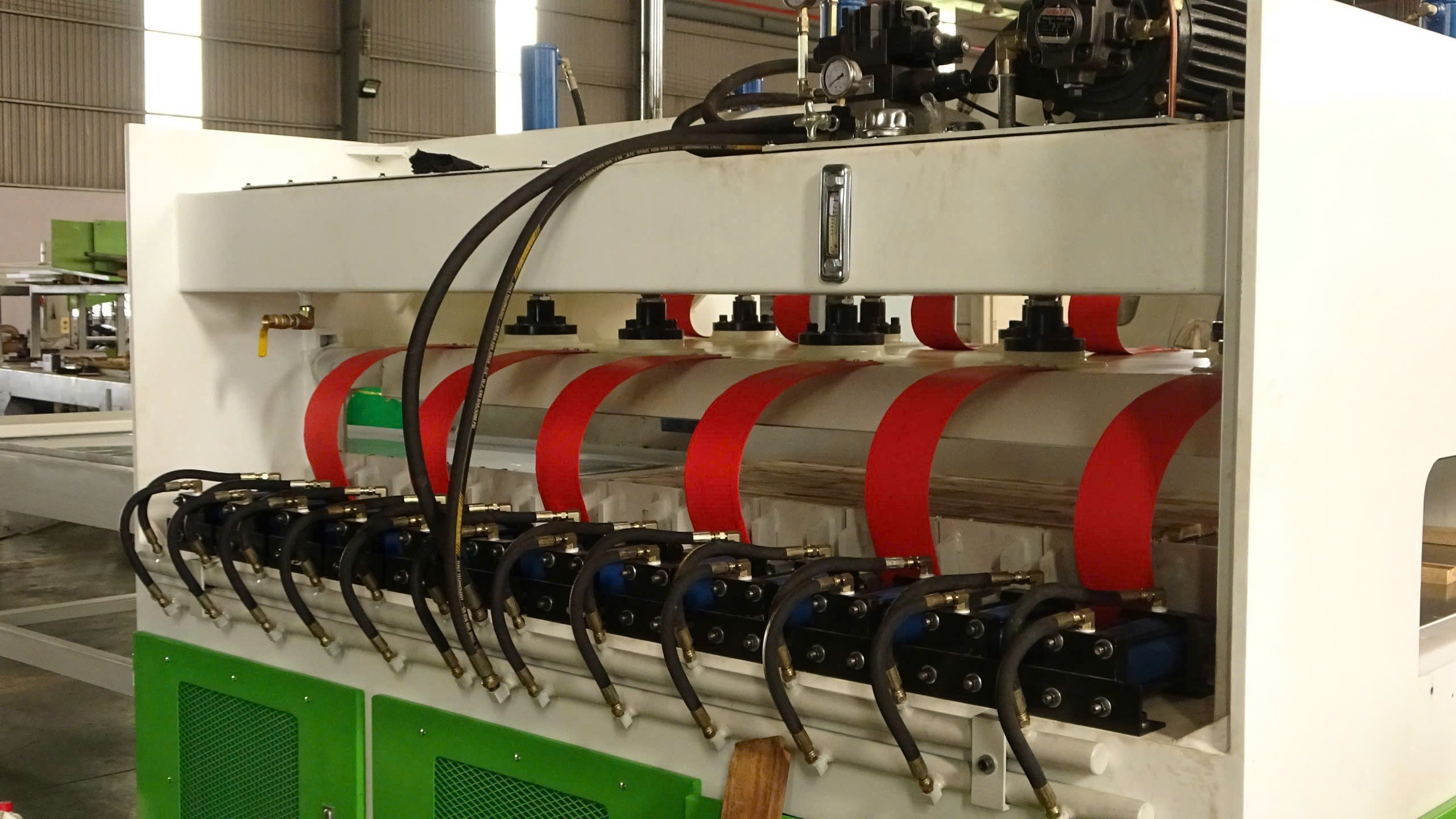

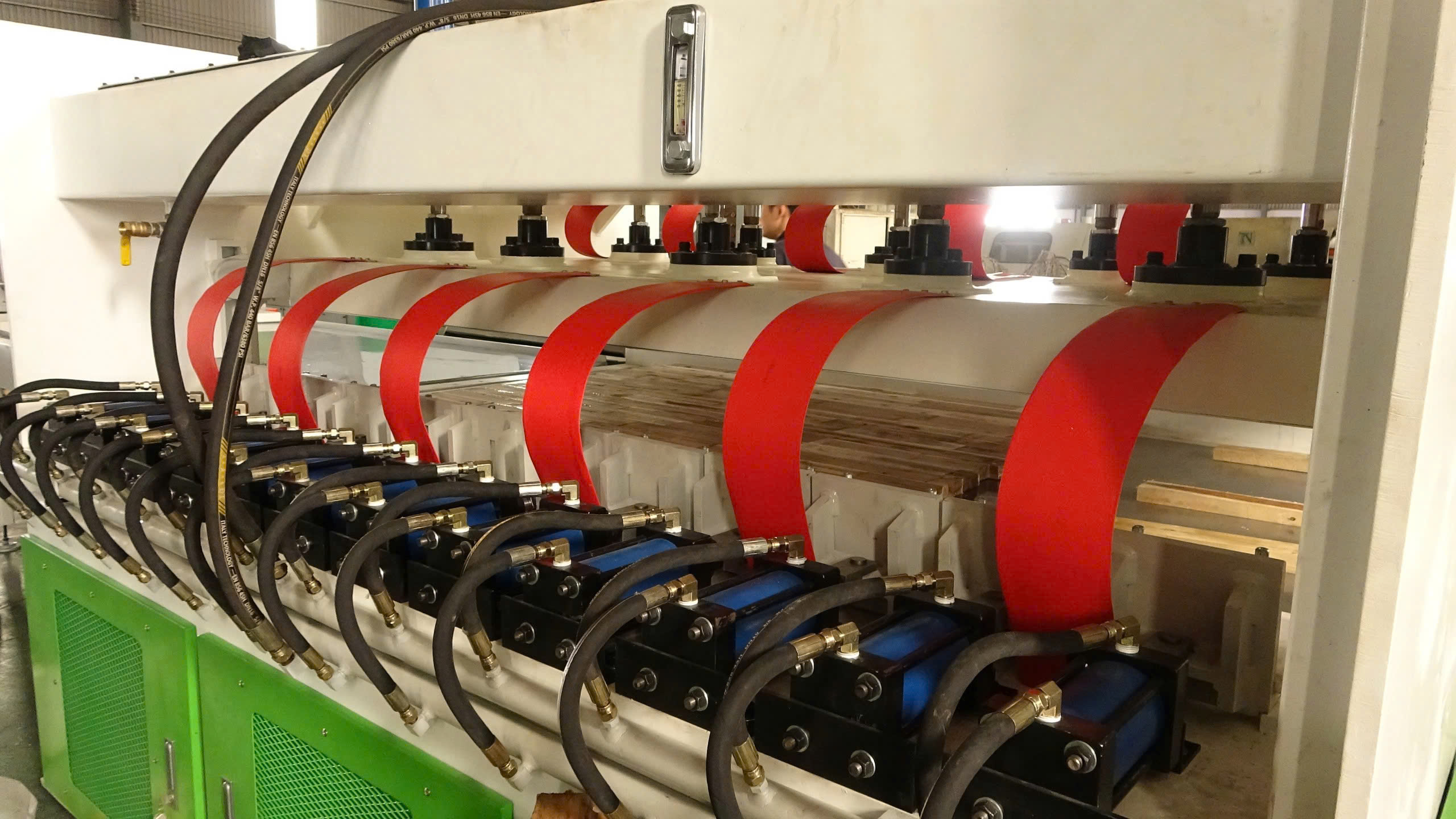

– IN-PRESS: Cylinder diameter 80mm x stroke 100mm x 12 rods – The press can press HUMIDITY 14-160 without burning wood *Components are imported from KUOHUNG factory – Taiwan. *The press can press HUMIDITY 14-160 without burning wood.

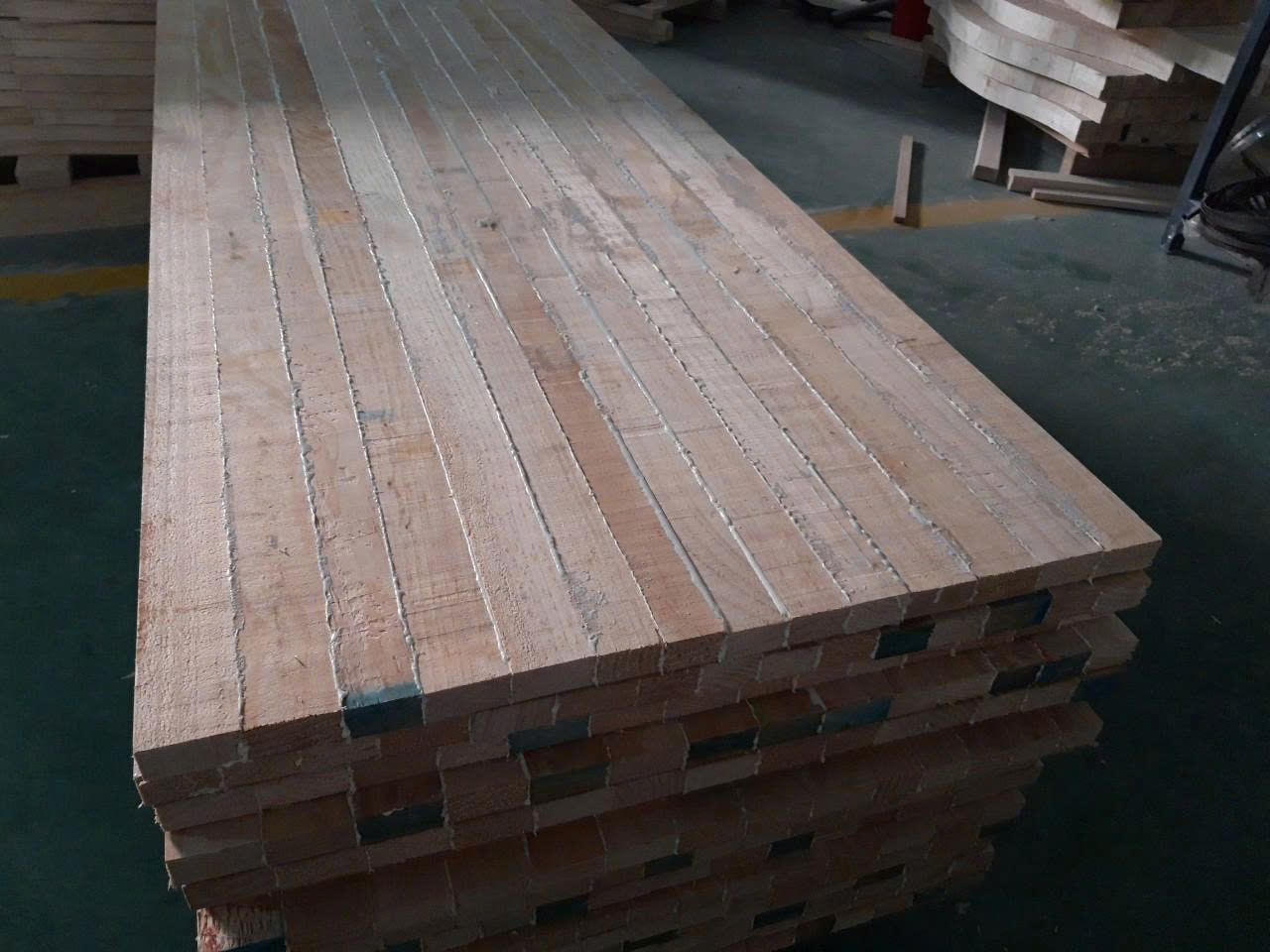

NOTE: The workpiece must be even and have been planed through the 4-sided planing machine. Must use a 45 KVA voltage stabilizer for stable power supply. (For enterprises located outside the Industrial Park)
