FL-08 AUTOMATIC TENON AND JOINT MACHINE | MCB THUONG NGUYEN WOOD

SKU: FL-08
Produced by: CKM
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

🪚 FULLY AUTOMATIC TENONING & VERTICAL FINGER JOINTING MACHINE – 100% AUTOMATED

✅ BRAND: CKM – ORIGIN: TAIWAN

🔧 MODEL: FL-08

💡 AUTOMATED SOLUTION FOR HIGH-PERFORMANCE FINGER JOINTING LINE

✅ Fully automatic – Exceptional productivity

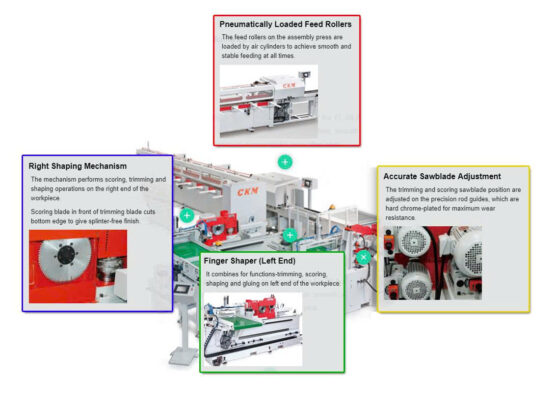

The machine is divided into multiple processing units to ensure a seamless and accurate tenoning and jointing process.

✅ Powerful motors – Long-lasting performance
Equipped with motors up to 20HP, the system can handle large and thick wood stock with ease.

✅ Labor-saving – Cost-efficient
Automation significantly reduces manual labor, shortens production time, and boosts economic efficiency.

⚙️ MACHINE CONFIGURATION & SPECIFICATIONS

🔹 F-I29-T2 – FEEDING TABLE	Table size: 900 x 600 mm Feeding motor: 1/2HP x 2
🔹 F-C07 – TENONING UNIT (LEFT)	Workpiece size: Length: 150–900 mm Width: 20–600 mm Thickness: 20–160 mm Spindle motor: 20HP Cross-cut saw motor: 5HP Lower wall motor: 2HP Conveyor motor: 1/2HP Includes saw blade (non-cutting type)
🔹 F-C08 – TENONING UNIT (RIGHT)	Workpiece size: same as F-C07 Spindle motor: 20HP Cross-cut saw motor: 5HP Upper & lower wall motors: 2HP x 2 Conveyor motor: 1/2HP Includes roller system Saw blade (non-cutting type) Working cycle: 3–4 cycles/min
🔹 F-D16 – ROLLER GLUING TABLE	Table size: 900 x 600 mm Glue applied by roller system
🔹 F-A05-6 – LONG FINGER JOINTING SECTION	Two-section working table Workpiece size: Length: 6000 mm Width: 20–160 mm Thickness: 20–60 mm Feeding motor: 3HP Cross-cutting motor: 5HP Oil pump motor: 5HP Working cycle: 4–5 pieces/min
