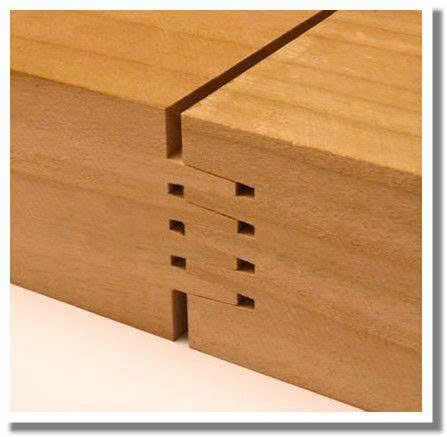

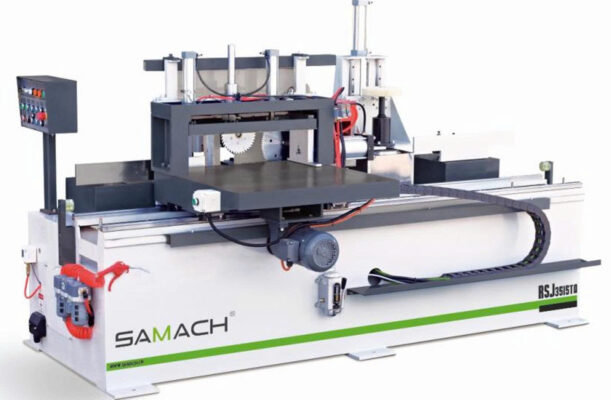

🔧 A PROFESSIONAL SOLUTION FOR FINGER JOINTING WOOD
🔍 KEY FEATURES
✅ High precision: The feeding table uses a high-precision linear guide system imported from Japan, ensuring accurate joint cutting.
✅ Superior joint quality: Equipped with a dual-saw spindle and milling knives, the machine significantly improves the smoothness and precision of the finger joints.
✅ Advanced drive system: The table’s forward and backward motion is controlled by a German-imported pneumatic-hydraulic converter, offering stable operation, fast response, easy maintenance, and lower energy consumption.
✅ Efficient glue application: The machine uses an automatic finger joint glue spraying system, ensuring even glue distribution and minimizing glue waste.
📐 TECHNICAL SPECIFICATIONS
Table size (L x W): 760 x 850 mm
Maximum thickness: 150 mm
Maximum width: 600 mm
Main saw spindle diameter: Ø30 mm
Finger joint spindle diameter: Ø70 mm
Main saw spindle speed: 2840 rpm
Finger joint spindle speed: 6000 rpm
⚙️ Motor Power:
Main saw spindle motor: 4 kW
Finger joint spindle motor: 11 kW
Side cutter motors: 2 x 0.75 kW
Total power: 16.5 kW
🧱 MACHINE DIMENSIONS & WEIGHT
Machine dimensions: 2700 x 1730 x 1550 mm
Machine weight: 2000 kg
