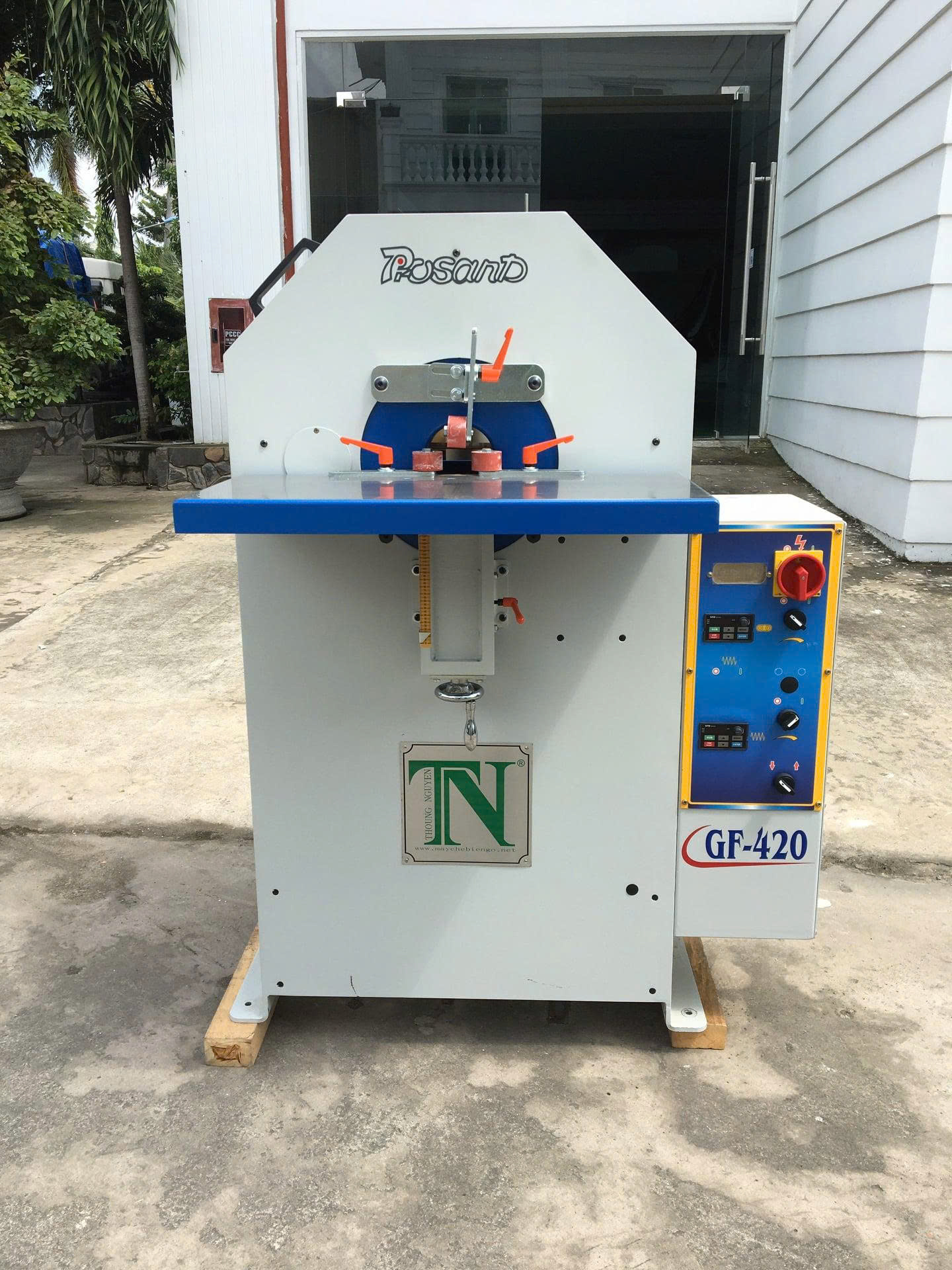

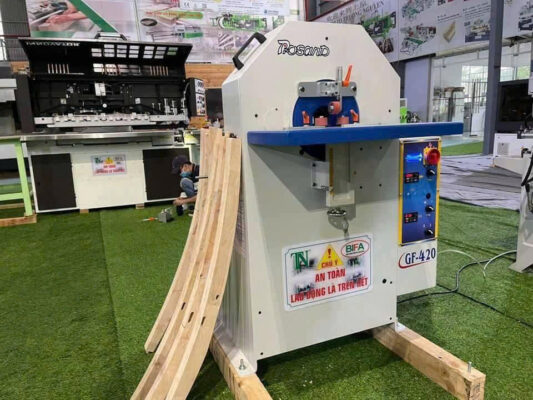

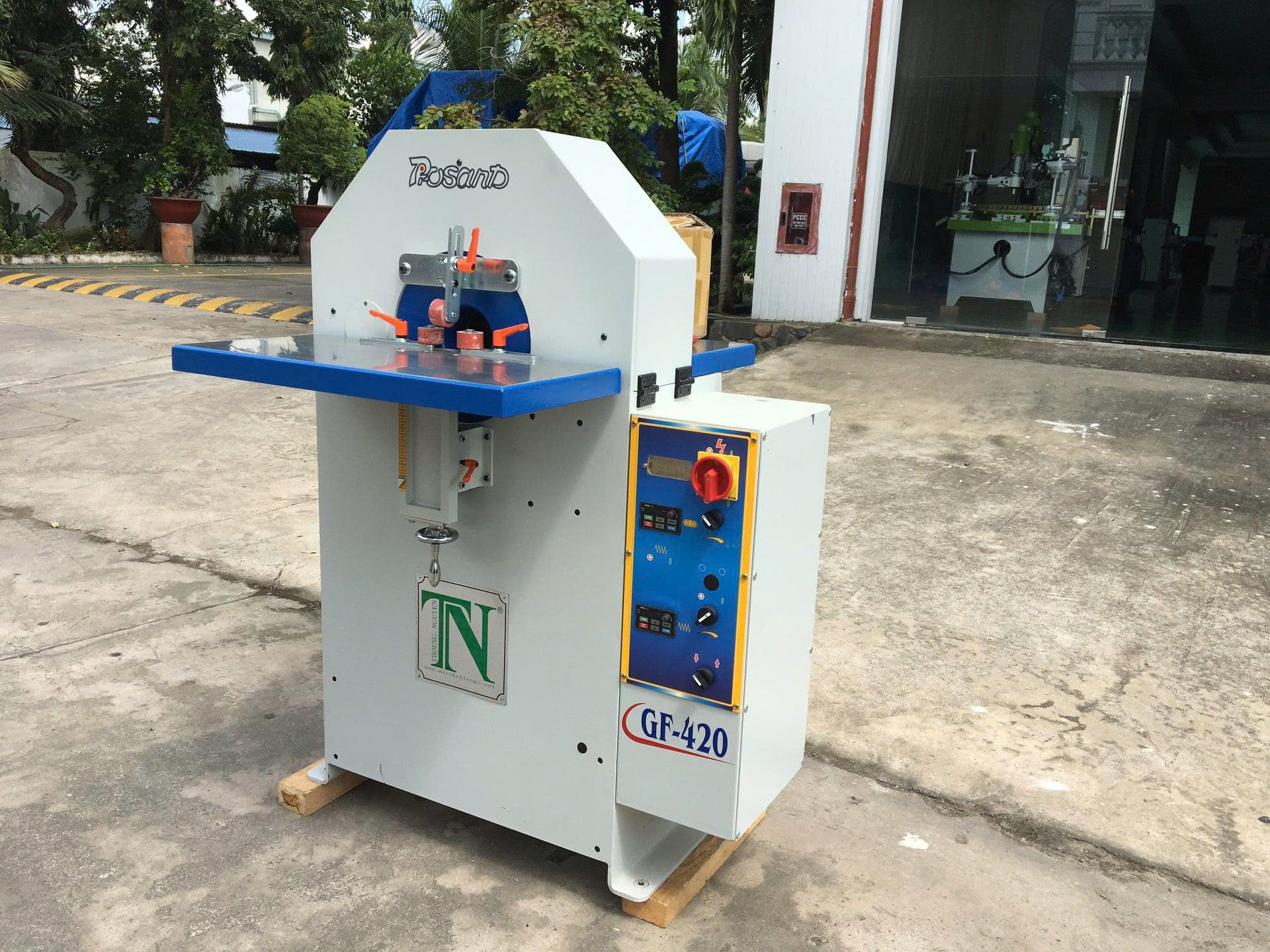

EDGE SANDING MACHINE (SHAPING) GF-420 | MCB GO THUONG NGUYEN

SKU: GF-420
Produced by: PROSAND
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

🆕 INTRODUCING THE HIGH-PERFORMANCE EDGE ROUNDING (DEBURRING) SANDING MACHINE

MODEL: GF-420 | BRAND: PROSAND – TAIWAN
Condition: Brand New | Taiwan Technology – Exceptional Performance

🔹 PRODUCT OVERVIEW

The GF-420 sanding machine from PROSAND – Taiwan is a specialized tool for edge rounding and smoothing after cutting, reducing sharpness while enhancing both safety and aesthetics. It is ideally suited for furniture production, doors, picture frames, and handicrafts.

Compact in size, easy to operate, and capable of handling both straight and curved workpieces, it is a smart solution for modern woodworking workshops.

⚙️ DETAILED SPECIFICATIONS

🔸 Processing Capabilities:

Minimum workpiece length (straight): 350 mm
Minimum curvature radius: 200R and above
Minimum curved workpiece diameter: 400 mm and above
Edge diameter range: 10 – 75 mm
(Larger diameters result in near-straight curvature)

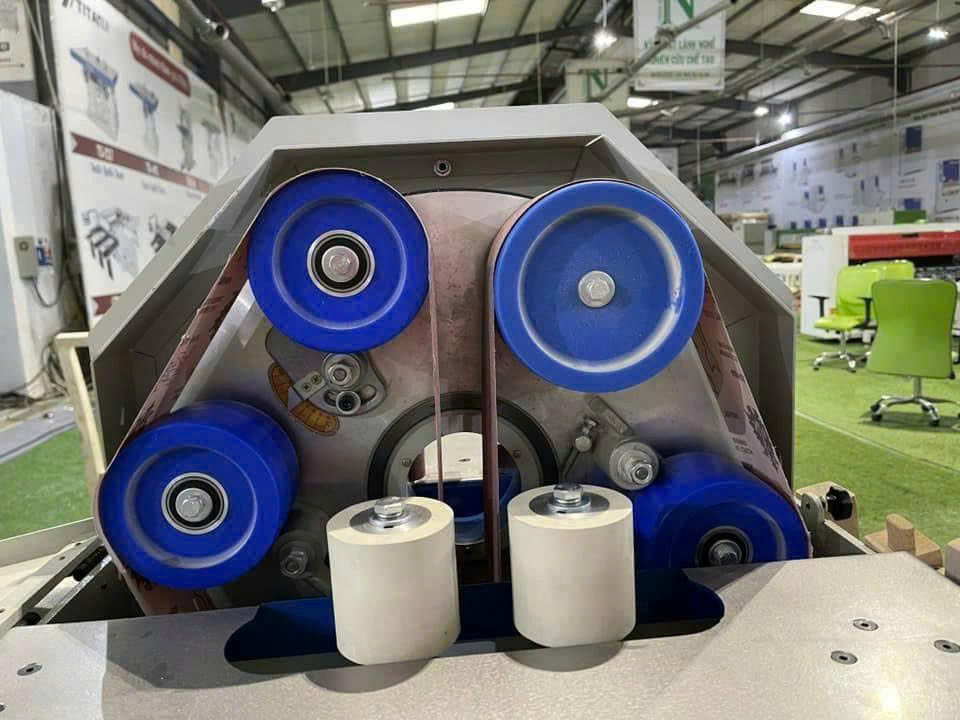

🔸 Sanding Unit:

Sanding motor: 1HP x 1 unit
Sanding belt size: 1220 mm (L) x 50–90 mm (W)
Sanding belt speed: 0 – 1102 m/min (infinitely variable speed)

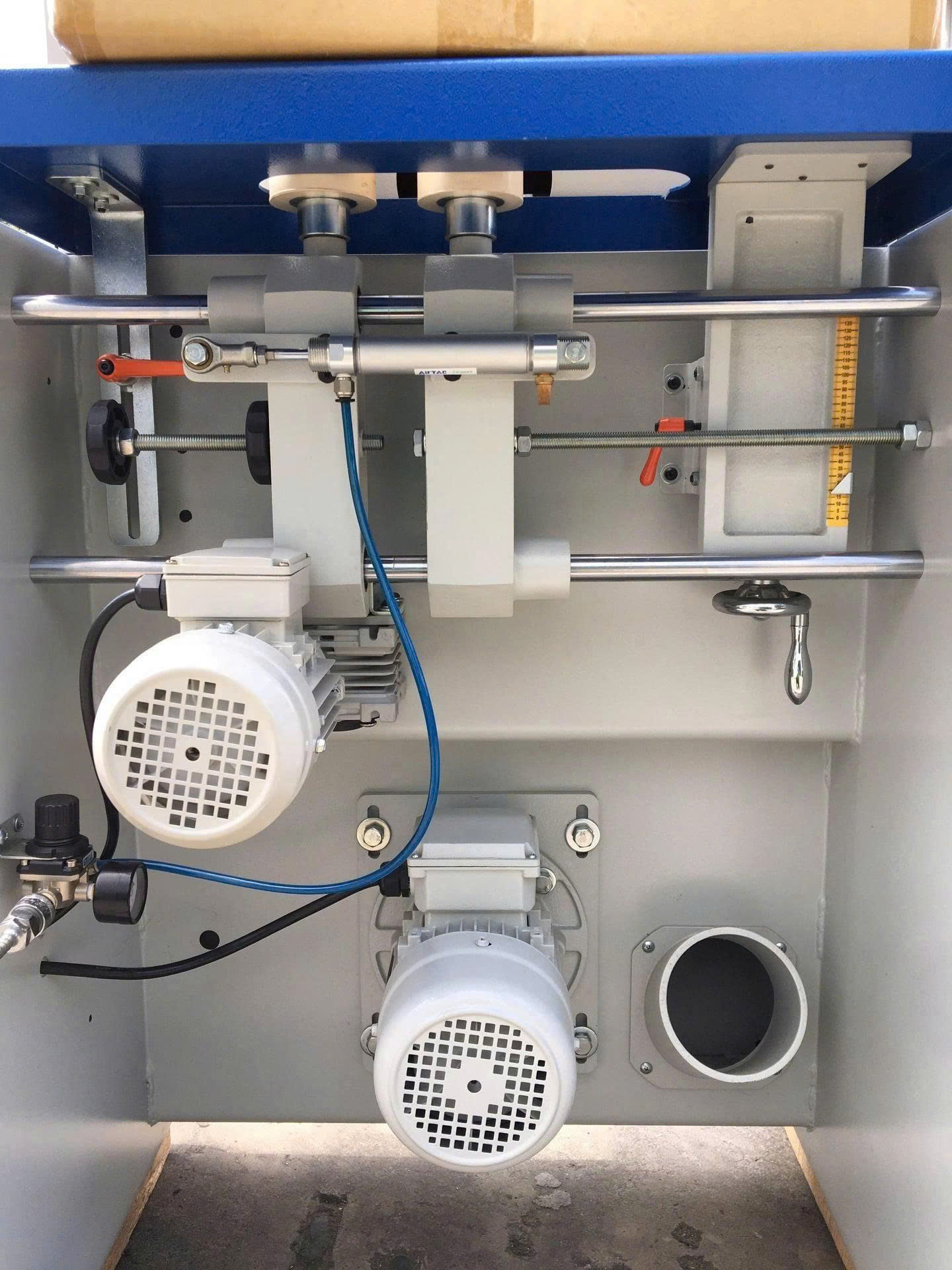

🔸 Feeding Unit:

Feeding motor: 1/4HP x 1 unit
Feeding speed: 0 – 21 m/min (infinitely variable speed)

🌟 KEY FEATURES

✔️ Designed for deburring and edge rounding of both straight and curved workpieces

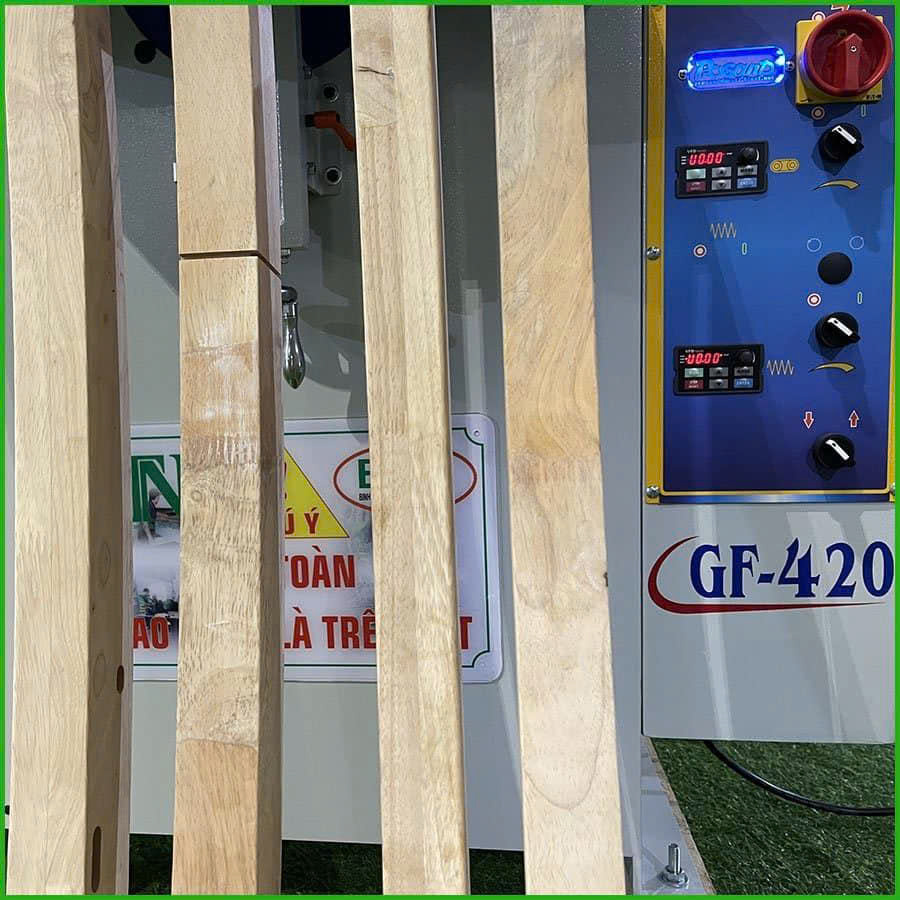

✔️ Variable frequency drive allows precise speed control for smooth surface finishing
✔️ Compact, sturdy structure – space-saving design
✔️ User-friendly – easy to operate for all levels
