🟧 EDGE SANDING MACHINE – YOWING MMQ-W2C2
100% Brand New | Brand: YOWING | Origin: Taiwan

🔧 PRODUCT OVERVIEW
The YOWING MMQ-W2C2 is a professional edge sanding machine designed to precisely finish flat, beveled, or contoured edges of wooden workpieces. Equipped with dual W and C sanding shafts, the machine offers high flexibility in handling various edge profiles, making it ideal for both industrial and high-end furniture production lines.

⚙️ KEY TECHNICAL SPECIFICATIONS
➤ Working Capacity:

• Maximum workpiece width: 300 mm

• Minimum workpiece length: 500 mm

• Workpiece thickness: 5 – 100 mm

• Working table height: 850 – 900 mm

• Feeding speed: 15 – 35 m/min

• Conveyor motors: 0.37 kW × 4

➤ Sanding System:
🔹 W Axis

• Sandpaper size: 840 × 100 mm

• Sanding shaft motors: 1.5 kW × 2 pcs – 1440 rpm

• Adjustable sanding angle: –45° to +45°

• Sponge head size: 180 × 25.4 × 100 mm

• Max cutter wheel diameter: 210 mm

🔹 C Axis

• Sanding motors: 1.5 kW × 2 pcs – 1440 rpm

• Sanding width: 300 mm

• Sandpaper size: 300 × 67 mm

➤ Additional Configuration:

• Dust extraction ports: Ø100 mm × 4 pcs

• Air pressure requirement: 0.6 – 0.8 MPa

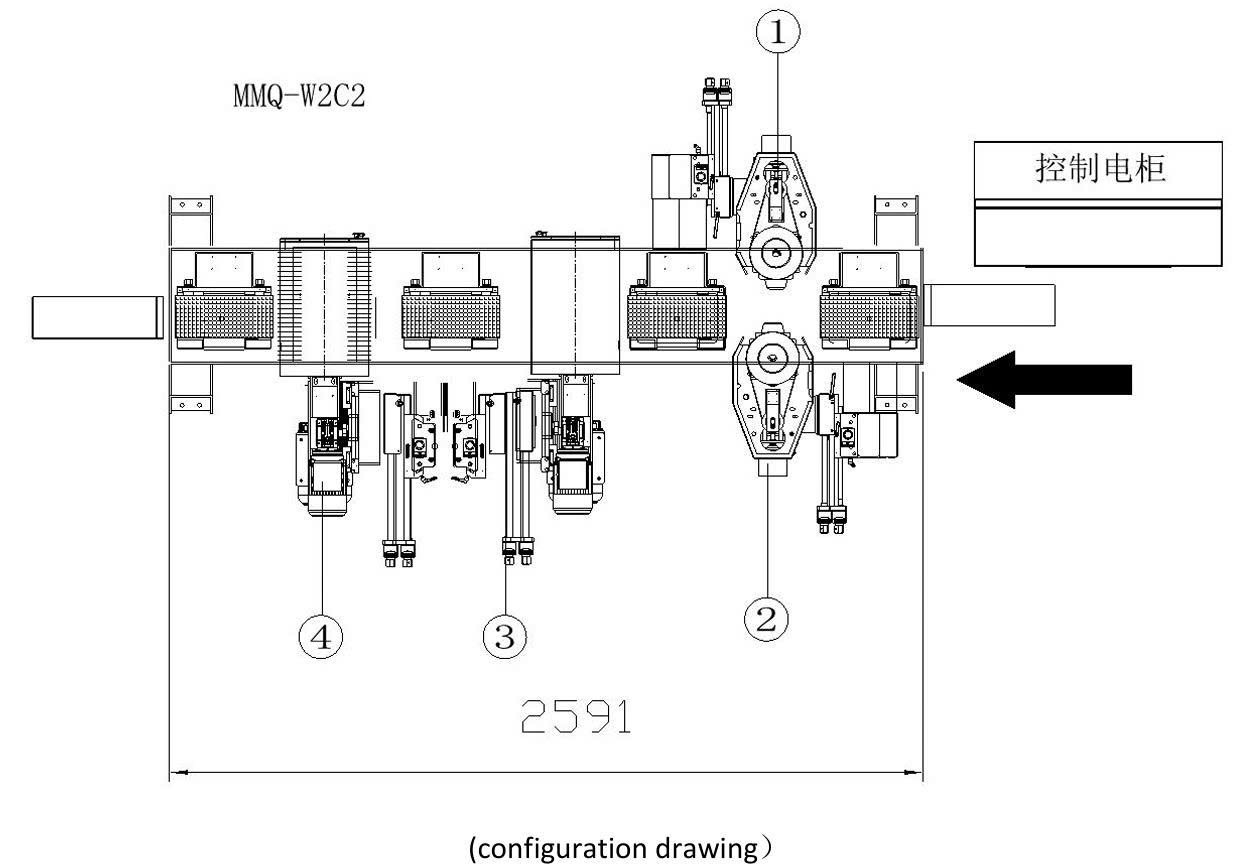

• Configuration: 2 W heads (W1–W2), 2 C heads (C1–C2)

• Power supply: 380V – 50Hz

• Total power: 9.5 kW

• Machine dimensions: 3200 × 1600 × 1800 mm

• Weight: 1500 kg

🌟 HIGHLIGHT FEATURES
✔️ Dual W & C sanding shaft system for versatile edge processing
✔️ Flexible angle adjustment (–45° to +45°) for both straight and beveled edges
✔️ Automatic conveyor system with stable and efficient feeding
✔️ High performance, precise operation – ideal for mass production
✔️ Durable industrial-grade design for long-term use

🎯 IDEAL APPLICATIONS

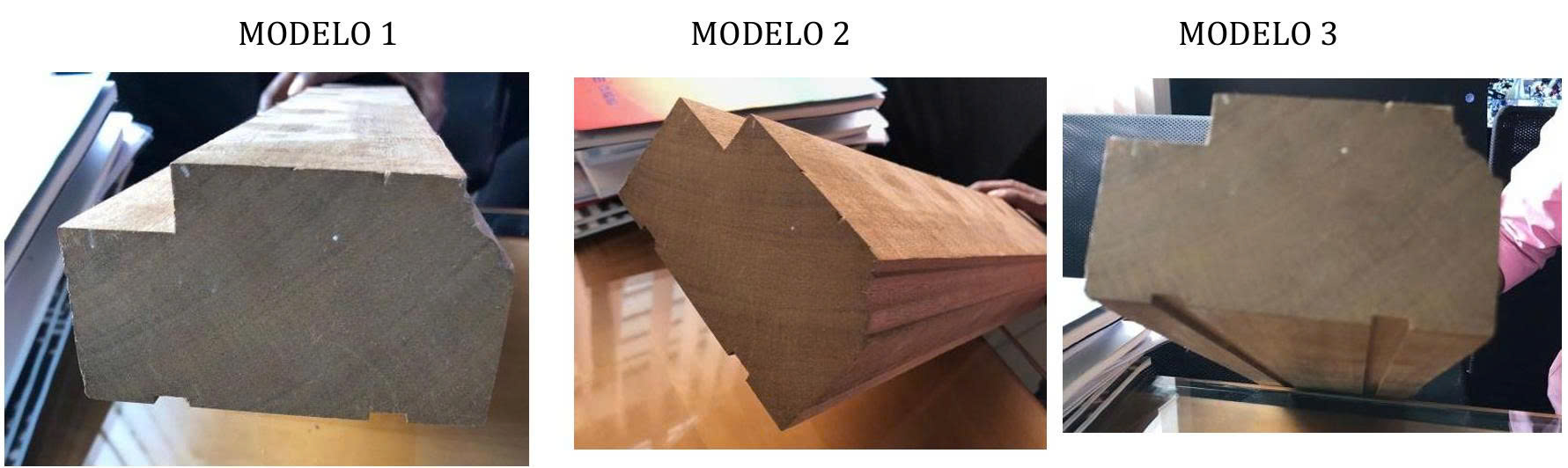

• Edge sanding for components such as cabinet doors, side panels, tabletops, moldings, and frames

• Pre- or post-paint sanding in PU coating lines

• Perfect for furniture manufacturers, woodworking plants, and high-end wood product factories
