🟦 PRODUCT INFORMATION

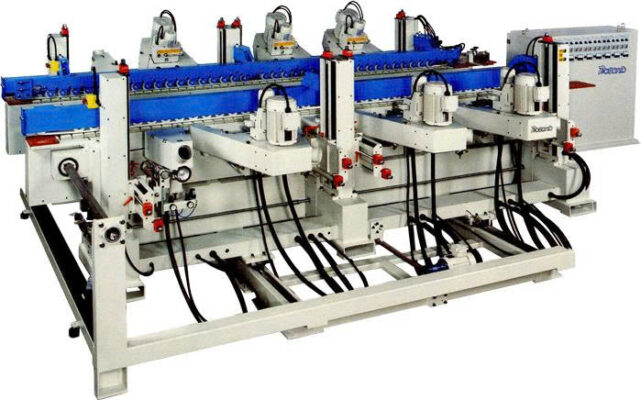

HIGH-PERFORMANCE EDGE SANDER – PROSAND DRS6B2

🔹 Brand New 100% | Brand: PROSAND | Origin: Taiwan
🔹 Industrial-grade machine – Designed for high-precision edge sanding

The PROSAND DRS6B2 model offers a complete edge sanding solution with a powerful configuration of 6 sanding belts and 2 brush units. Ideal for woodworking factories requiring high productivity, fine surface finishing, and labor efficiency.

⚙️ MAIN TECHNICAL SPECIFICATIONS

➤ Processing Range

• Workpiece length: 300 – 3000 mm

• Workpiece width: 250 – 1250 mm

• Workpiece height: 5 – 80 mm

• Workpiece holder type: Roller

• Up/down adjustment: Electronically controlled

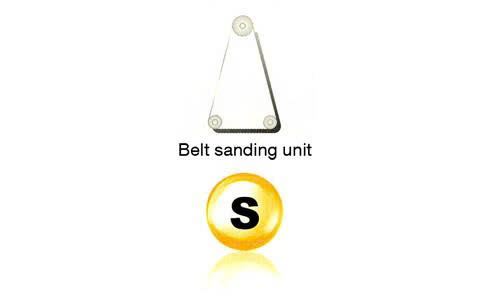

➤ Sanding Belt Unit

• Sanding motors: 3HP x 6 units

• Sanding speed: 0 – 1300 m/min (inverter-controlled variable speed)

• Oscillation motors: 1/8HP x 6 units

• Belt size: Length 2450 mm x Width 30 – 90 mm

• Adjustments available:
  ▪️ Vertical (Up/Down)
  ▪️ Horizontal (Forward/Backward)
  ▪️ Tilting: -30° ~ +90°

• Special features:
  ▪️ Auto forward/reverse belt feed
  ▪️ Air blower and cooling system for sanding belts

➤ Brush Polishing Unit

• Brush motors: 1HP x 2 sets

• Brush speed: 0 – 1800 RPM (inverter-controlled variable speed)

• Brush wheel size: Ø250 mm x Height 50 – 100 mm

• Adjustments available:
  ▪️ Vertical (Up/Down)
  ▪️ Horizontal (Forward/Backward)
  ▪️ Tilting: 0° – 90°

• Special features:
  ▪️ Auto forward/reverse movement
  ▪️ Clockwise/Counterclockwise rotation

➤ Conveyor System

• Conveyor motor: 4HP

• Conveyor speed: 0 – 28 m/min (inverter-controlled)

• Conveyor width: 30 x 80 mm

🌟 KEY FEATURES

✅ User-friendly electronic control system
✅ Optimized for both coarse and fine sanding
✅ Greatly reduces labor while boosting productivity

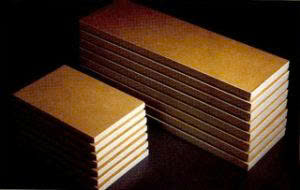

✅ Suitable for MDF, MFC, HDF, and various engineered wood panels
✅ Dual-function sanding: belt + brush for a perfect pre-finish surface

📌 TYPICAL APPLICATIONS

▪️ Sanding edges of cabinet doors, dividers, tabletops
▪️ Surface prep before PU painting
▪️ Ideal for modern furniture production lines
