EDGE BANDING MACHINE STRAIGHT / 45 DEGREE TILT EDGE BANDING ECE-600J | MCB THUONG NGUYEN WOOD

SKU: ECE-600J
Produced by: ECHAIN
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

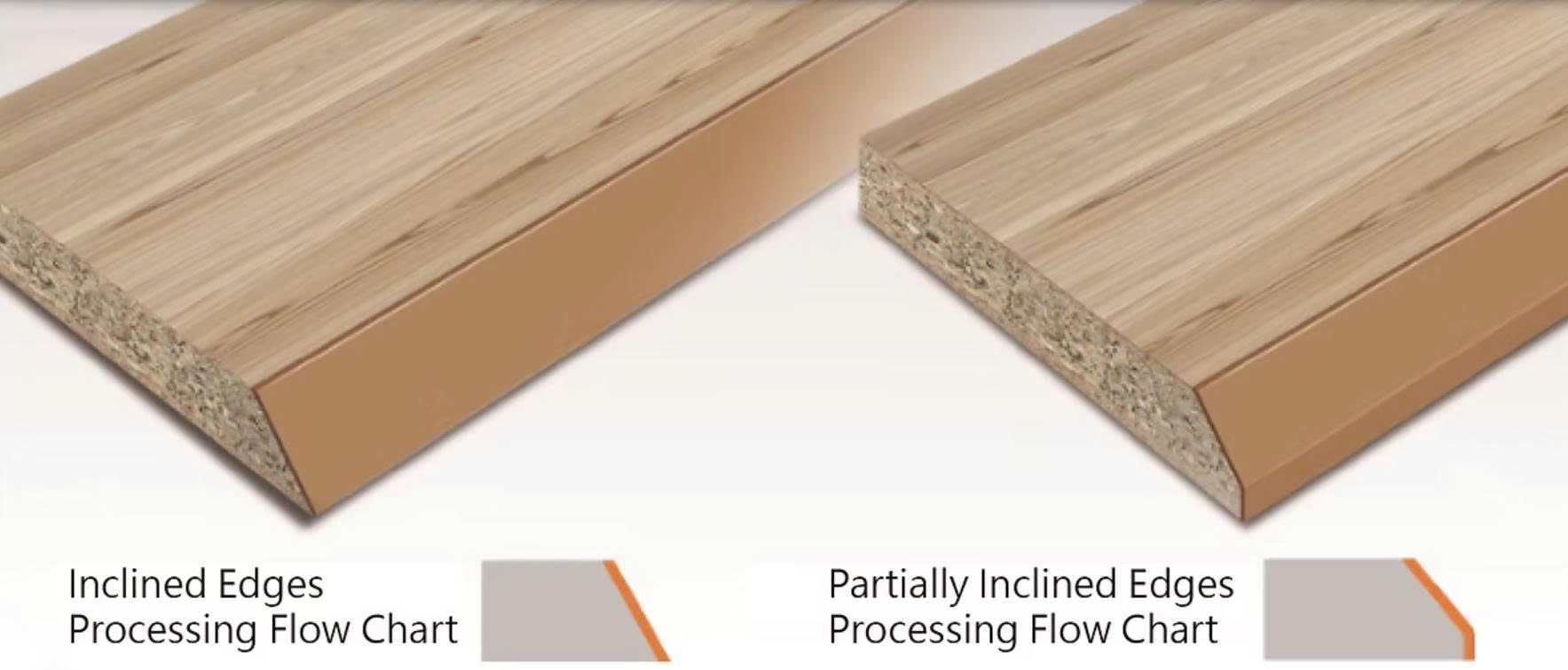

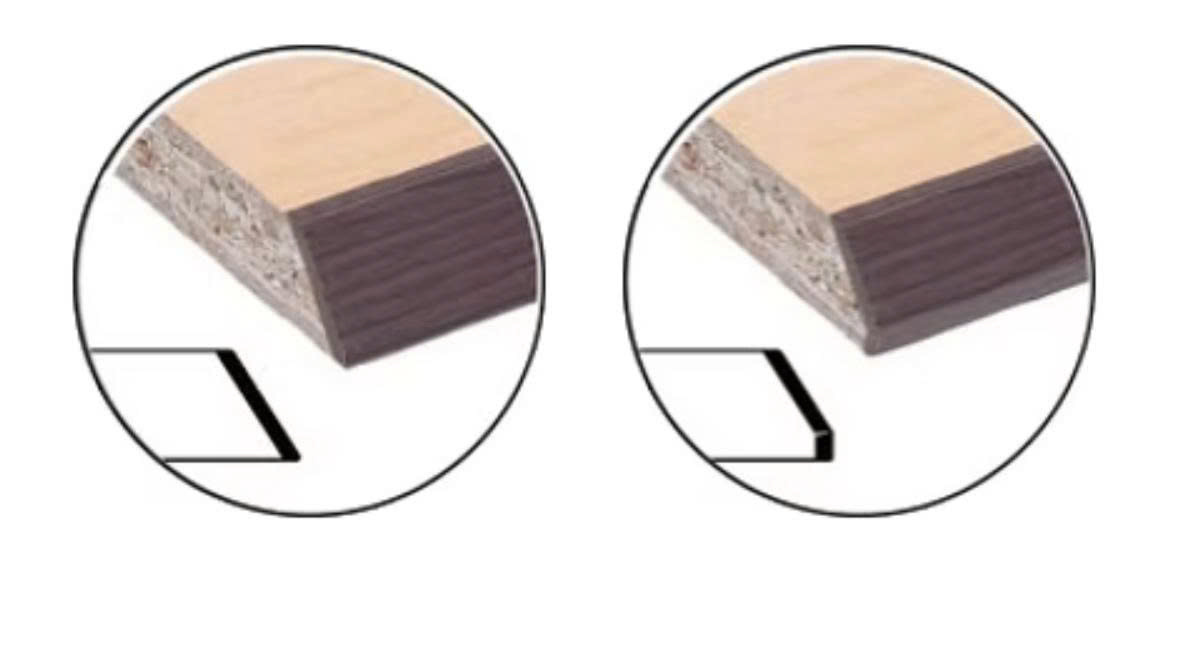

🪵 EDGE BANDING MACHINE STRAIGHT / 45 DEGREE TILT EDGE BANDING – 100%

BRAND: ECHAIN – MADE IN TAIWAN

MODEL: ECE-600J – The Ideal Solution for Cabinet Doors and Drawer Production

⚙️ PRODUCT OVERVIEW

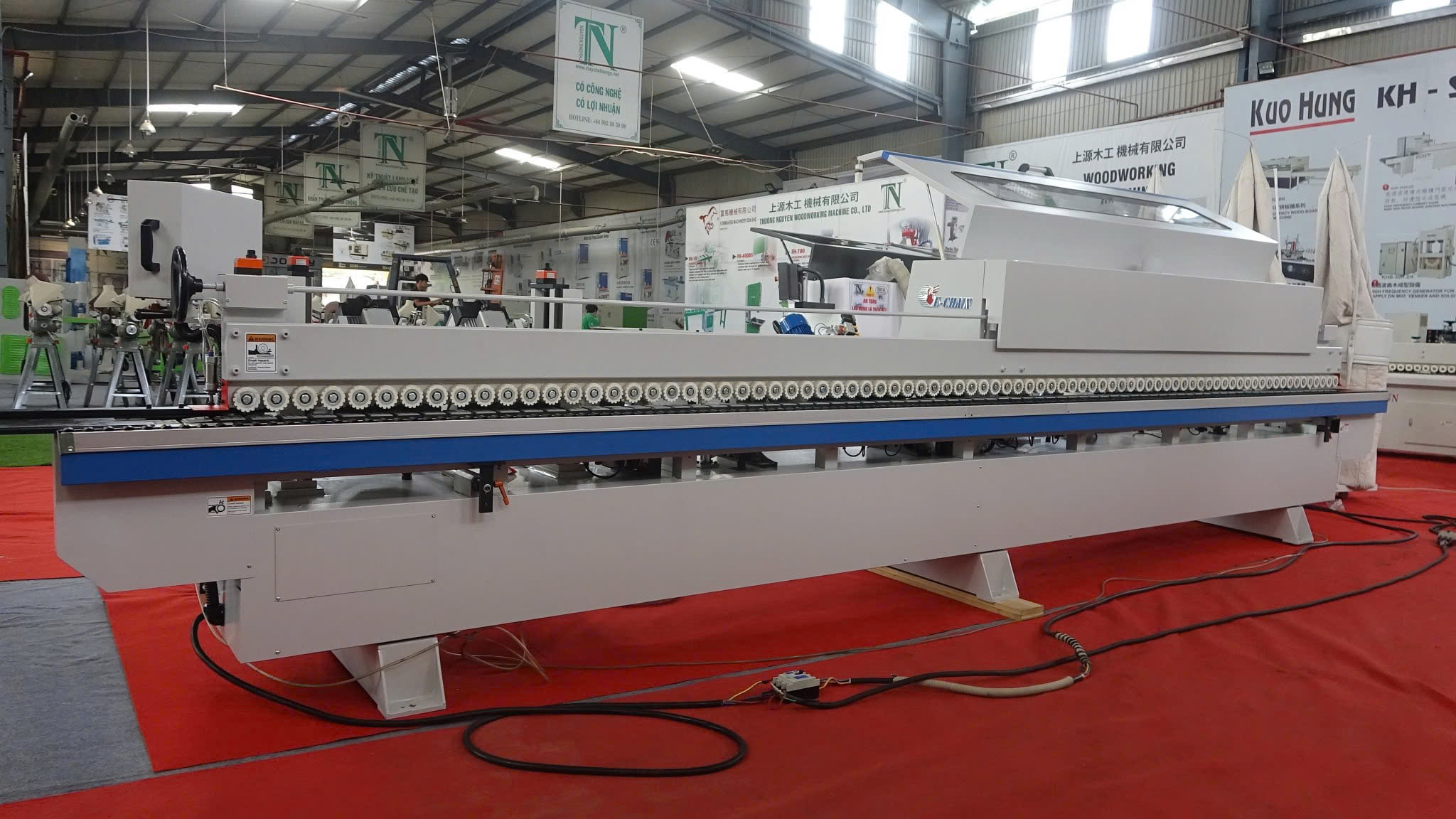

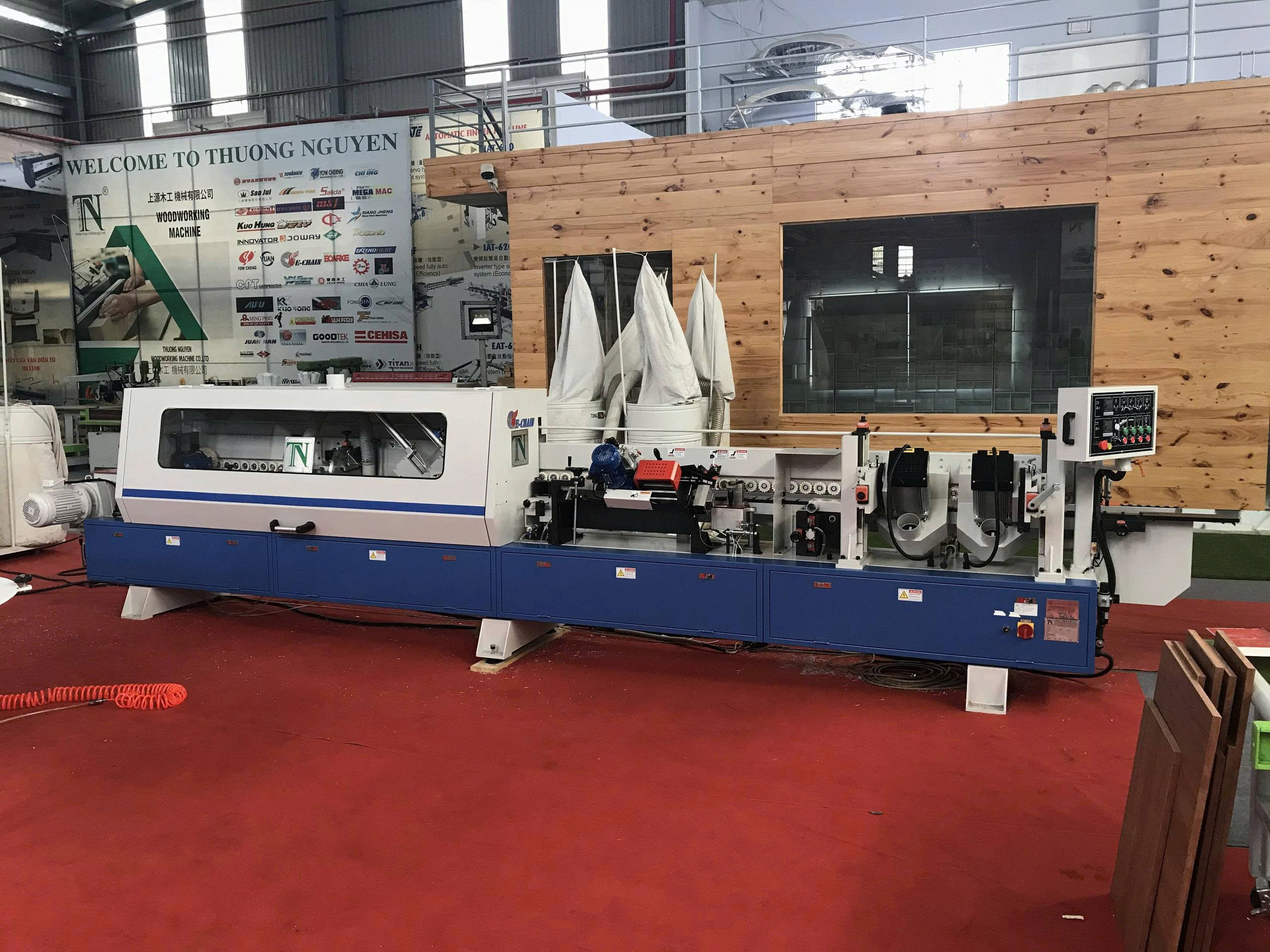

The ECE-600J is a high-end automatic edge banding machine from ECHAIN – Taiwan, specially designed for processing cabinet doors, drawers, and similar furniture components. It delivers superior finishing quality, durability, and high productivity.

✅ Compatible with ABS / PVC edge banding
✅ Uses EVA hot-melt adhesive
✅ Stable operation – Saves labor and time

📏 TECHNICAL SPECIFICATIONS

Item	Specification
Minimum workpiece length	≥ 160 mm
Minimum workpiece width	≥ 75 mm
Workpiece thickness	10 ~ 25 mm
Edge banding thickness	0.4 ~ 2 mm
Feeding speed	10 ~ 20 m/min
Machine weight	2910 / 3410 kg
Machine dimensions	6800 x 1500 x 1540 mm
Packing dimensions	6900 x 1150 x 1780 mm

🔧 MACHINE STRUCTURE & MOTOR POWER

Pre-cutting saw motor: 2.25 kW x1 – 3000 rpm
Main cutting saw motor: 3.75 kW x1 – 3000 rpm
Milling motor: 0.55 kW x1 – 12000 rpm
Gluing units: 1 vertical + 1 inclined
Grooving motor: 0.35 kW x1 – 12000 rpm
Pressing rollers: 3 vertical + 2 inclined
Front/rear trimming motors: 0.35 kW x2 – 12000 rpm
Top/bottom trimming motors: 0.55 kW x2 – 12000 rpm
Glue scraping units: Top & bottom

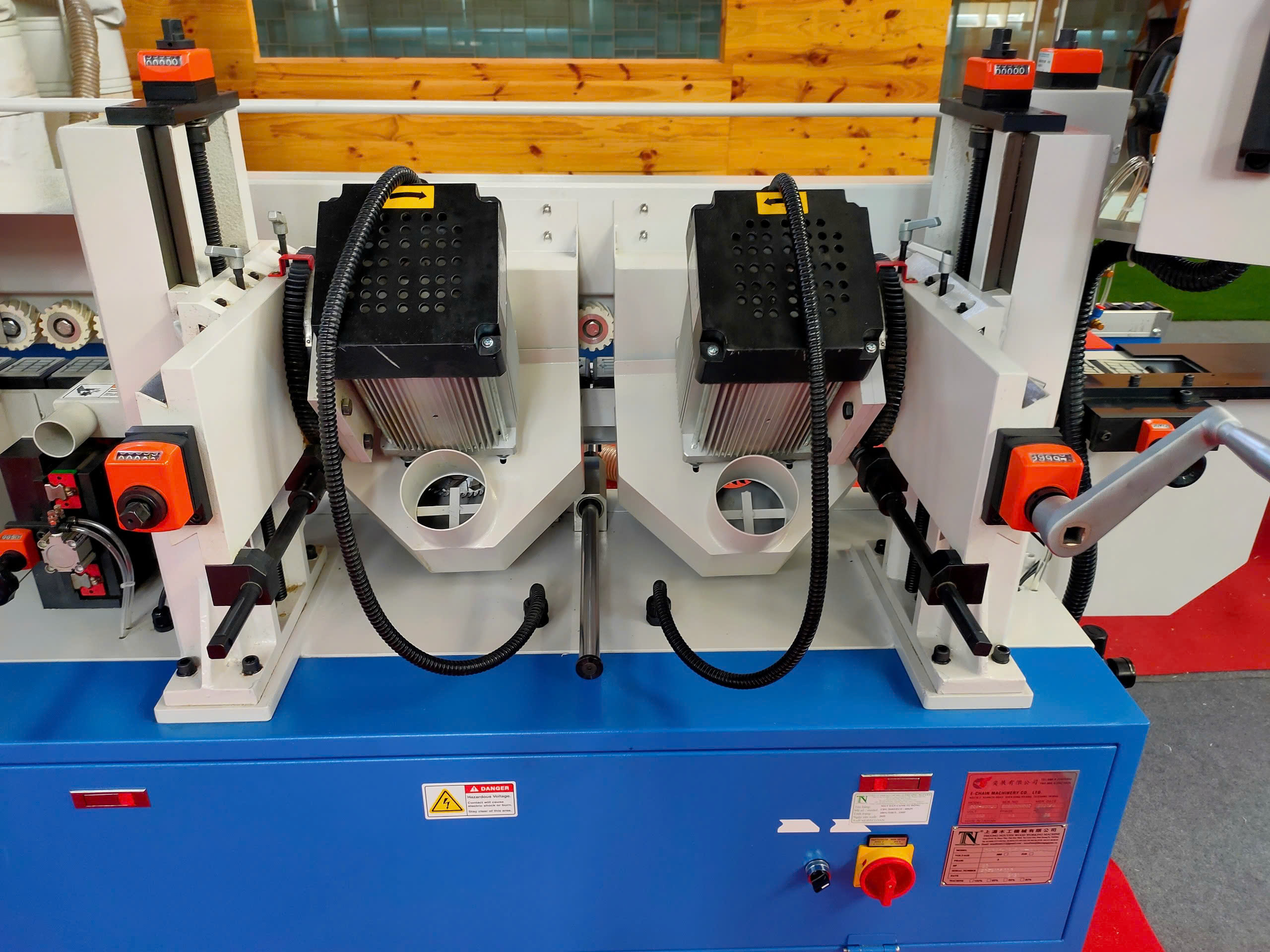

Polishing motors: 0.37 kW x2 – 1500 rpm

🌟 KEY ADVANTAGES

High automation – Easy to operate
High precision – Smooth and clean edge finish
Sturdy construction – Suitable for continuous production
Maximizes productivity and minimizes labor cost

📌 APPLICATIONS

👉 Ideal for furniture factories, kitchen cabinet makers, MDF/plywood drawer and door production, etc.
👉 Perfectly suited for modern production lines demanding speed and consistency.
