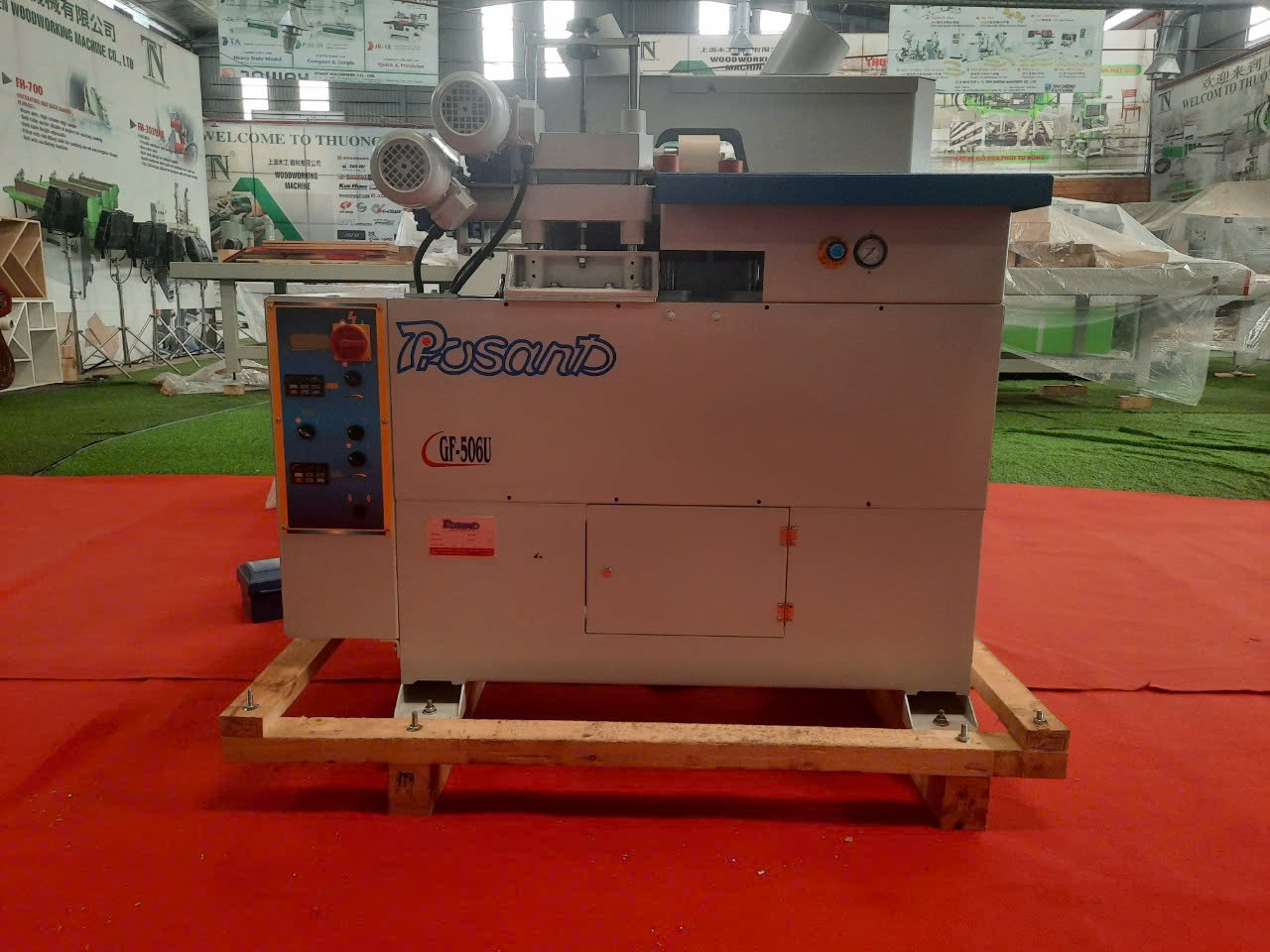

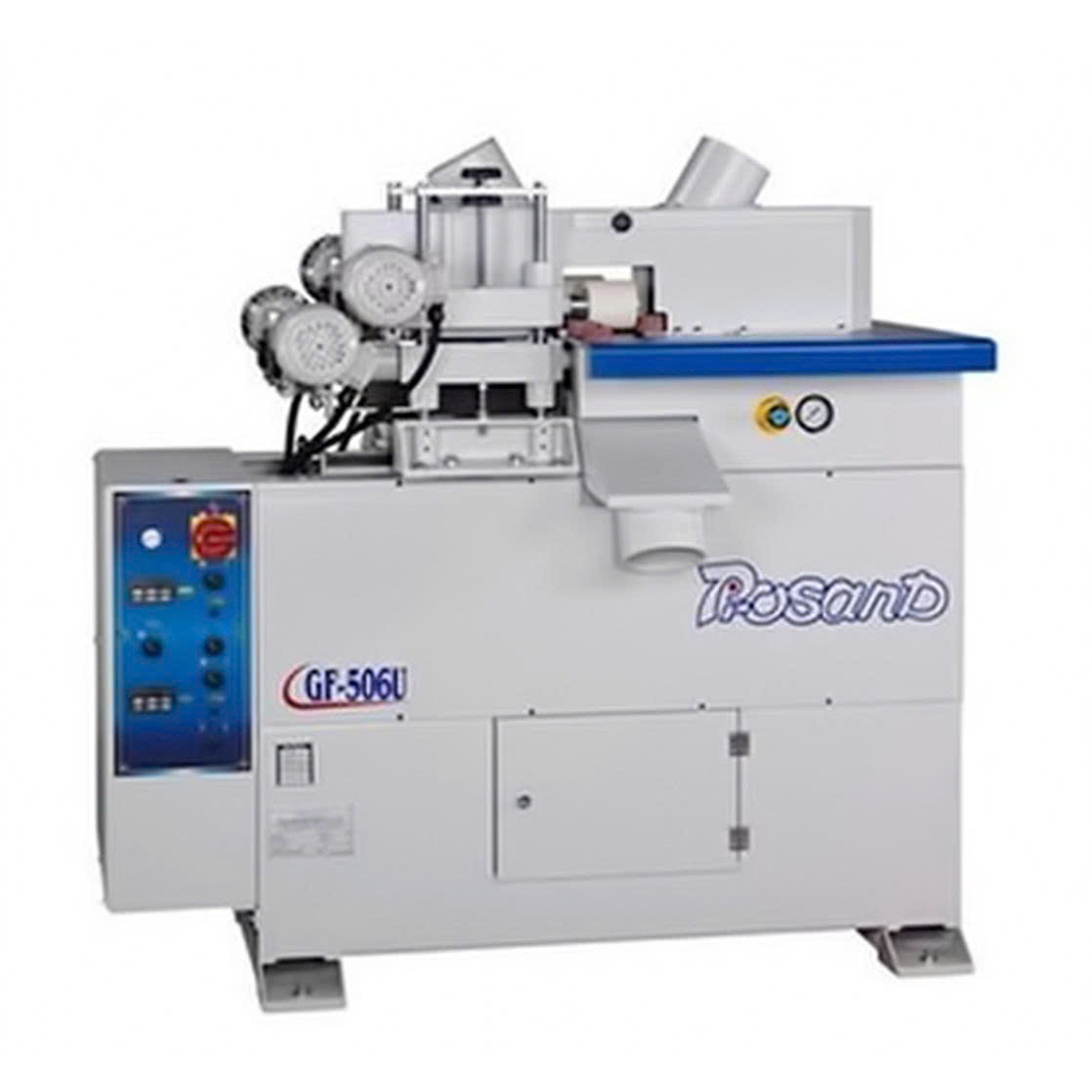

DOUBLE-SIDED CURVED SANDER GF-506U | MCB THUONG NGUYEN WOOD

SKU: GF-506U
Produced by: PROSAND
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

🔷 INTRODUCING THE 2-SIDE CURVE SANDING MACHINE

Model: GF-506U | Brand: PROSAND | Origin: Taiwan
Condition: Brand New 100% | Designed for sanding curved wooden parts

🔧 PRODUCT OVERVIEW

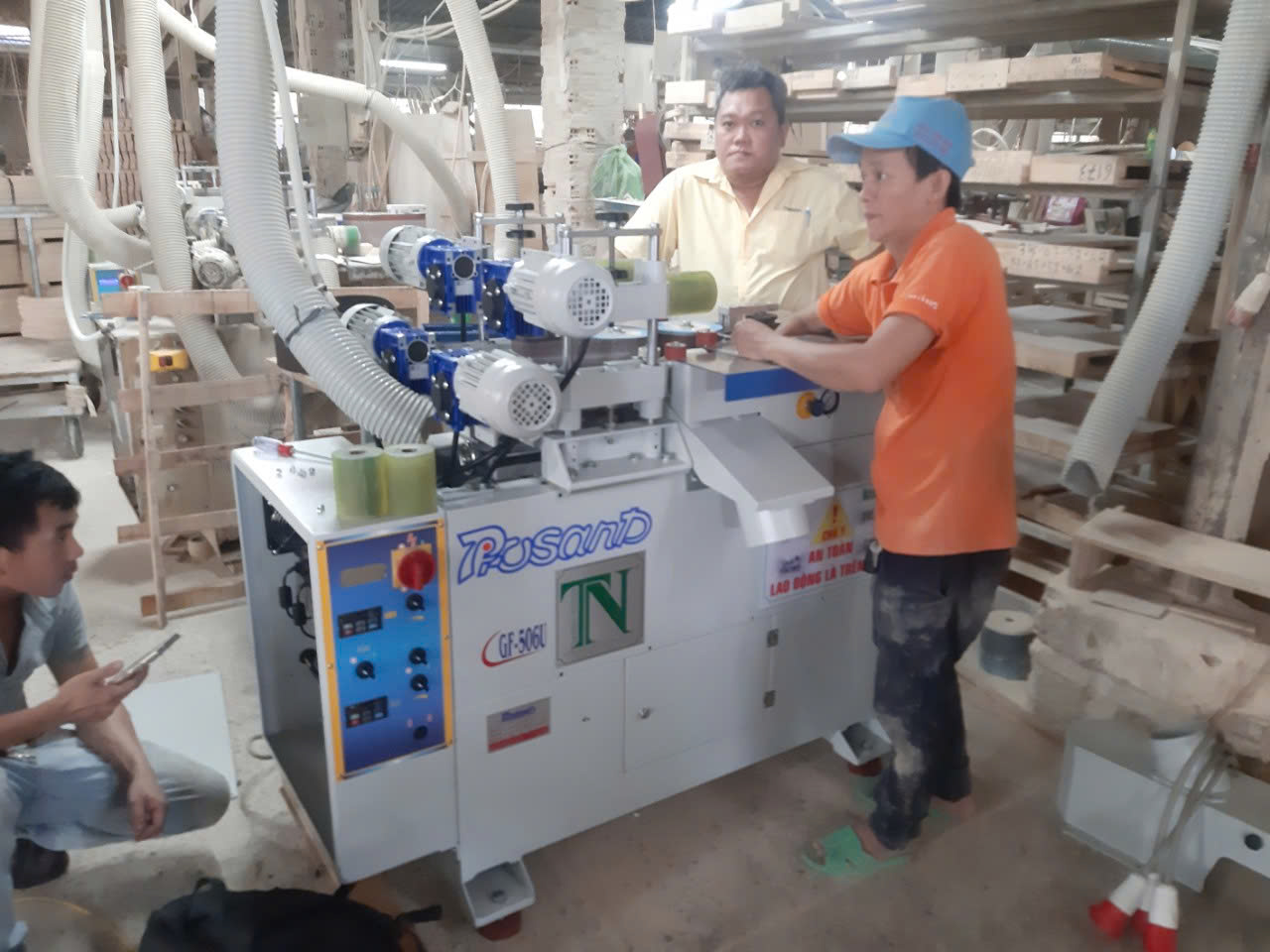

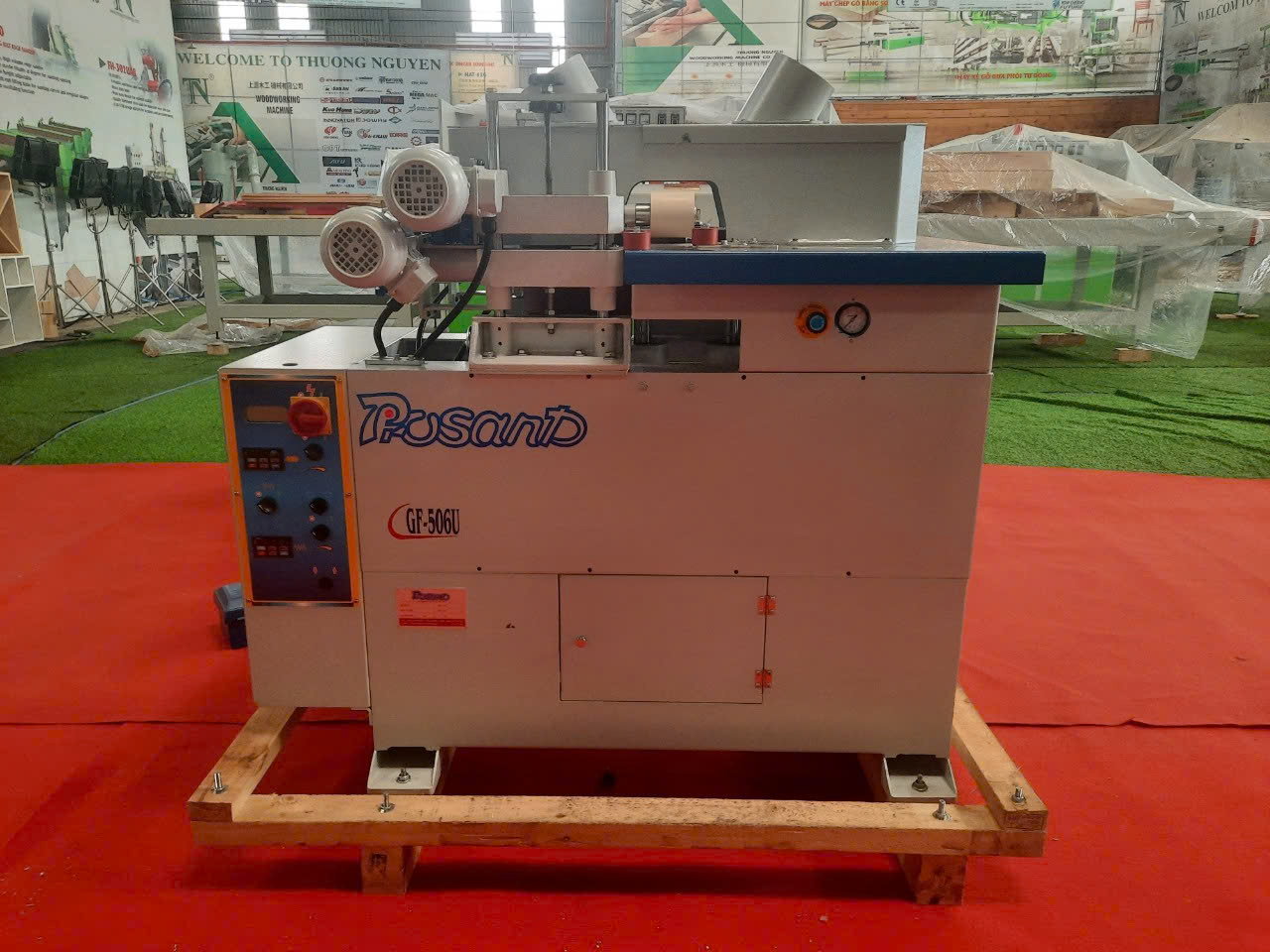

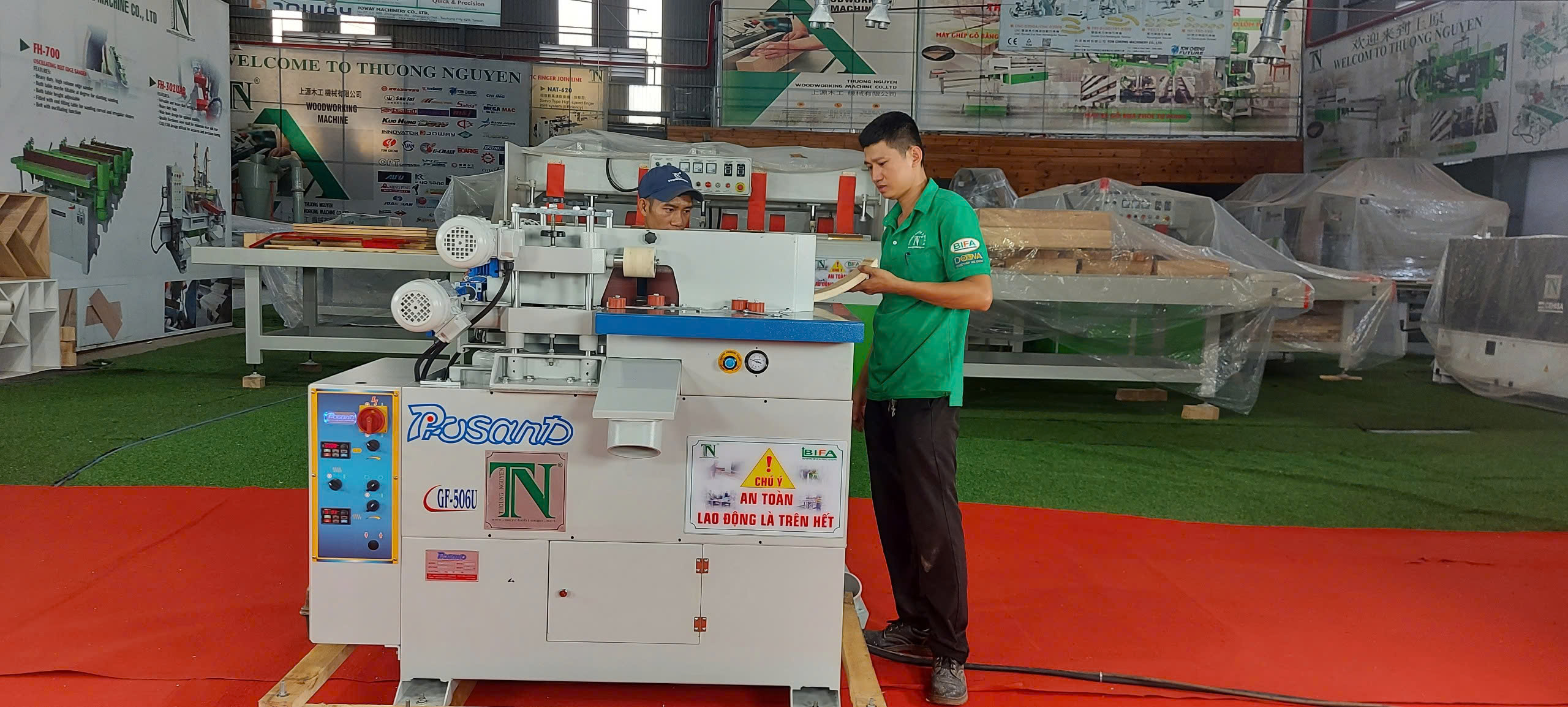

The GF-506U Double-Sided Curve Sanding Machine from PROSAND (Taiwan) offers an optimal solution for simultaneously sanding both sides of curved wooden workpieces in a single pass. Equipped with powerful motors, stepless variable speed controls, and pneumatic oscillation, this machine ensures high productivity and excellent surface quality. It’s ideal for furniture factories and woodworking production lines.

⚙️ TECHNICAL SPECIFICATIONS

Working length of workpiece: 270 – 1500 mm
Working width of workpiece: 15 – 75 mm
Working thickness of workpiece: 25 – 75 mm

🔸 Sanding system:

Sanding motor: 1.5HP x 2 units
Sanding speed: 0 – 565 m/min (stepless variable speed)
Sanding belt size: 750 x 152 mm (L x W)
Sanding drum size: 150 x 152 mm (D x H)
Sanding oscillation: Pneumatic
Oscillation range: 0 – 100 mm

🔸 Feeding system:

Feed motors: 1/4HP x 4 units
Feed speed: 0 – 21 m/min (stepless variable speed)
Feed roller size: 75 x 75 mm (D x H)
Number of feed rollers: 4 units

🌟 KEY FEATURES

✔️ Simultaneous double-sided sanding – improves efficiency and consistency

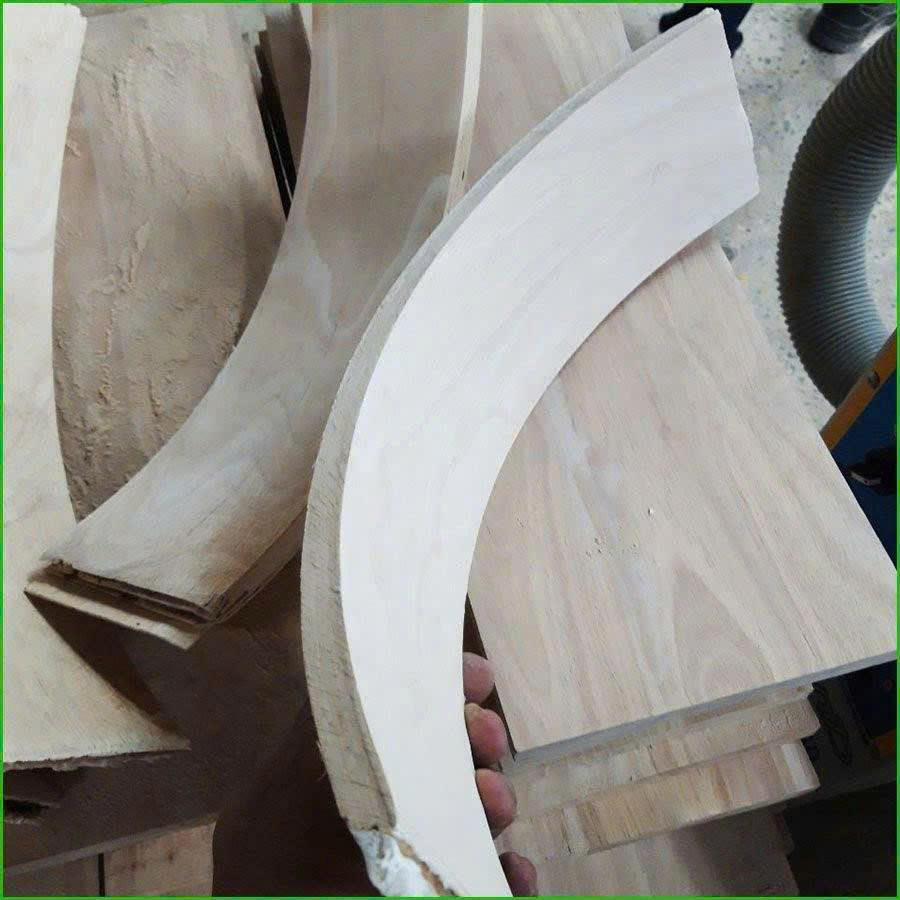

✔️ Specialized for curved workpieces
✔️ Stepless speed control – adaptable to various materials
✔️ Pneumatic oscillation system – enhances finish quality and extends sanding belt life
✔️ Heavy-duty rollers – ensure smooth and stable workpiece feeding
