DOUBLE-SIDED CURVED SANDER GF-506NE250 | MCB THUONG NGUYEN WOOD

SKU: GF-506NE250
Produced by: PROSAND
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

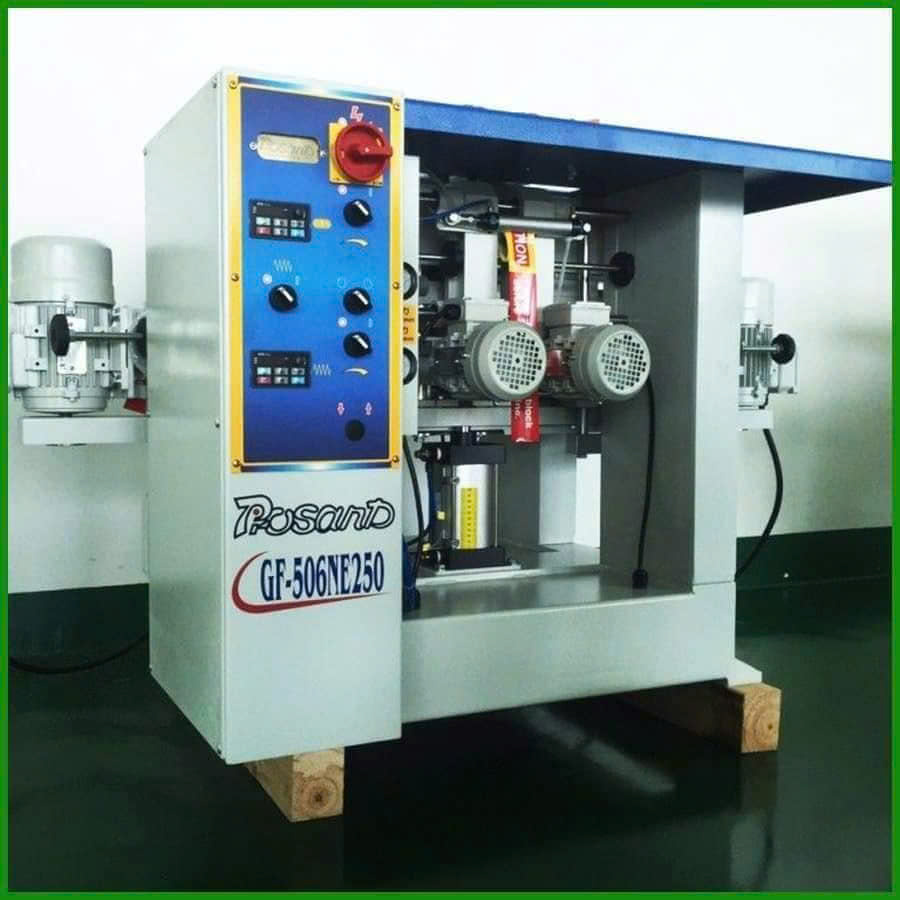

🟦 DOUBLE-SIDED CURVED SANDING MACHINE – PROSAND GF-506NE250

100% Brand New | Brand: PROSAND | Origin: Taiwan

🔧 PRODUCT INTRODUCTION

The GF-506NE250 is a specialized double-sided curved sanding machine from PROSAND – Taiwan, designed to process complex curved wooden parts such as chair legs, armrests, and bent components. With its ability to sand both sides simultaneously, this machine significantly saves time, enhances precision, and delivers exceptionally smooth surface finishes.

⚙️ TECHNICAL SPECIFICATIONS

Working length range: 250 – 1500 mm
Working thickness range: 6 – 100 mm
Working height range: 25 – 150 mm

🔹 Sanding System:

Sanding spindle motors: 1.5 HP x 2 units
Sanding belt speed: 0 – 980 m/min (adjustable via inverter)
Sanding belt size: 150 x 750 mm
Sanding drum size: Φ100 x 152 mm
Oscillation by pneumatic pressure, ensuring even and smooth sanding

🔹 Feeding System:

Feed motors: 1/4 HP x 4 units
Feed speed: 0 – 28 m/min (adjustable via inverter)
Feed roller size: Φ100 x 50 mm

🌟 KEY FEATURES

✔️ Simultaneous sanding of both curved surfaces in one pass
✔️ Efficiently handles complex curved parts like chair arms, legs, and bent furniture details
✔️ Automatic feeding system with adjustable speed
✔️ Compact and robust design, easy to operate and maintain
✔️ High precision – Excellent efficiency for mass production

🎯 TYPICAL APPLICATIONS

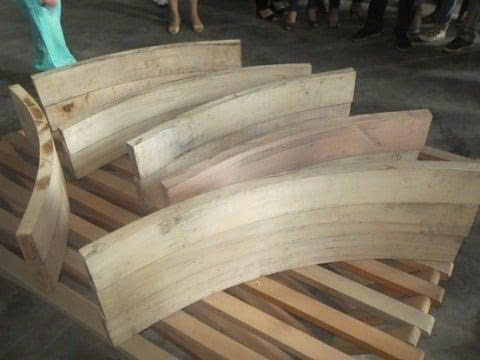

Sanding of curved chair arms and legs, curved table legs
Processing of bent wood parts in high-end furniture
Production of café chairs, lounge chairs, wooden sofas, restaurant tables and chairs…
