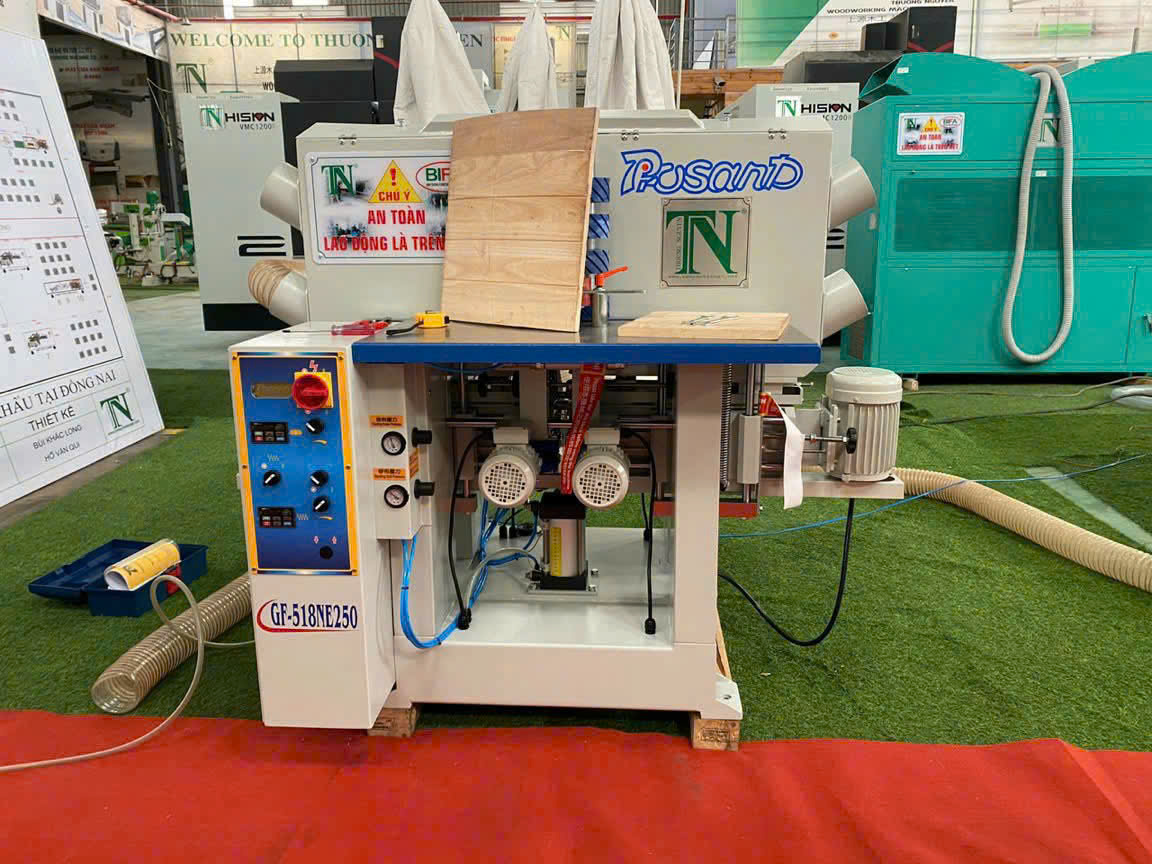

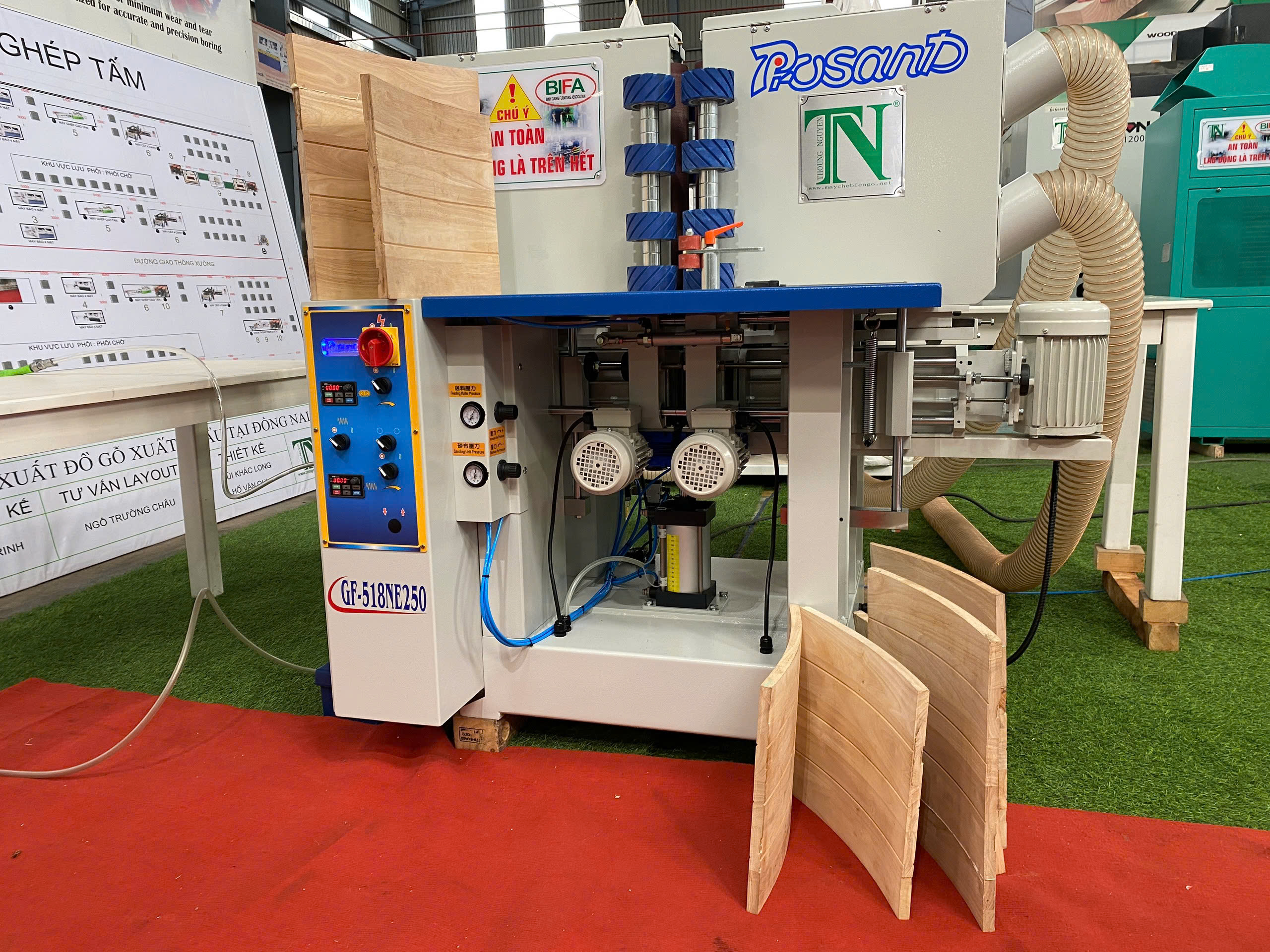

DOUBLE-SIDED CURVED EDGE SANDING MACHINE FOR CHAIR RESERVATIONS GF-518NE250 | MCB THUONG NGUYEN WOOD

SKU: GF-518NE250
Produced by: PROSAND
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

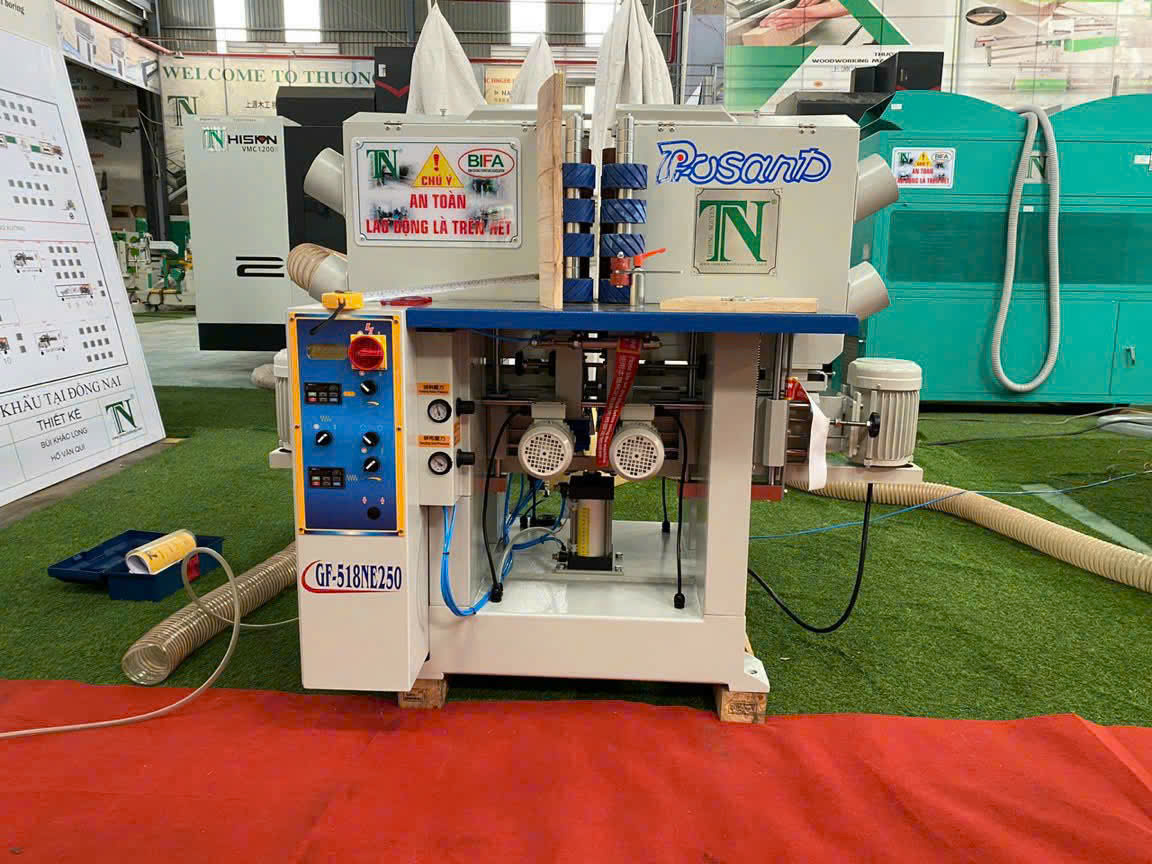

🟦 INTRODUCING THE DOUBLE-SIDE CURVED EDGE SANDER

Model: GF-518NE250 | Brand: PROSAND | Origin: Taiwan
Condition: 100% Brand New | Specialized for curved chair back sanding

🔧 PRODUCT OVERVIEW

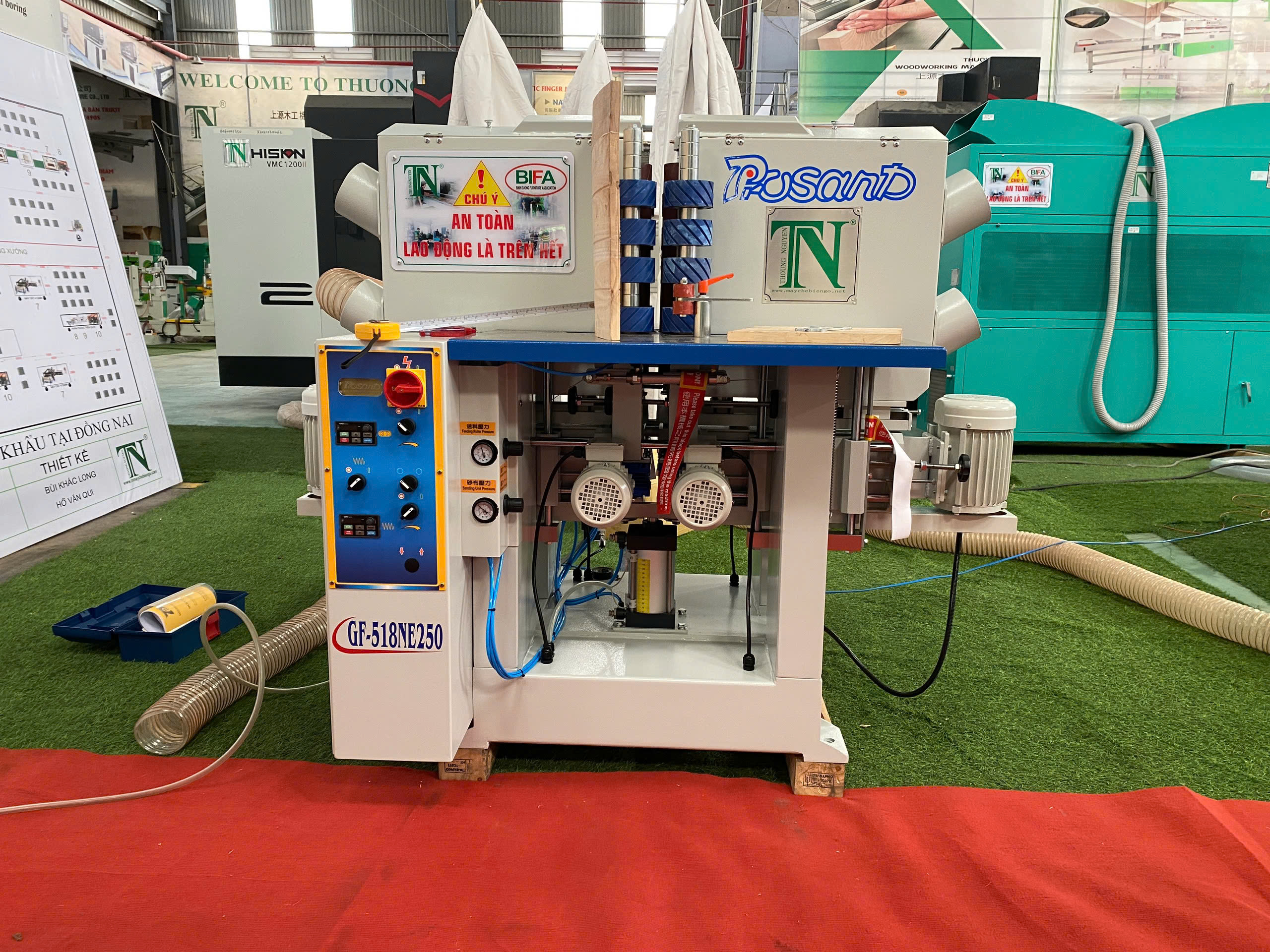

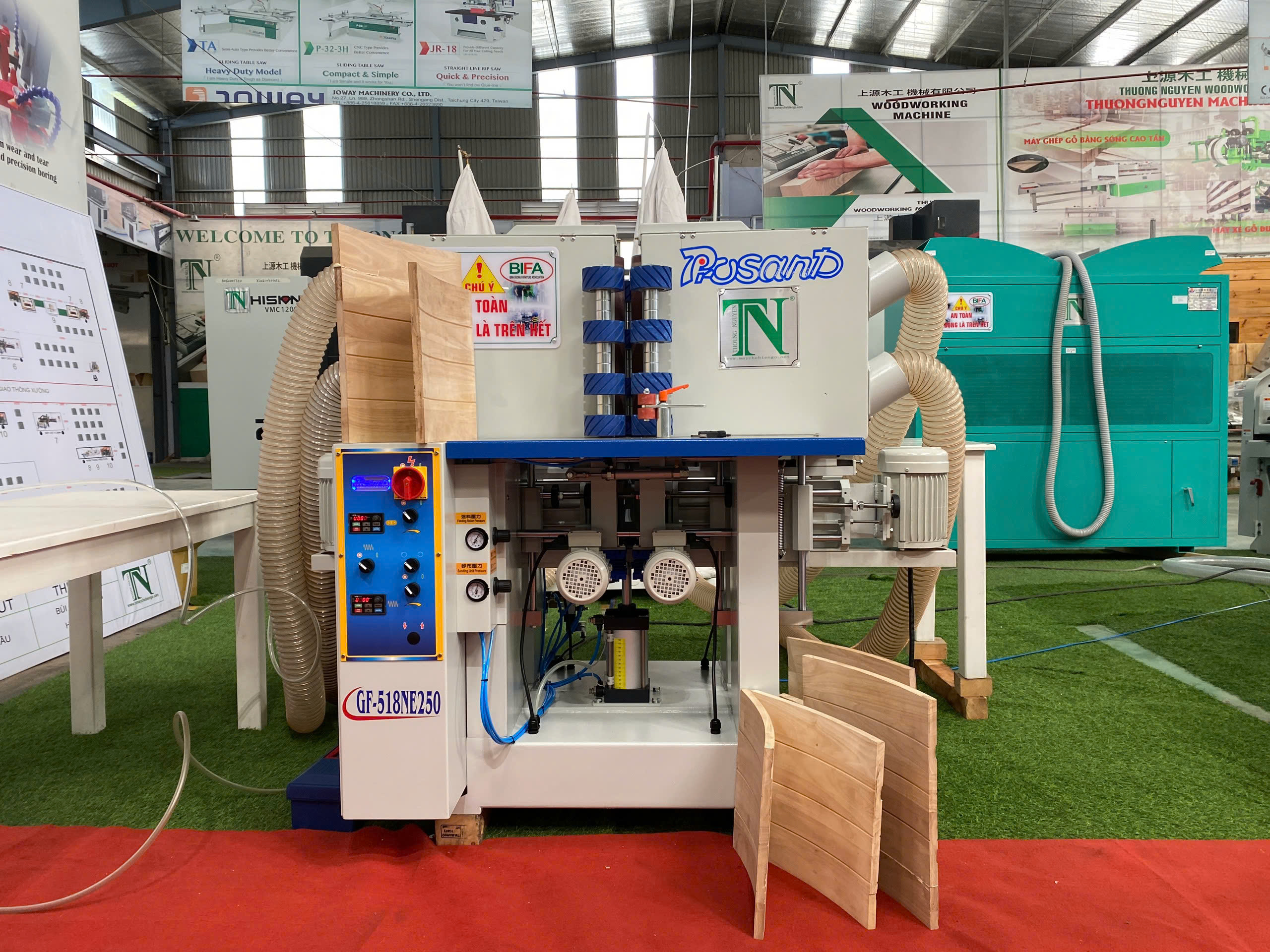

The GF-518NE250 is a premium-grade double-side curved edge sander from PROSAND – Taiwan, specially designed for sanding complex curved components like wooden chair backs. It features powerful motorization, flexible speed control, pneumatic oscillation, and a smooth conveyor feeding system – making it ideal for high-end furniture production.

⚙️ TECHNICAL SPECIFICATIONS

Workpiece length range: 250 – 1500 mm
Workpiece width range: 12 – 75 mm
Workpiece height range: 25 – 450 mm

🔹 Sanding System:

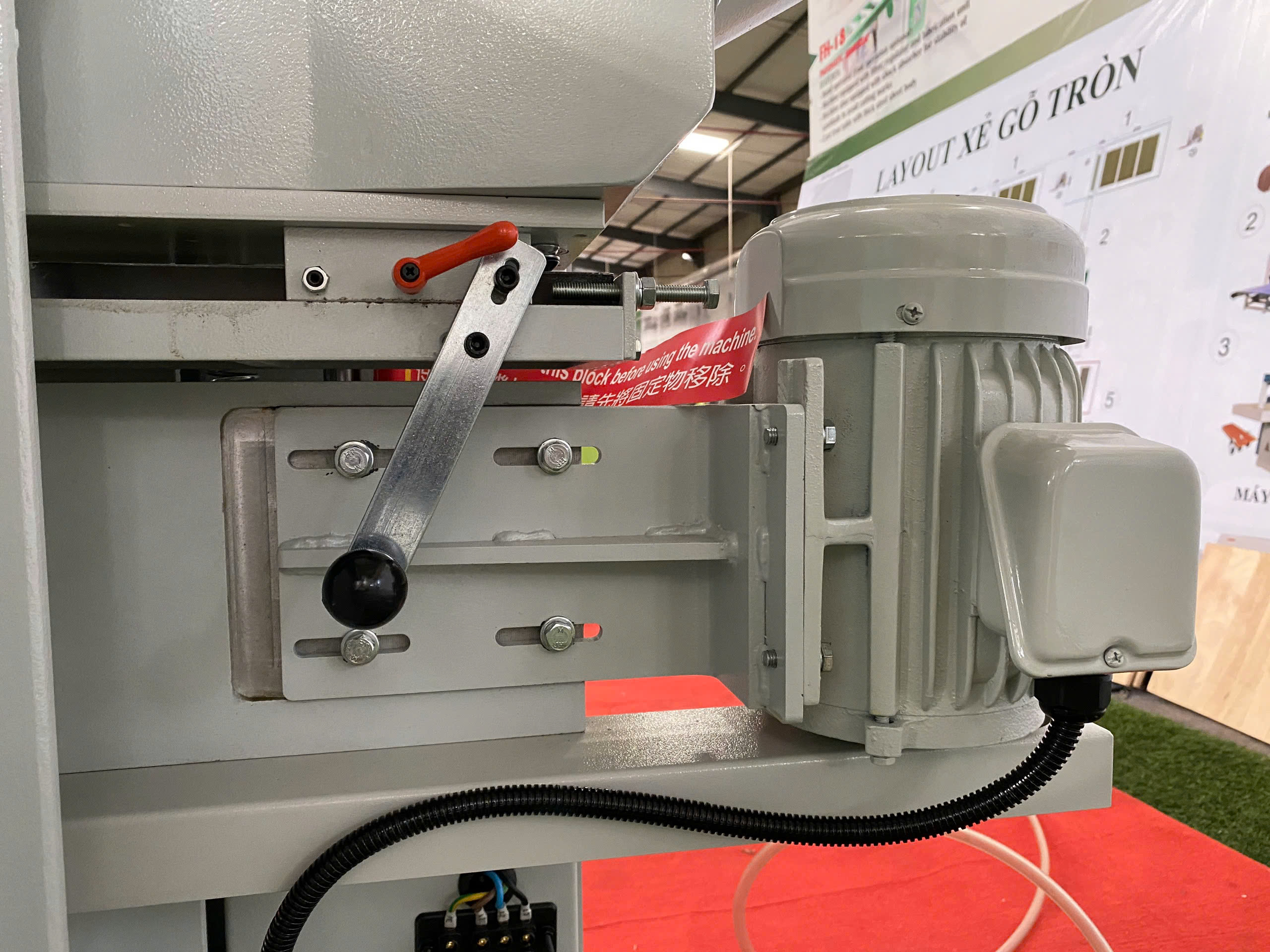

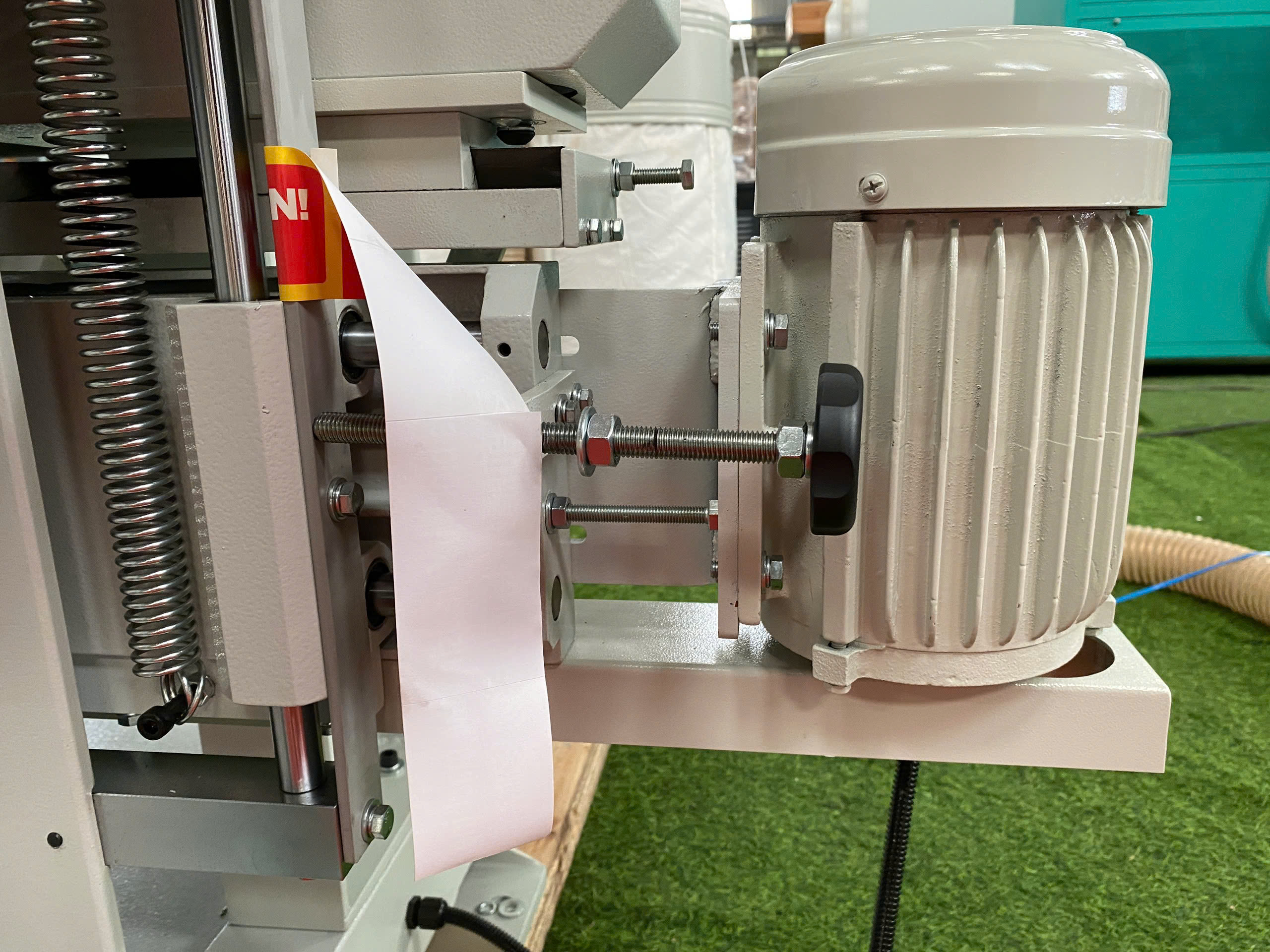

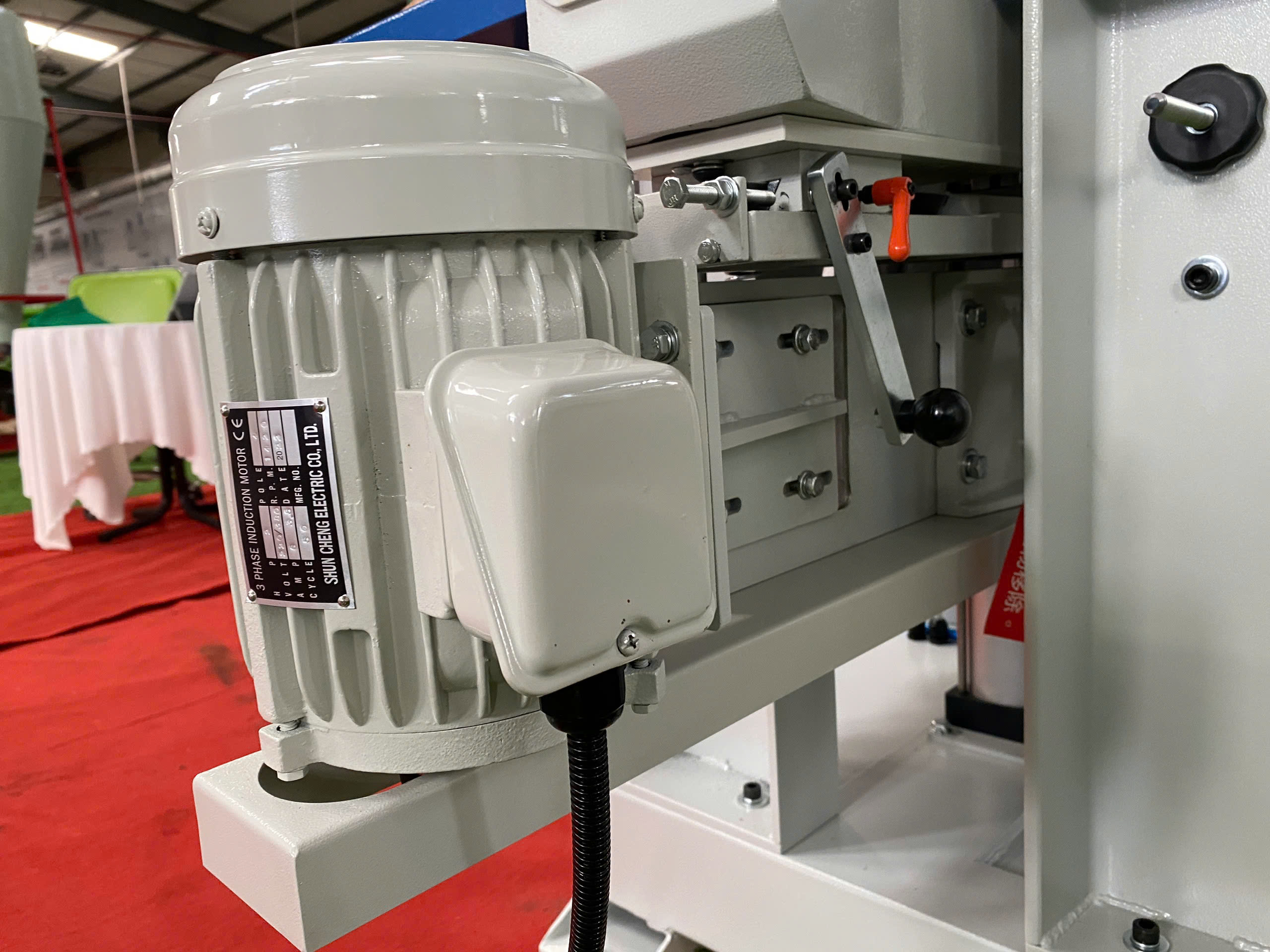

Sanding belt motors: 2HP x 2 units
Sanding belt speed: 0 – 800 m/min (variable speed)
Sanding belt size (H x L): 455 x 1200 mm
Drum size (D x L): 100 x 455 mm

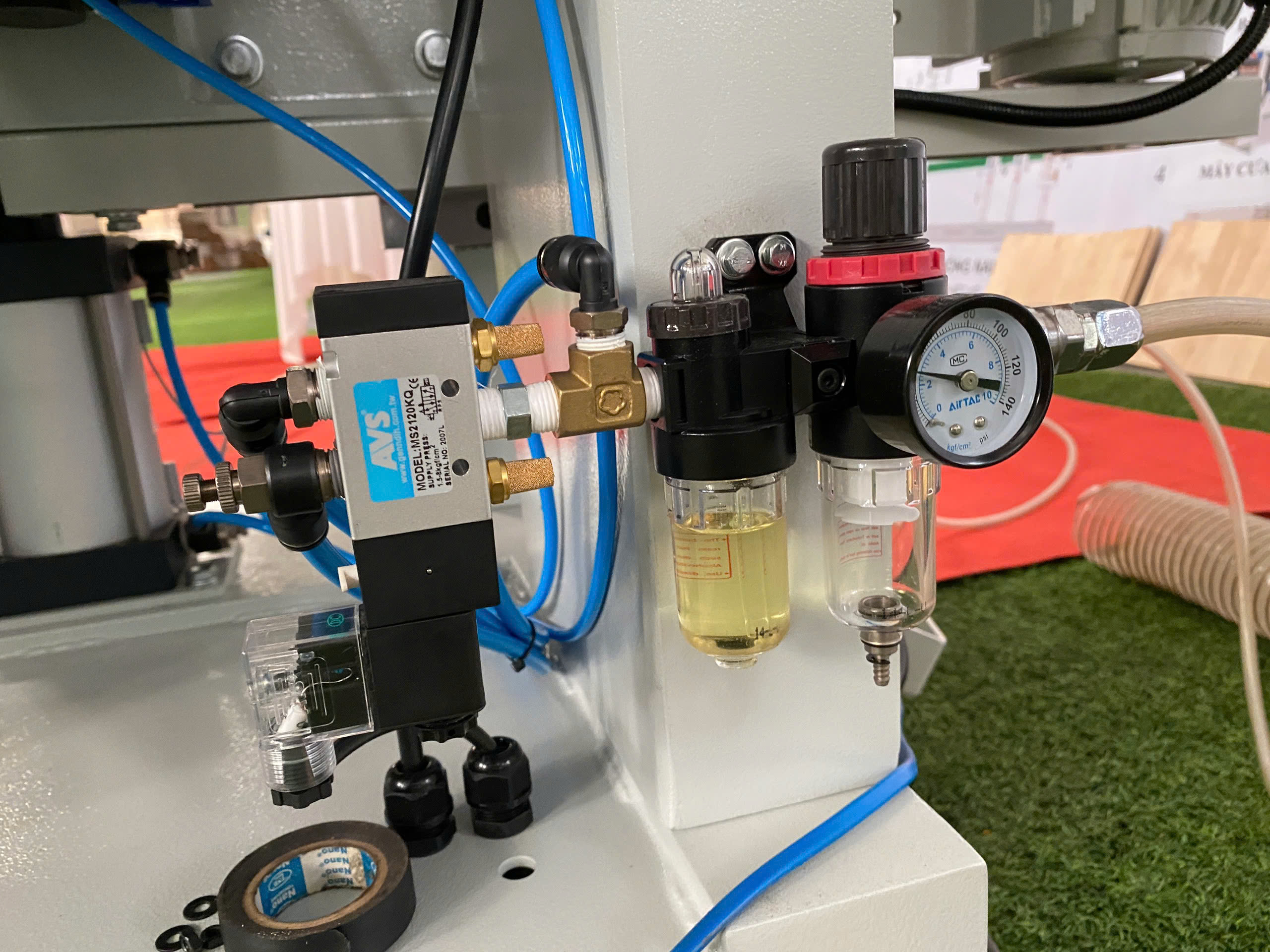

Pneumatic sanding oscillation, stroke range: 0 – 100 mm

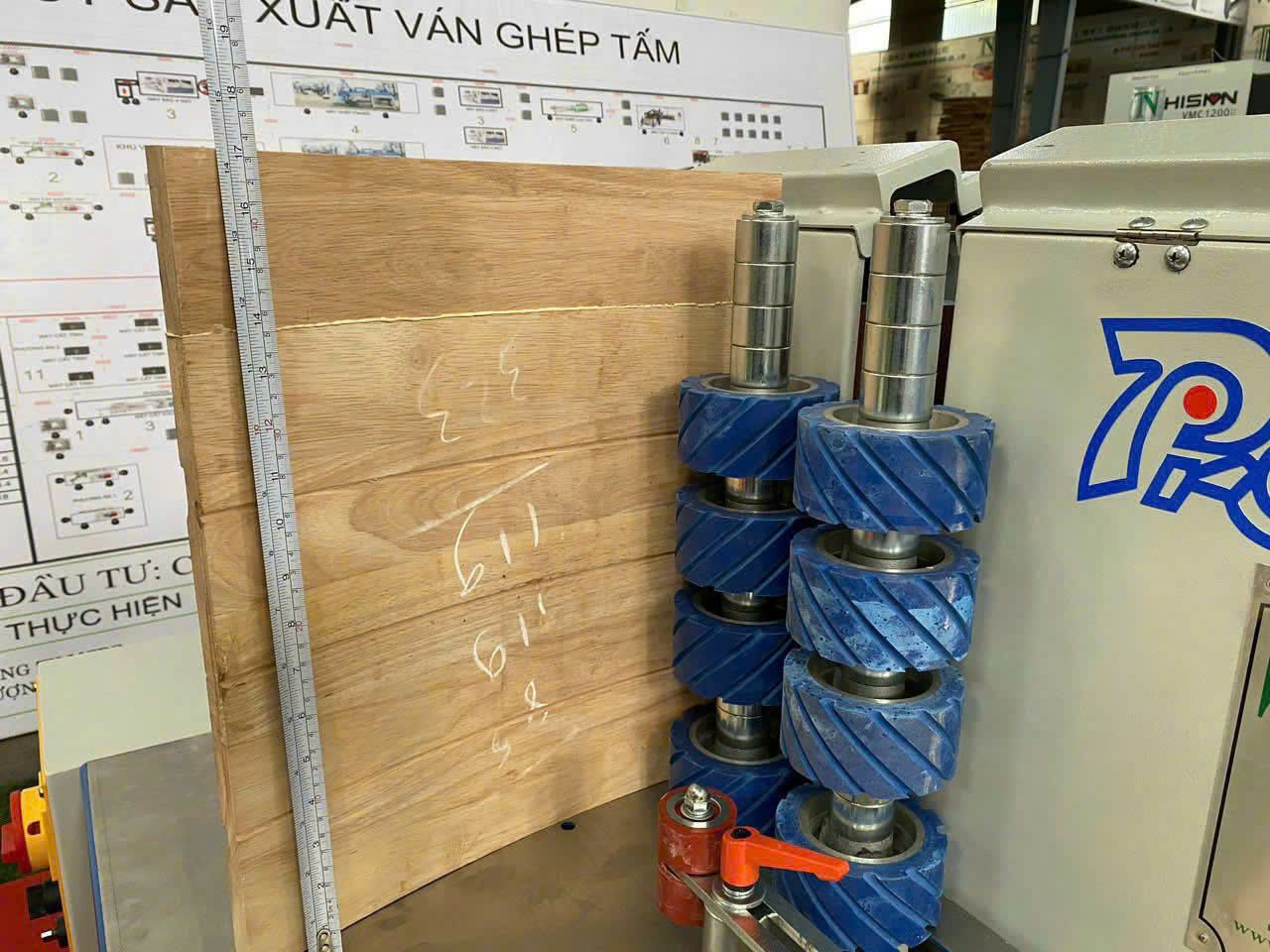

🔹 Feeding System:

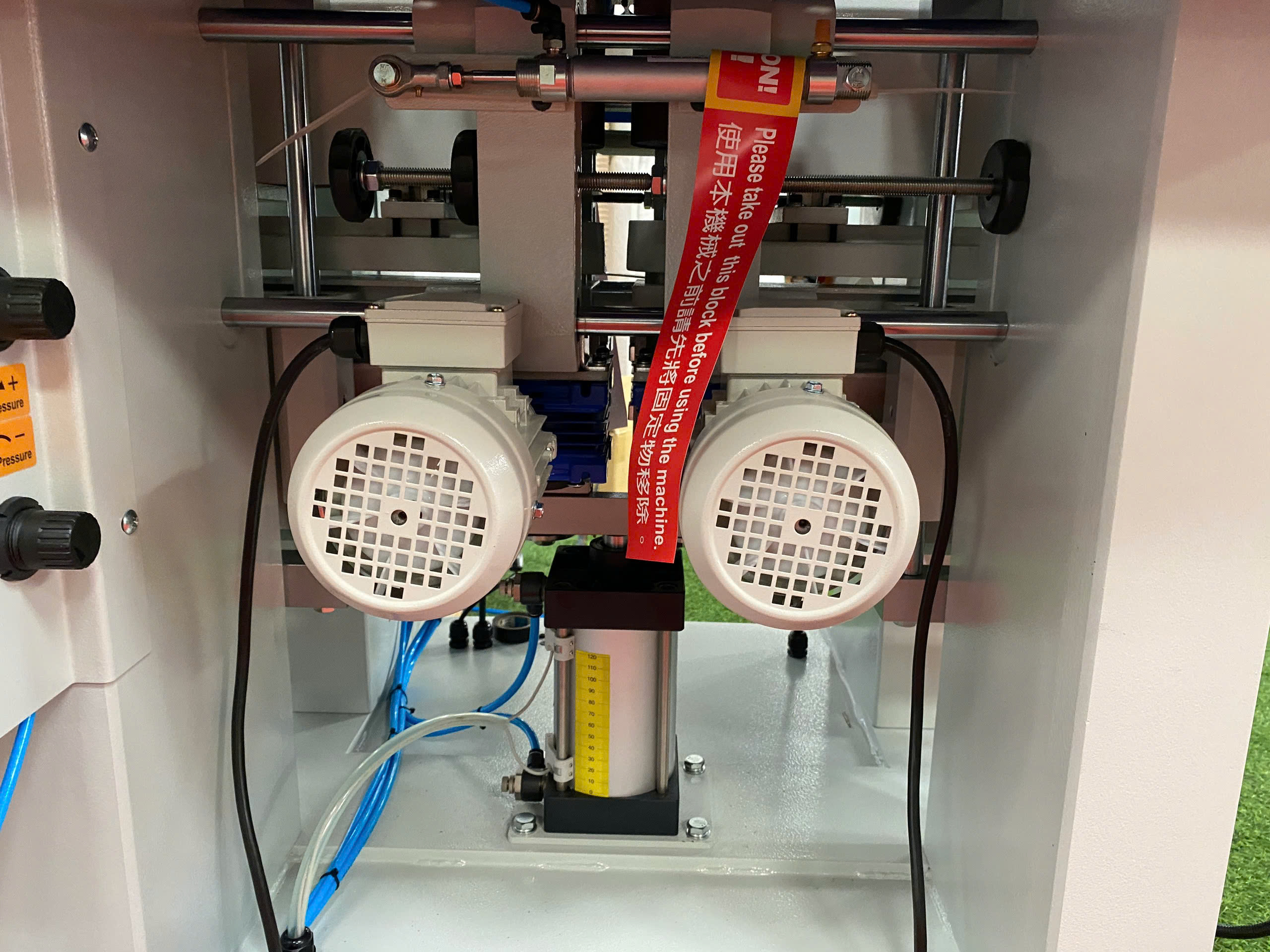

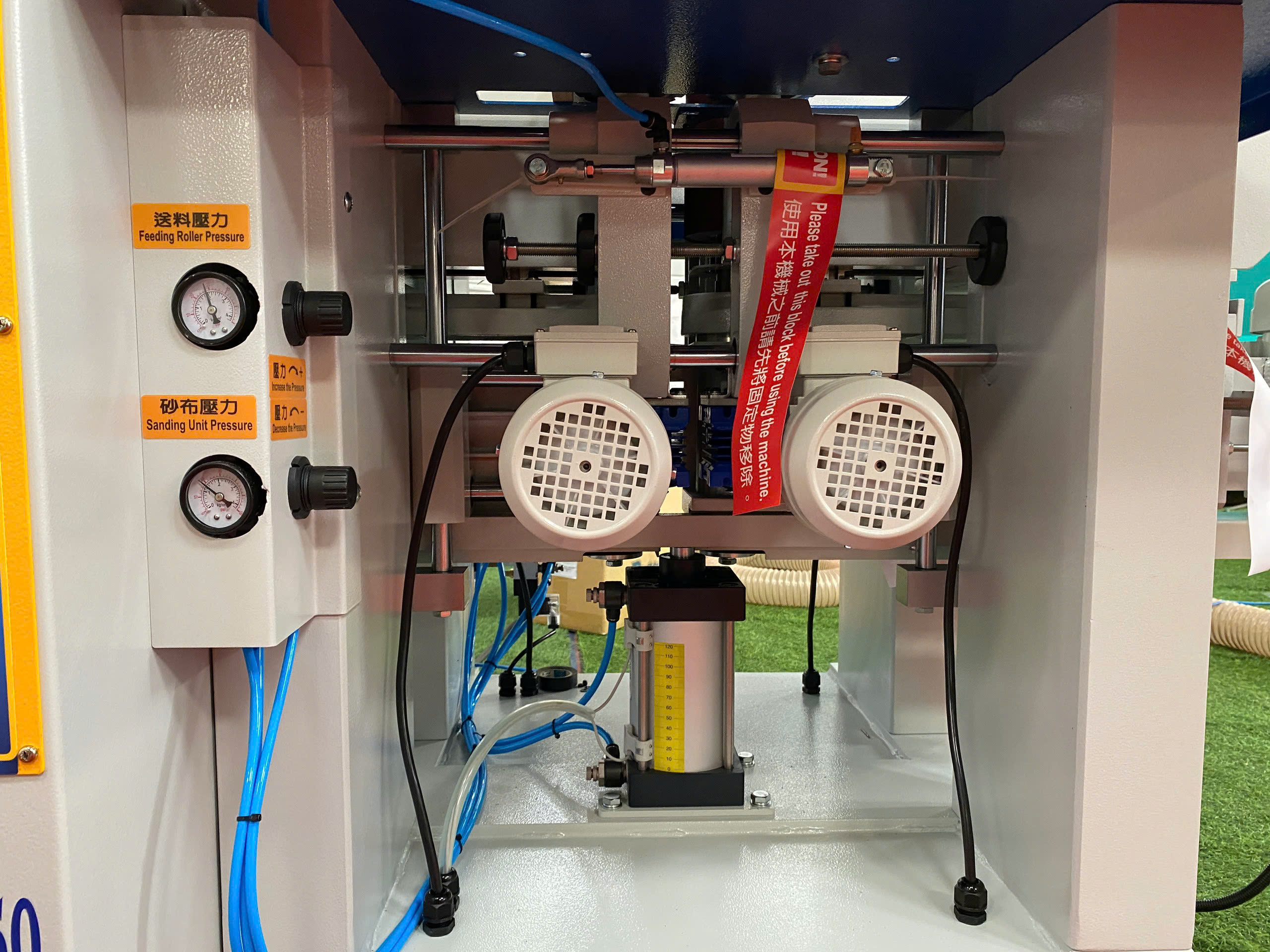

Feeding motors: 1/4HP x 4 units
Feeding speed: 0 – 21 m/min (variable speed)

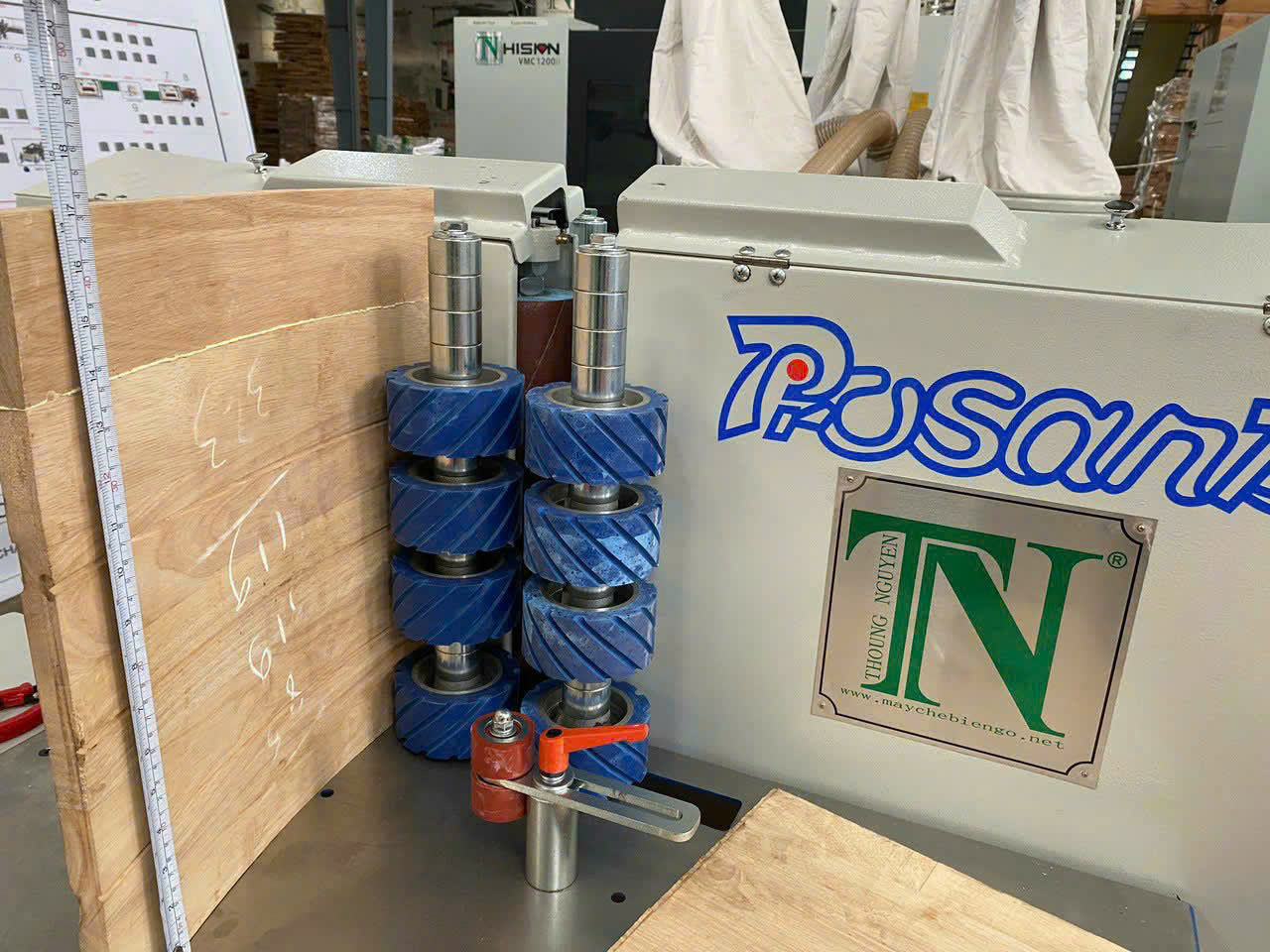

Feeding roller size (D x H): 100 x 50 mm
Number of rollers: 16 pcs

🌟 HIGHLIGHTED FEATURES

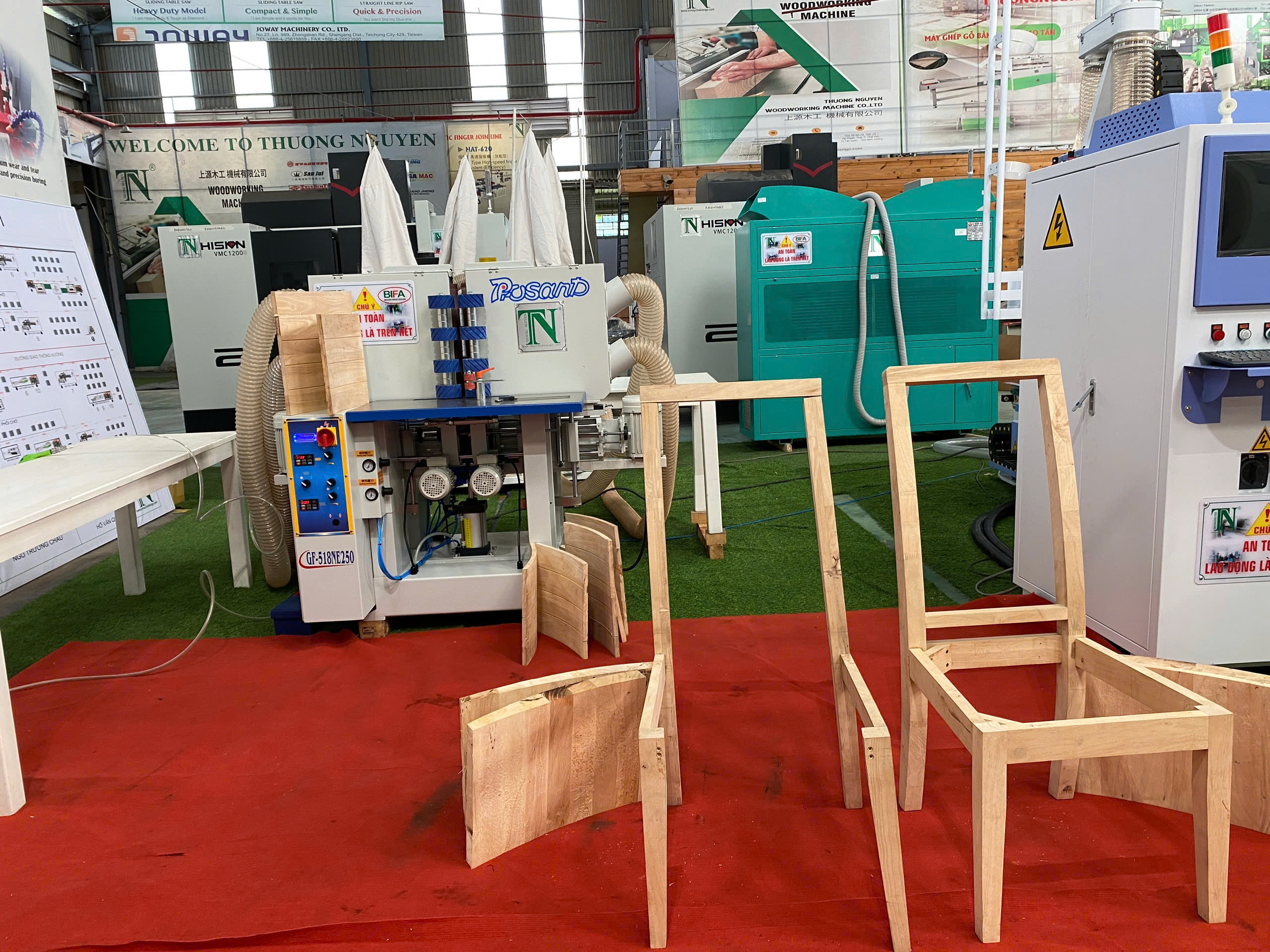

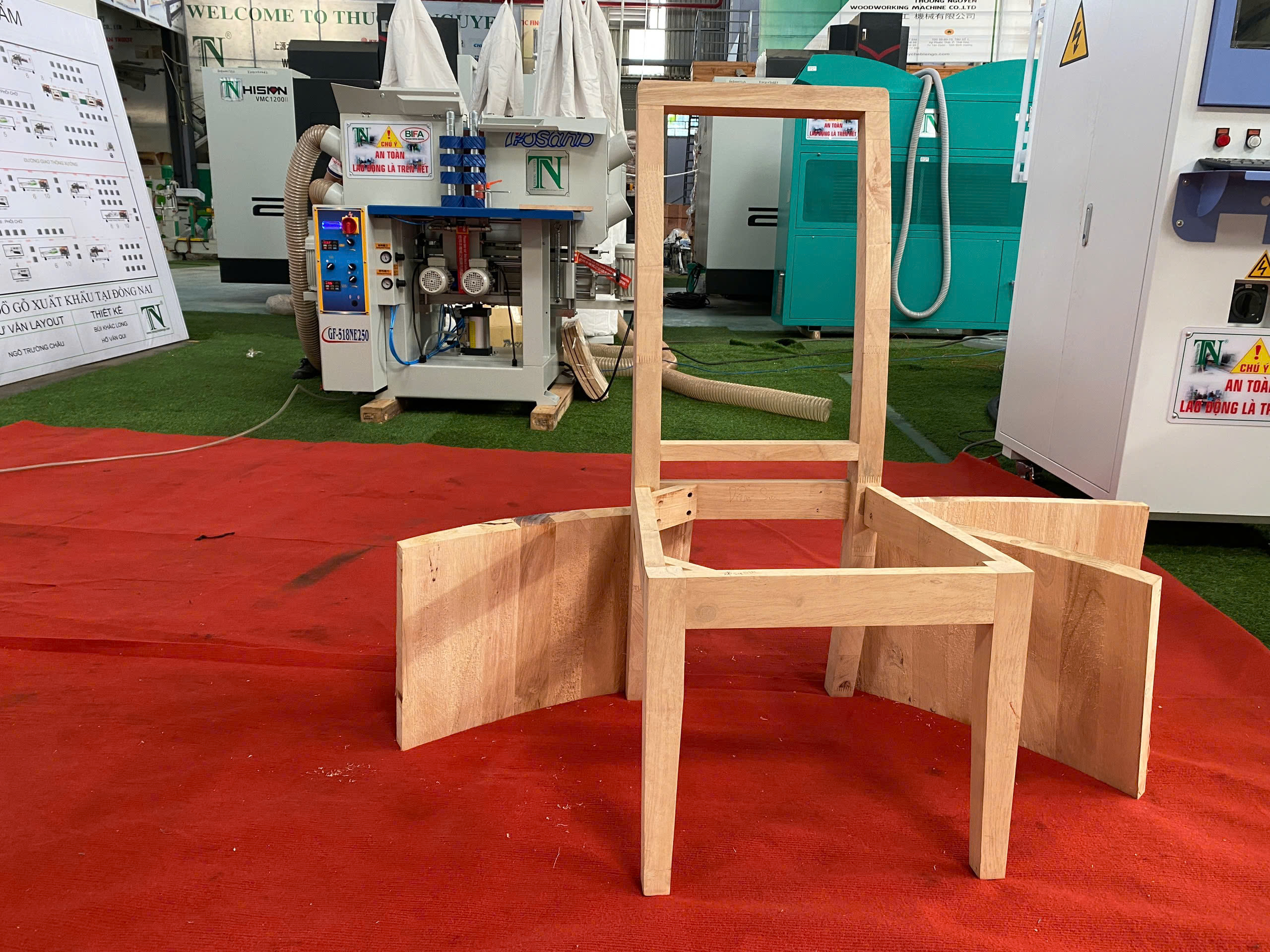

✔️ Specialized for curved chair back and bent edge sanding
✔️ Simultaneous two-side sanding saves time and labor
✔️ Pneumatic oscillation improves surface smoothness, reduces sanding lines
✔️ Adjustable belt & feeding speeds – adaptable to various wood types
✔️ Stable operation with high durability and performance
