DOUBLE SIDED CURVED EDGE SANDER GF-512NE250 | MCB THUONG NGUYEN WOOD

SKU: GF-512NE250
Produced by: PROSAND
Country of origin: Taiwan
Status: 100%
Warranty: 12 months

Product details

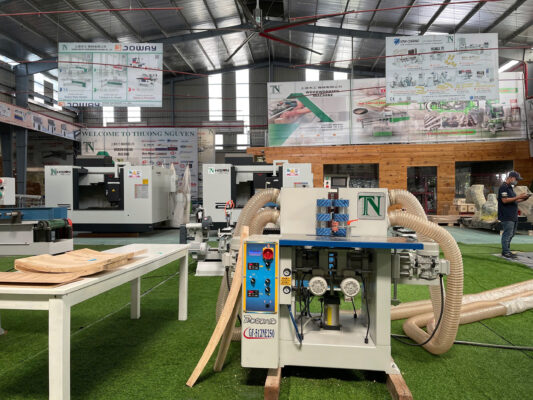

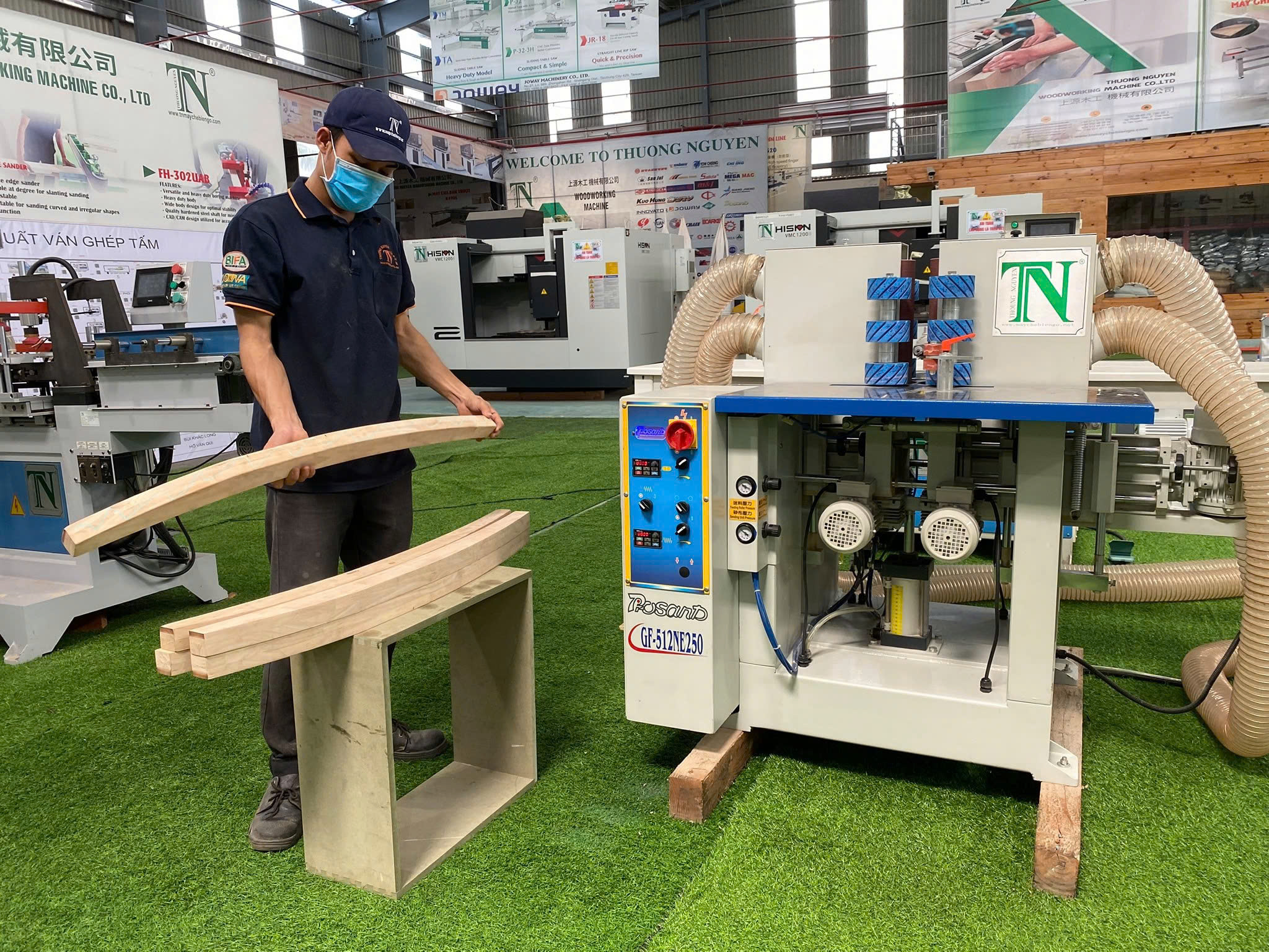

🟦 DOUBLE SIDE CURVE EDGE SANDER – PROSAND GF-512NE250

Brand New | Brand: PROSAND | Made in Taiwan

🔧 PRODUCT INTRODUCTION

The GF-512NE250 double side curve edge sander from PROSAND – Taiwan is the ideal solution for sanding complex curved wood components. With a strong frame, automatic feeding system, and adjustable speed control, this machine ensures excellent sanding quality and significantly boosts productivity in woodworking workshops.

⚙️ TECHNICAL SPECIFICATIONS

Working length: 250 – 1500 mm
Working thickness: 6 – 100 mm
Working height: 25 – 300 mm

🔹 Sanding System:

Sanding motors: 1.5 HP x 2 units
Sanding belt speed: 0 – 980 m/min (variable speed)
Sandpaper size: (H)305 x (L)750 mm
Sanding drum size: Φ100 x 350 mm

🔹 Feeding System:

Feeding motors: 1/4 HP x 4 units
Feeding speed: adjustable (variable)
Number of feeding rollers: 12 pcs
Roller size: Φ100 x 50 mm

🔹 Machine dimensions: 1100 x 1650 x 1100 mm
🔹 Machine weight: 550 / 630 kg

🌟 HIGHLIGHT FEATURES

✔️ Double-sided sanding in one pass – saves time and labor
✔️ Perfectly handles complex curved components like chair arms and bent legs
✔️ Variable speed control for both sanding and feeding
✔️ Compact, stable design, easy to operate and maintain
✔️ High accuracy and durability – ideal for mass production

🎯 TYPICAL APPLICATIONS

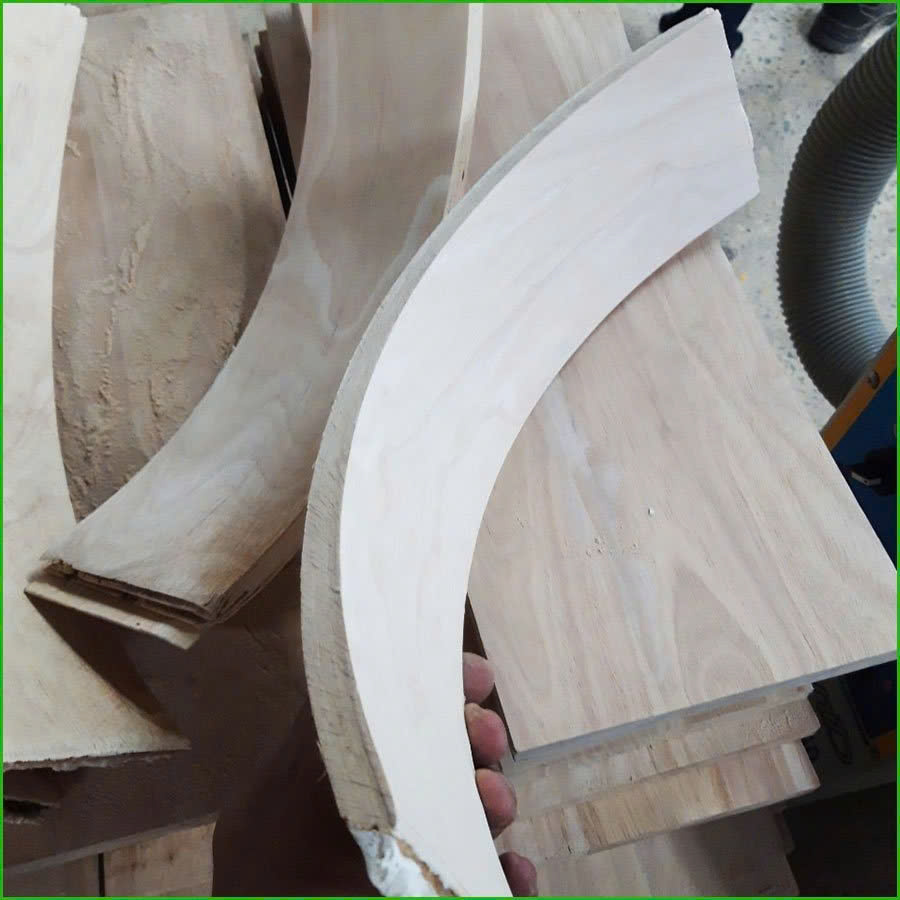

Sanding curved chair arms and table/chair legs
Finishing curved furniture parts with smooth surfaces
Suitable for high-end wood furniture, café chairs, relaxing seats, wooden sofas, etc.
