DOOR HINGE KEYHOLE MAKING MACHINE D1-N | MCB THUONG NGUYEN WOOD

  • SKU: D1-N
  • Produced by: GOOD TECH
  • Country of origin: China
  • Status: 100%
  • Warranty: 12 months
Product details

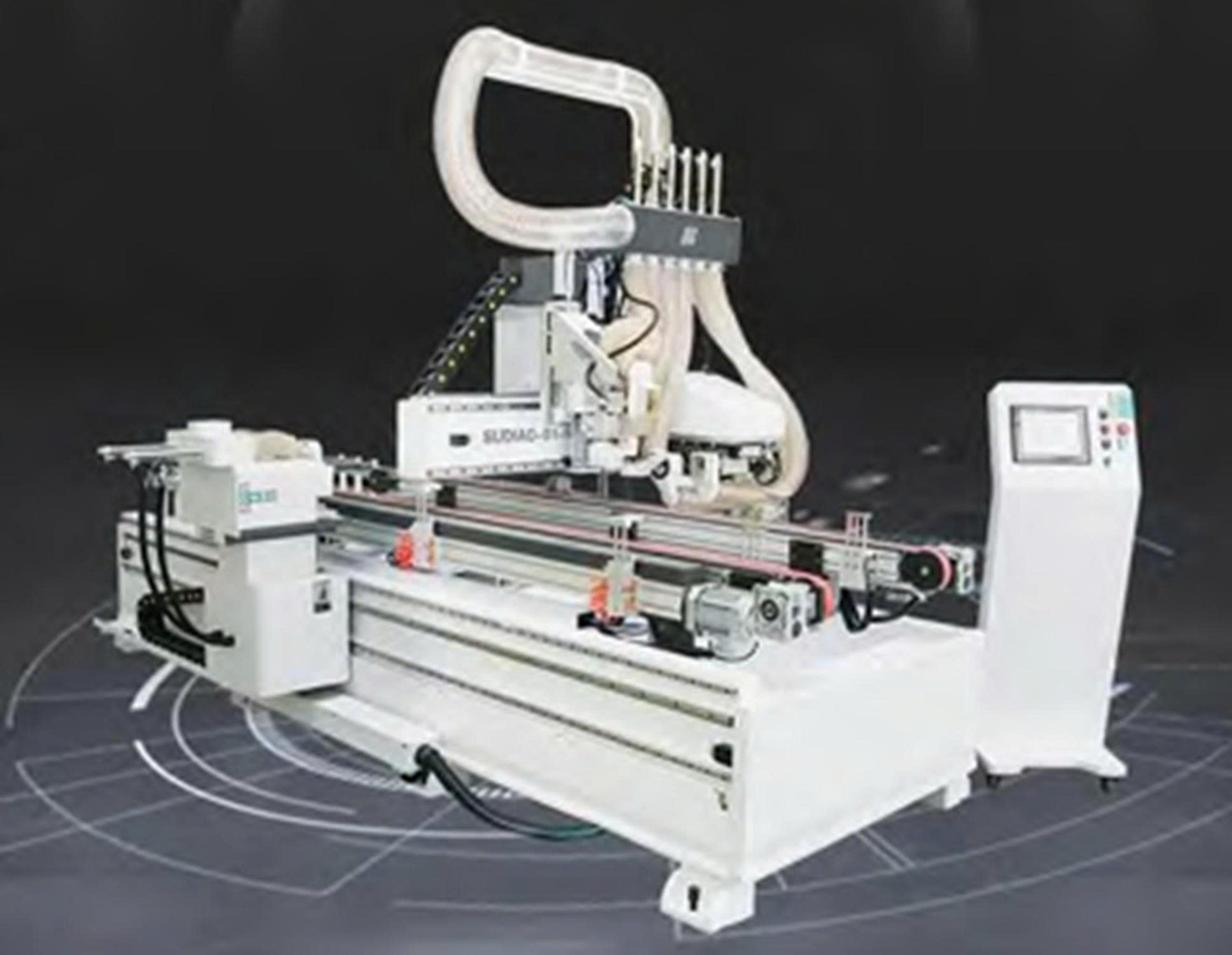

🔐 AUTOMATIC DOOR LOCK & HINGE MORTISING MACHINE – 100% CNC

BRAND: GOODTECH – ORIGIN: CHINA

MODEL: D1-N

THE ALL-IN-ONE SOLUTION FOR MODERN DOOR MACHINING


💡 KEY FEATURES

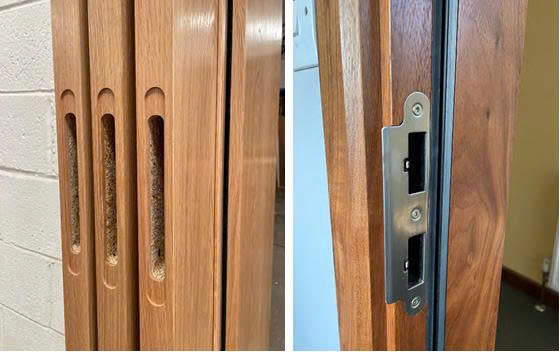

The D1-N CNC machine is a compact and space-saving design, yet it integrates all essential functions for door lock and hinge processing, including:

Slotting for lock mortise
Step milling for lock face
Drilling for lock hole
Hinge mortising
Paint hole drilling
Closer box routing

All functions are fully automated, ensuring high precision, faster production, and reduced labor cost.


📐 TECHNICAL SPECIFICATIONS

  • Max door length: 3050 mm

  • Door width: 400 – 1100 mm

  • Door thickness: 30 – 80 mm

  • Required air pressure: 6 – 8 bar

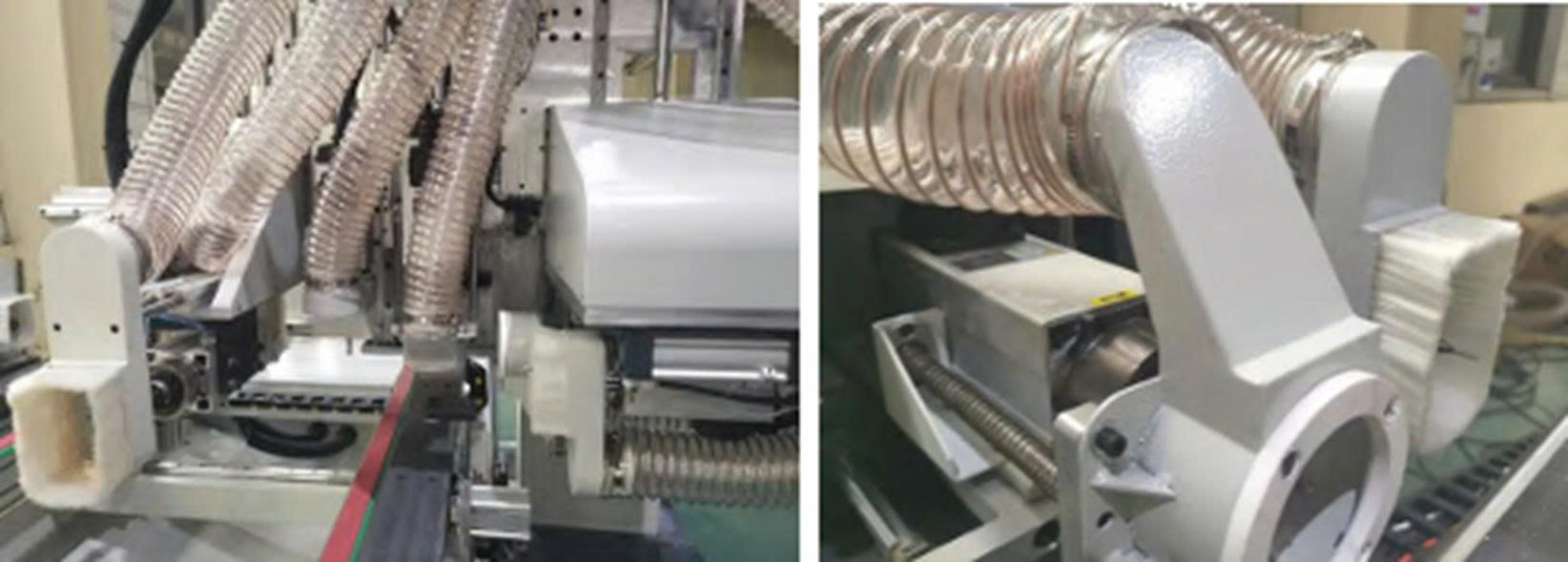

🔧 Main Spindle Configuration

  • Lock hole drilling spindles: 3.5 kW & 2.2 kW

  • Lock slotting spindles: 4.5 kW & 2.2 kW

  • Closer/extra hole spindle: 3.5 kW

⚙️ Control System

  • PLC, Servo, and Touchscreen: XINJE – China

  • Total Power: 17 kW

  • Machine Size (L x W x H): 4600 x 2300 x 2200 mm


🚀 ADVANTAGES

✅ Fully automated – minimal labor required
✅ High precision and product consistency
✅ Ideal for medium to large-scale door factories
✅ Easy-to-use interface with touchscreen operation
✅ Compatible with smart door production lines
