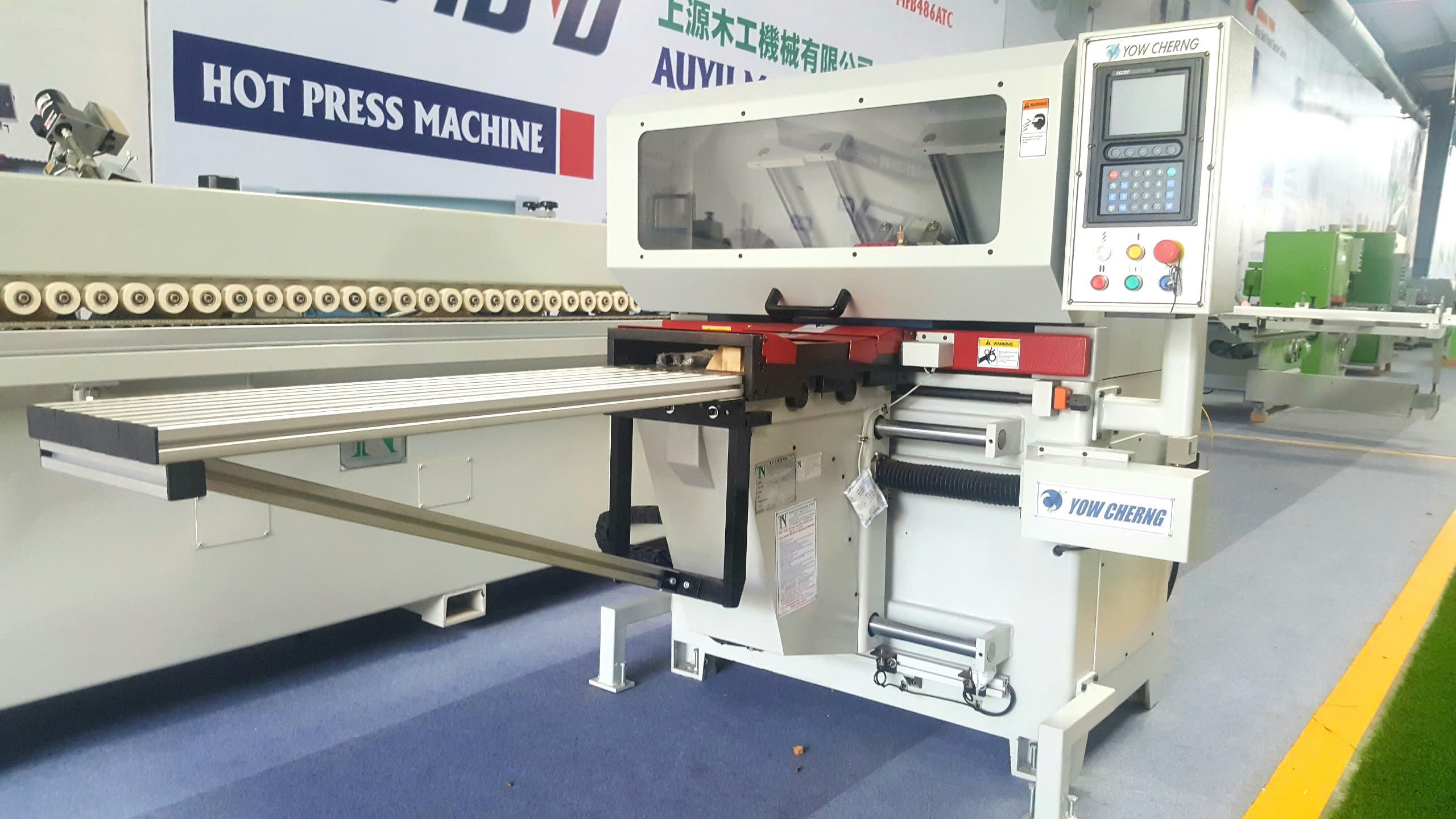

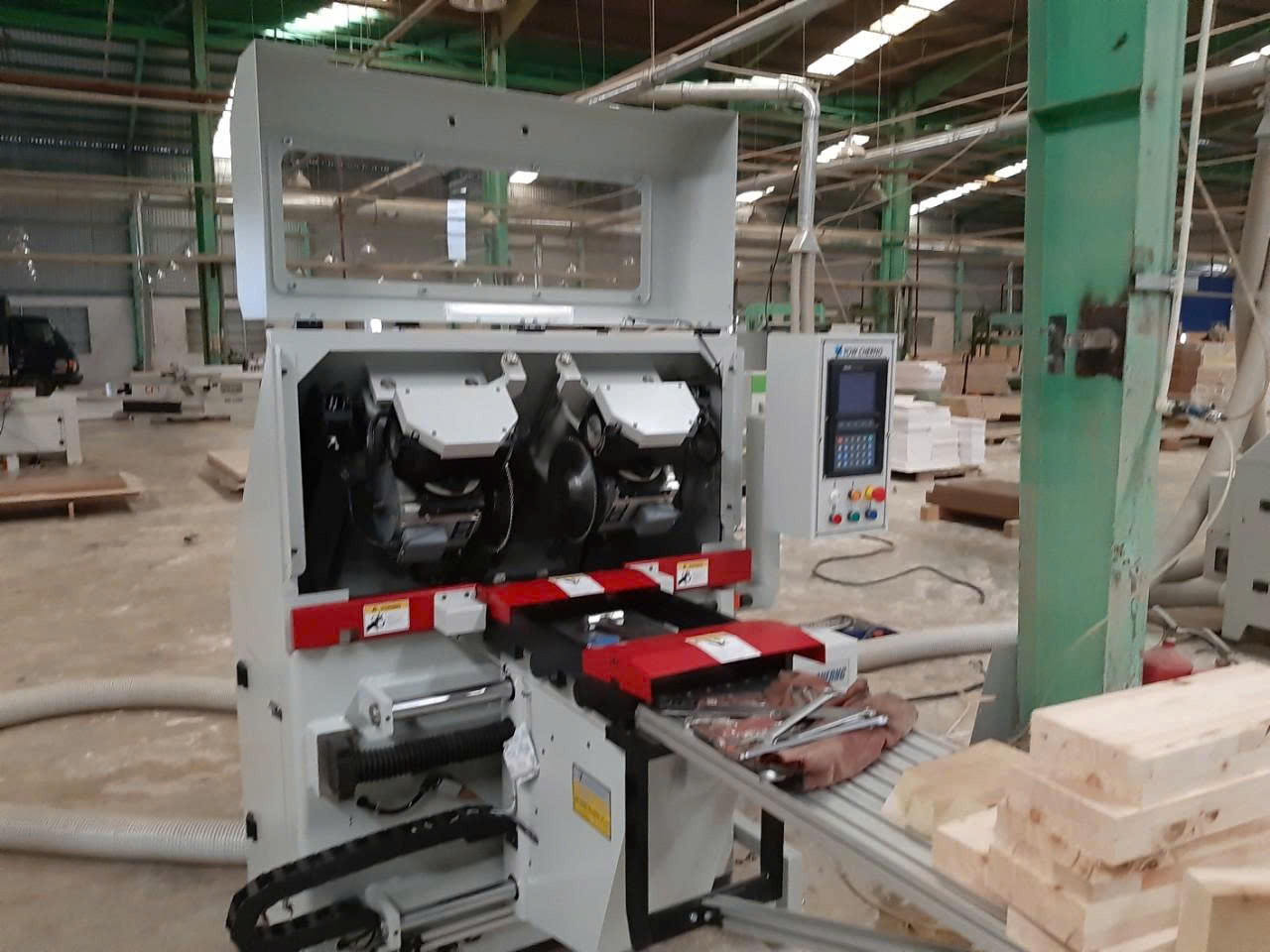

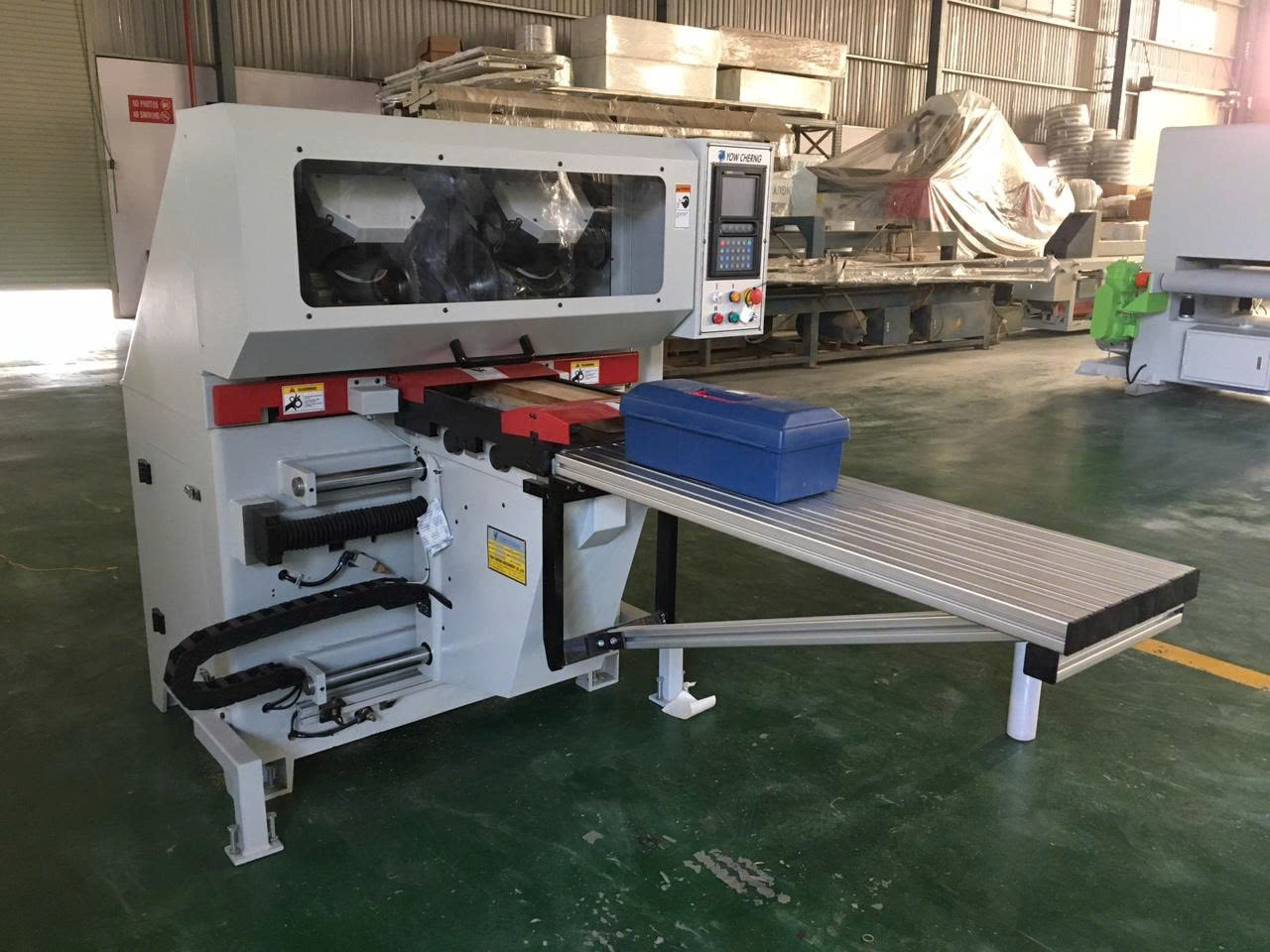

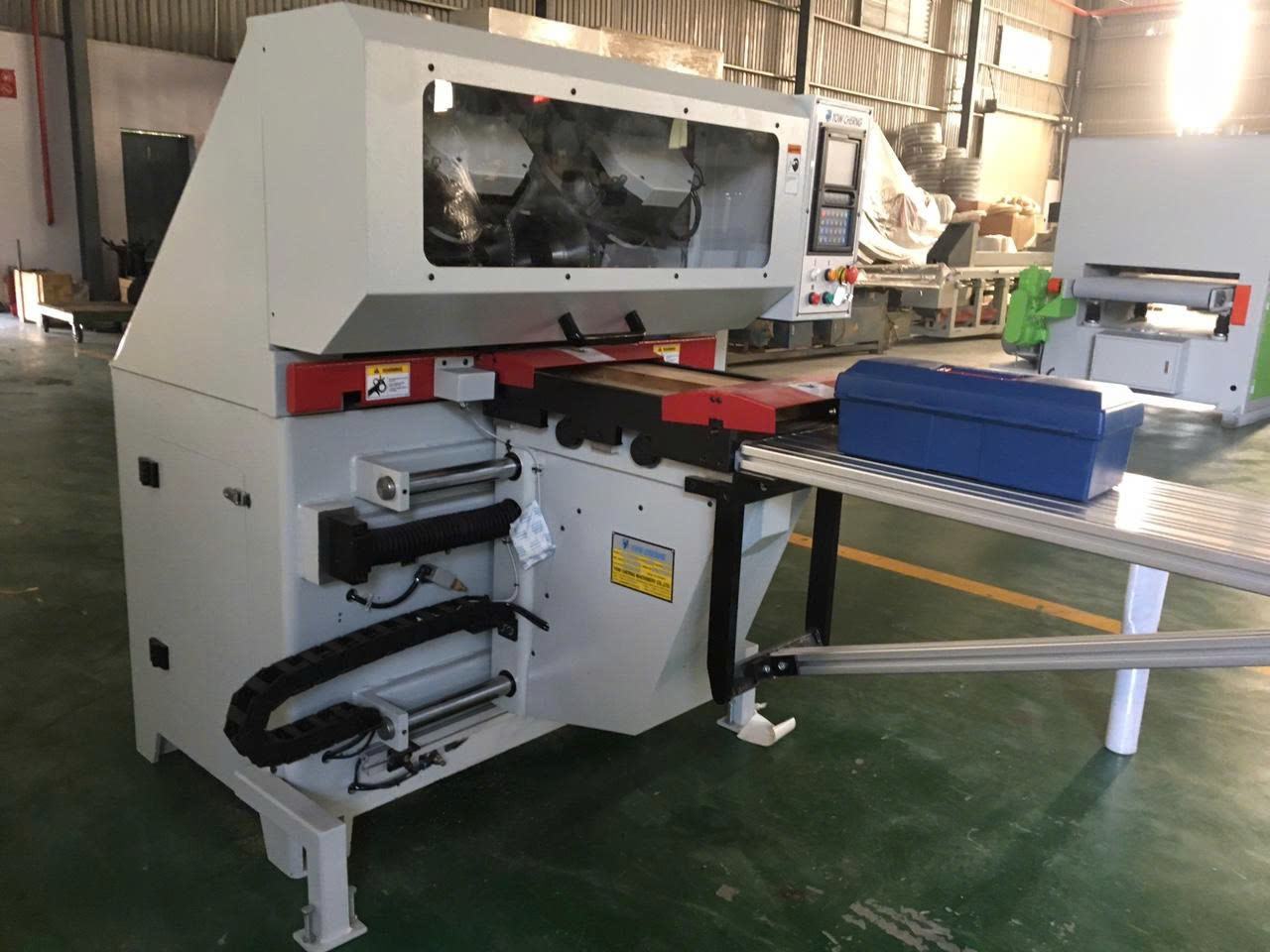

DOOR FRAME TENON MACHINE – YC-TF7 | MCB GO THUONG NGUYEN

🔧 MORTISE MAKING MACHINE – 100% BRAND NEW

✅ BRAND: YOW CHERNG
🌏 ORIGIN: TAIWAN
📦 MODEL: YC-TF7A

🛠 OUTSTANDING TECHNICAL SPECIFICATIONS

• Working length: 600 – 2500 mm

• Working width: 140 – 350 mm

• Working thickness: 40 – 75 mm

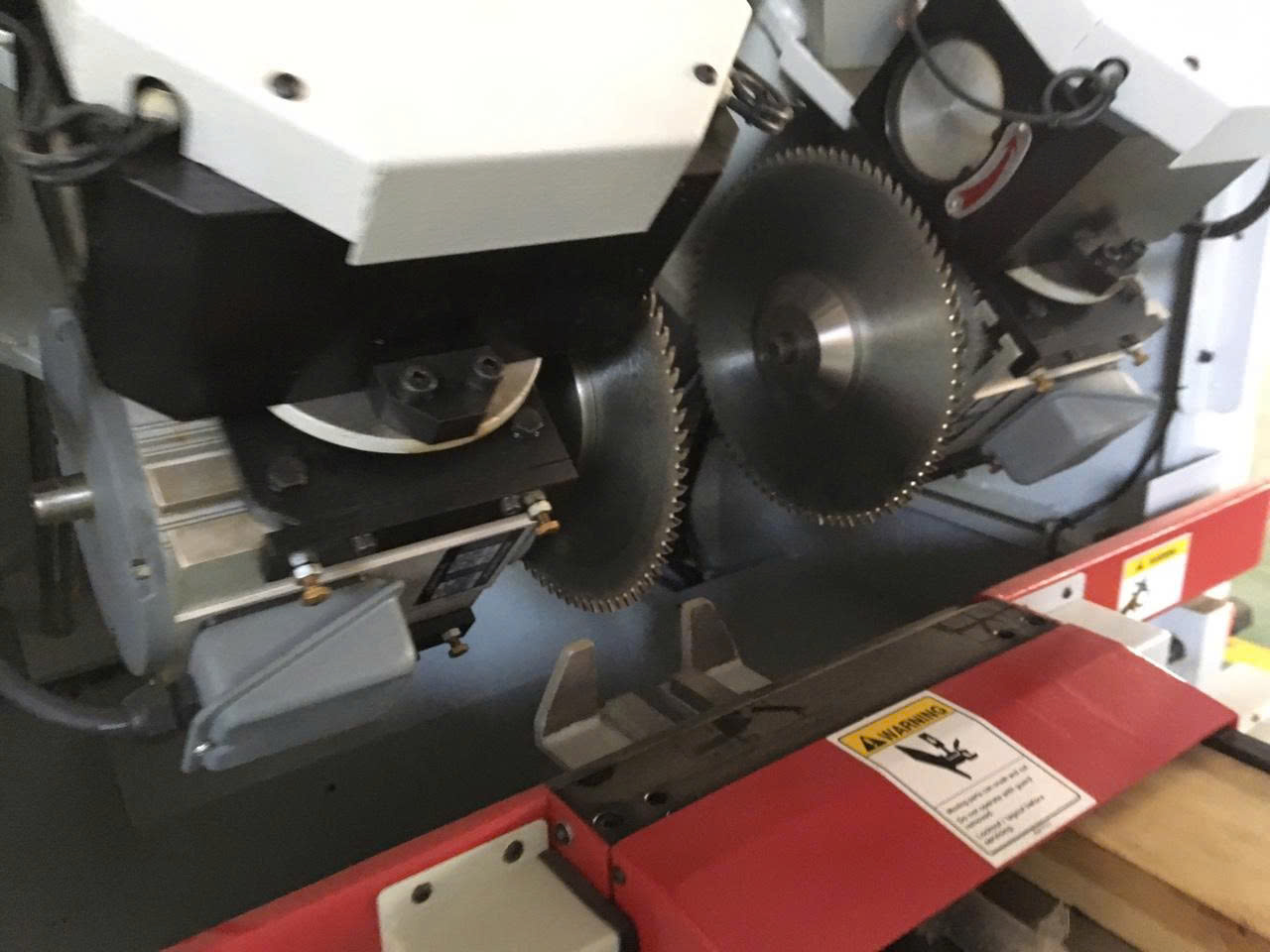

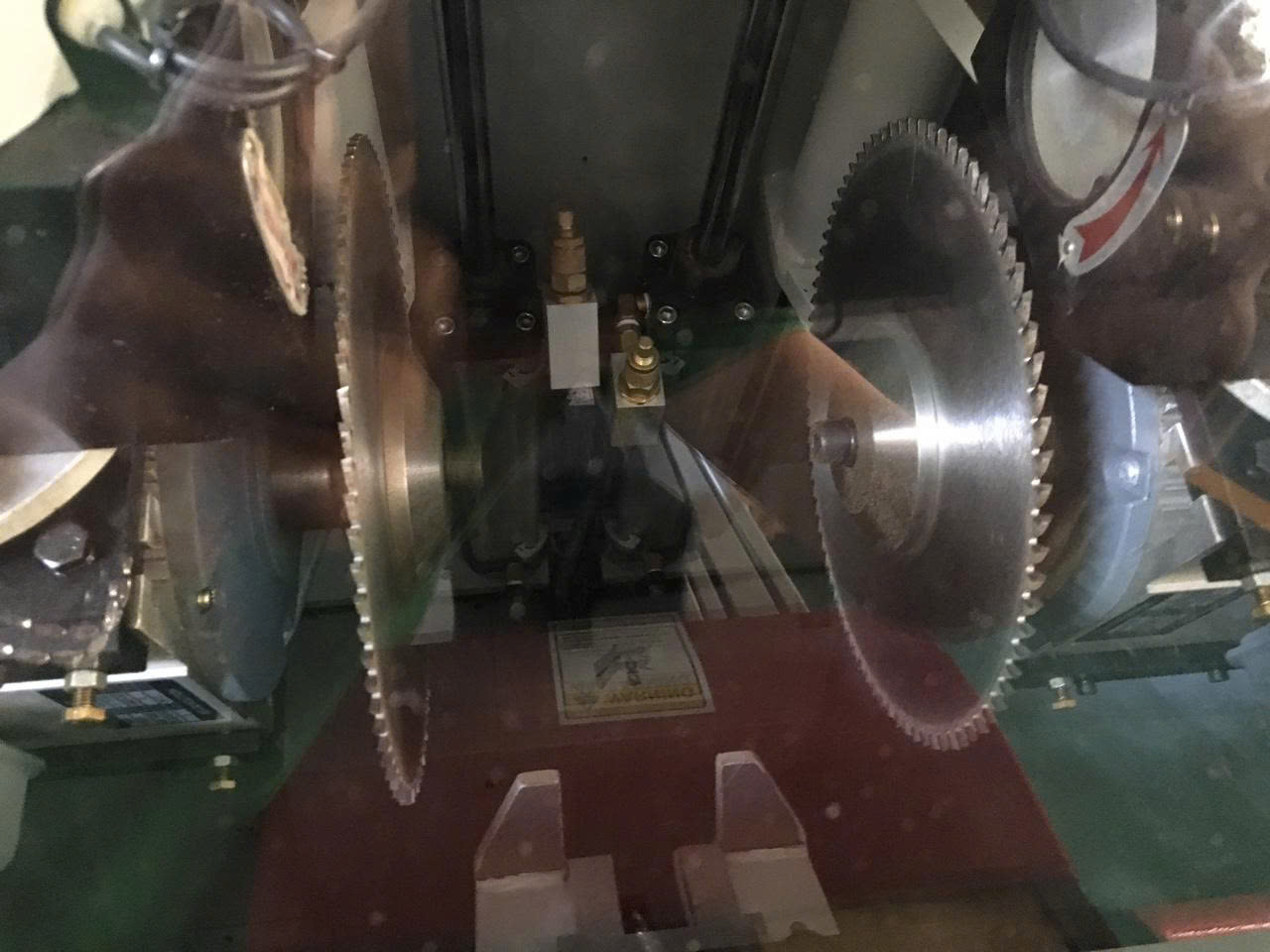

• Main saw blade size: Ø300 × 3 mm

• Mortise groove diameter: Ø25.4 mm (1 inch)

• Oscillation speed: 2800 rpm

• Maximum cutting diameter: Ø200 mm

• Pilot saw blade diameter: Ø40 mm

• Cutting speed: 5600 rpm

⚙️ POWERFUL CONFIGURATION

• Main motors: 3HP × 2 (dual heads for powerful operation)

• Saw head rotation: 90° adjustable

• Cutting motor: 7.5 HP

• Feeding table motor: 1 HP (servo motor – high precision)

• Total machine power: 10.8 kW (14.5 HP)

• Air pressure: 6 BAR

• Dust collection port diameter: Ø140 mm x 1

📐 DIMENSIONS & WEIGHT

• Machine dimensions (L×W×H): 1300 × 1700 × 1500 mm

• Packing dimensions (L×W×H): 1900 × 1750 × 1950 mm

• Machine weight: 1100 – 1200 kg

• ✅ OPTIONAL: Customizable worktable available

💼 IDEAL FOR WOODWORKING PRODUCTION LINES

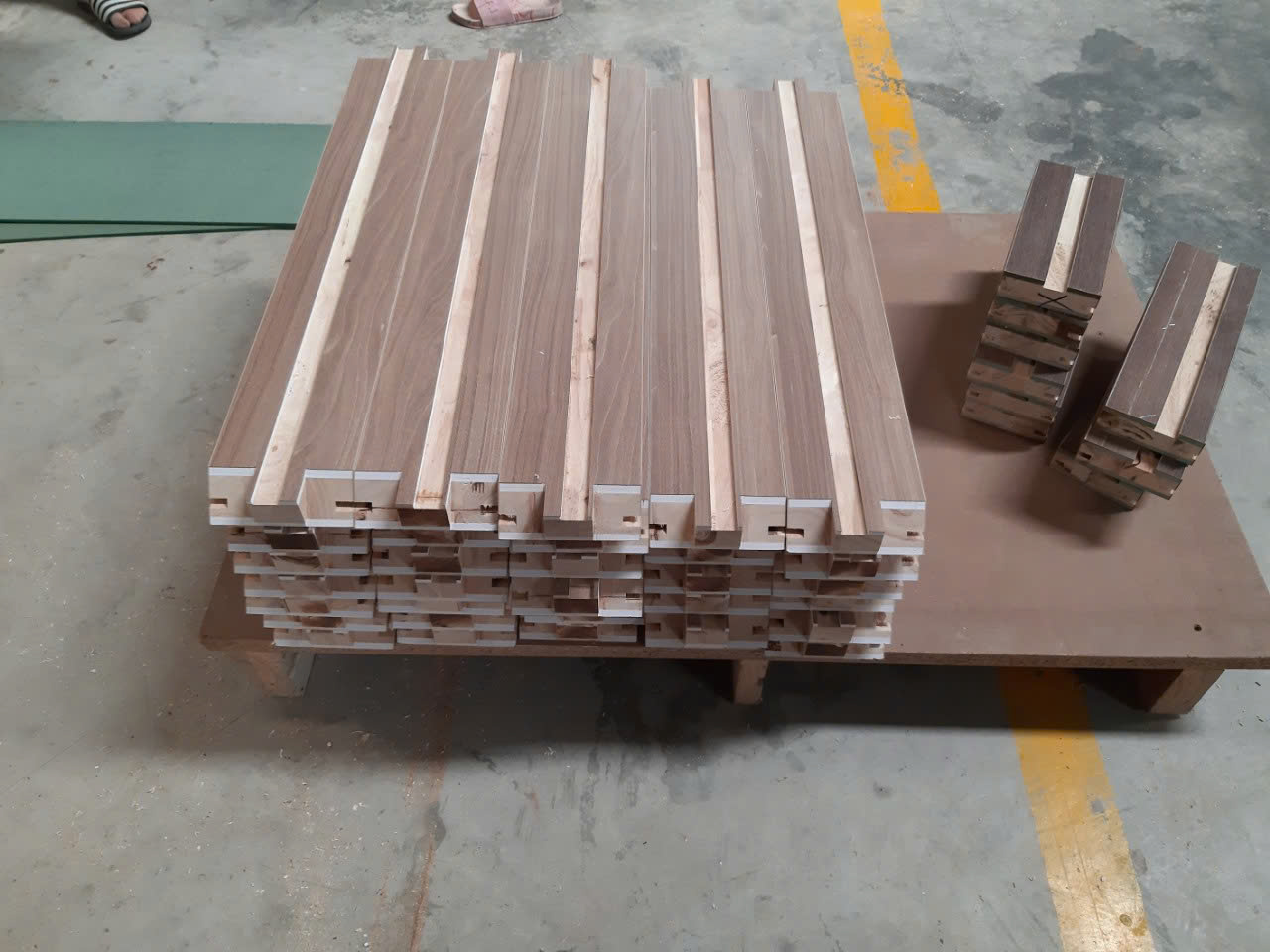

• Suitable for tenon and mortise jointing, groove cutting, and precision woodworking

• Perfect for manufacturing wooden doors, frames, chairs, cabinets, and more

• Solid construction – Stable operation – Long-lasting performance
