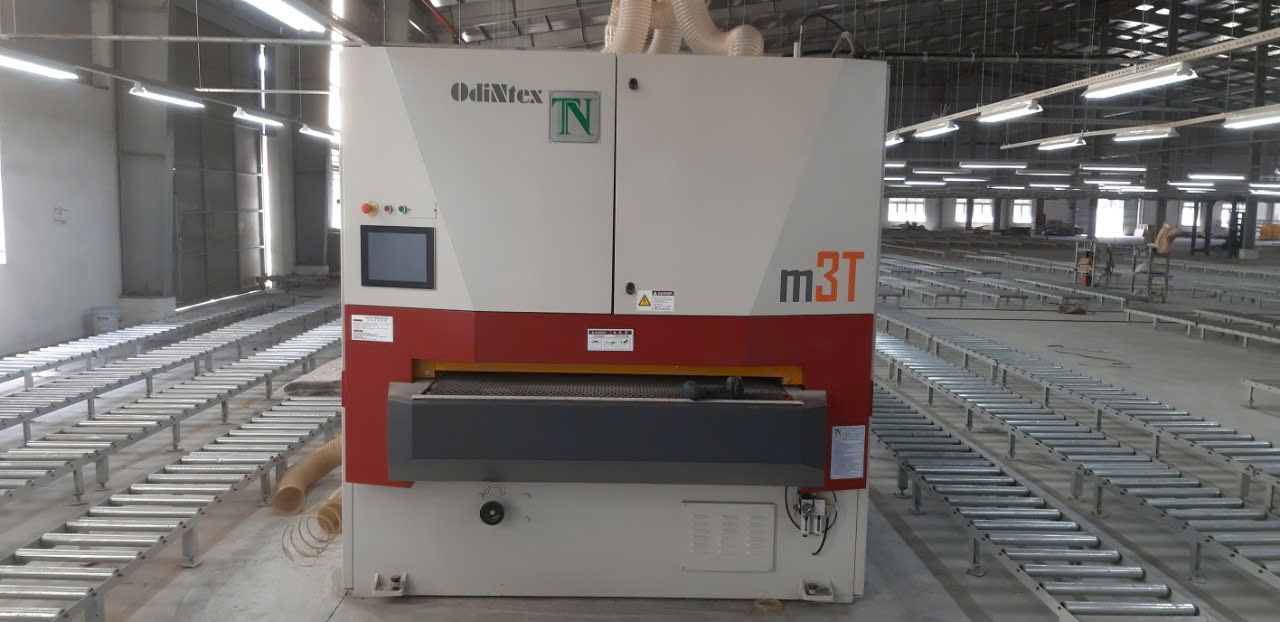

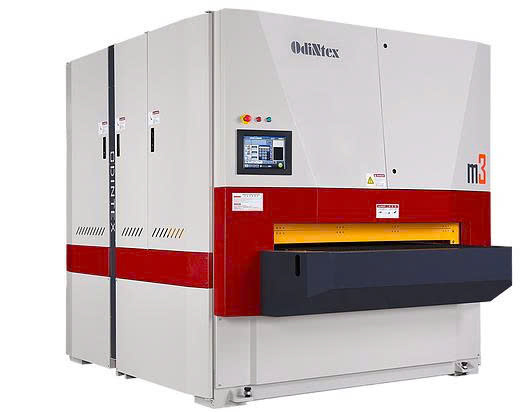

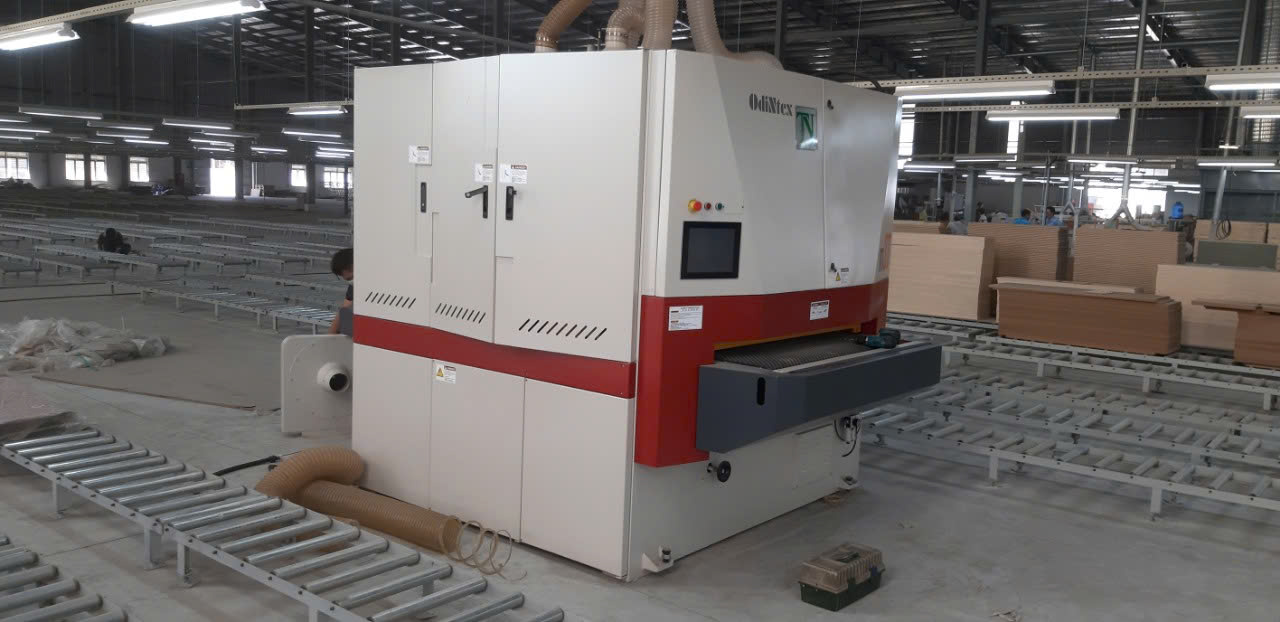

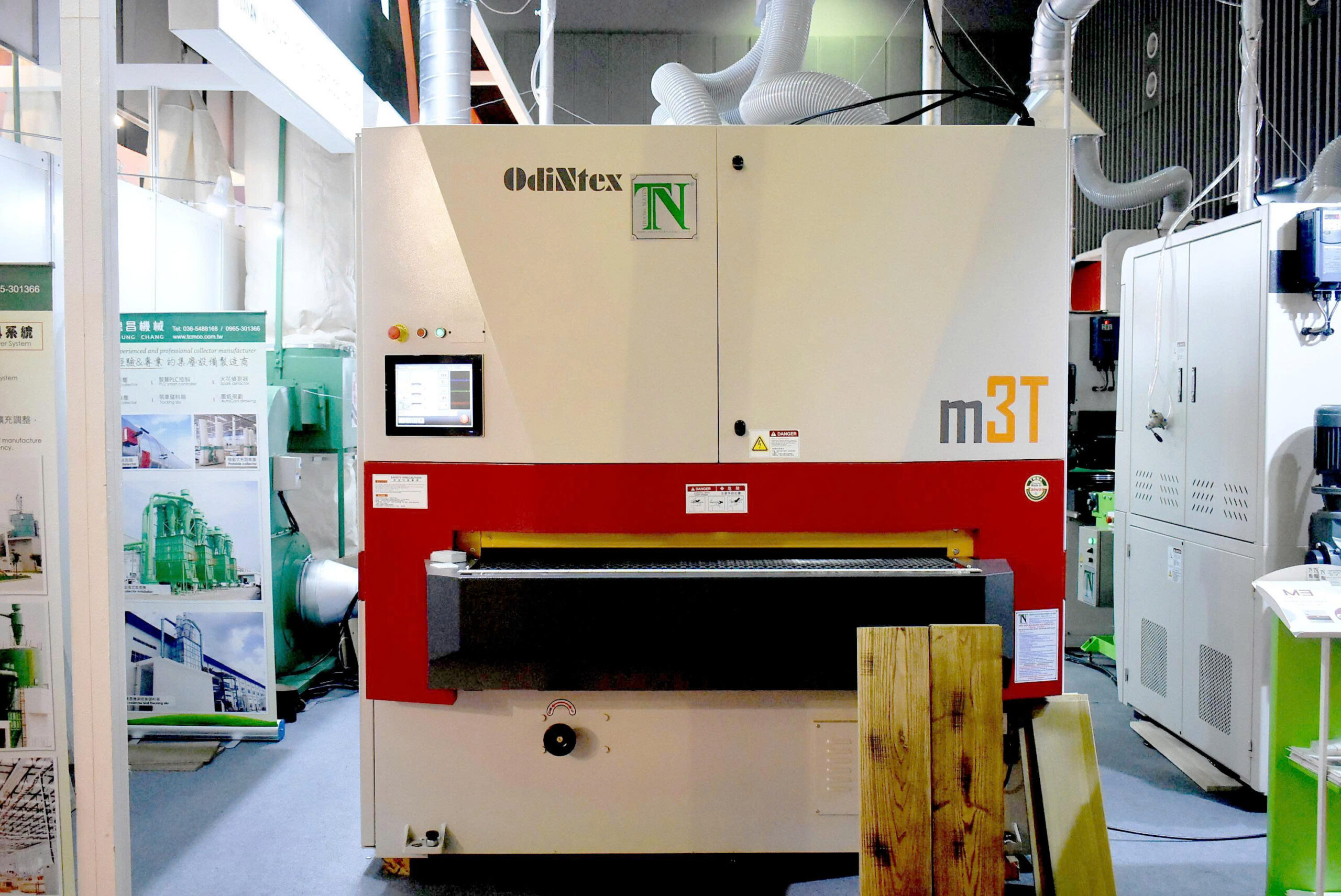

DIVIDED BOX SANDER – M3 | MCB THUONG NGUYEN WOOD

SKU: M3
Produced by: odiNtex
Country of origin:
Status: 100%
Warranty: 12 months

Product details

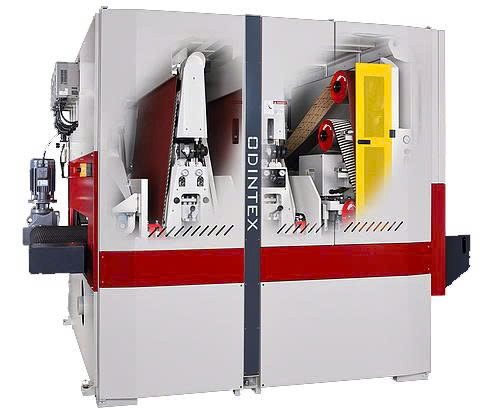

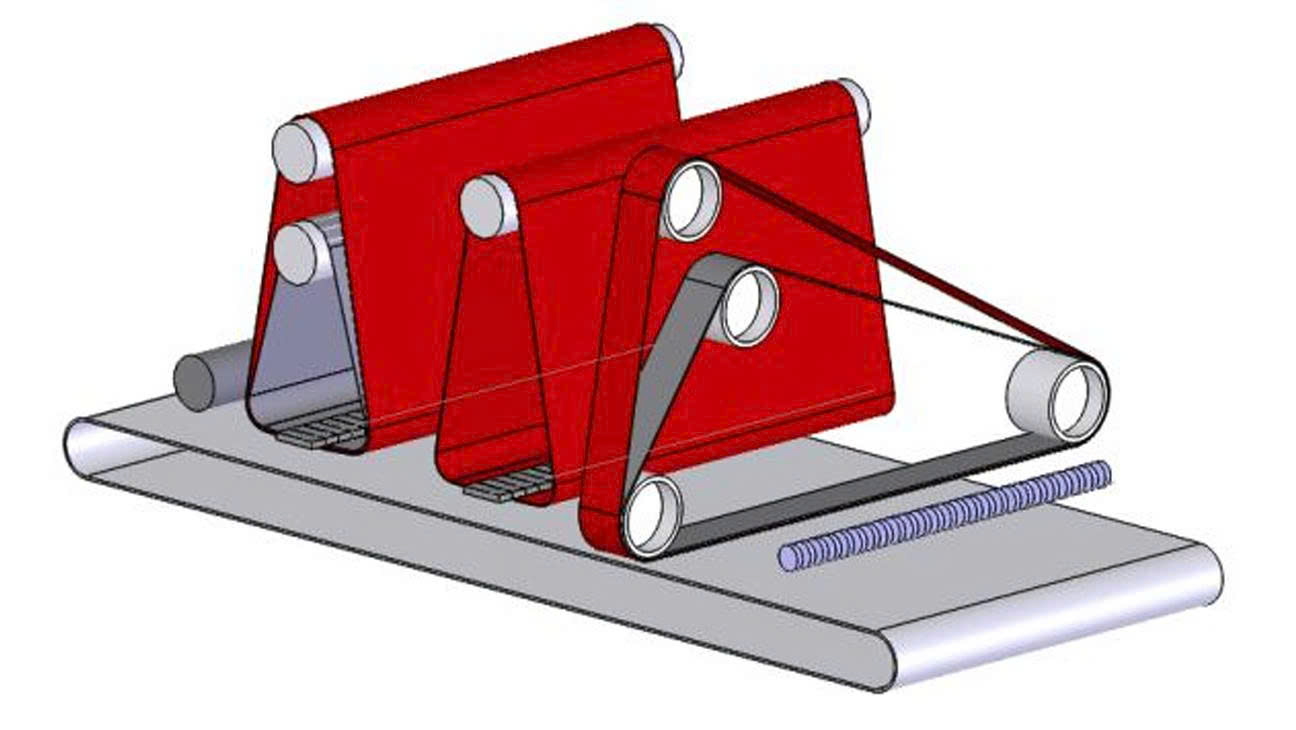

WORKING SET 1

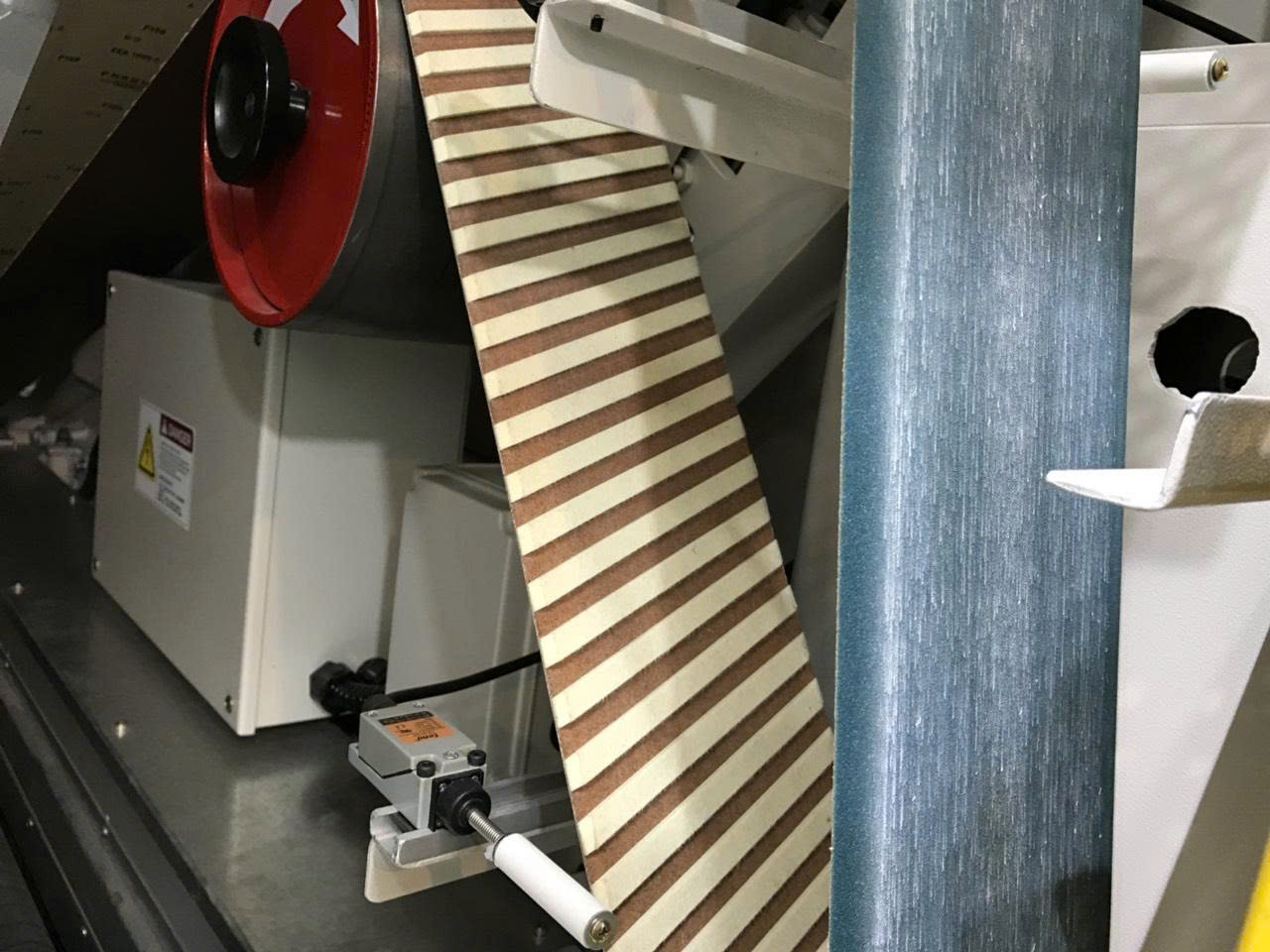

Cross-sanding belt

Sanding belt size: 5400x150mm

Pressure belt size: 4850x140mm

Drive power: 15HP

Electronic inverter for stepless adjustment of sanding belt speed, pneumatic belt tensioner, belt air filter with air saving system optimizes air consumption

only blows and oscillates while the plate is in operation.

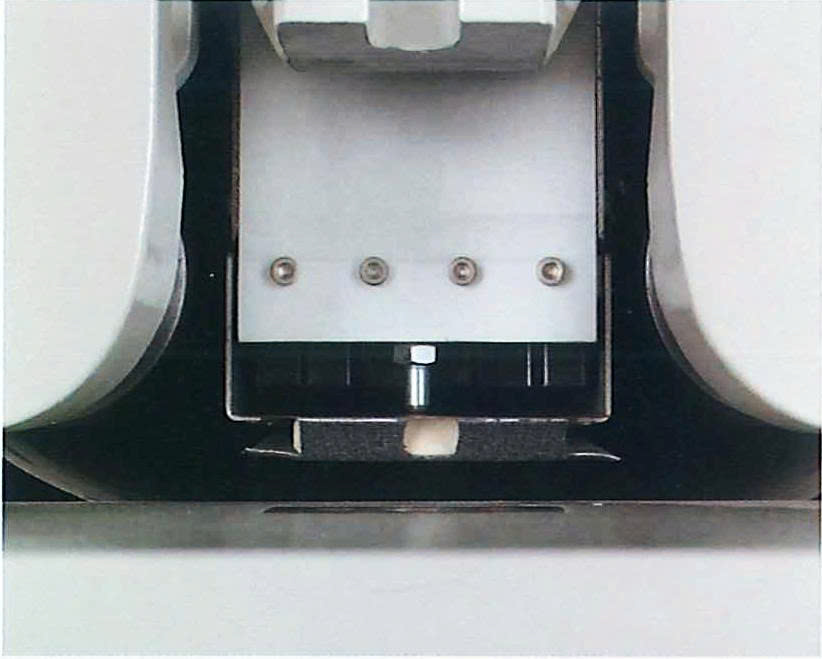

Electronic segment pads driven by magnetic coils are capable of changing the force of each shoe steplessly while the workpiece passes through the pressure beam.

2ND WORKING SET

Vertical sanding unit

Sanding belt size: 2620x1370mm

Drive power: 15HP

Electronic inverter for stepless adjustment of sanding belt speed, pneumatic belt tension, belt air filter with air saving system optimizes air consumption

by simply blowing and oscillating while the plate is working.

Electronic segment pads driven by magnetic coils are capable of changing the force of each shoe steplessly while the workpiece passes through the pressure beam.

3RD WORKING PART

Fine vertical sanding unit

Sanding belt size: 2620x1370mm

Pressure belt size: 2250x1360mm

Drive power: 15HP

Electronic inverter for stepless adjustment of sanding belt speed, pneumatic belt tension, belt air filter with air saving system optimizes air consumption

only blows and oscillates while the plate is working.

Electronic segmented pad driven by magnetic coils is capable of changing the force of each base steplessly while the workpiece passes through the pressure beam.

4th Nonwoven Fabric Roll

Drive Power: 3HP

Diameter: 200mm
Adjustable height by level, oscillation function

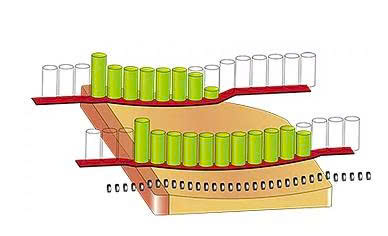

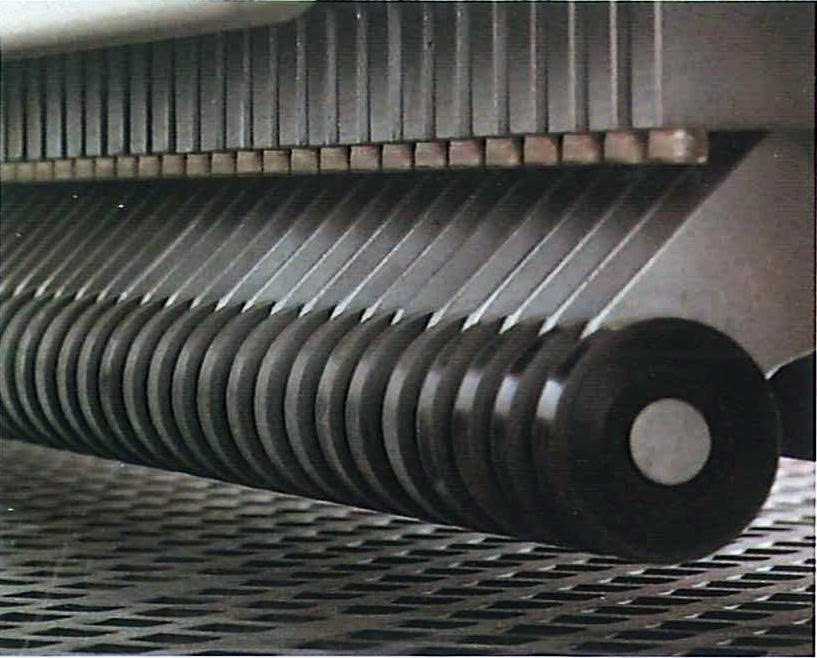

MAGNETIC BEAM

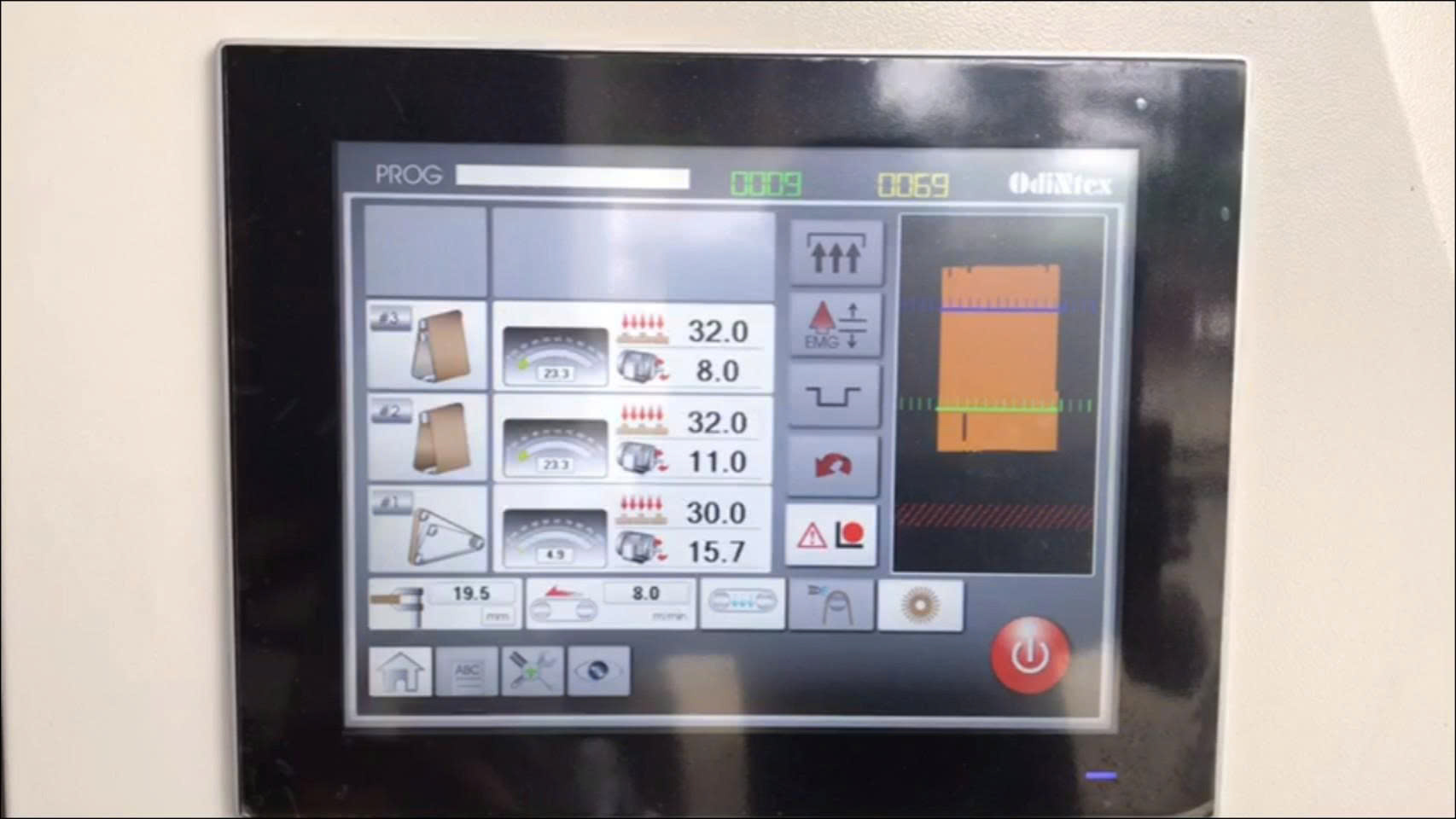

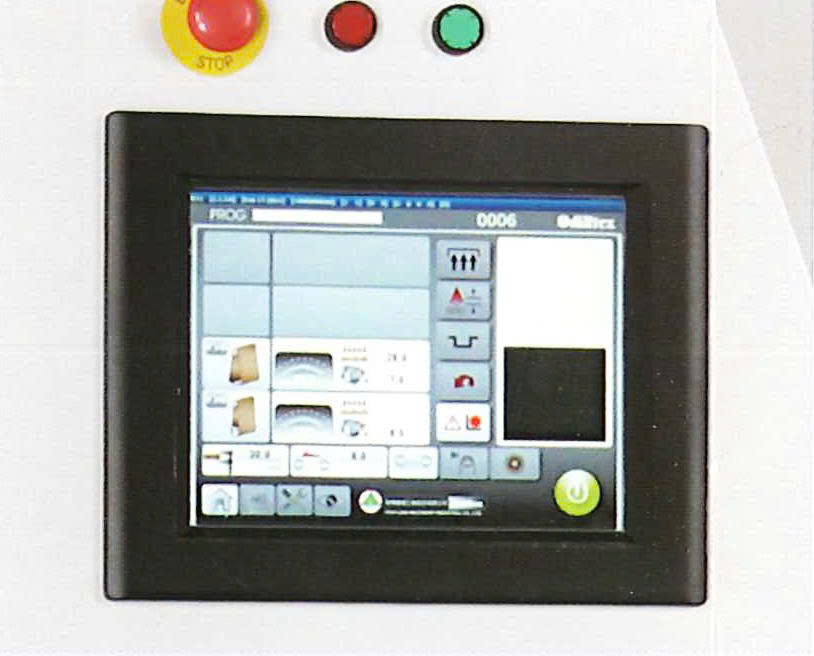

with computer-controlled selective pressure adjustment, capable of changing the force of each base steplessly by percentage of size while the workpiece passes through the pressure beam.

The pressing parts can avoid the task of regular maintenance and are not sticky or dirty like pneumatic parts due to contamination by oil, water or dust in the compressed air.

WORKING TABLE

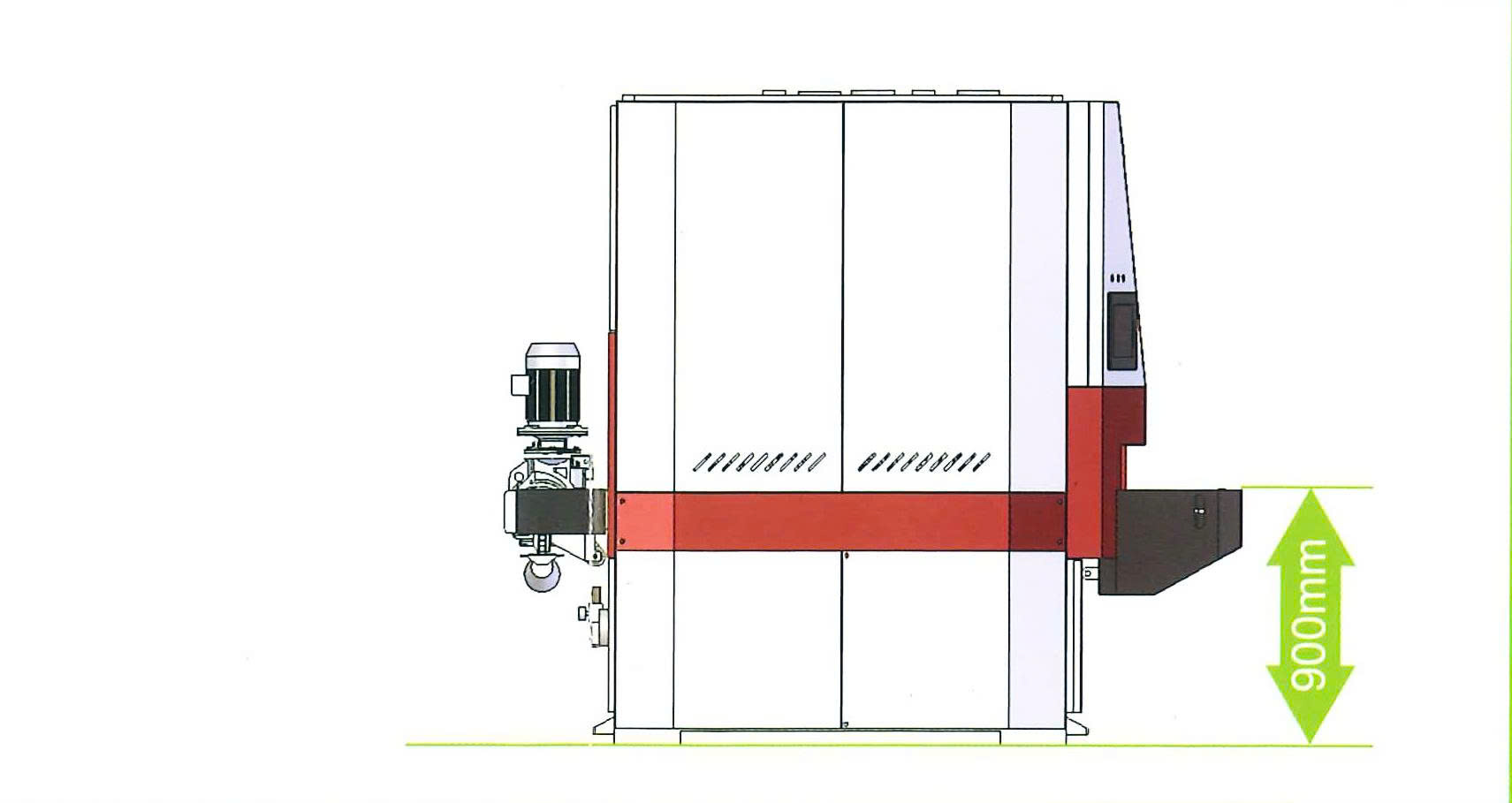

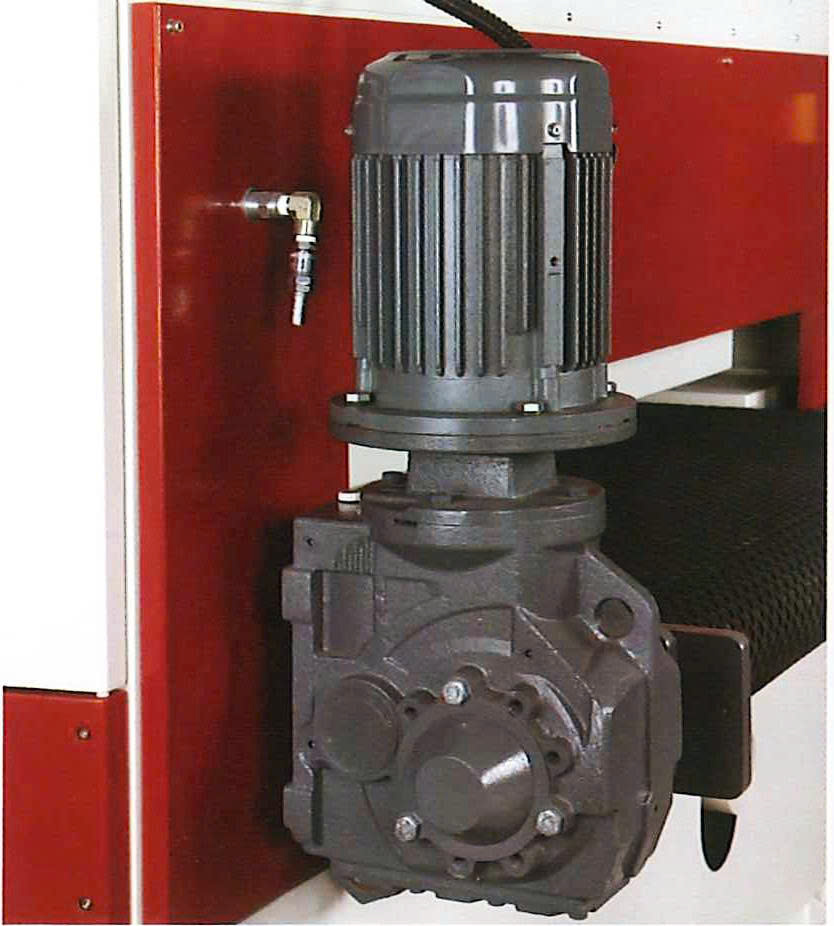

The machine has a constant standard working height of 900mm, the motor (0.5HP) adjusts the working thickness by adjusting the upper machine part.

Pneumatic auto-centering, feed speed adjustable 5~20m/min by frequency control

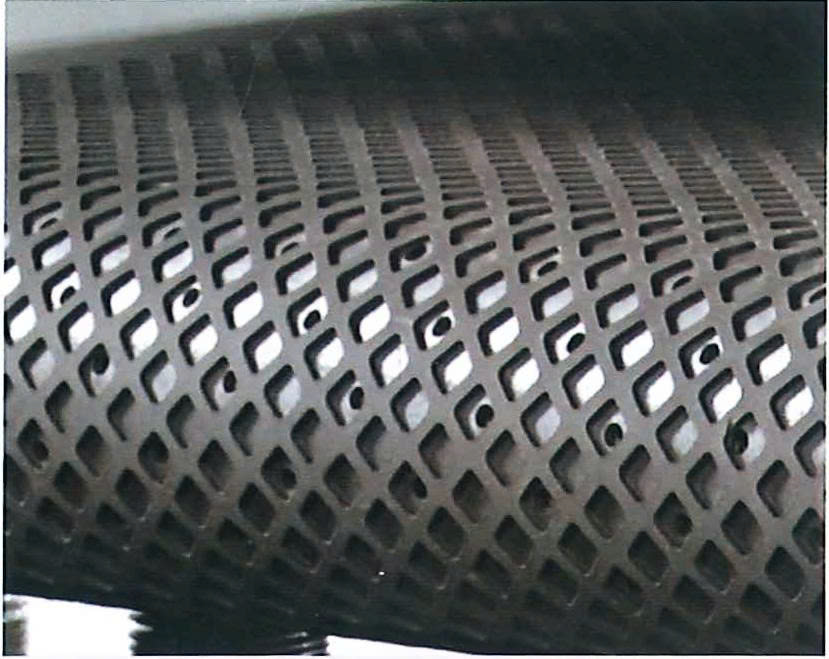

Worktable vacuum device for safe transport of workpieces shorter than 500mm in the feed direction, including electric suction fan, fan drive power is 10HP
