DISC SANDER (ELECTRIC) GT-S1W2 | MCB WOOD THUONG NGUYEN

SKU: GT-S1W2
Produced by: GOODTEK
Country of origin: China
Status: 100%
Warranty: 12 months

Product details

🟧 DISC SANDING MACHINE – GOODTEK GT-S1W2
100% Brand New | Brand: GOODTEK | Origin: China

🔧 PRODUCT OVERVIEW
The GOODTEK GT-S1W2 is a specialized disc sanding machine designed to process wide and deep wood surfaces after primer coating or before finishing. Featuring manual adjustment and a combination of disc and sponge sanding heads, the machine delivers exceptional surface smoothness and uniformity while significantly reducing manual labor in furniture production lines.

⚙️ KEY TECHNICAL SPECIFICATIONS
➤ Working Capacity:

Workpiece width: 300 – 800 mm
Maximum workpiece depth: 80 mm
Working table height: 850 mm
Feeding speed: 0 – 12 m/min (manual adjustment)
Size adjustment: Electric input/output control

➤ Motor Configuration:

Main sanding frame motors: 2.2 kW × 2, 1400 rpm – 50Hz
Sanding frame oscillation motor: 0.12 kW
Sponge sanding head motor: 1.5 kW, 1400 rpm – 50Hz
Power supply: 380V – 50Hz
Total power: 8.8 kW

➤ Dimensions & Weight:

Overall machine size: 3500 × 2000 × 1500 mm
Machine weight: 2200 kg
Dust extraction port: Ø100 mm

🌟 HIGHLIGHT FEATURES
✔️ Designed for sanding large wood panels and wide surfaces

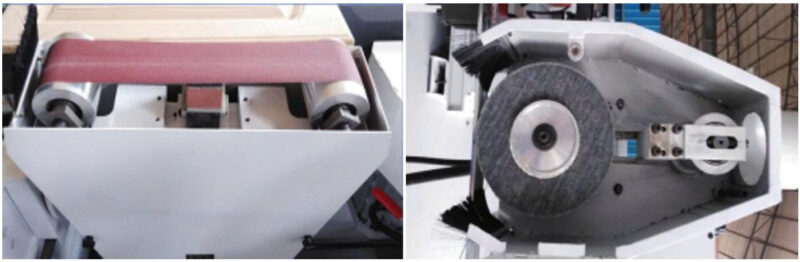

✔️ Disc sanding system combined with sponge head for ultra-smooth and evenly toned surfaces
✔️ Easy-to-use manual adjustment mechanism
✔️ Stable operation with energy-efficient performance – ideal for medium to large-scale production
✔️ Sturdy construction with long-term durability and easy maintenance

🎯 IDEAL APPLICATIONS

Surface sanding for cabinet doors, tabletops, and large wooden panels in furniture production
Primer sanding for PU coating lines
Suitable for industrial woodworking factories and woodcraft production workshops
