🔷 OFFICIAL PRODUCT ANNOUNCEMENT

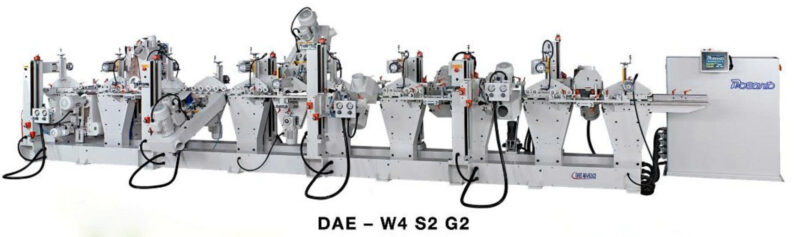

DOUBLE-SIDED MULTI-FUNCTION SANDING MACHINE – PROSAND DAE-W4S2G2

📌 100% Brand New | Brand: PROSAND | Origin: Taiwan

The PROSAND DAE-W4S2G2 sanding machine is an advanced solution for the woodworking industry, specially designed for efficient sanding of long, narrow workpieces that require high precision and surface quality.

⚙️ KEY SPECIFICATIONS

➤ Workpiece Processing Range

• Workpiece Length: From 750mm and above

• Workpiece Width: 15 – 150mm

• Workpiece Height: 5 – 80mm

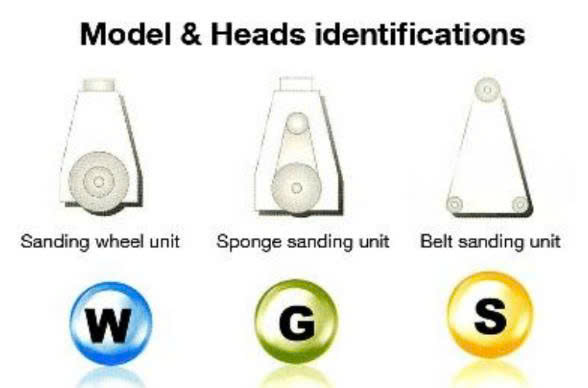

🌀 W AXIS – SANDING WHEEL UNIT

• Motor: 2HP x 4 sets

• Sanding Speed: 0 – 1800 RPM (variable speed via inverter)

• Sanding Wheel Size: Ø200mm x 15 – 80mm

• Adjustments:
  ▪️ Up/Down – Forward/Backward – Tilting
  ▪️ Tilting Range:
    ▪ W1, W4: 0° to +90°
    ▪ W2, W3: 0° to -90°

• Advanced Features:
  ✅ Automatic forward/backward movement
  ✅ Automatic wear compensation
  ✅ Sanding direction control: clockwise/counterclockwise

📏 S AXIS – BELT SANDING UNIT

• Motor: 3HP x 2 sets

• Belt Speed: 0 – 1300 m/min (variable speed via inverter)

• Oscillating Motor: 1/8HP x 2 sets

• Belt Size: 2450mm x 30 – 90mm

• Adjustments:
  ▪️ Up/Down – Forward/Backward – Tilting
  ▪️ Tilting Range: -30° to +90°

• Features:
  ✅ Automatic forward/backward movement
  ✅ Equipped with blower and cooling system

🧽 G AXIS – SPONGE SANDING UNIT

• Driving Motor: 2HP x 2 sets

• Speed: 0 – 945 RPM (variable speed via inverter)

• Oscillation Motor: 1/4HP x 2 sets

• Sponge Size: Ø850mm x 100mm

• Sanding Drum Size: Ø175mm x 100mm

• Adjustments:
  ▪️ Up/Down – Forward/Backward – Tilting
  ▪️ Tilting Range:
    ▪ G7: 0° to +90°
    ▪ G8: 0° to -90°

• Feature:
  ✅ Automatic forward/backward movement

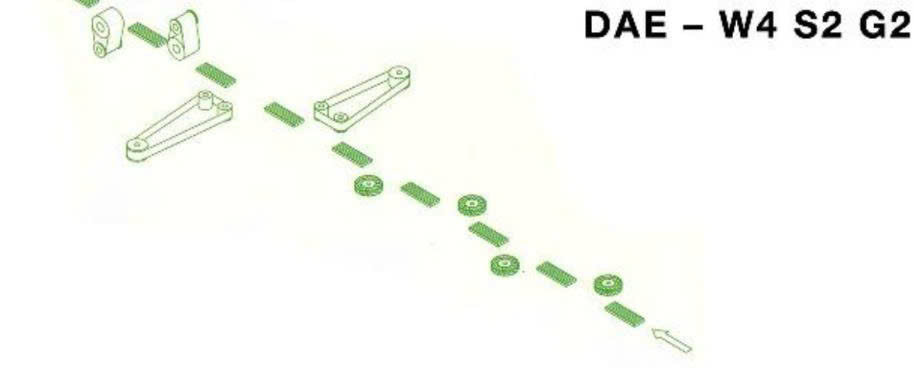

🔄 CONVEYOR SYSTEM

• Motor: 2HP x 2 sets

• Conveyor Speed: 0 – 28 m/min (variable speed via inverter)

• Belt Material: Flat rubber belt

• Belt Width: 100mm

• Number of Conveyors: 9 sets

• Movement Type: Step-by-step

🌟 KEY ADVANTAGES

✅ Integrated 3 sanding systems (wheel, belt, sponge) for versatile edge finishing
✅ High automation: wear compensation, adjustable feed/tilt – optimize efficiency
✅ Solid construction, stable operation, long lifespan
✅ Perfect for door frame factories, table edges, or thin panel edge sanding
