🔷 OFFICIAL PRODUCT ANNOUNCEMENT

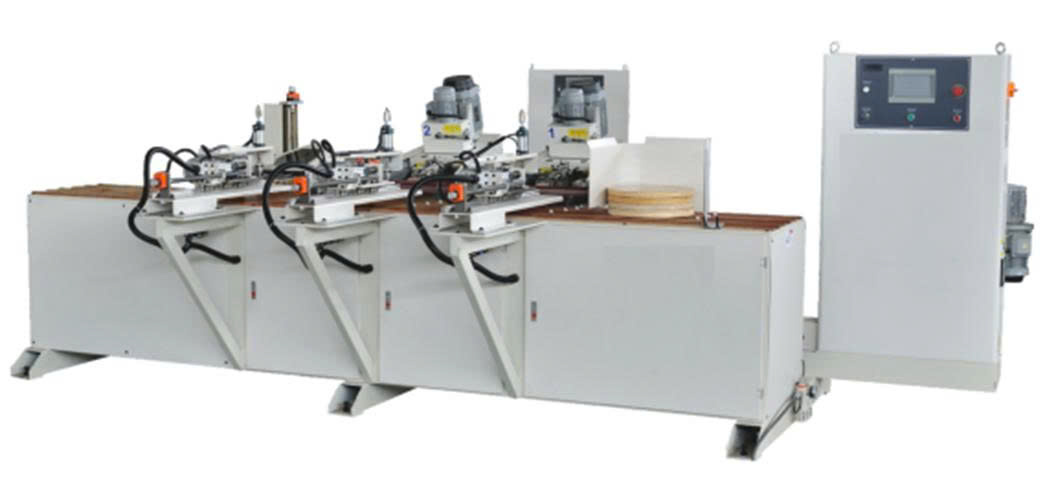

DOUBLE-SIDED EDGE SANDING MACHINE – PROSAND DAE-S4F

📌 100% Brand New | Brand: PROSAND | Origin: Taiwan

Designed for high-precision edge sanding of long and narrow wooden workpieces, the PROSAND DAE-S4F is the perfect choice for manufacturers seeking efficiency, consistency, and premium surface finish.

⚙️ TECHNICAL SPECIFICATIONS

➤ Workpiece Dimensions

• Length: From 800 mm

• Width: 15 – 150 mm

• Height: 5 – 80 mm

🌀 BELT SANDING UNIT

• Sanding Motor: 3HP x 4 sets

• Belt Speed: 0 – 1300 m/min (variable via inverter)

• Oscillating Motor: 1/8HP x 4 sets

• Belt Dimensions: 2450mm (Length) x 30–90mm (Width)

• Adjustments:
  ▪️ Up/Down
  ▪️ Forward/Backward
  ▪️ Tilting: -30° to +90°

• Functions:
  ✅ Automatic forward/backward movement
  ✅ Equipped with air blower and cooling system for the sanding belts

🔄 CONVEYOR SYSTEM

• Conveyor Motor: 3HP x 1 set

• Speed: 0 – 28 m/min (variable via inverter)

• Belt Width: 100 mm

• Number of Belts: 5

• Type: Step-by-step feed

📦 AUTOMATIC FEEDING SYSTEM

• Workpiece Size Range:
   ▪️ Length: 800 – 2000 mm
   ▪️ Width: up to 150 mm

• Feeding Motor: 1/4HP

• Feeding Speed: 0 – 35 m/min (variable via inverter)

• Feeding Belt Width: 100 mm

🌟 KEY FEATURES

✅ Dual-side sanding with 4 high-speed belt units
✅ Oscillating mechanism ensures even sanding and longer belt life
✅ Full adjustability for various workpiece shapes and angles
✅ Automatic conveyor and feeding system for non-stop production
✅ Ideal for factories specializing in door components, narrow panels, and long wooden strips
