CNC ROUTER MACHINE LH-481-S | MCB GO THUONG NGUYEN

  • SKU: LH-481-S
  • Produced by: LIH WOEI
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

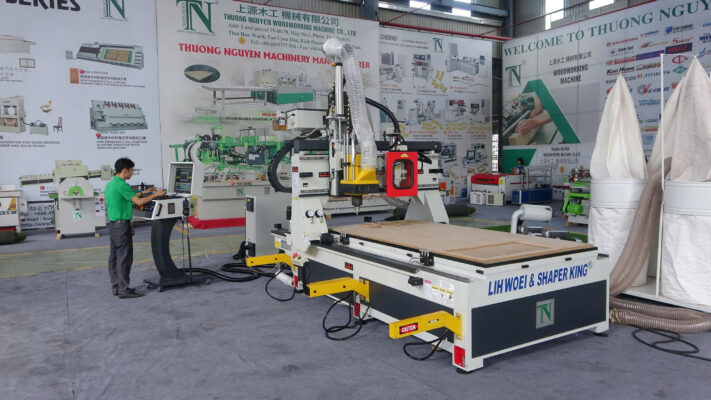

🎯 CNC CENTER MACHINE MODEL: LH-481-S – MAXIMIZE PERFORMANCE, ELEVATE YOUR PRODUCTION!

LH-481-S is a premium CNC center machine designed specifically for modern industrial woodworking workshops, where high precision, superior speed, and stable continuous operation are required. With a powerful configuration and intelligent control system, this machine perfectly meets the demands of high-end machining tasks.


🔧 OUTSTANDING TECHNICAL SPECIFICATIONS:

Worktable size: 1250 x 2470 mm
Maximum working area: 1250 x 2470 mm
X-axis travel: 2470 mm

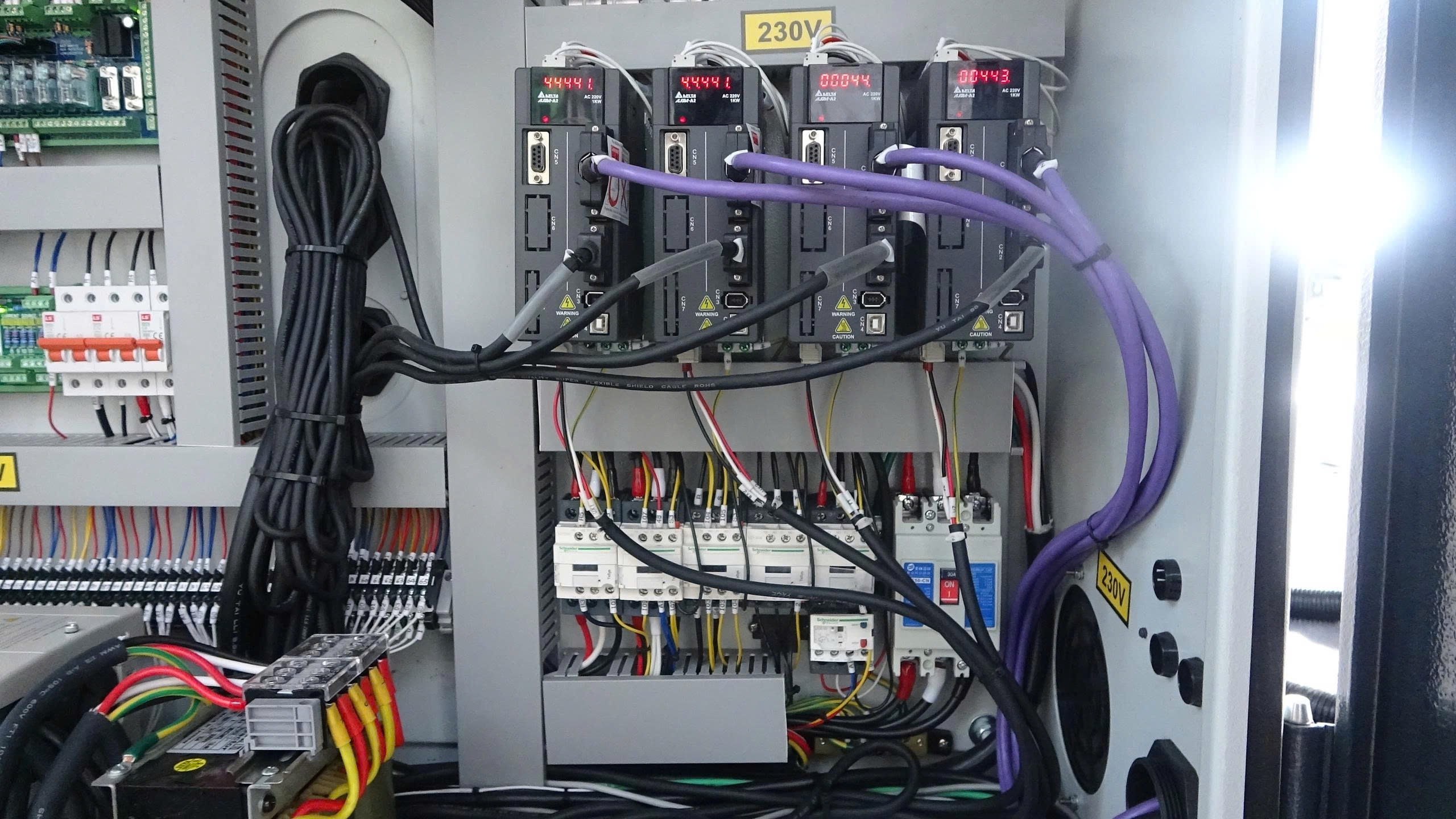

👉 X-axis servo motors: 2 x 1kW with planetary reducers

Y-axis travel: 1250 mm
👉 Y-axis servo motor: 1kW + planetary reducer

Z-axis travel: 250 mm
👉 Z-axis servo motor: 1kW

⚙️ Travel speed:
🔸 X/Y-axis: 55 m/min
🔸 Z-axis: 20 m/min

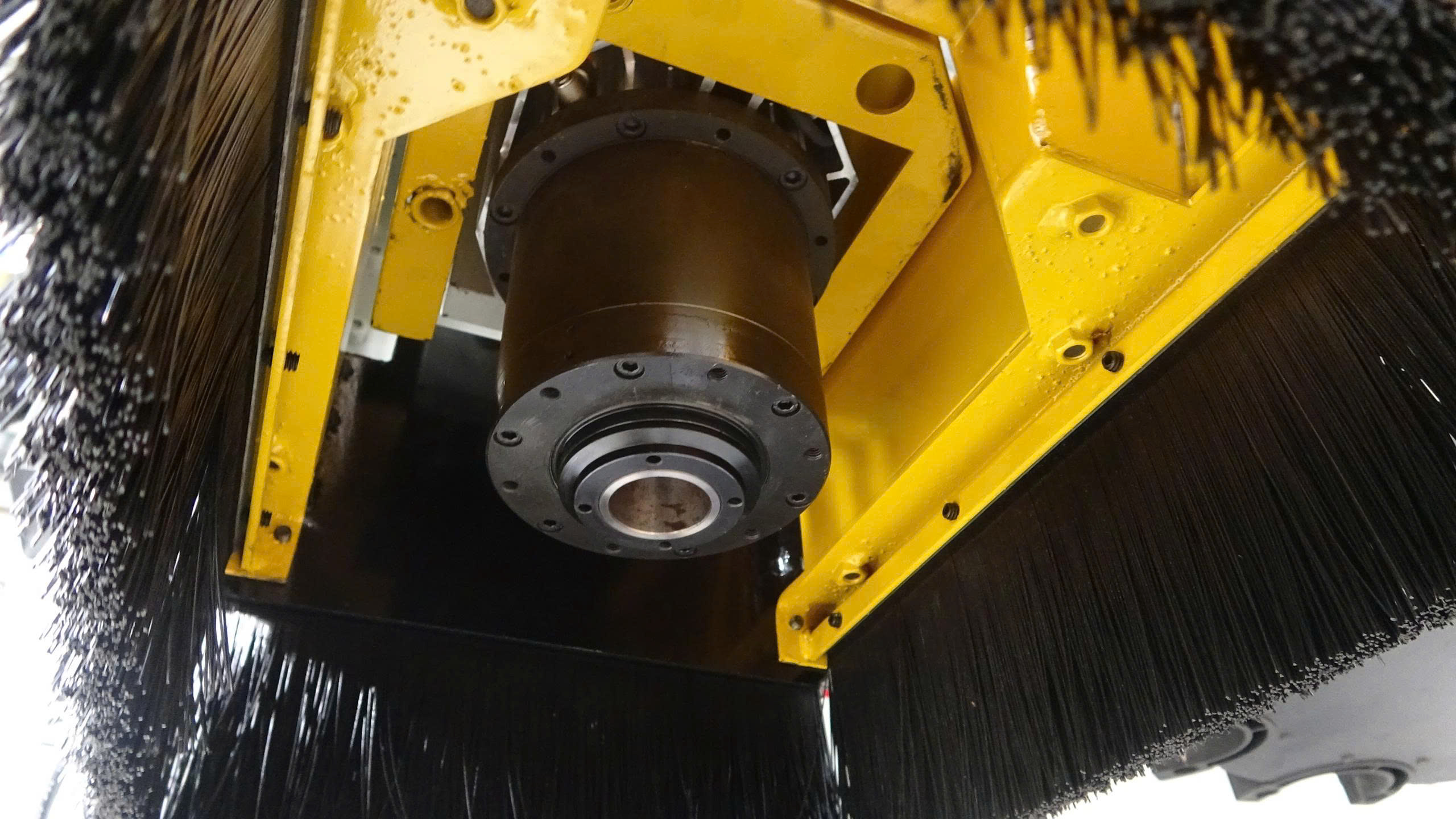

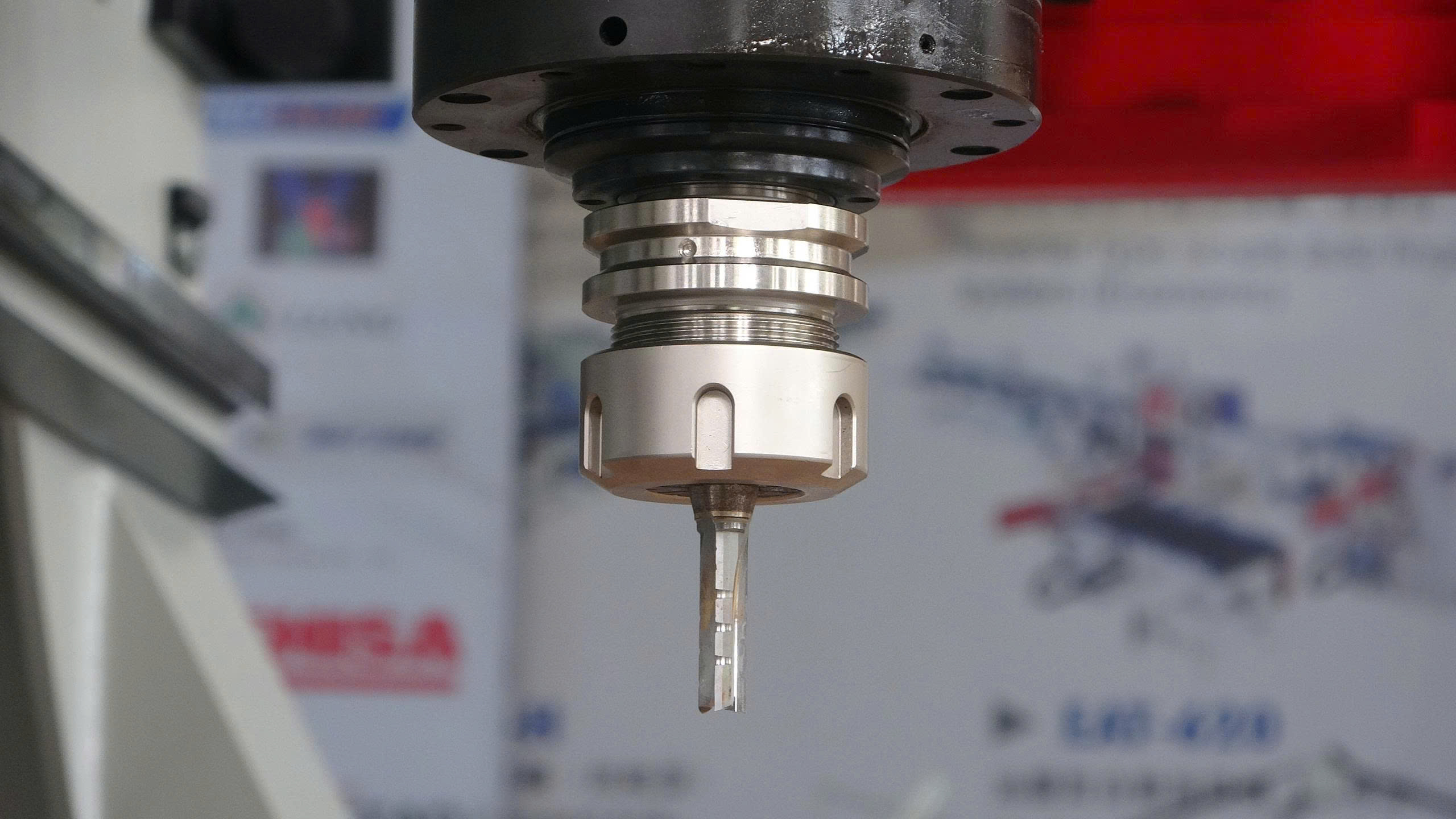

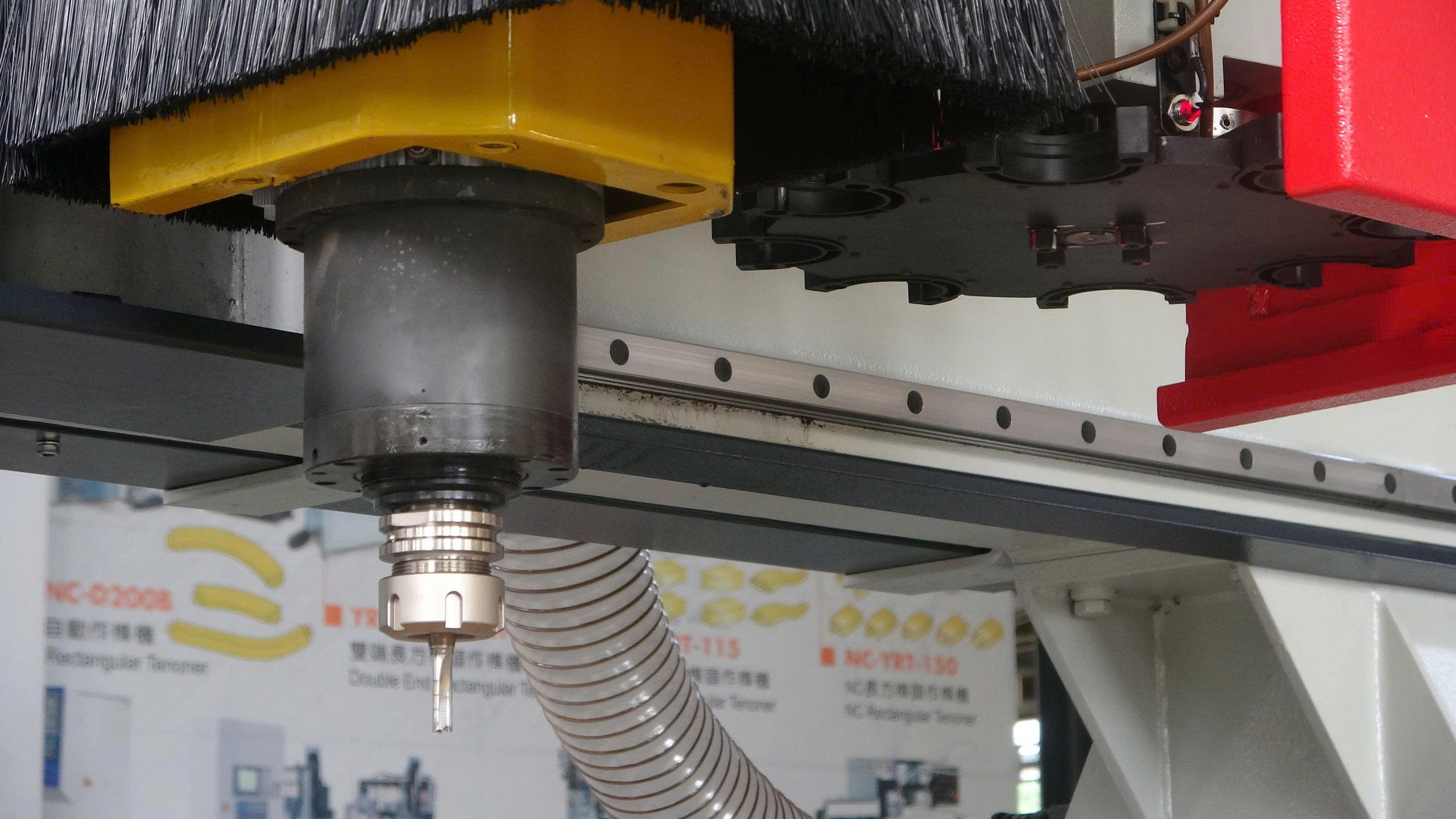

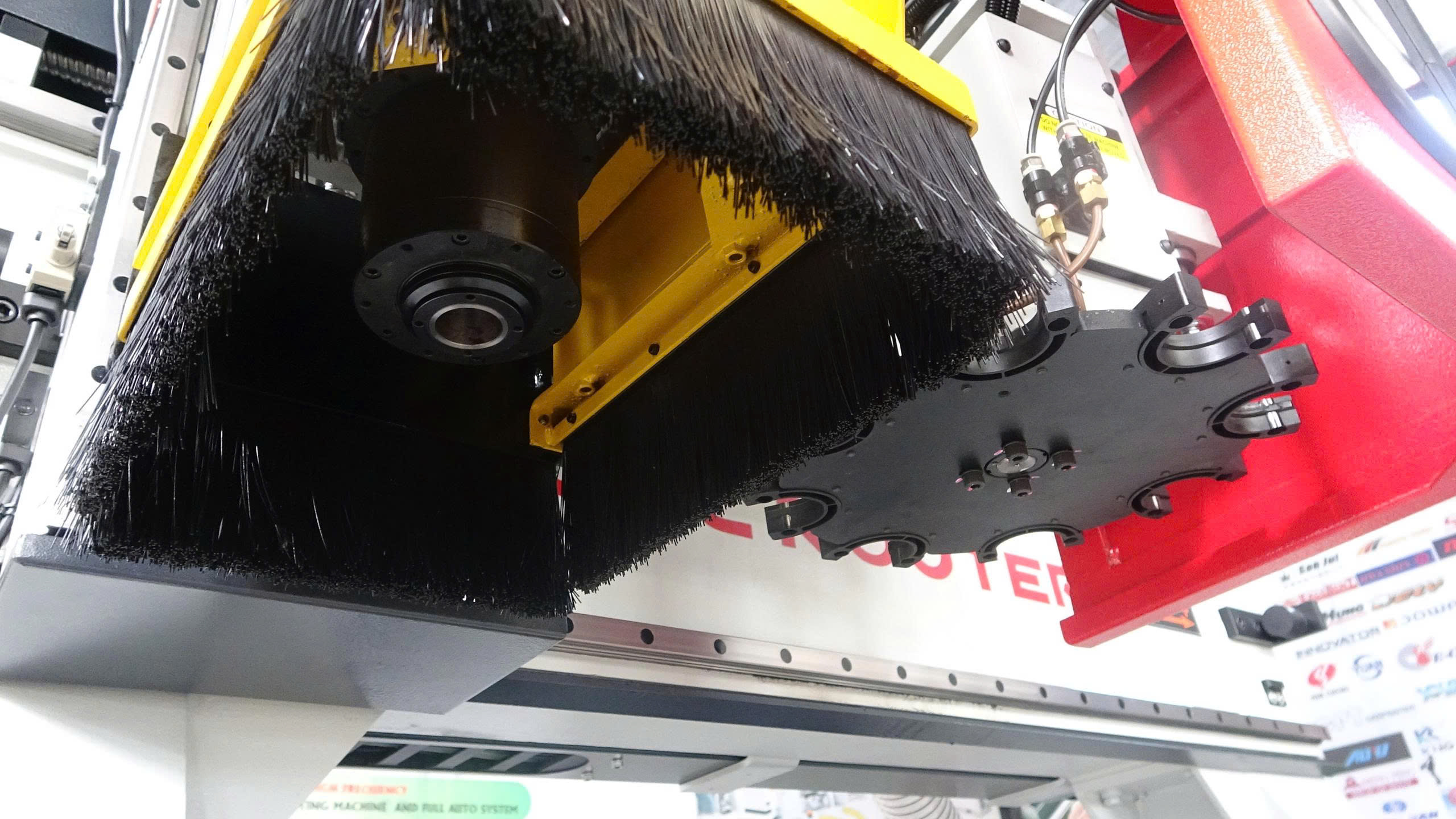

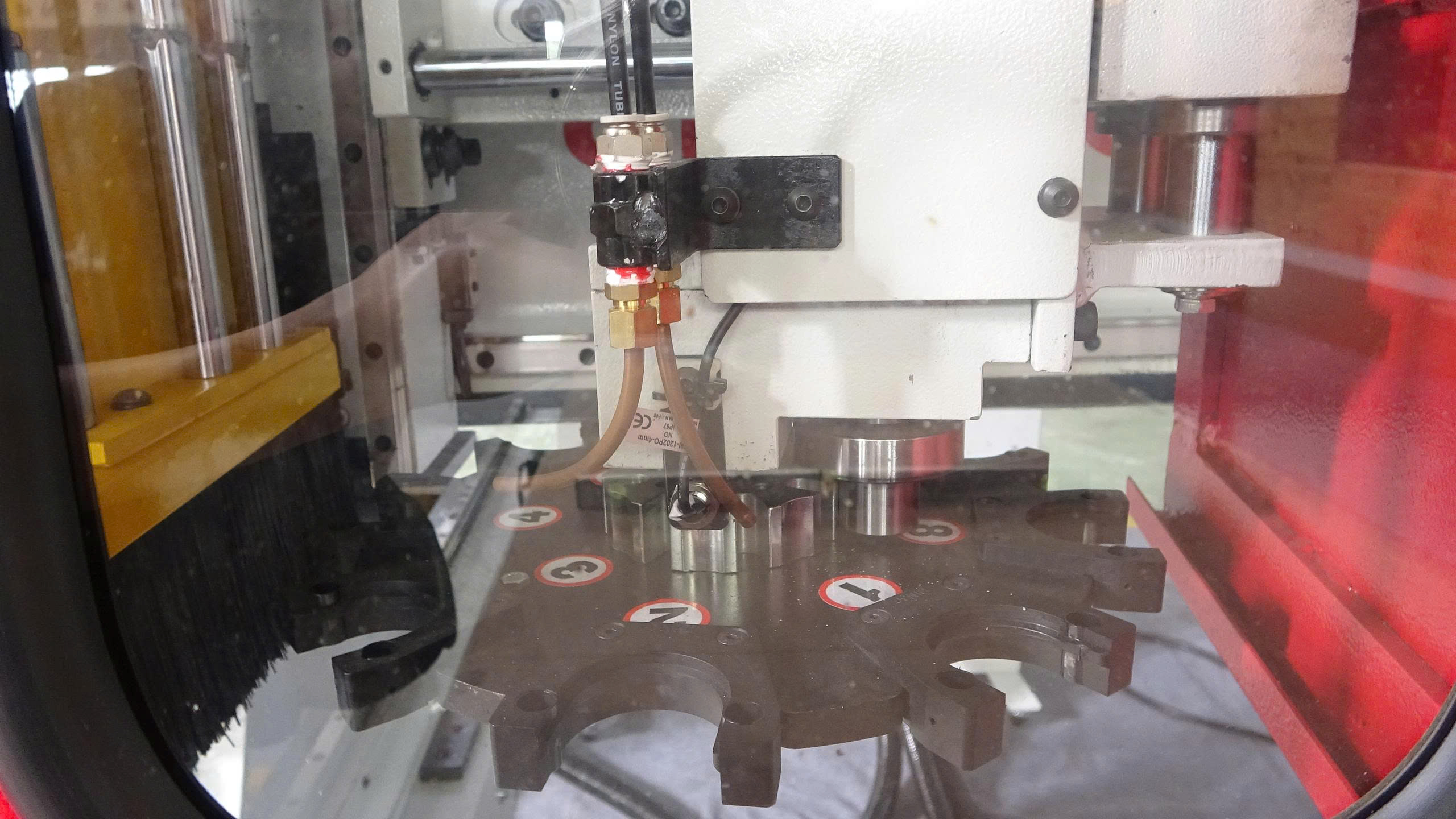

🌀 Main spindle motor:
🔹 HSD motor with 9kW (12HP) power – Ensures stable and powerful cutting
🔹 Spindle speed: 1,000 – 24,000 rpm – Flexible with various materials

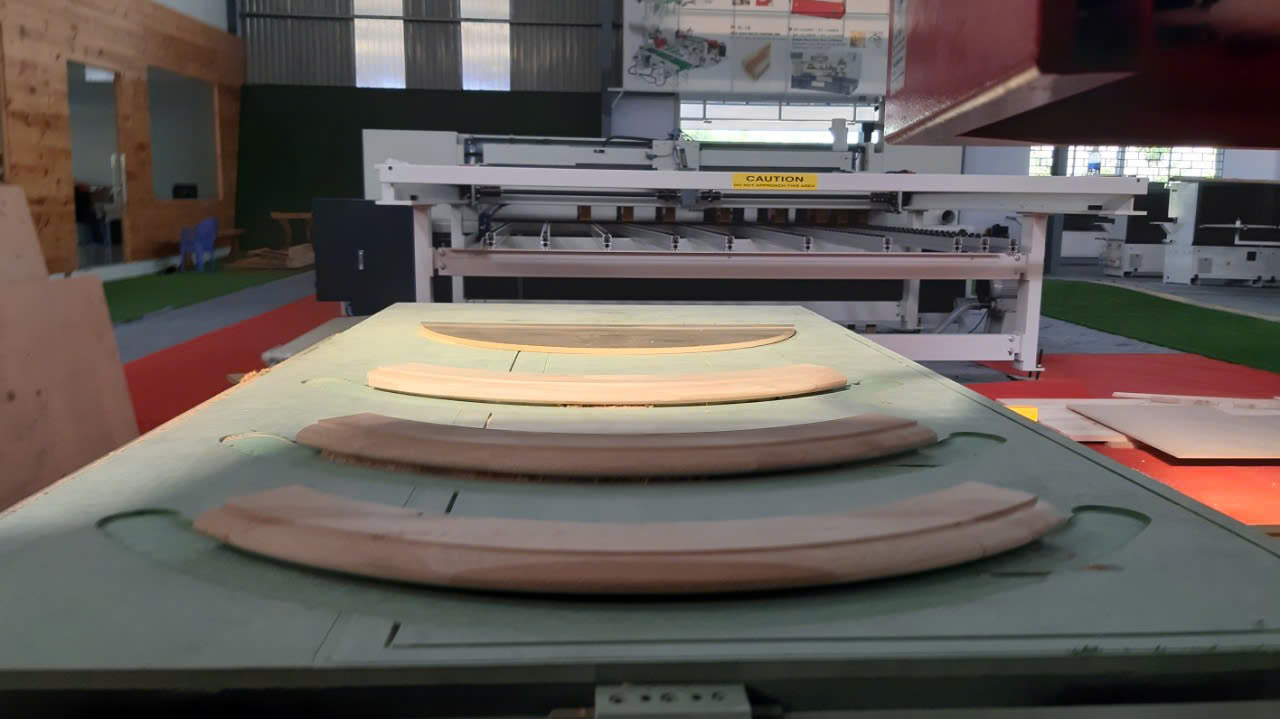

🧲 Vacuum hold-down system:
🔸 2 independent vacuum zones – Secure material during machining
🔸 Vacuum pump motor: 15HP by Trudean – Durable, strong suction, quiet operation


💼 IDEAL FOR APPLICATIONS IN:

✅ Cutting, drilling, shaping MDF, HDF, plastic, acrylic
✅ Manufacturing industrial furniture: cabinet doors, tables, chairs, partition panels
✅ High-precision and large-volume custom production
