CNC NESTING MACHINE WITH DRILLING SPIN UC-481 | MCB GO THUONG NGUYEN

SKU: UC-481
Produced by: QUICK
Country of origin: China
Status: 100%
Warranty: 12 months

Product details

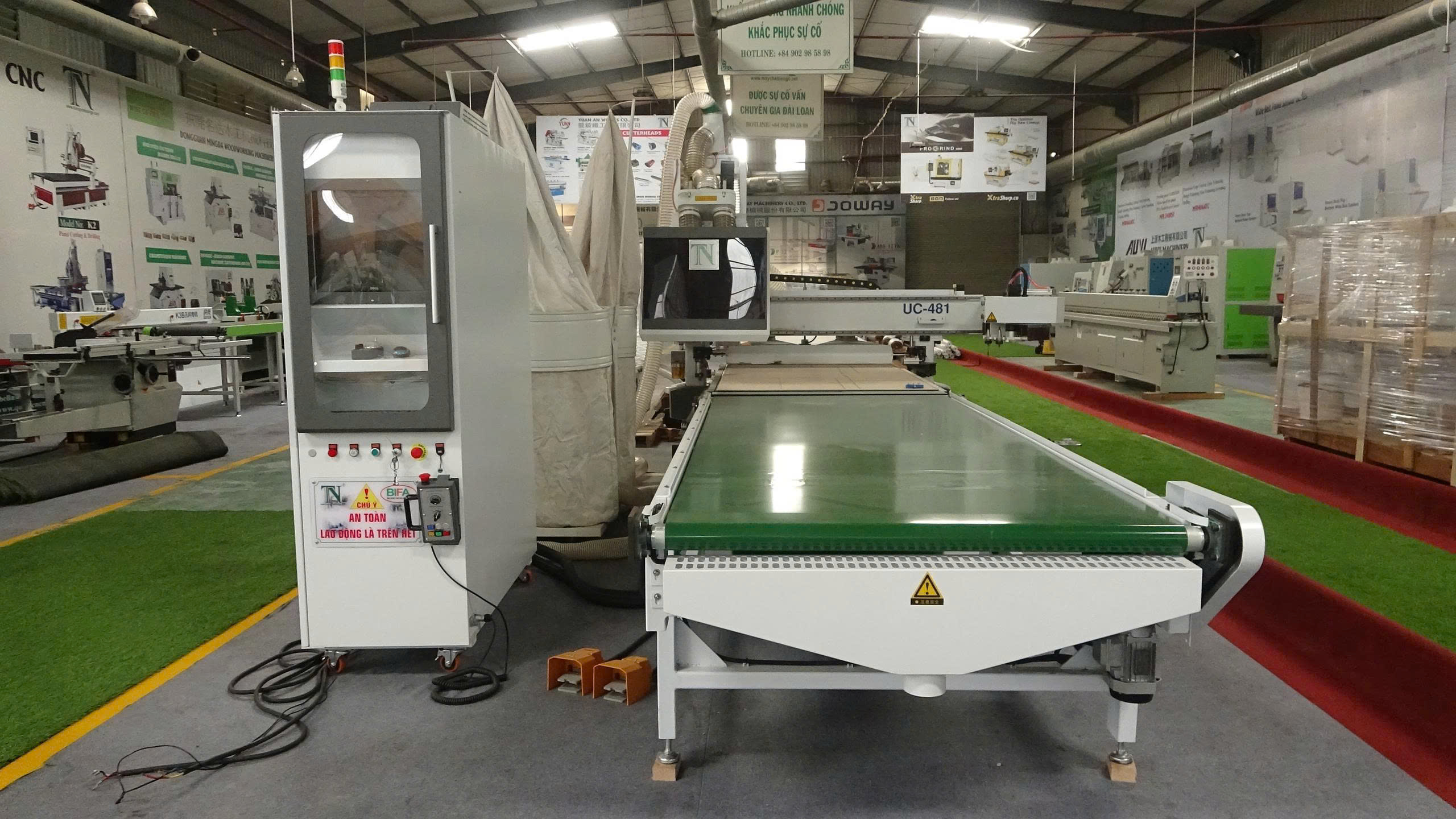

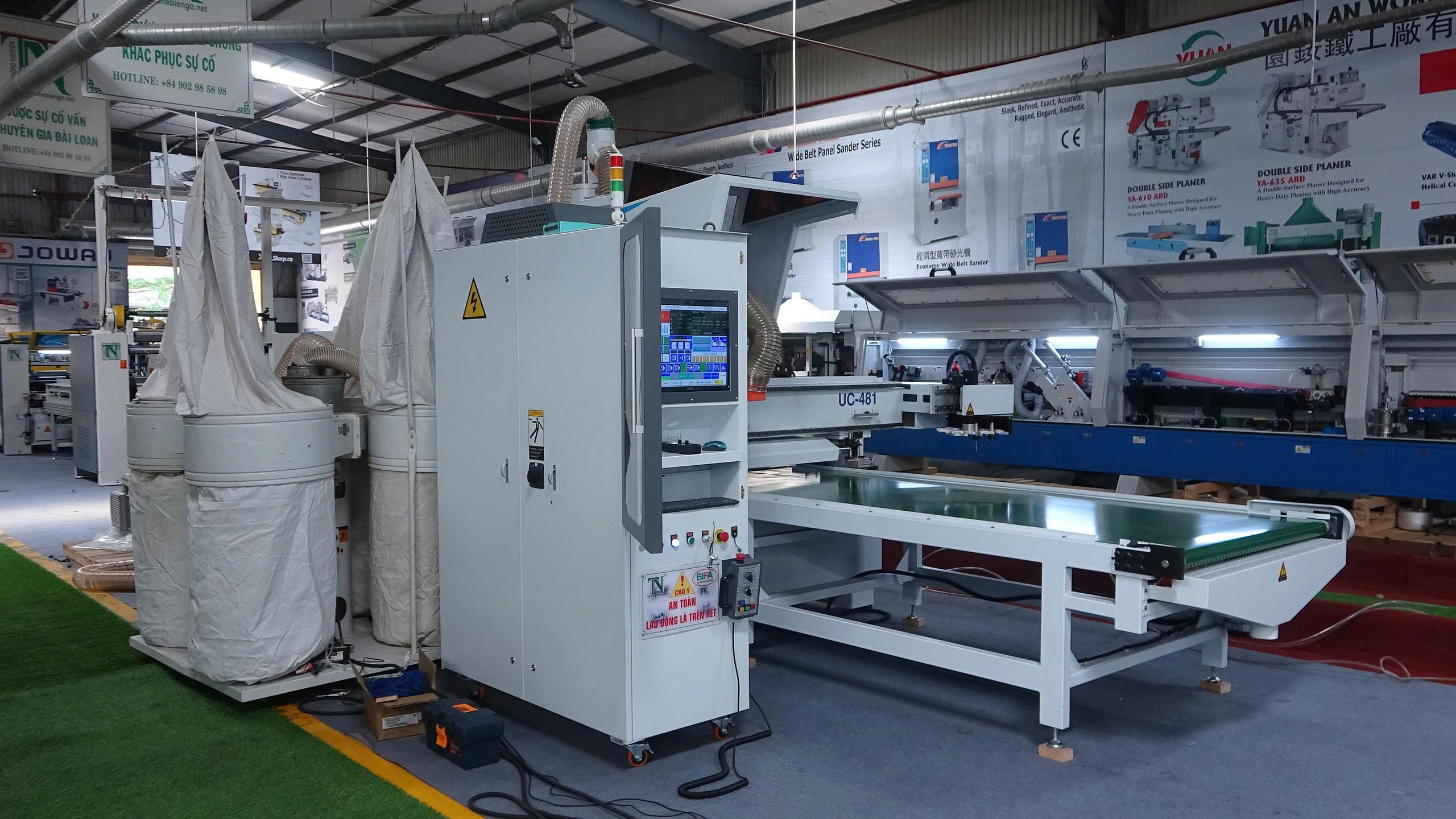

🎯 UC-481 CNC CENTER – HIGH PERFORMANCE, ABSOLUTE PRECISION!

The UC-481 CNC machine is a next-generation industrial woodworking solution, specially designed for workshops that demand high speed, precise accuracy, and continuous long-term operation. With a range of advanced integrated technologies, UC-481 is the ideal choice for producing furniture, partitions, cabinet doors, signage, and composite materials.

🔧 KEY TECHNICAL SPECIFICATIONS

✅ Working area (X-Y-Z): 2440 x 1220 x 200 mm
✅ System resolution: 0.0025 mm – Ultra-fine processing, minimal error
✅ Max travel speed: 50,000 mm/min
✅ Max cutting speed: 30,000 mm/min – Optimized for fast production

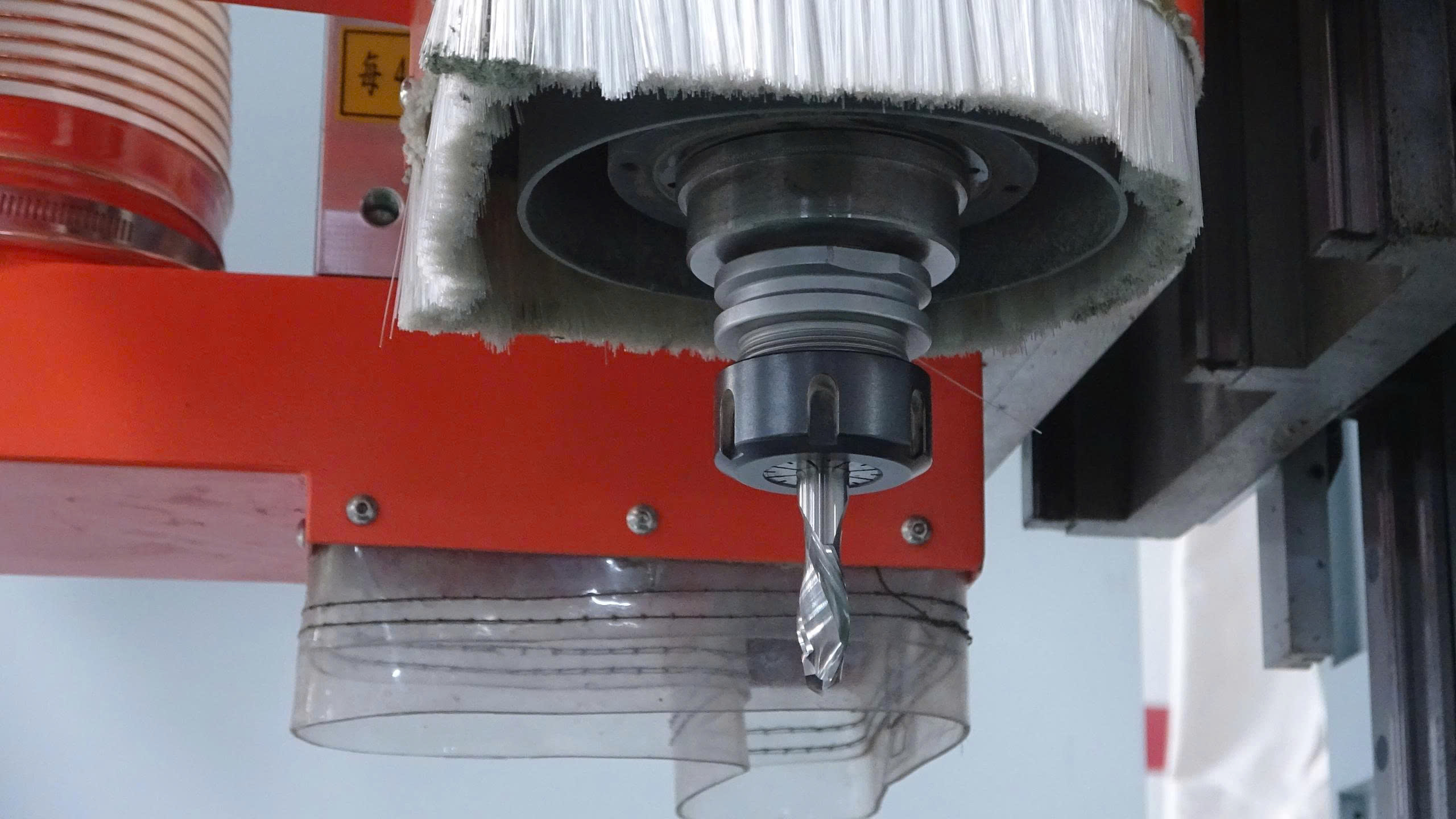

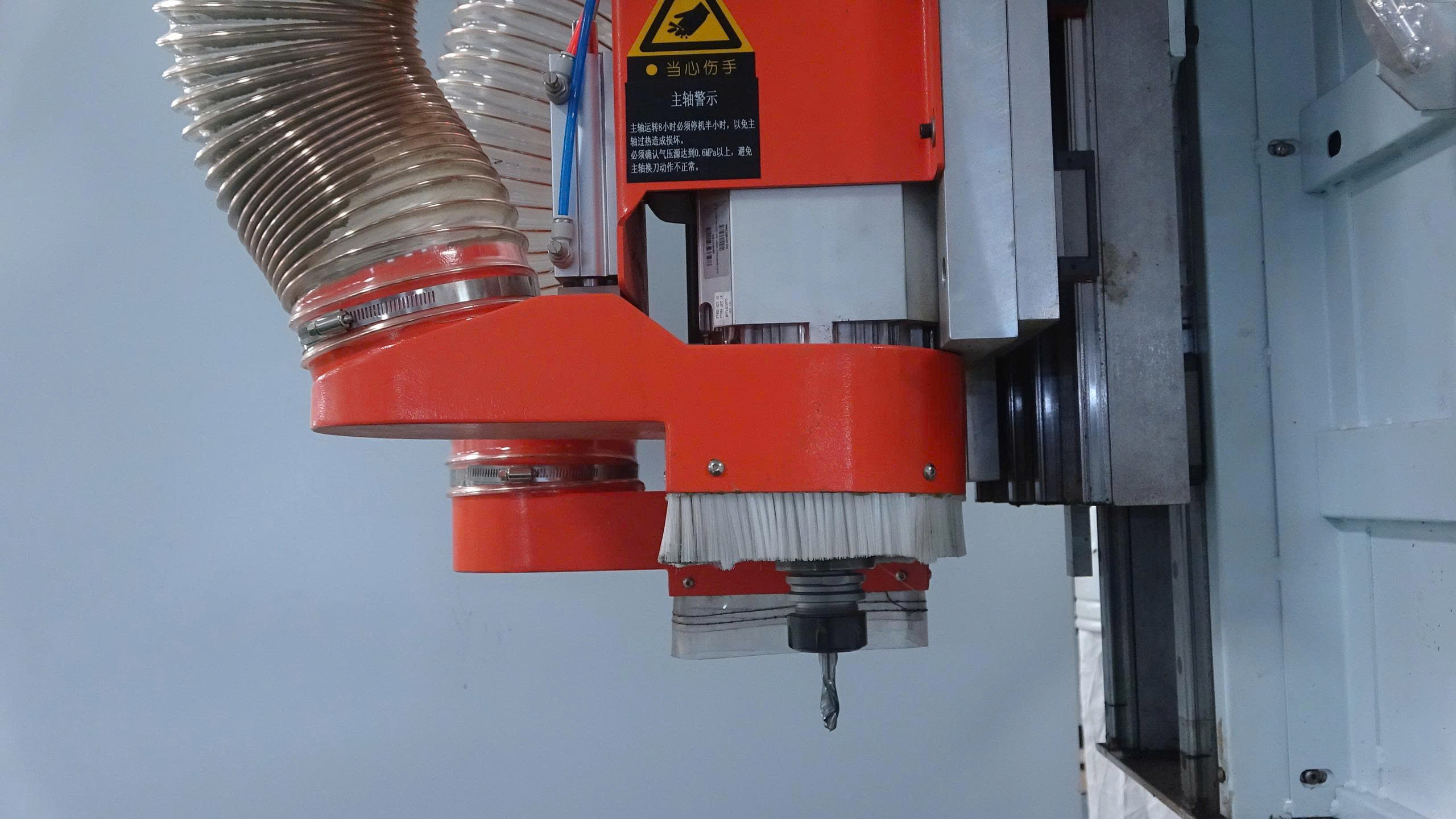

⚙️ High-power spindle:
• Power: 9.6 kW – Air-cooled
• Spindle speed: 24,000 rpm – Ensures smooth, sharp cuts
• Inverter: Delta 11kW – Stable, long-lasting operation

🧠 YASKAWA Servo Motors – Made in Japan:
• 850W – Powerful, precise, and durable

🔌 Operating voltage: AC 380V / 50-60Hz / 3-phase – Standard for industrial workshops

💡 Control system:
• Standard G-code command support
• Computer interface: USB 2.2 – Easy connection, stable data transfer

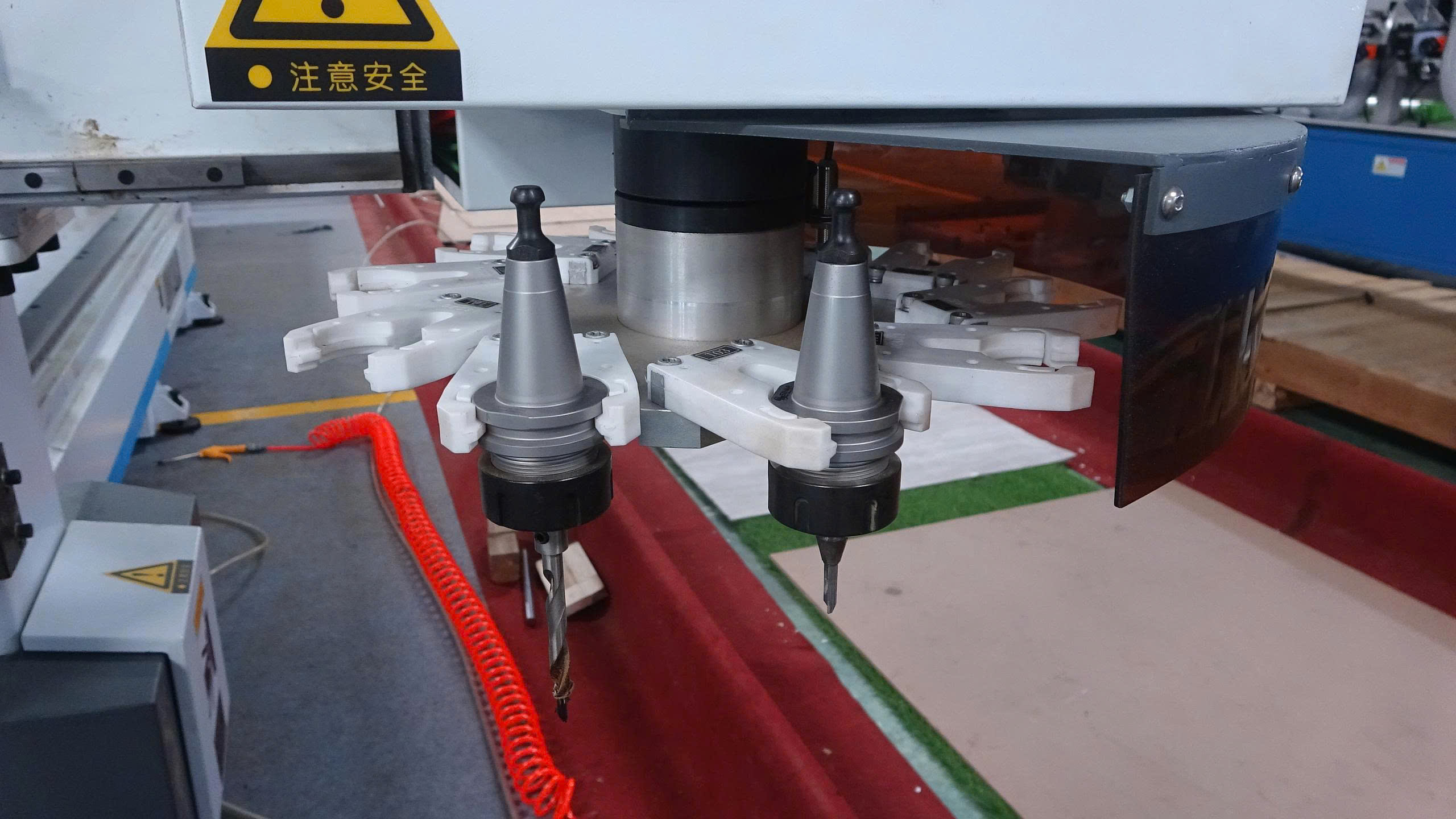

🛠 Automatic tool changer:
• 10 tools – Round type, saving time and improving efficiency

🎯 Collet: ISO32 / ER standard – Supports 12.7 mm, 6 mm, and 3.175 mm tool diameters

🖥 Software: Ucan CAM – User-friendly, powerful, compatible with multiple design file formats

📐 Machine dimensions: 9670 x 2660 x 2400 mm
⚖️ Weight: 5000 Kg – Rigid structure, stable operation

💼 IDEAL FOR WORKSHOPS:
🔹 Industrial furniture production
🔹 Processing panels, signs, MDF, HDF, plastic, acrylic, composite materials
🔹 High-volume, continuous production lines

MACHINE OPERATION VIDEO:
