CNC 6-SIDE DRILLING MACHINE RMZ-126B | MCB GO THUONG NGUYEN

👉 Processing output increased by 200%, X2 speed compared to 1-head line but the cost is negligible, the choice could not be better

💬The 6-sided 2-head CNC drilling machine is the perfect solution for wood workshops that want to optimize the production process, improve productivity and product quality. With a modern, smart design and outstanding processing capabilities, the machine brings many benefits that cannot be ignored:

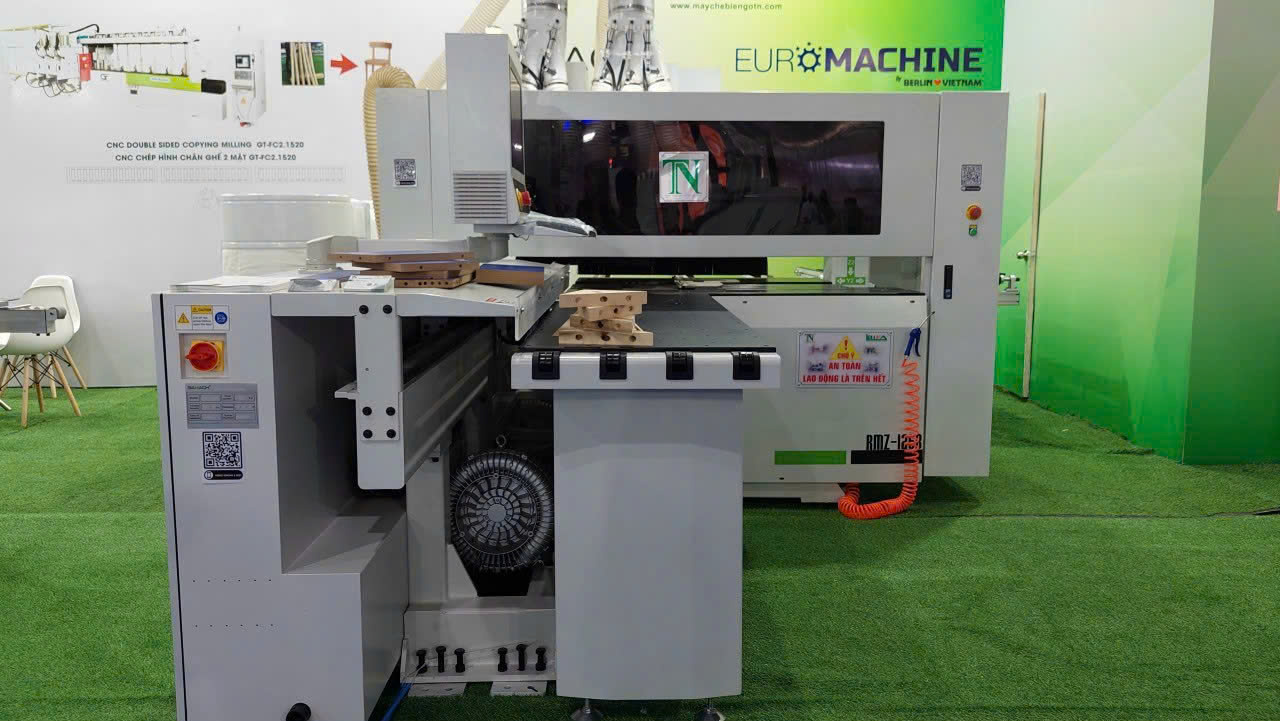

CNC 6-SIDE 2-HEAD DRILLING MACHINE

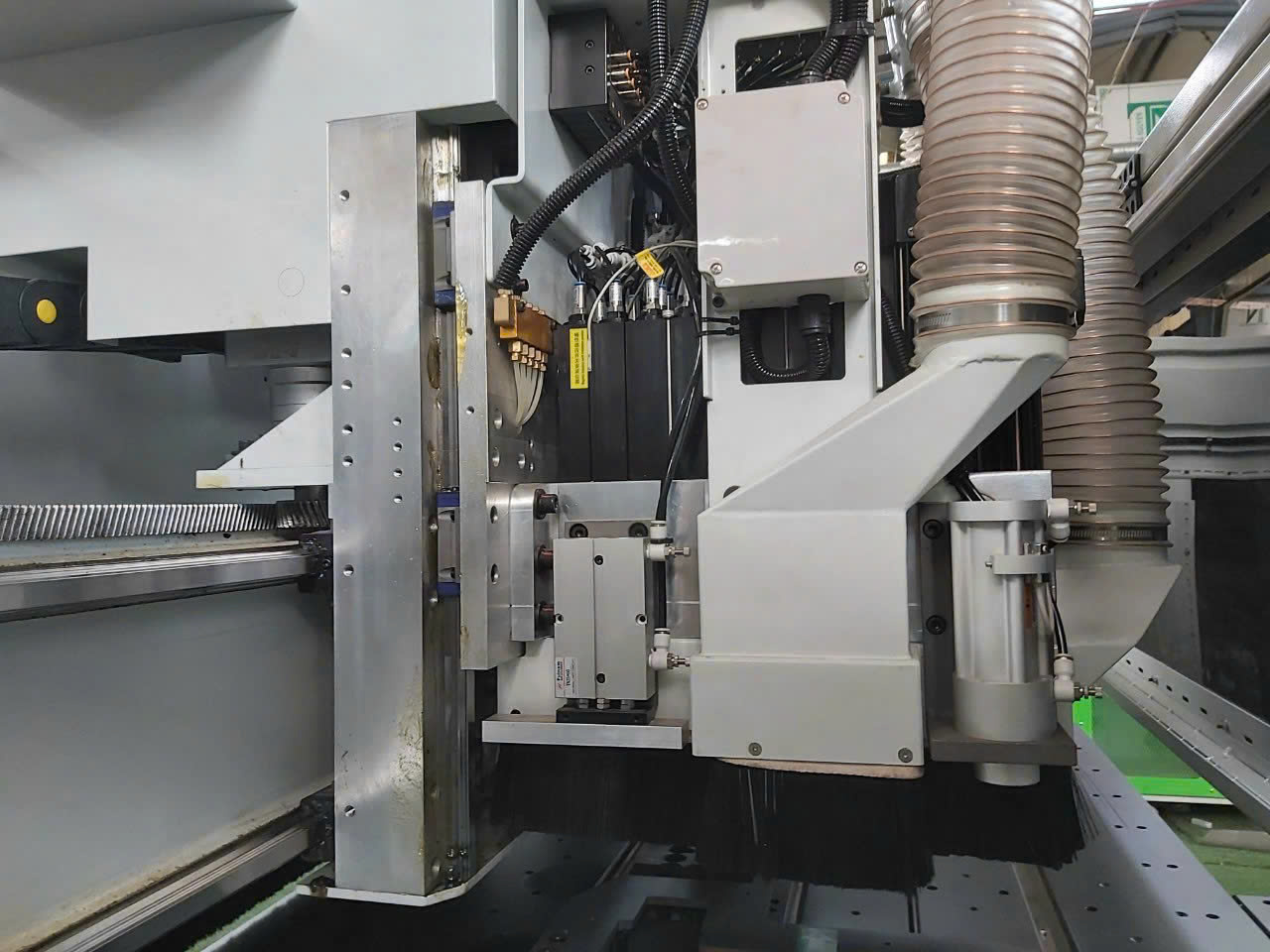

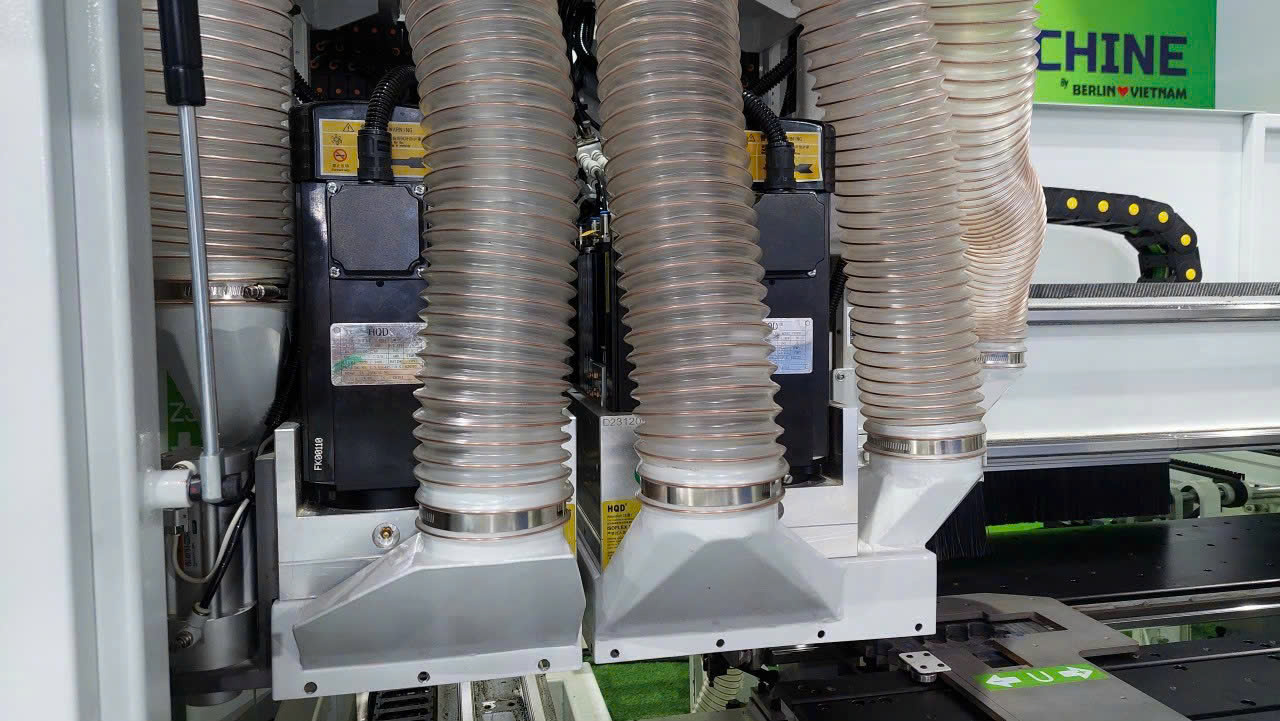

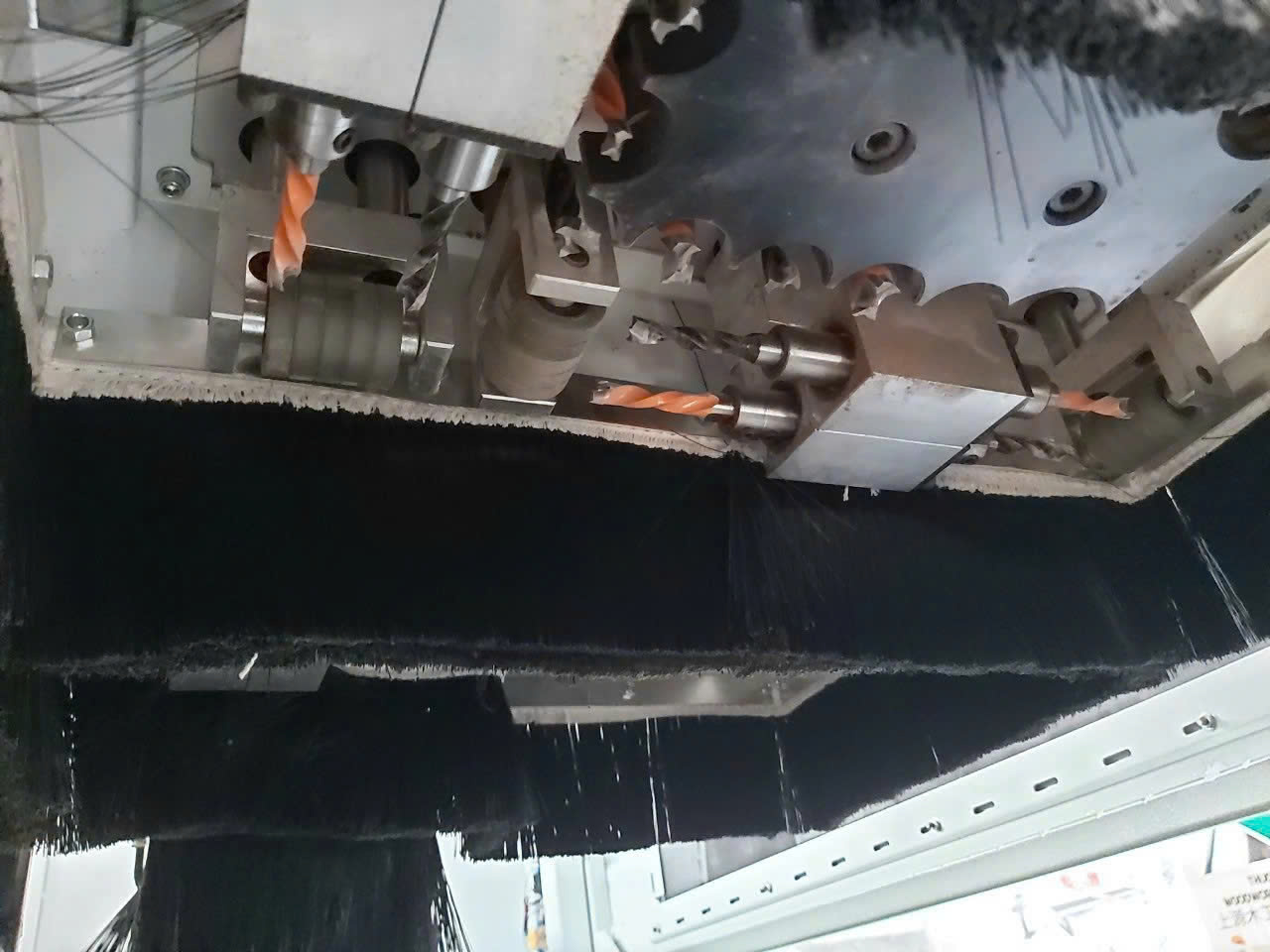

Two Drill Heads

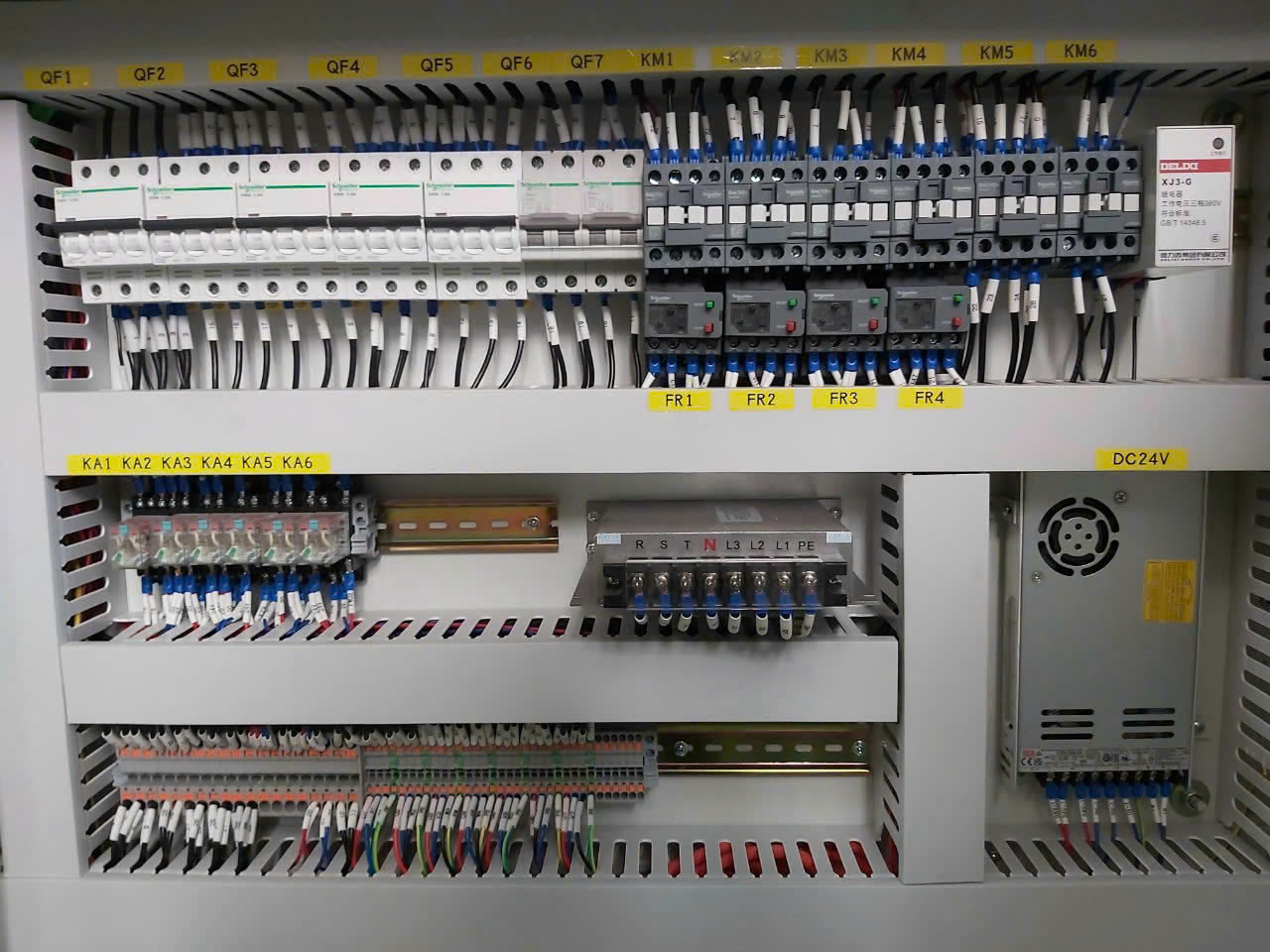

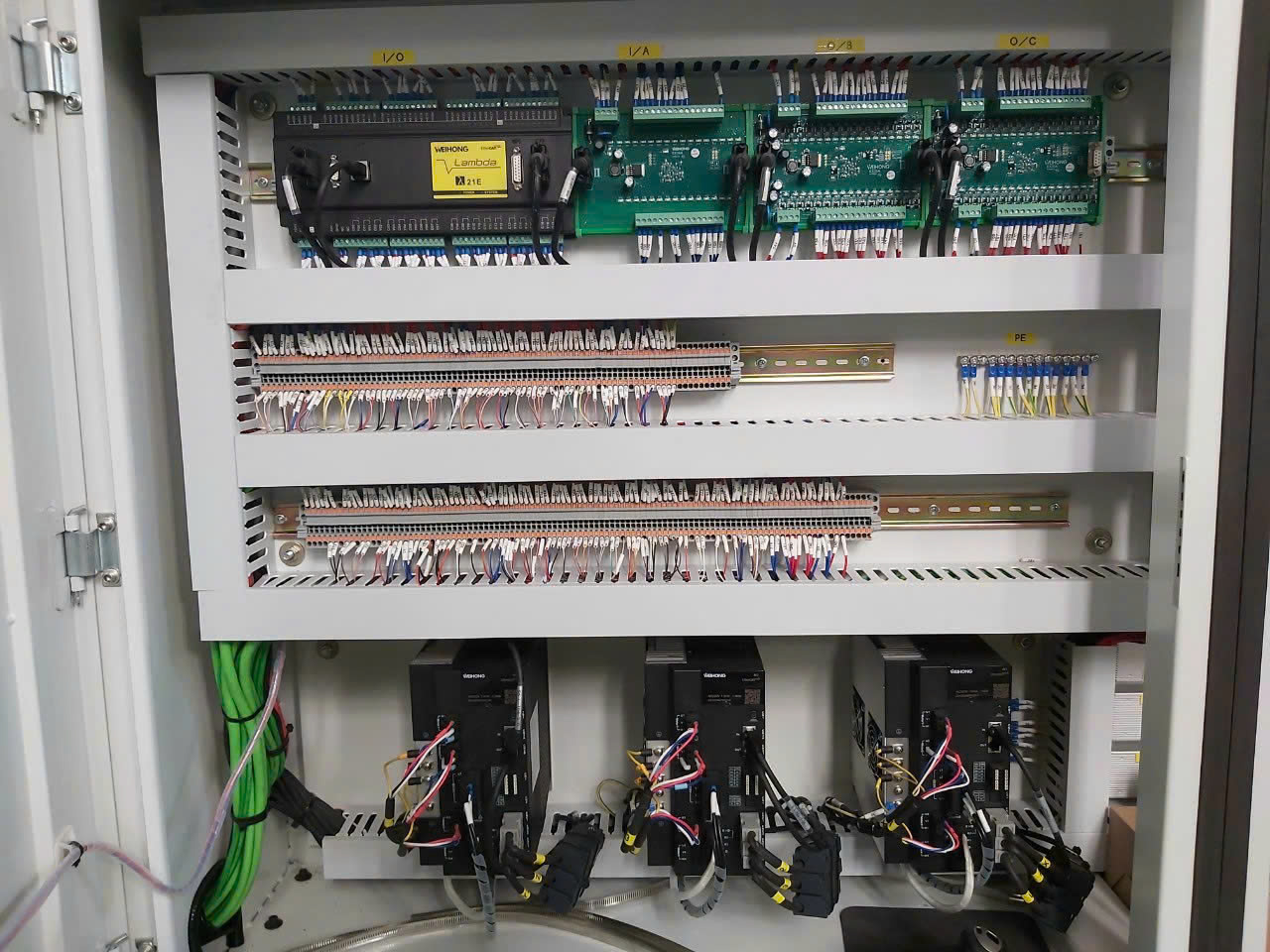

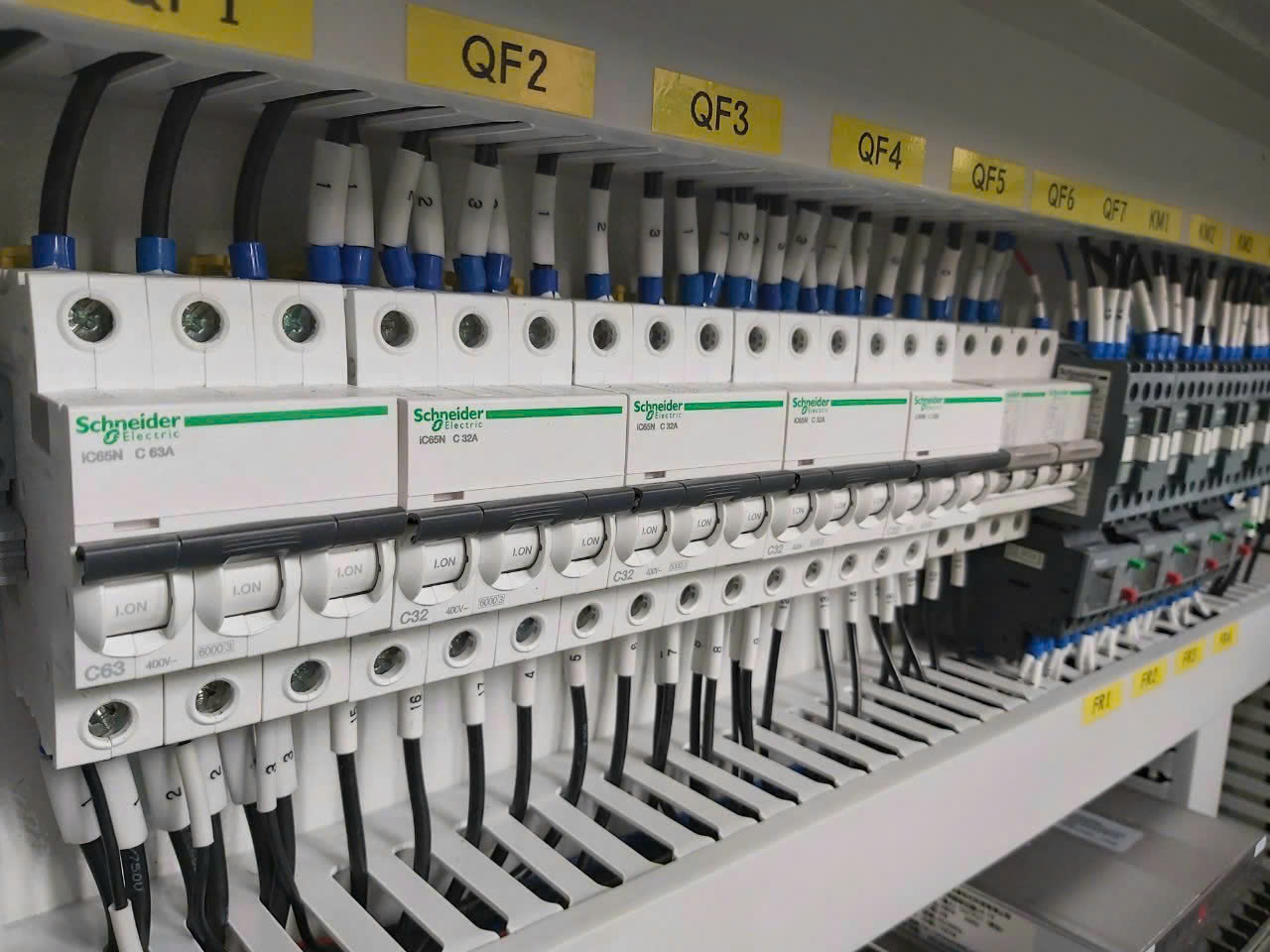

Electrical System

Machined Products

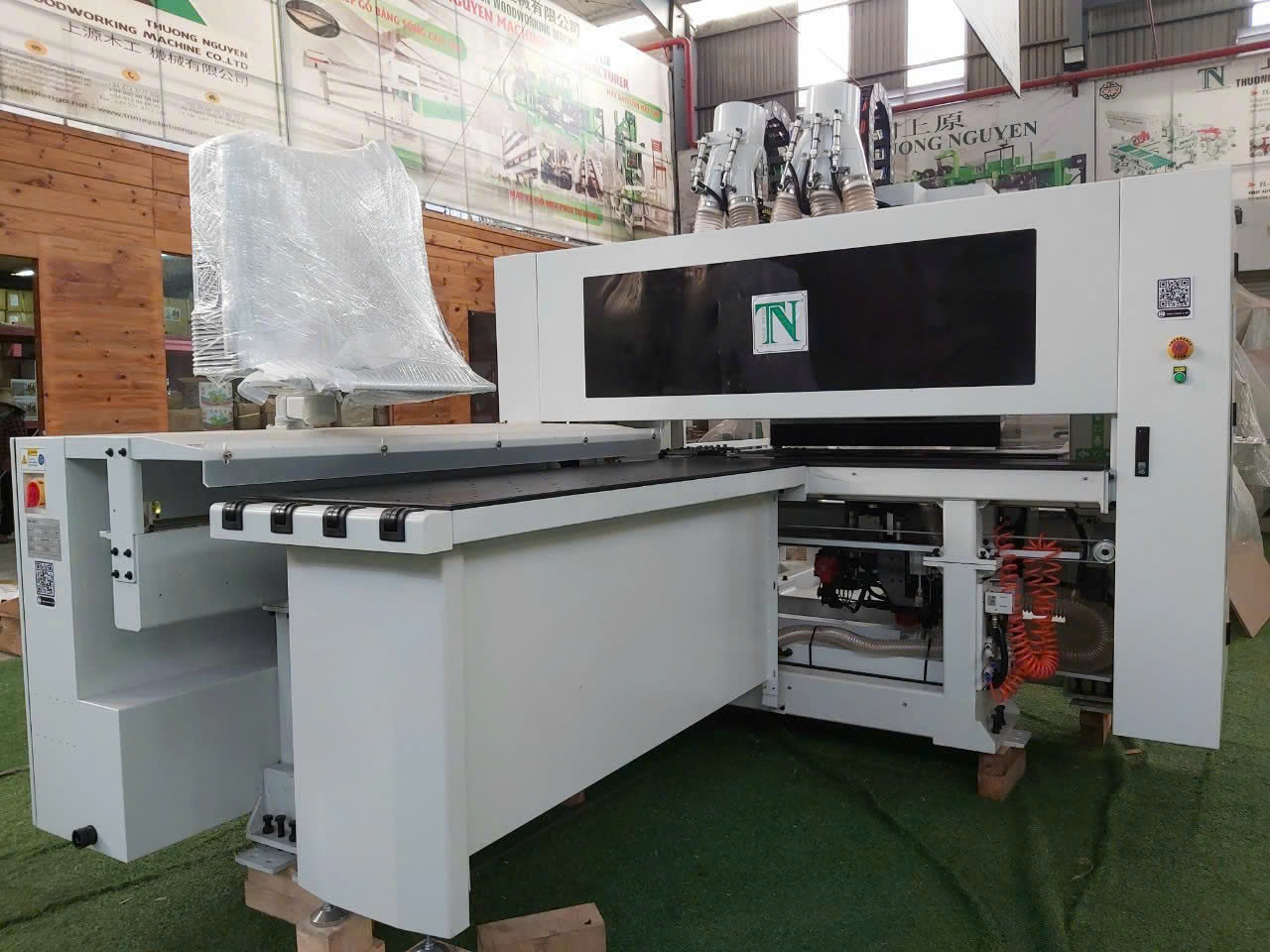

🛠️ PRODUCT INTRODUCTION – 6-SIDED CNC DRILLING MACHINE

BRAND: SAMACH – ORIGIN: CHINA
MODEL: RMZ-126B – HIGH-PRECISION AUTOMATED DRILLING SYSTEM

The SAMACH RMZ-126B 6-Sided CNC Drilling Machine is the ultimate solution for modern furniture manufacturers. It allows simultaneous drilling on all six sides of panel materials, including edges, top, and bottom – ensuring high-speed and high-precision processing. Equipped with a powerful structure, intelligent software, and fast cycle times, this machine is ideal for medium to large-scale production facilities.

🔧 TECHNICAL SPECIFICATIONS:

• 🔌 Power Supply: 380V, 50Hz, 3 Phase

• ⚙️ Production Capacity: 80–100 panels/hour

• 📏 Panel Size Range:
   • Length: 200 – 2800 mm
   • Width: 50 – 1200 mm
   • Thickness: 9 – 40 mm

• 🚀 Max. Axis Speed (X / Y / Z): 120 / 80 / 30 m/min

• 🌀 Spindle Motor: 2.2kW × 2

• 🔄 Spindle Speed: 18,000 RPM

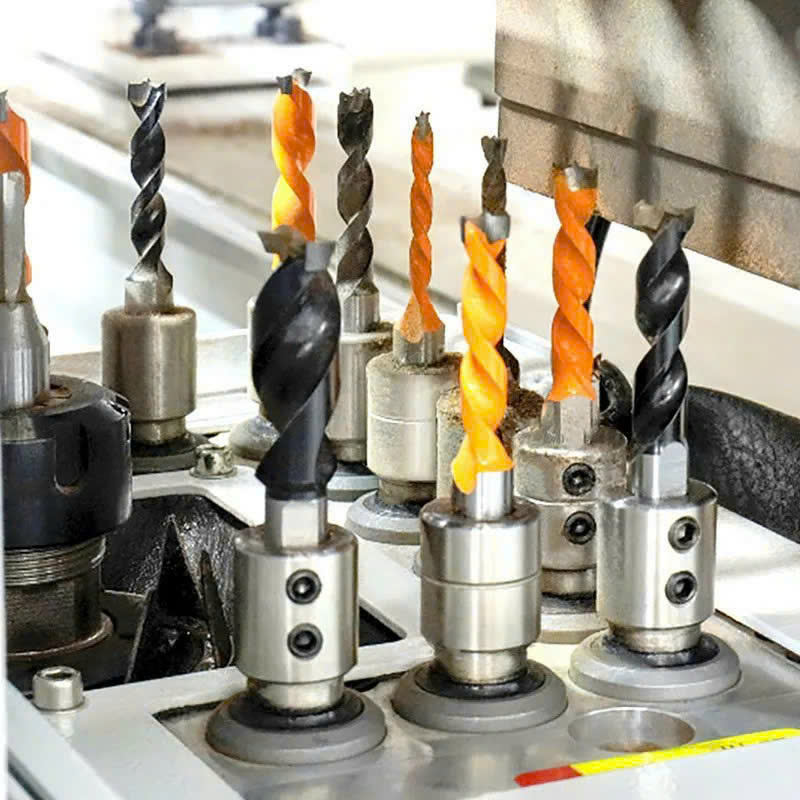

• 🔩 Drilling Units:
   • Top Vertical Drills: 12 × 2 units
   • Top Horizontal Drills: (X: 2×2 + Y: 2×1) × 2 units
   • Bottom Horizontal Drills: 10 pcs

• 📦 Machine Dimensions (L × W × H): 4600 × 2580 × 2150 mm

💡 WHY CHOOSE THE RMZ-126B FOR YOUR FACTORY?

• 🎯 Drill all 6 sides of a panel in one clamping – saving time and increasing accuracy.

• 🔍 Perfect for cam fittings, dowel holes, hinge boring, and edge connections.

• 💨 Exceptional speed and smart software, fully compatible with CAD/CAM design inputs.

• 🔄 High automation reduces reliance on skilled labor, streamlining your production line.

• 📊 Stable performance, fast ROI, ideal for factories aiming at industrial-scale furniture production.

OUTSTANDING ADVANTAGES

✅ Diverse processing: Drilling holes, screwing, milling grooves, mortising, … on 6 surfaces of the workpiece at the same time, meeting all needs of manufacturing furniture, shelves, handicrafts, …

✅ High speed and precision: Powerful dual-head drilling system, high rotation speed and modern CNC control system ensure optimal precision and efficiency.

✅ Cost Savings: Replace multiple machines, reduce labor costs, save energy and optimize production space.

✅ Easy to use: Simple, intuitive control interface, suitable for all users.

✅ Labor safety: Safe design, integrated protection system, ensuring safety for operators.
