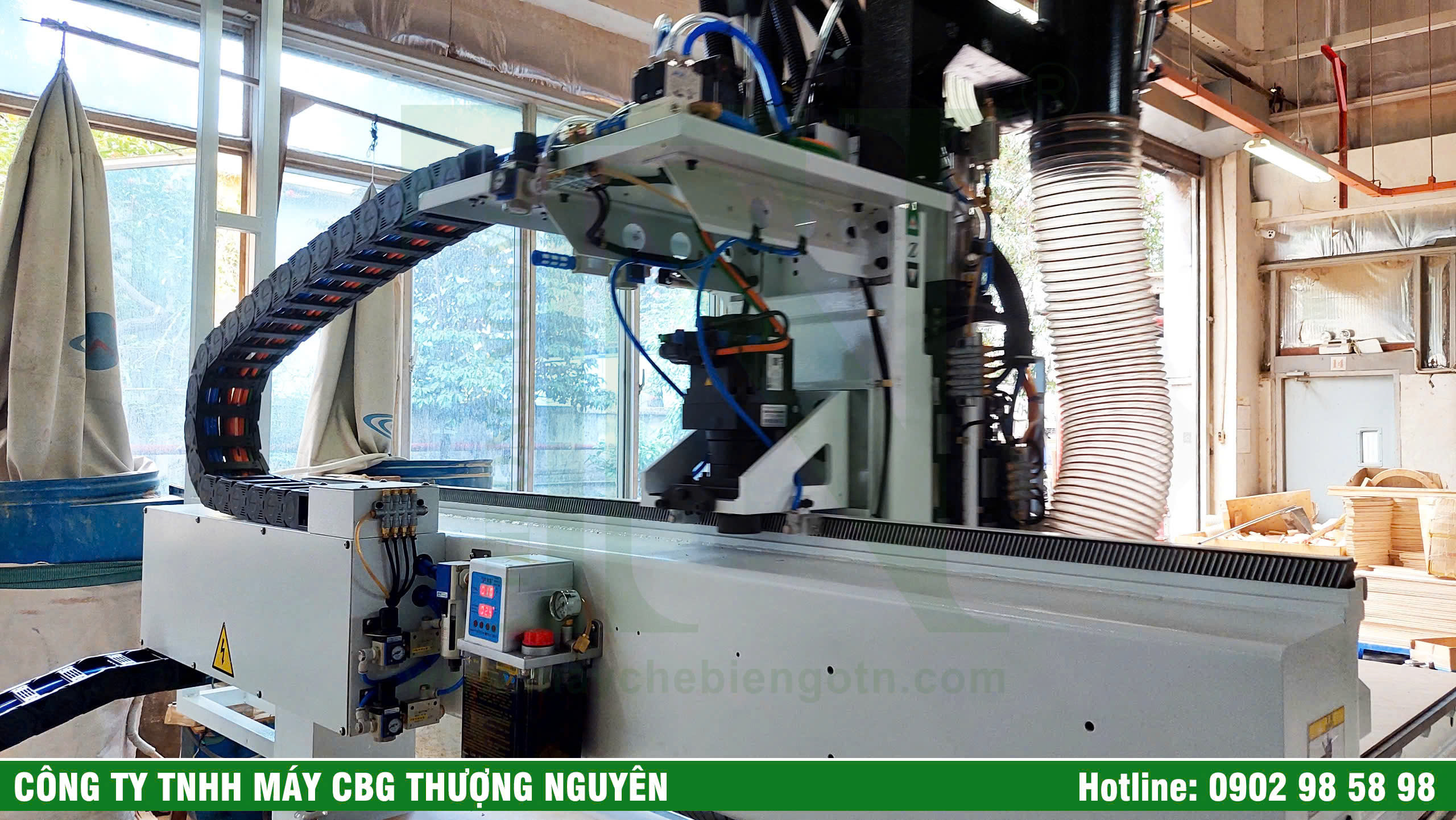

🎯 CNC Double-Table Machining Center – Model: CF-DZZ1350TC2

The CF-DZZ1350TC2 is a next-generation CNC machining center, specially designed for multi-functional industrial processing. Built to meet the demands of high-precision, high-speed, and continuous operation, this machine is the perfect solution for modern manufacturing.

💡 ADVANCED FEATURES & TECHNOLOGY

🔹 Dual Independent Worktables
Enhance operational efficiency by allowing material loading/unloading on one table while the other is processing.

🔹 High-Power Spindle
Ensures smooth cutting and engraving on a wide range of materials such as MDF, industrial wood panels, plastics, and acrylic.

🔹 Intelligent CNC Control System
User-friendly interface with high responsiveness, making it easy to program according to specific production needs.

🔹 High-Speed Operation with Absolute Precision
Equipped with premium linear guides and servo motors to reduce deviation and wear, ensuring consistent accuracy.

🎯 IDEAL FOR:

✅ Industrial wood furniture workshops

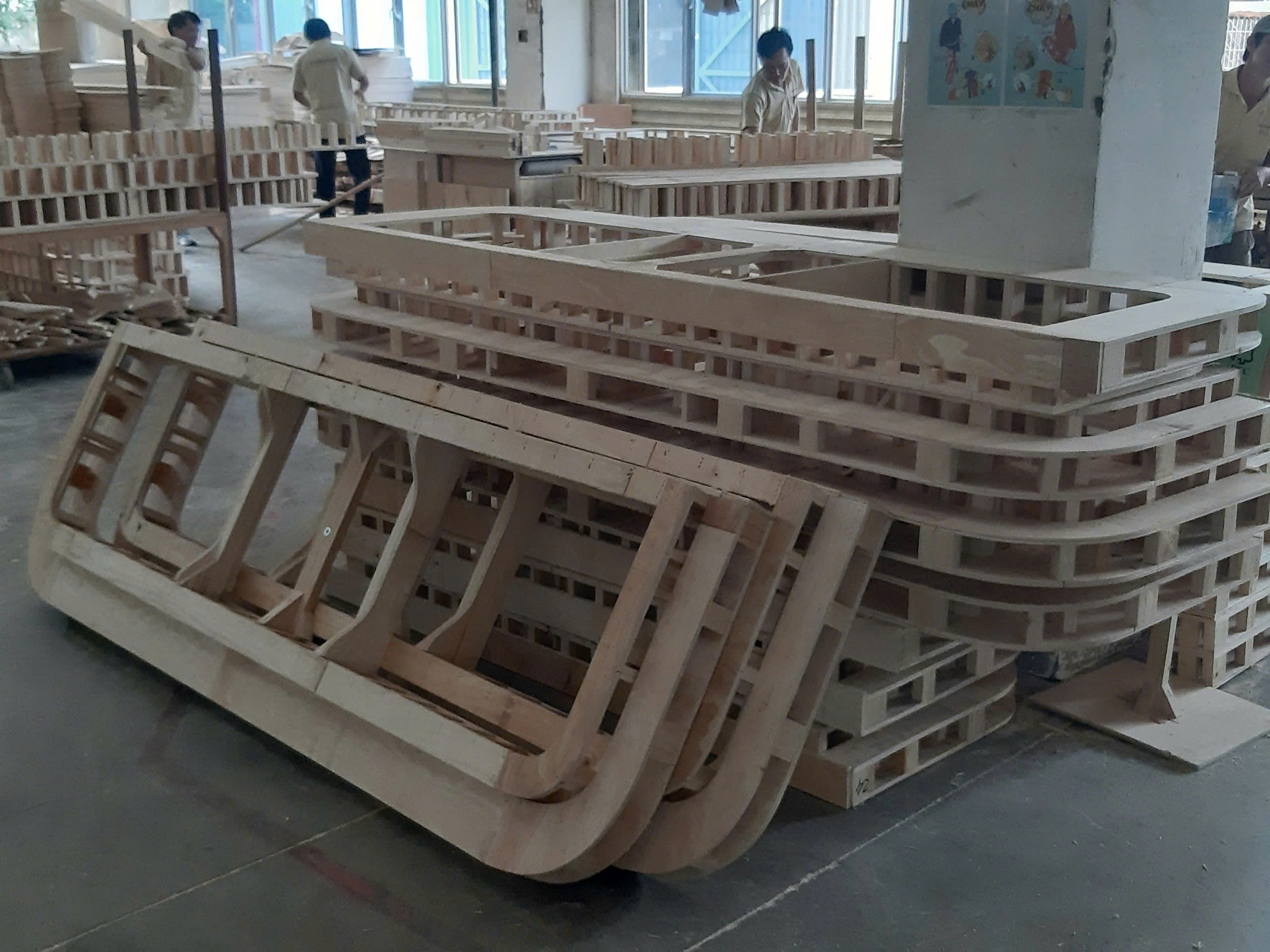

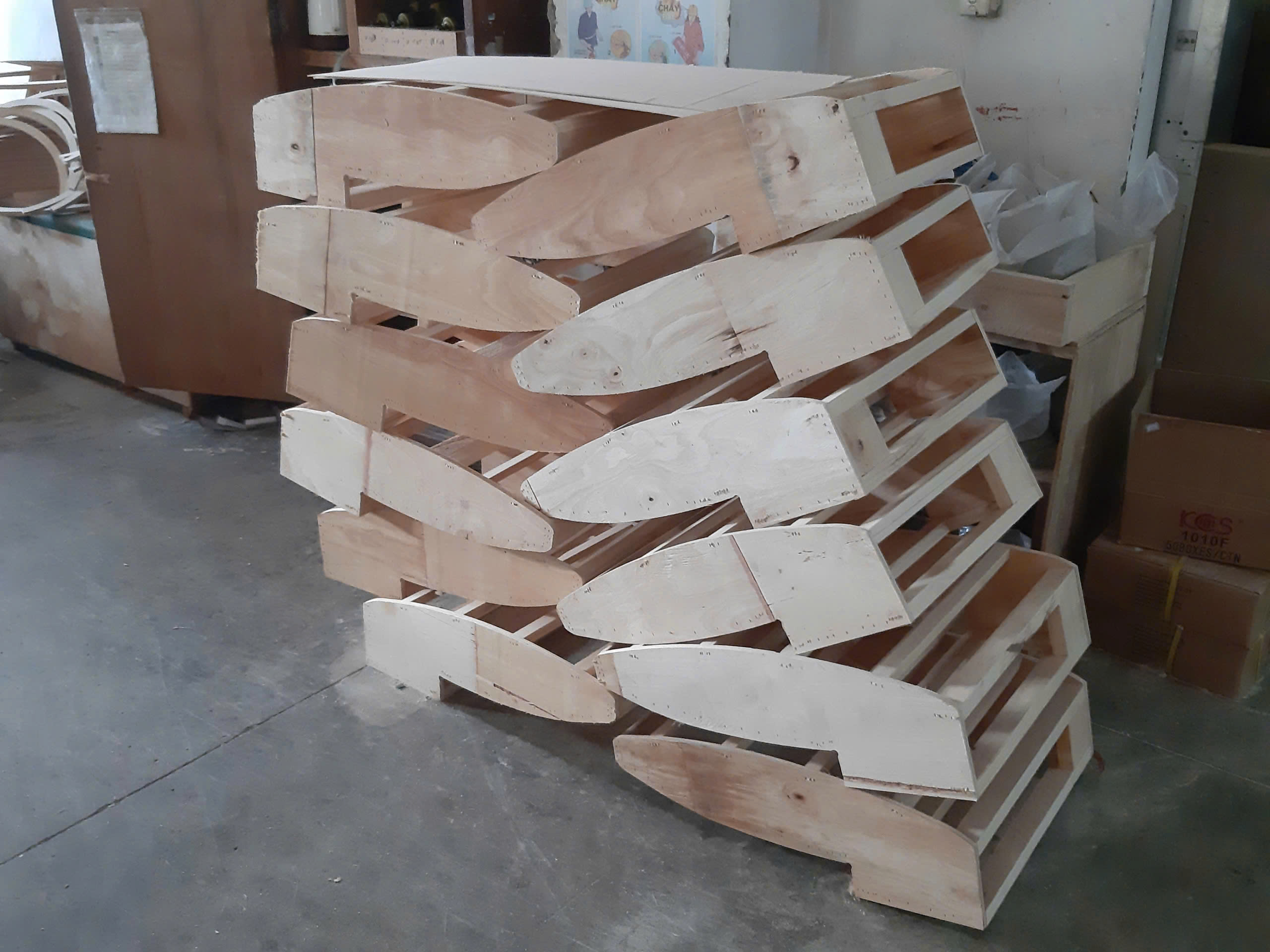

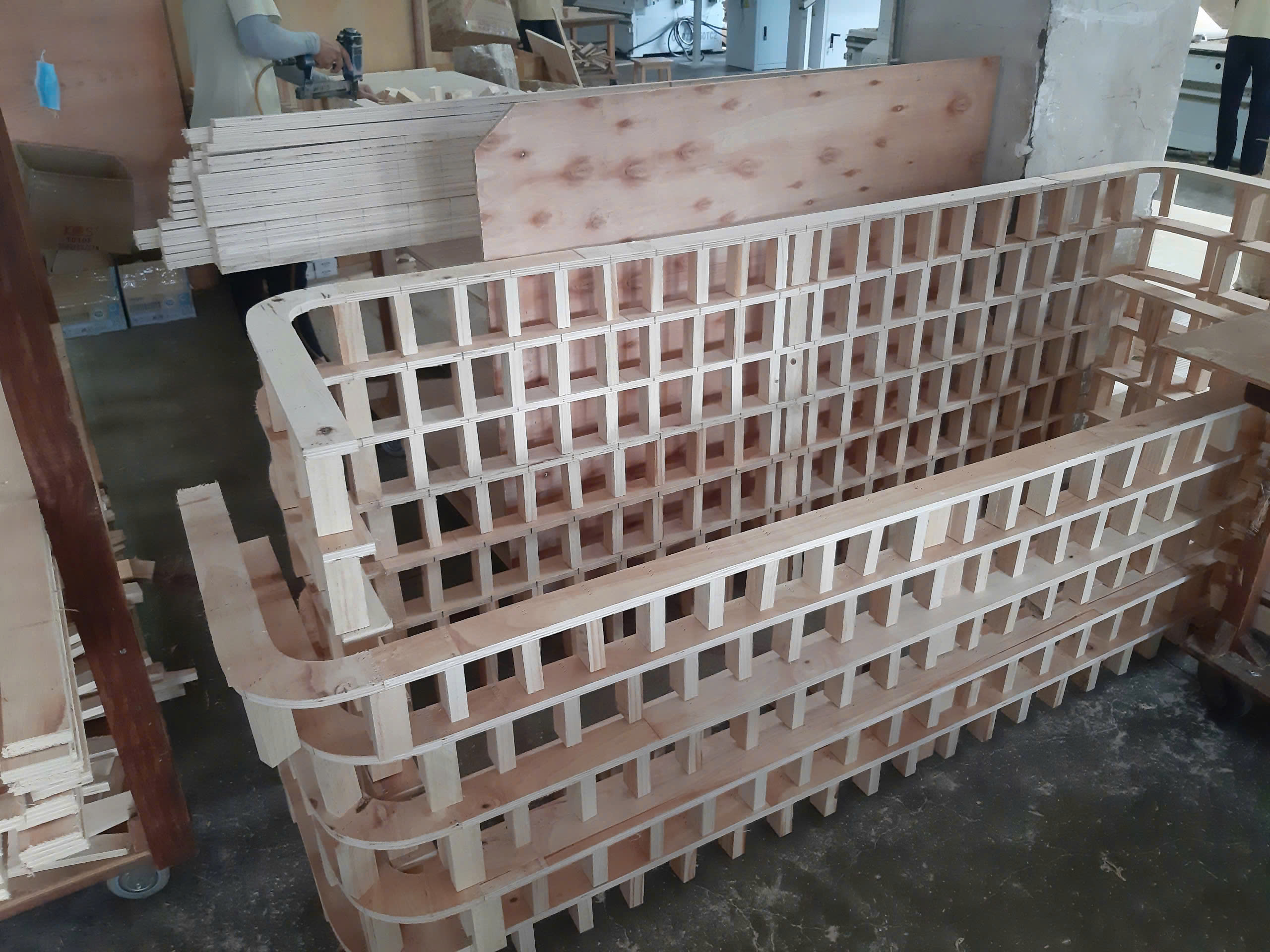

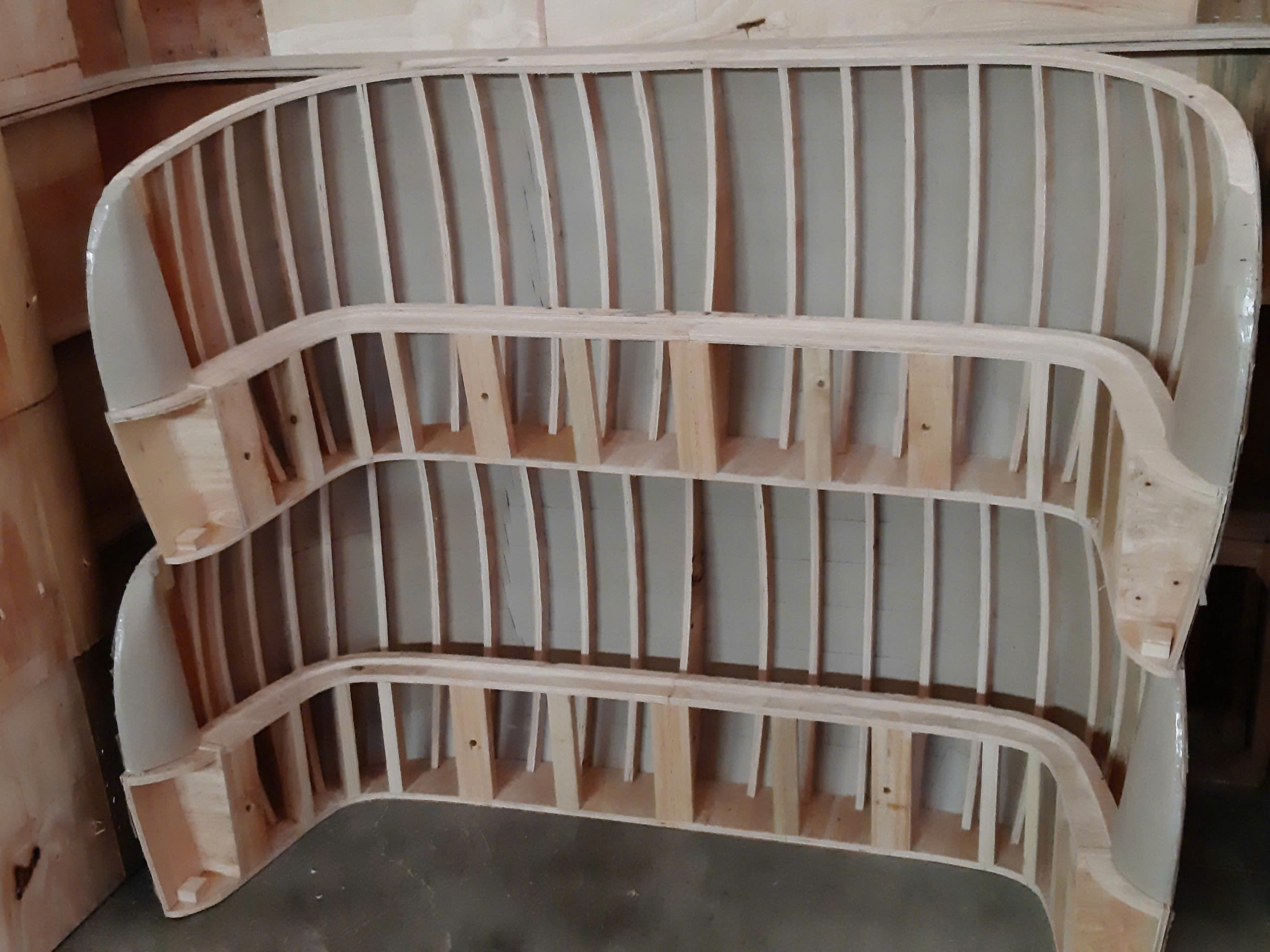

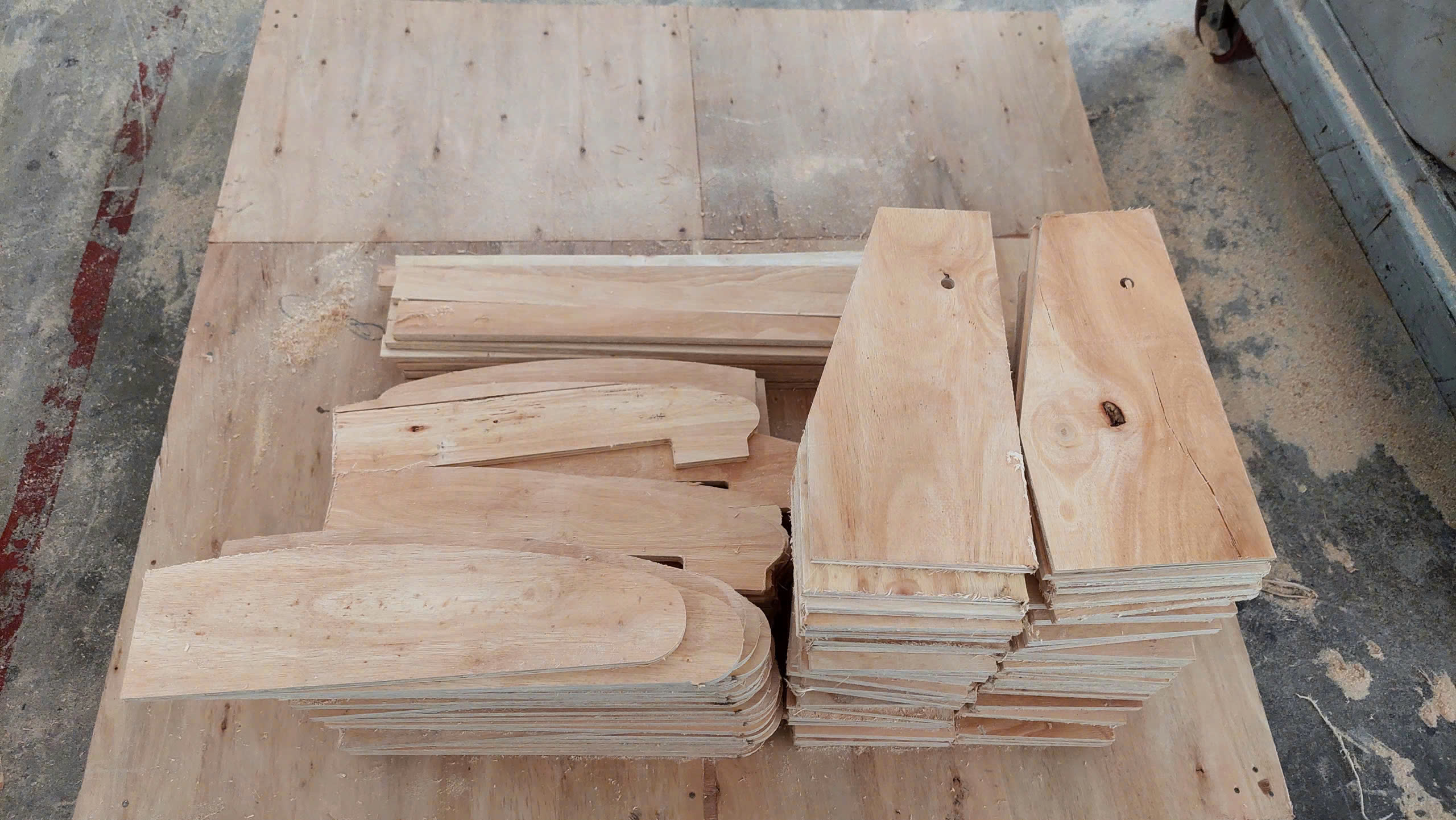

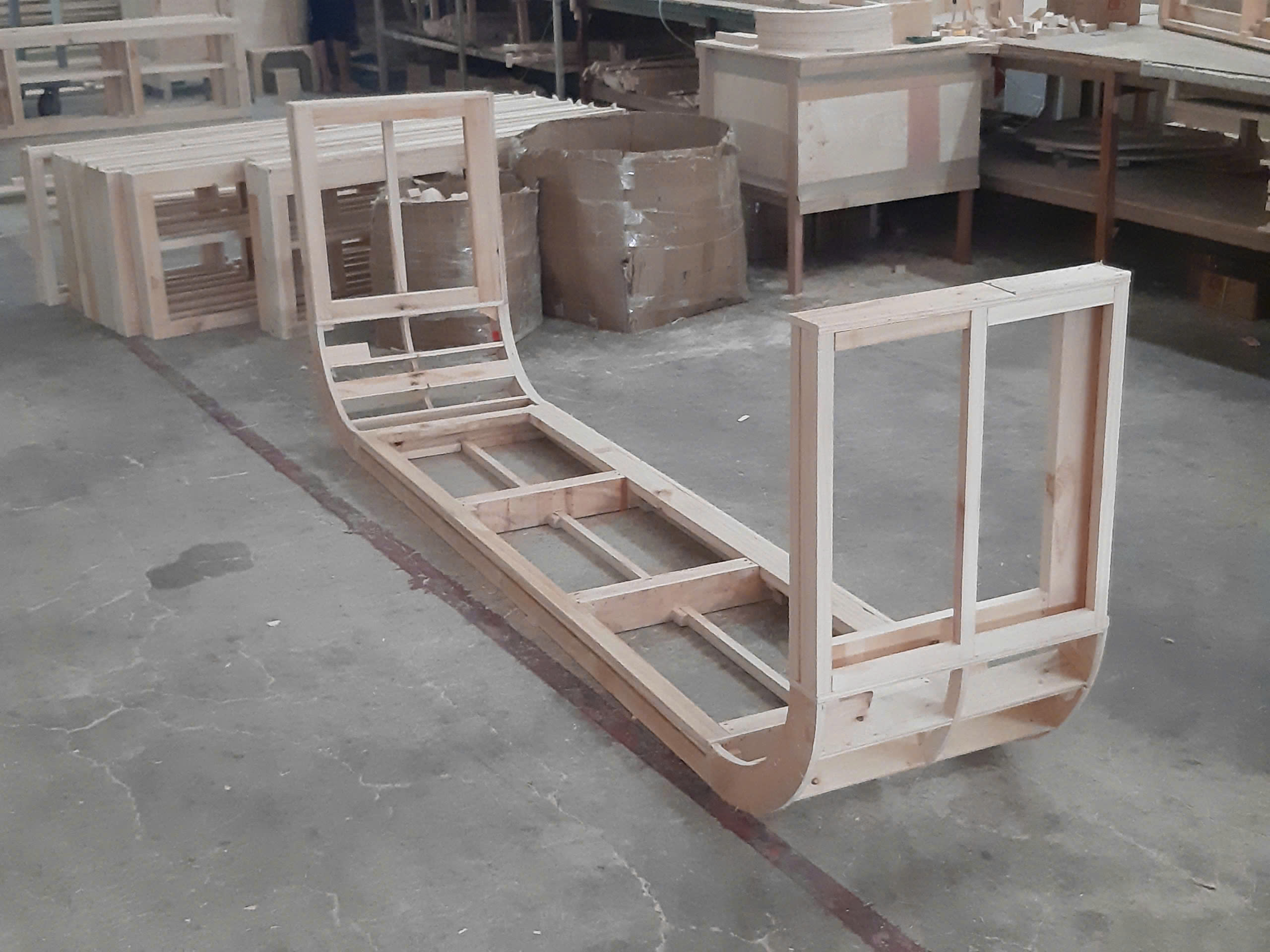

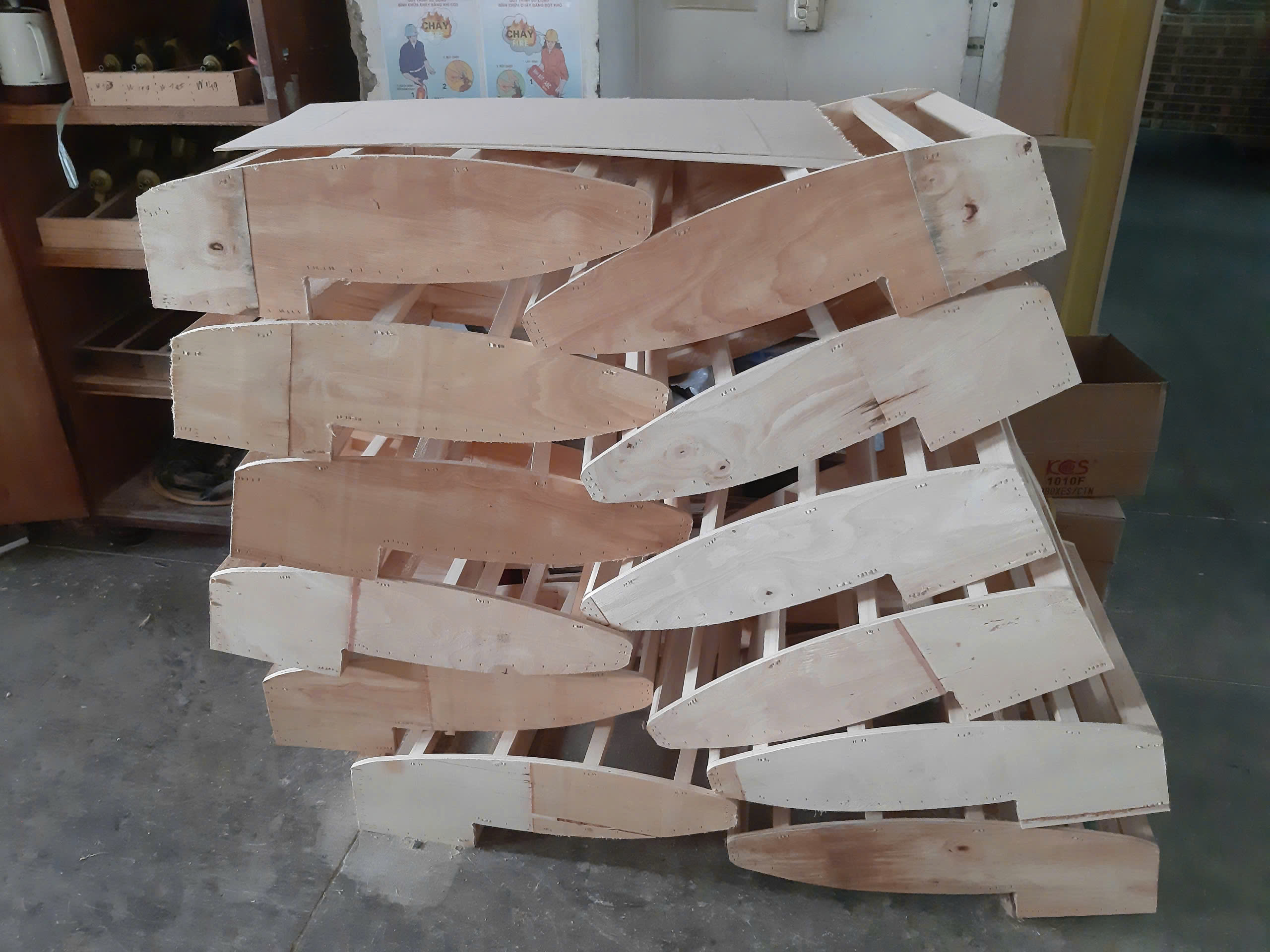

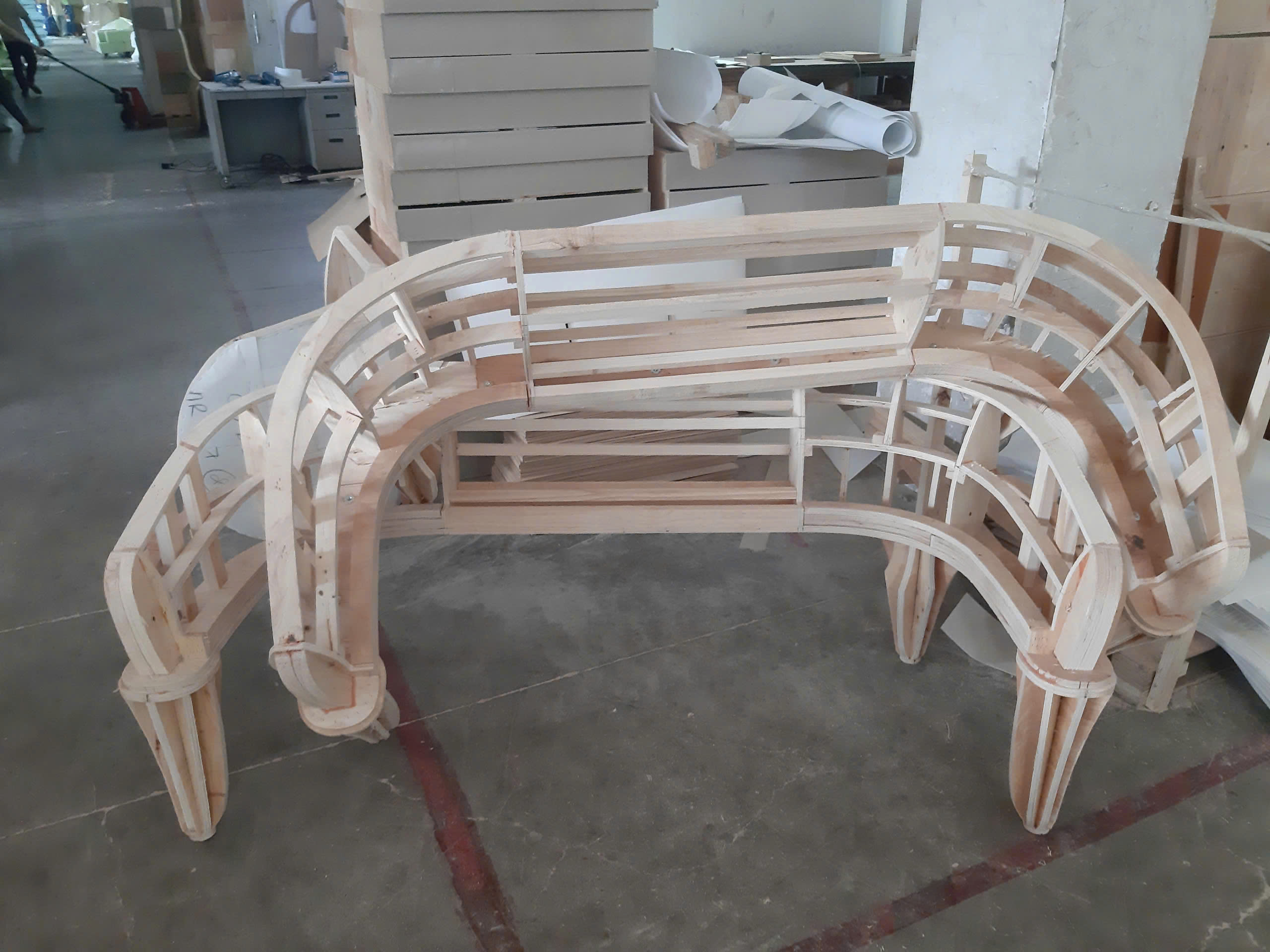

✅ Cabinet doors, wall panels, tables, and chairs processing
✅ Mass production & customized orders

MACHINE OPERATION VIDEO:

🔧 KEY TECHNICAL SPECIFICATIONS

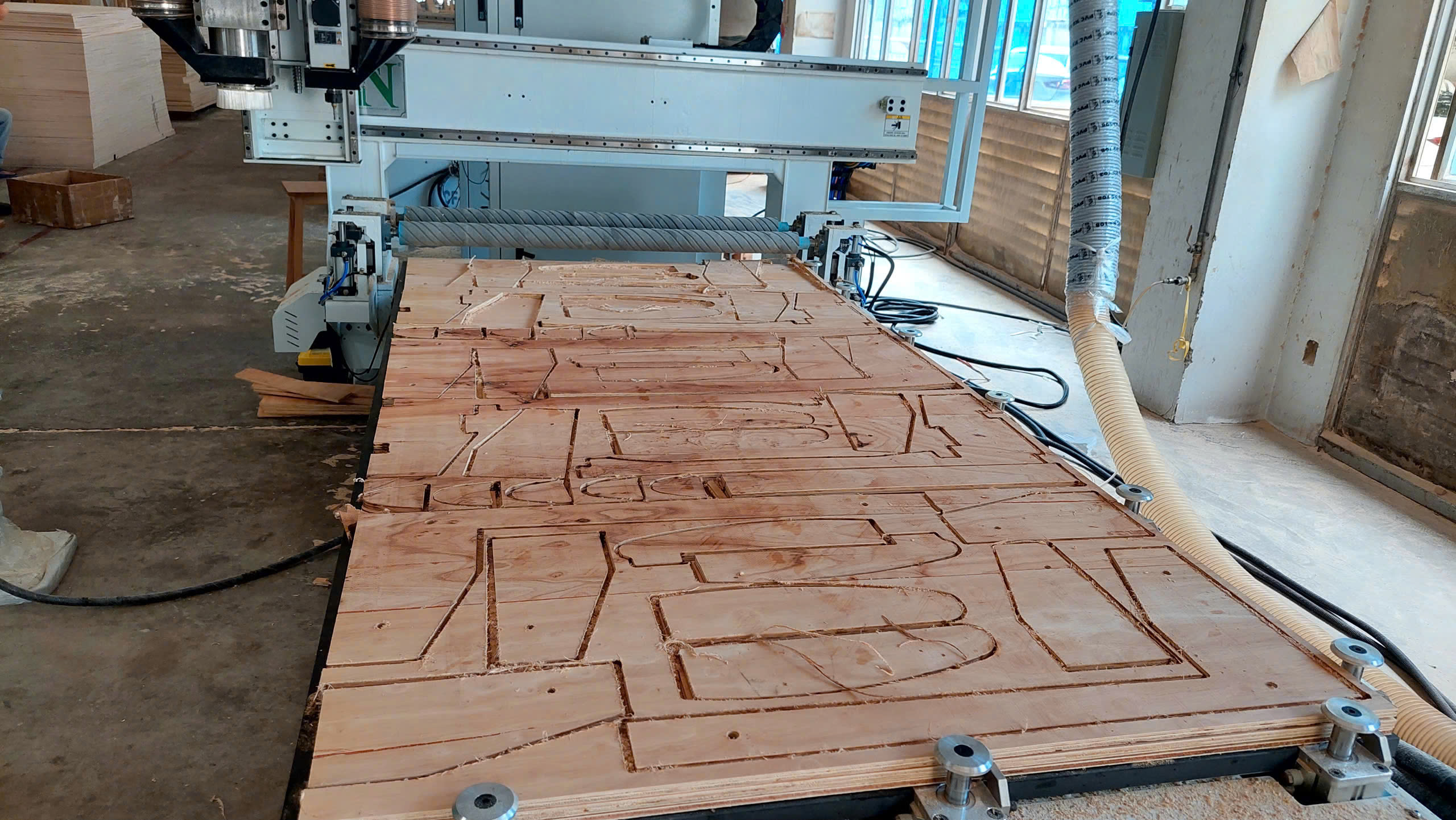

🖥 Vacuum Table Size: 1220 x 5000 mm
📏 Axis Travel:
• X: 1300 mm
• Y: 2500 mm x 2 (dual tables)
• Z: 250 mm

⚙️ Max Traversing Speed:
• X/Y: 60 m/min
• Z: 25 m/min

✂️ Max Cutting Speed: 20 m/min

🧠 Control System: LNC (Taiwan) – 4-axis, 3-axis simultaneous interpolation

🔩 Spindles:
• 9 kW x1 (ER32)
• 6 kW x1 (ER32)

⚡ Drive Motors: High-performance Servo Motors for smooth and powerful operation

🛠 Transmission System:
• X/Y: German rack and pinion
• Z: Ball screw

🛤 Linear Guide Rails: Yintai PMI (Taiwan) or Kate HTP

💨 Pneumatic System: AIRTAC (Taiwan)

🛢 Lubrication: Automatic and precise

🔗 Cable Chain: Heavy-duty drag chain, supports high-speed and stable operation

📐 Machine Dimensions: 4000 x 2600 x 2500 mm
⚖️ Weight: ~3 Tons

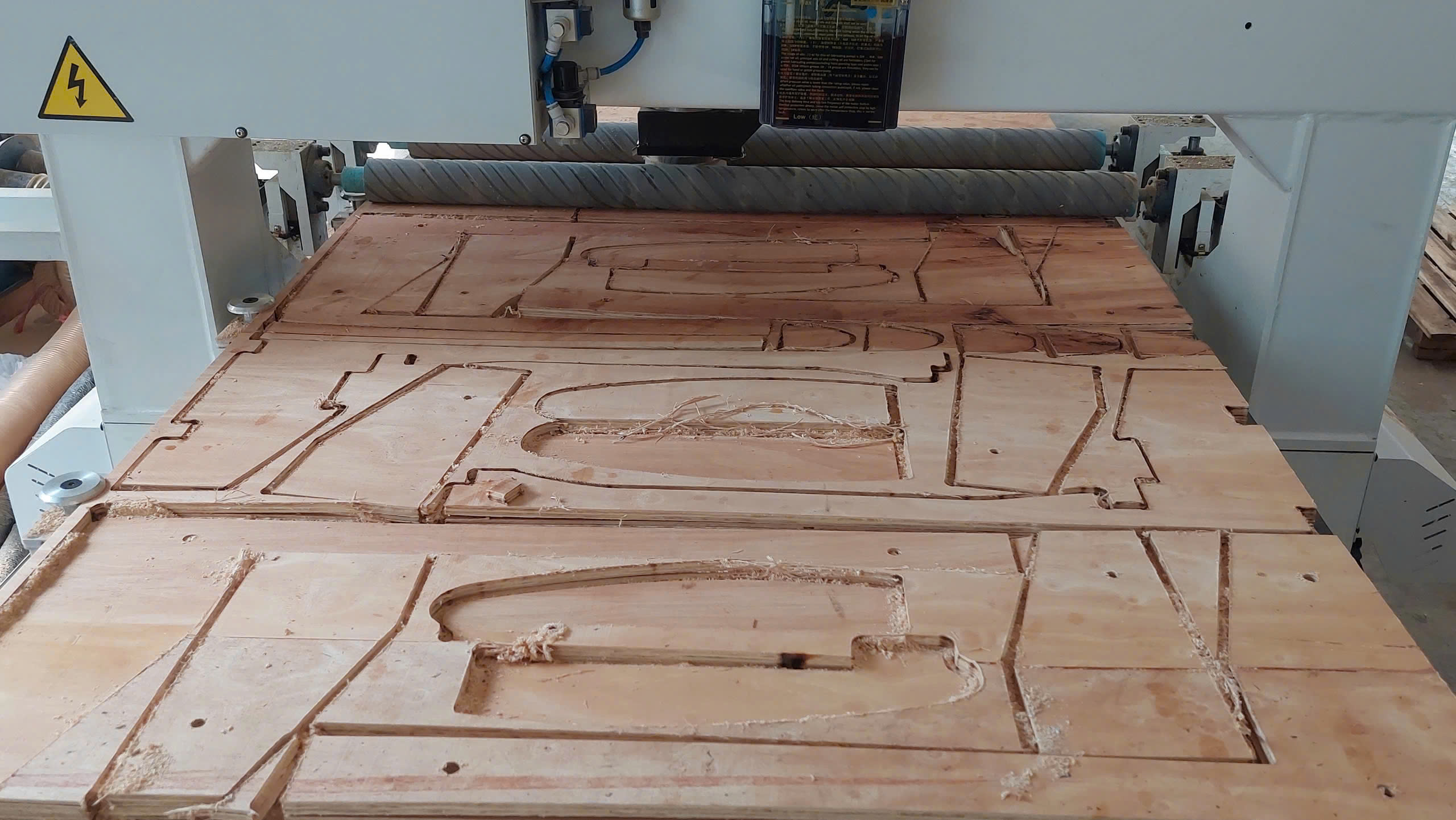

🧷 Additional Features: ✅ Includes ROLLER for workpiece pressing
