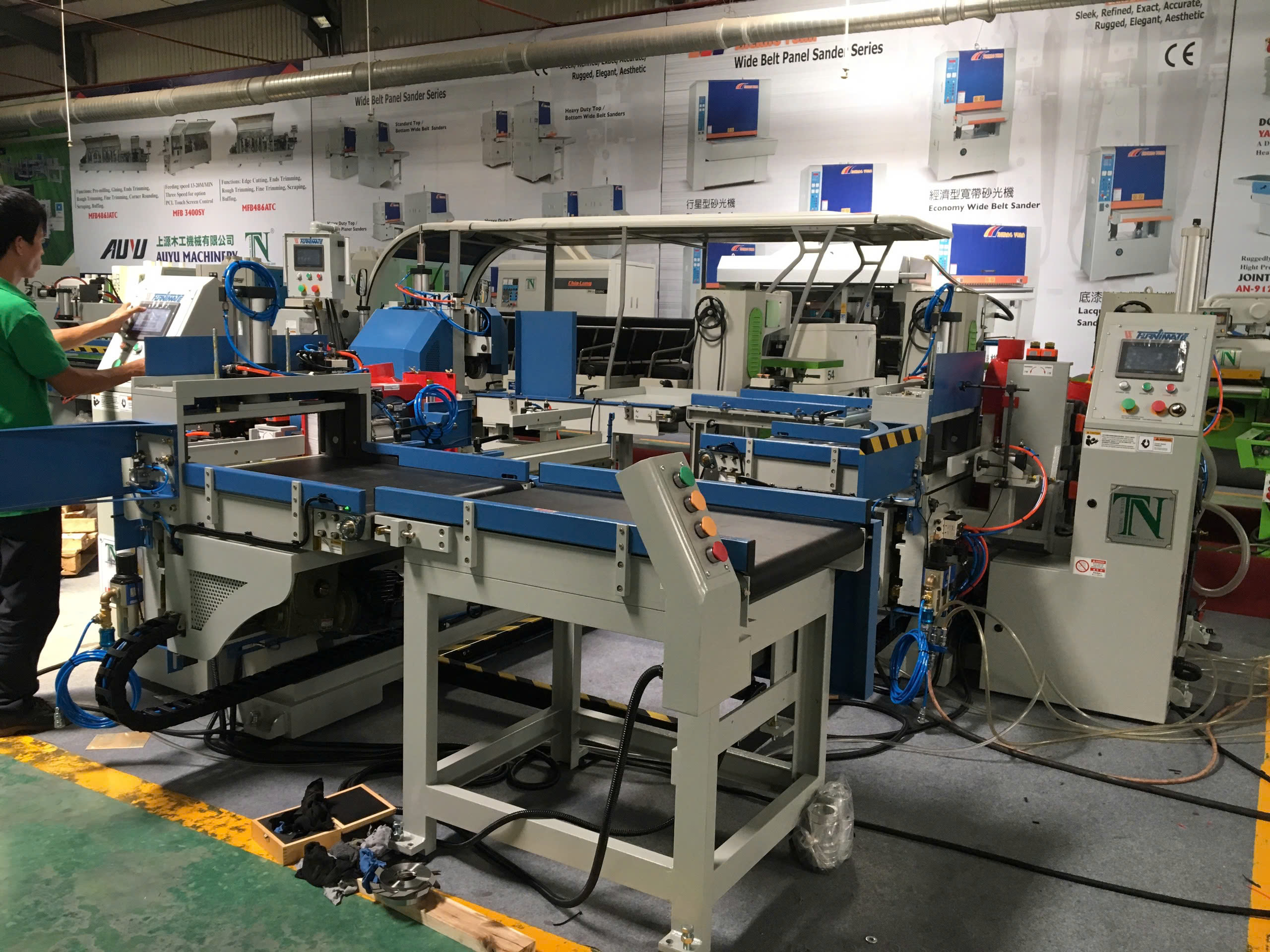

IAT series use Inverter. This product is designed for some customers who have lower height processing size, but need higher power. The working speed is 30% faster than standard hydraulic type, but the height of wood material can not be too high
| Working length | 150 – 800 mm |
| Working thickness | 15 – 75 mm |
| Working width | 25 – 100 mm |
| Joint length | 3000 – 5200 mm |
| A: STC-62A SINGLE WORK CONVEYOR | |
| Working Dimensions (L x W) | 800 x 620mm |
| Speed | 55M/minute |
| Power | 1/2HP*1 cái |

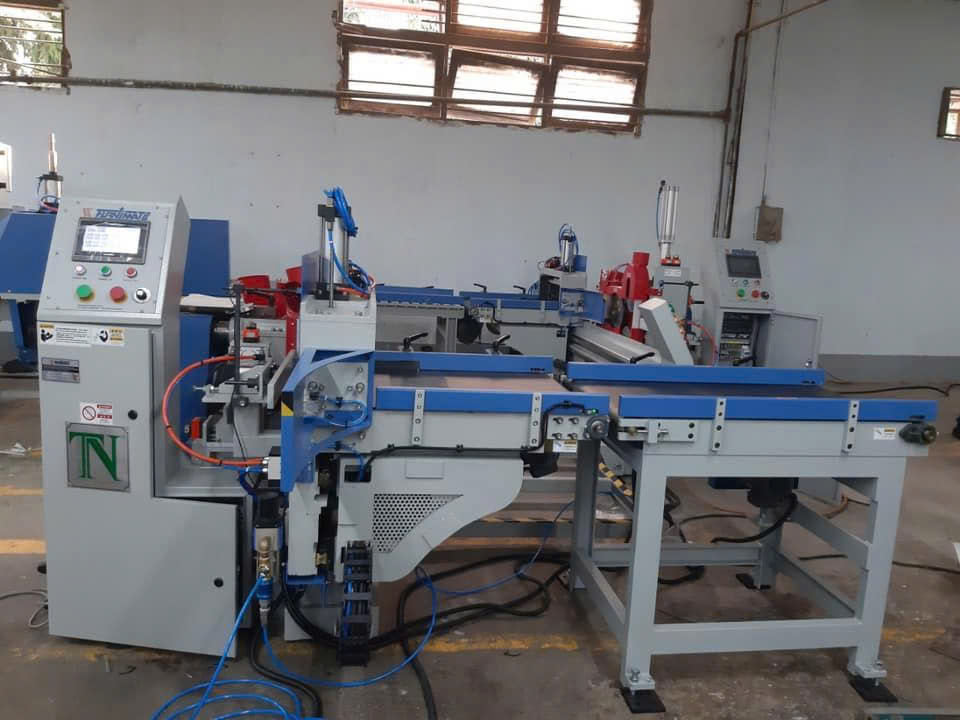

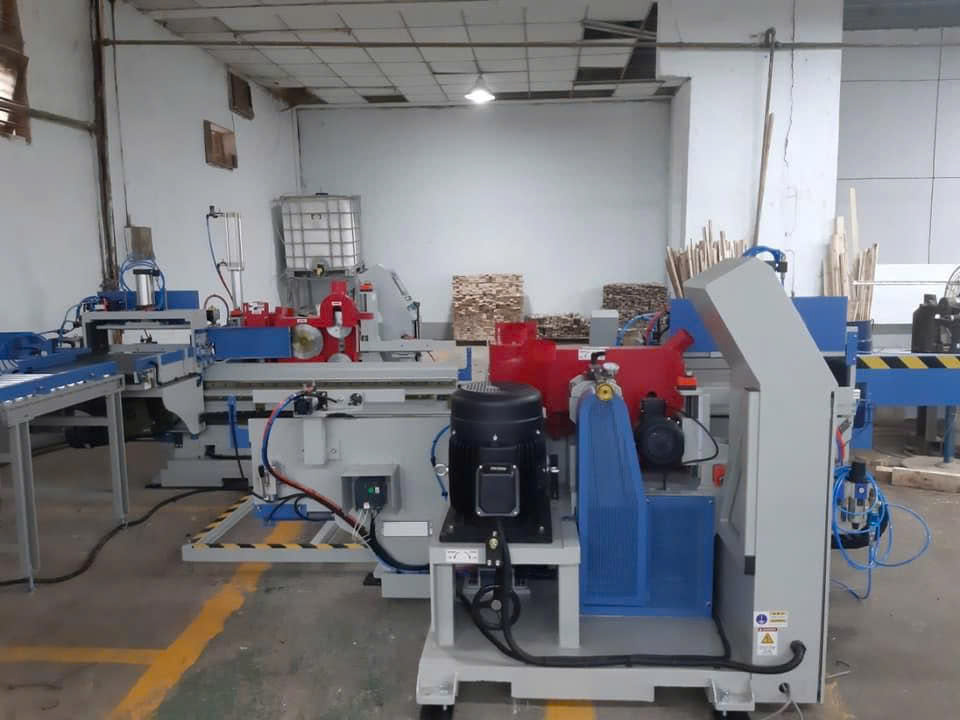

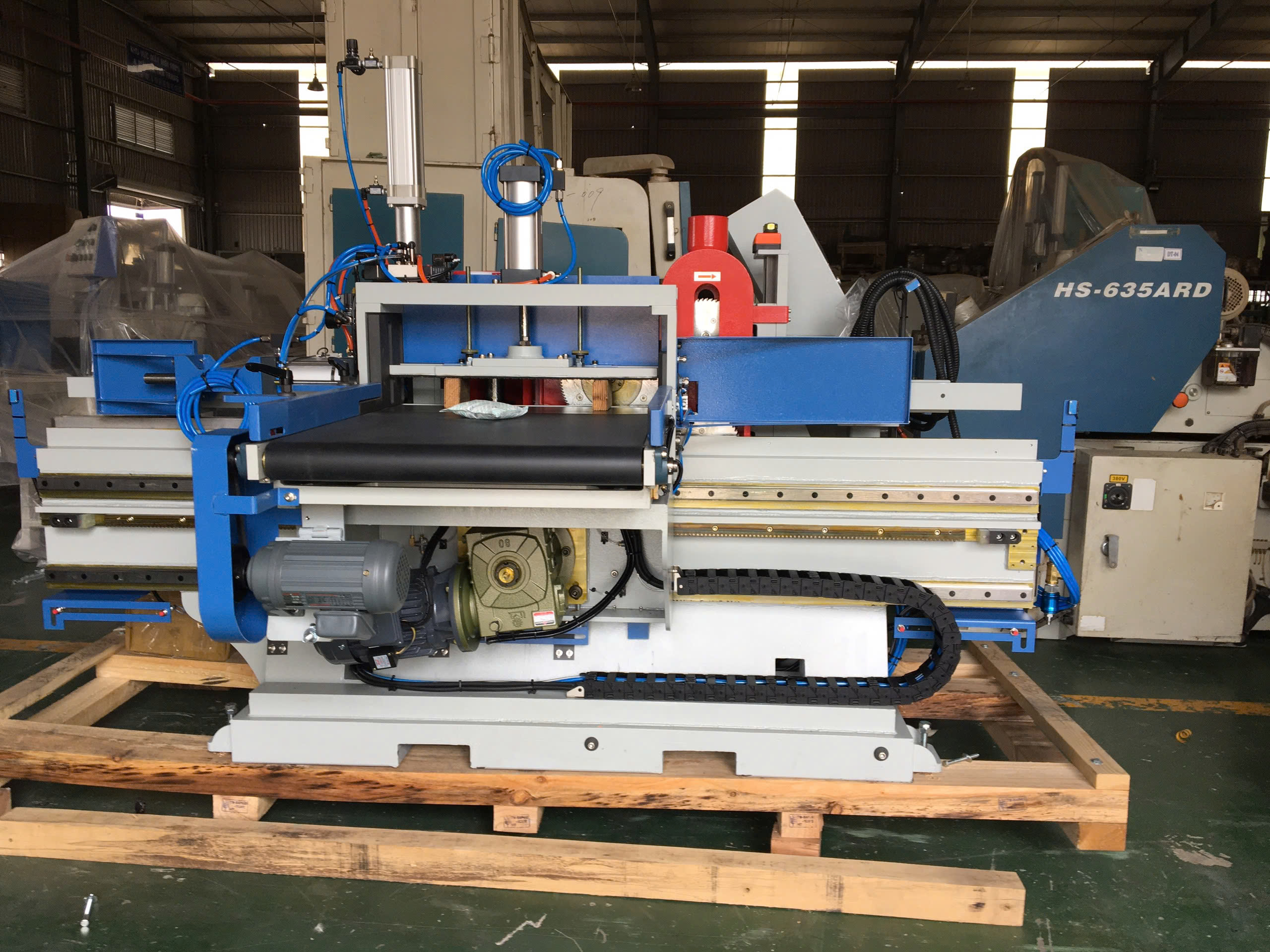

| B: FINGER MORTAR (INVERTER TYPE) FSR-62I | |
| Working Dimensions (L x W x H) | 150~800x620x15~100mm |
| Finger shaft motor | 20HP*1 cái |

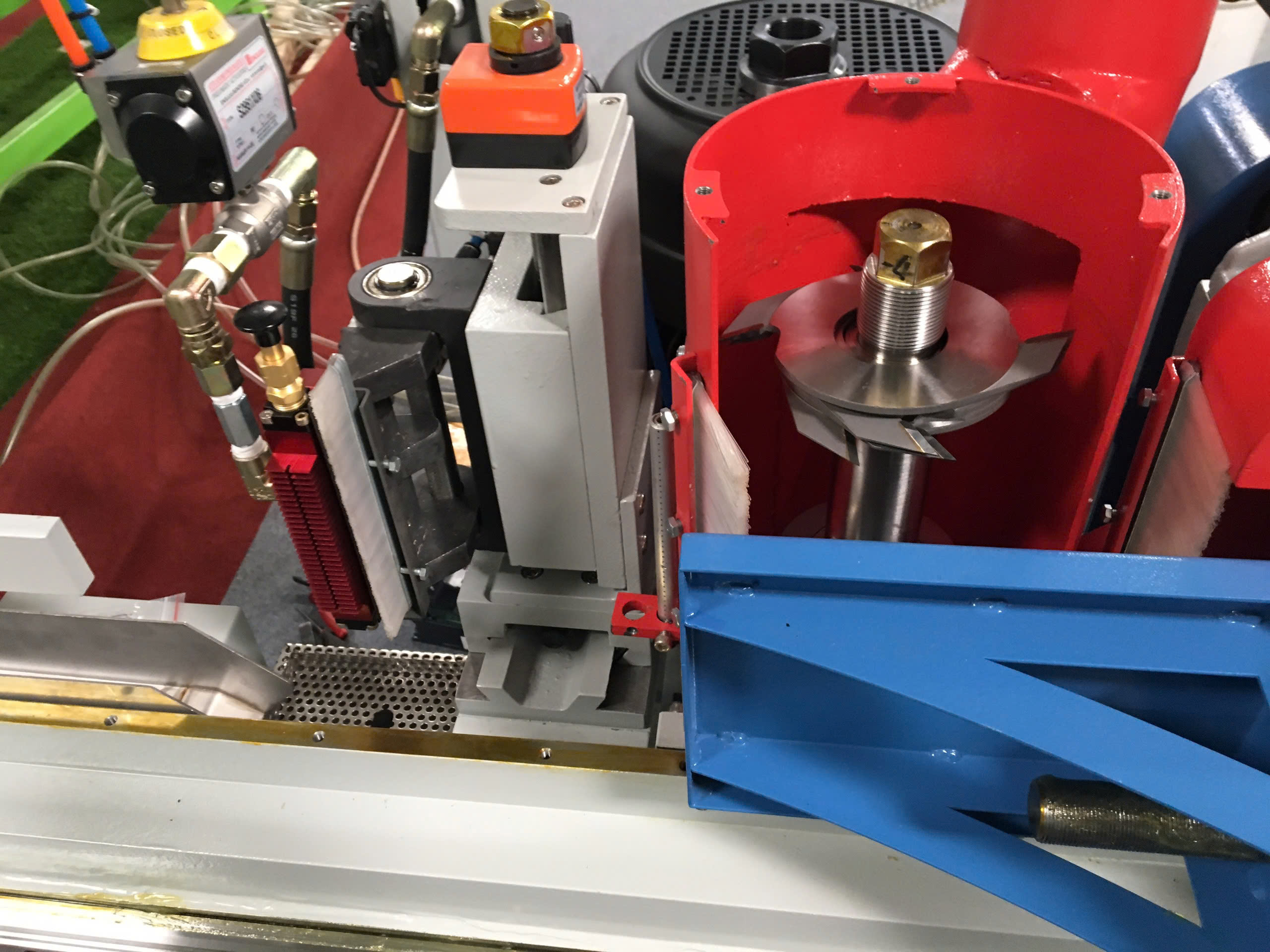

| Finger knife size | ID50mm x OD160mm x 4mmt x2T |
| Finger shaft speed | 5500RPM tại 50Hz/6600 RPM tại 60Hz |
| Saw cutting capacity | 5HP * 1 cái |
| Saw cutting size | 255mmx100Tx5mm(with saw blade)*1 cái |
| Saw cutting speed | 4800rpm/minute |
| Saw blade power | 2HP * 1 cái |
| Saw blade size | 180mmx50Tx5mm (with saw blade)*1 cái |
| Saw blade speed | 2850 rpm/minute |
| Conveyor capacity | 1/2HP*1 cái |
| Inverter movable table power | 3HP*3HP inverter*1 cái |
| Speed | 1-4 lần/minute (TOP SPEED) |
| C: ROLLER CONVEYOR RO-62 | |
| Working Dimensions (L x W) | 800 x 620mm |
| D: FINGER JOINT WITH GLUE APPLICATION (INVERTER TYPE) FSL-62I | |
| Working Dimensions (L x W x H) | 150~800 x 620 x 100mm |
| Finger shaft motor | 20HP * 1 cái |
| Finger knife size | ID50mm x OD160mm x 4mmt x2T |
| Finger shaft speed | 5500RPM tại 50Hz
6600 RPM tại 60Hz |
| Saw cutting capacity | 5HP * 1 cái |
| Saw cutting size | 255mmx100Tx5mm(with saw blade)*1 cái |
| Saw cutting speed | 4800rpm/minute |
| Saw blade power | 2HP * 2 cái |
| Saw blade size | 180mmx50Tx5mm *2 cái |
| Saw blade speed | 2850 rpm/minute |
| Conveyor capacity: | 1/2HP*1 cái |
| Inverter movable table capacity: | 3HP+3HP inverter*1 cái |
| Standard glue height | H=100mm pitch4.0mm L=10-12mm. |
| Speed | 1-4 lần/phút (TOP SPEED) |

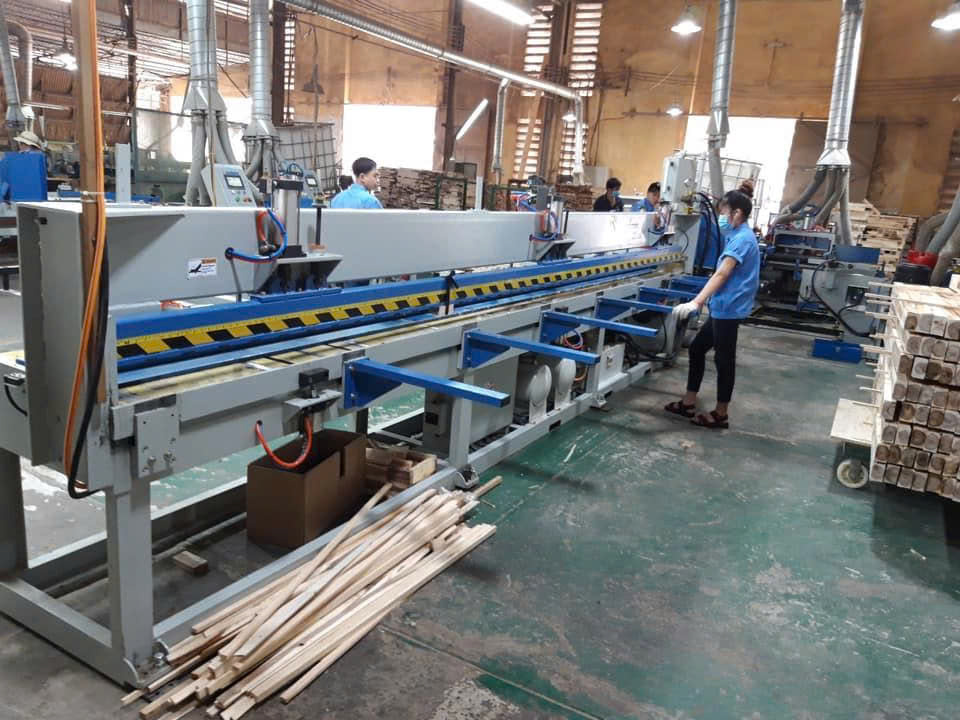

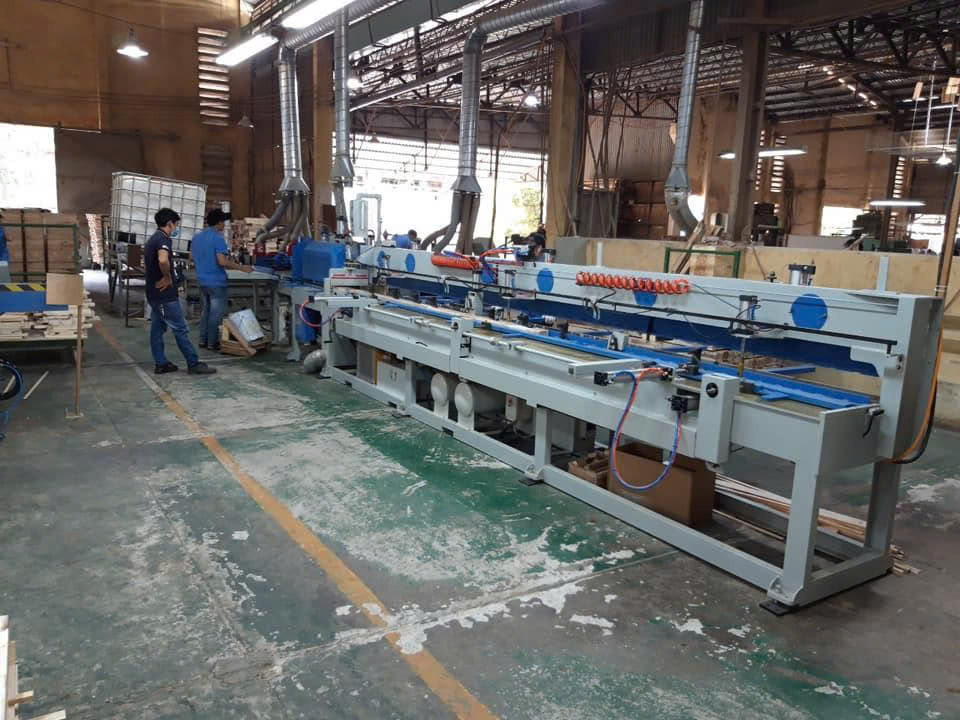

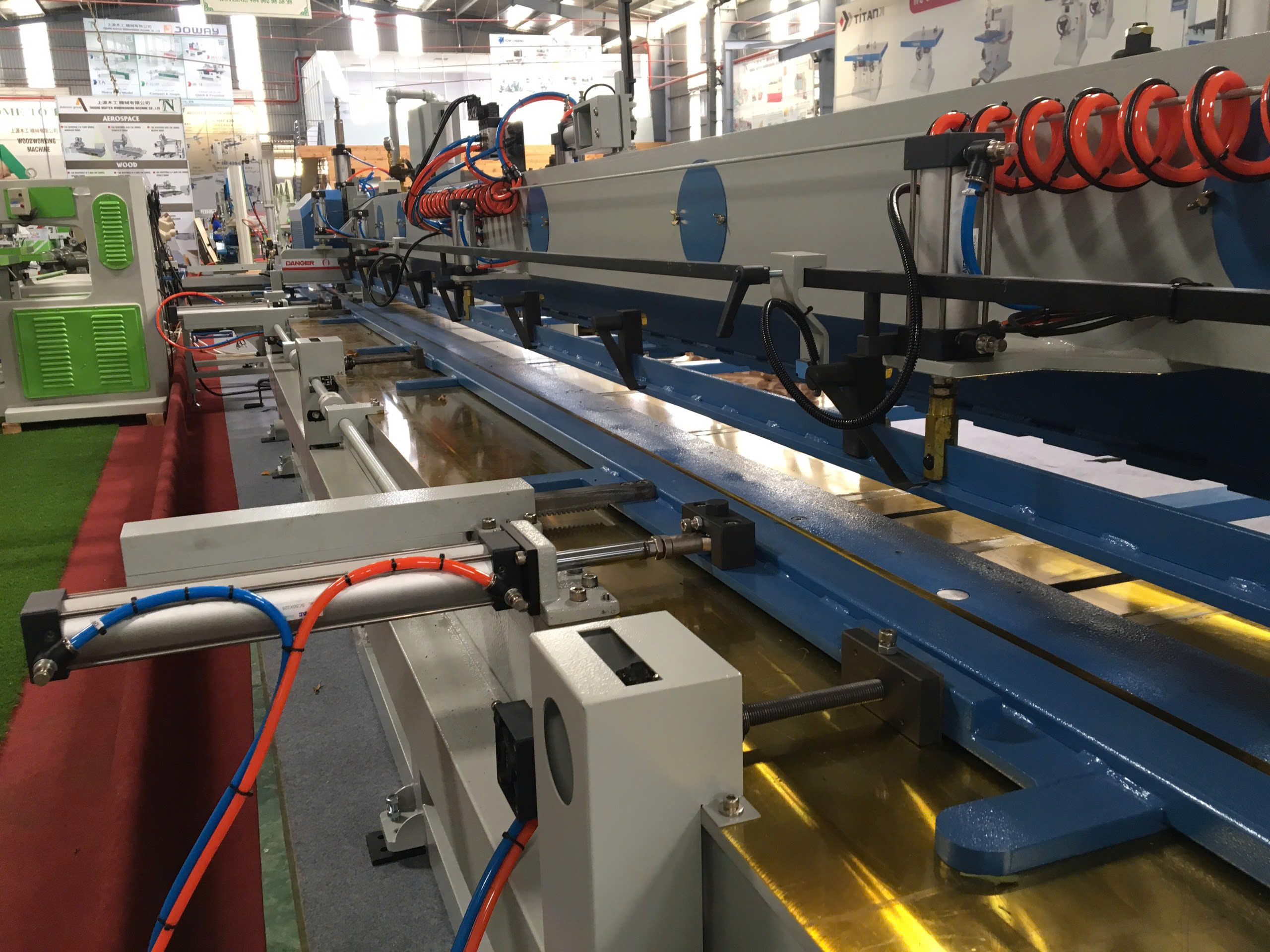

| H: 5 METER FINGER JOINT PART FJ-500A | |
| Working Dimensions (L x W x H) | 5200 x 25~100 x 15~75mm |
| Power roller upper & lower | 2HP*1 cái |
| Inverter feeds the workpiece in | 5HP*1 cái |
| Feed speed | 10M~70M/minute |
| Power saw cutting | 5HP*1 cái |
| Saw cutting size | 355MM x 120T x 25.4MM * 1 cái |
| Saw cutting RPM | 2850 rpm / minute |
| Hydraulic power | 5HP*1 cái |
| Power / minute | 1-4 cái / minute (TOP SPEED) |
| Top pressure buffer | 19×25*1 cái + 19×70*1 cái (optional size) |
