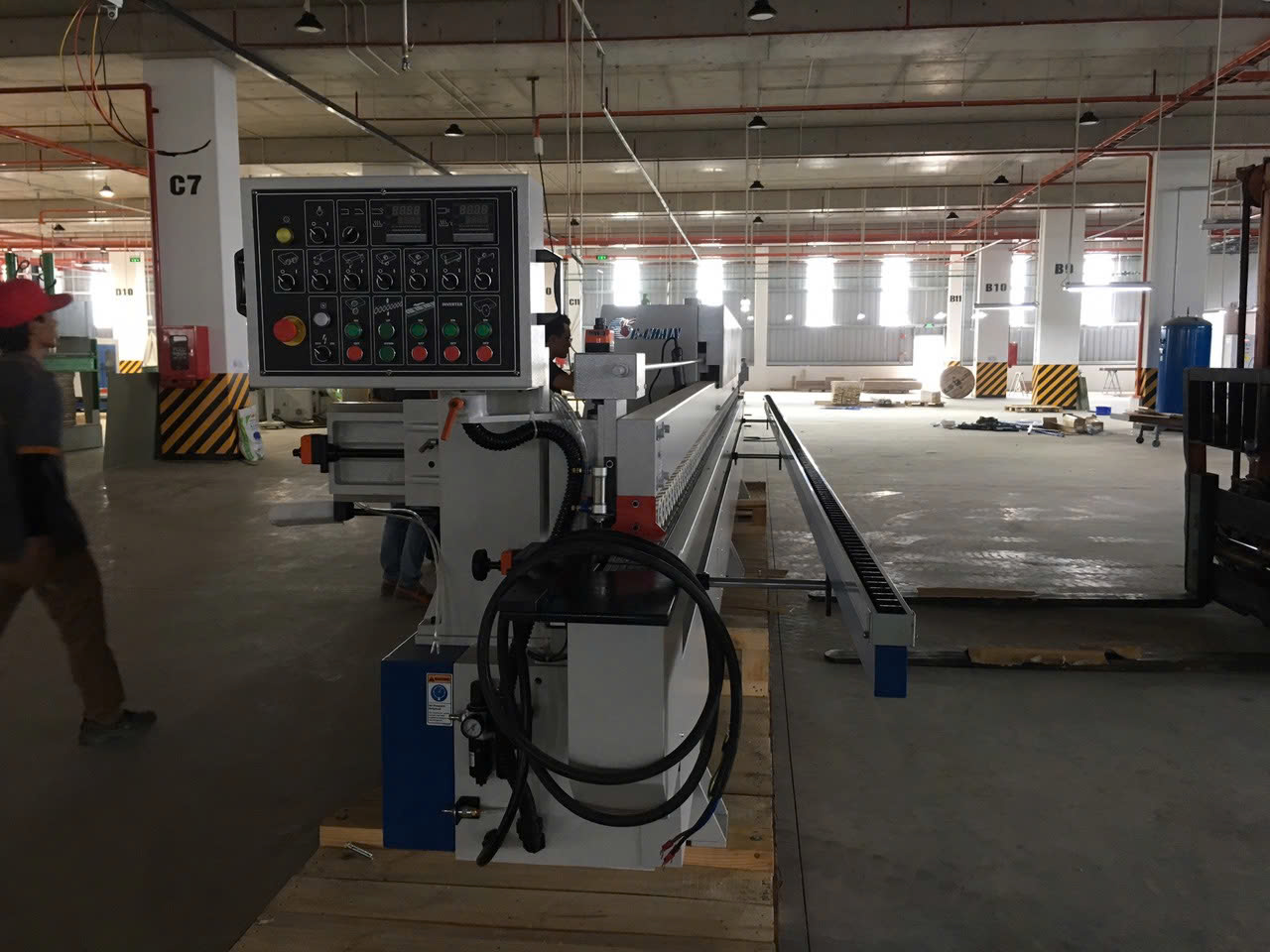

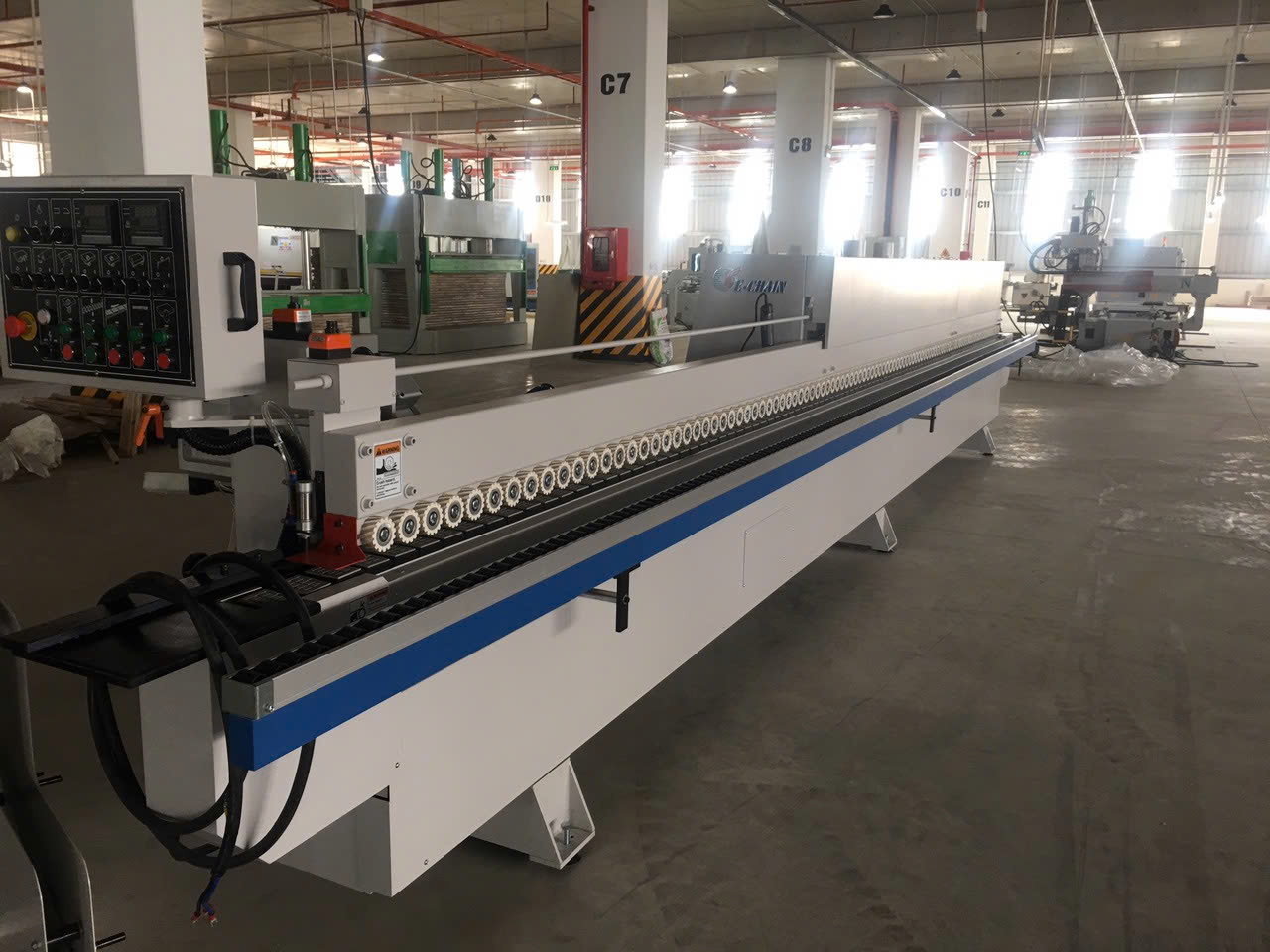

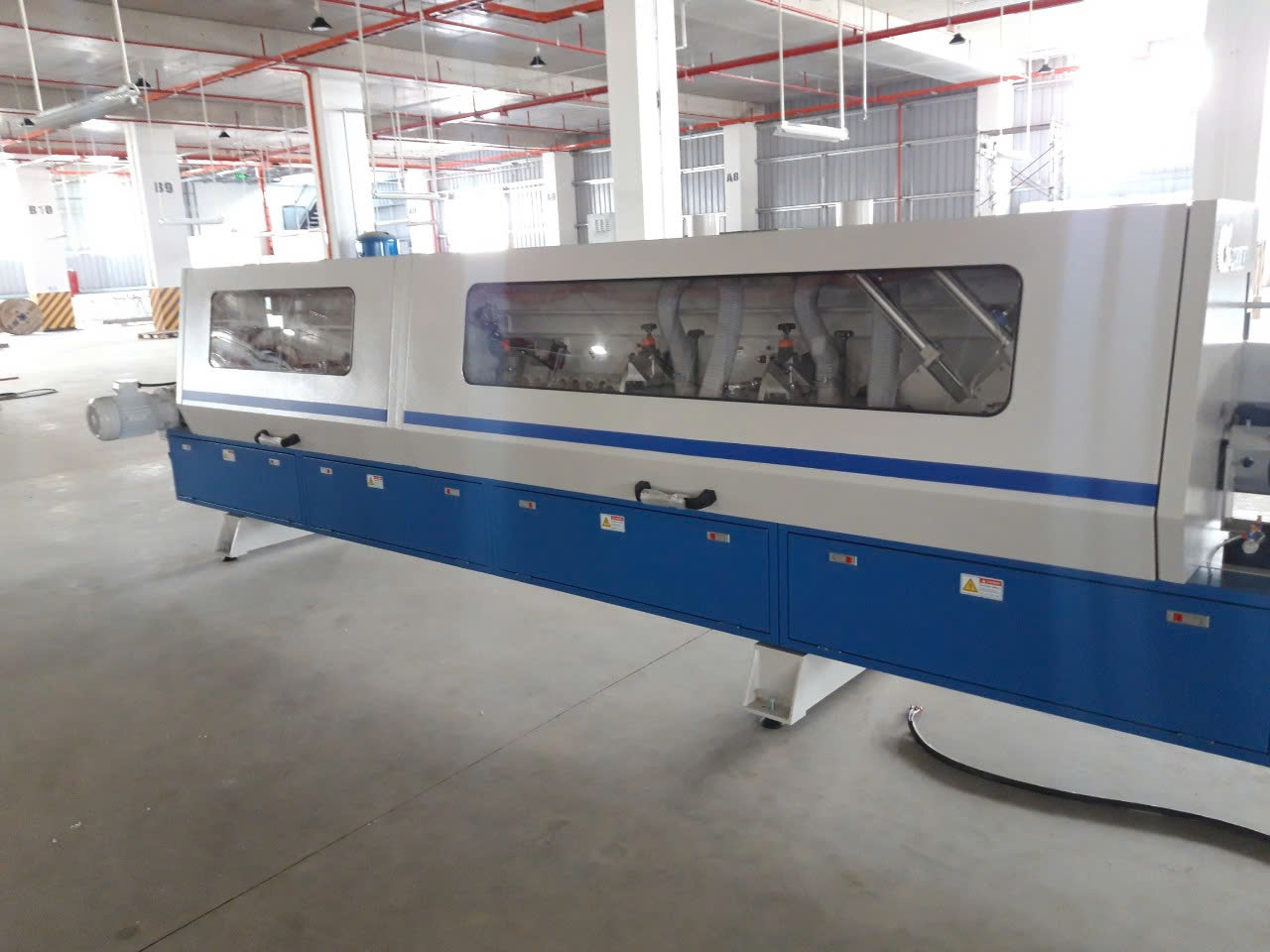

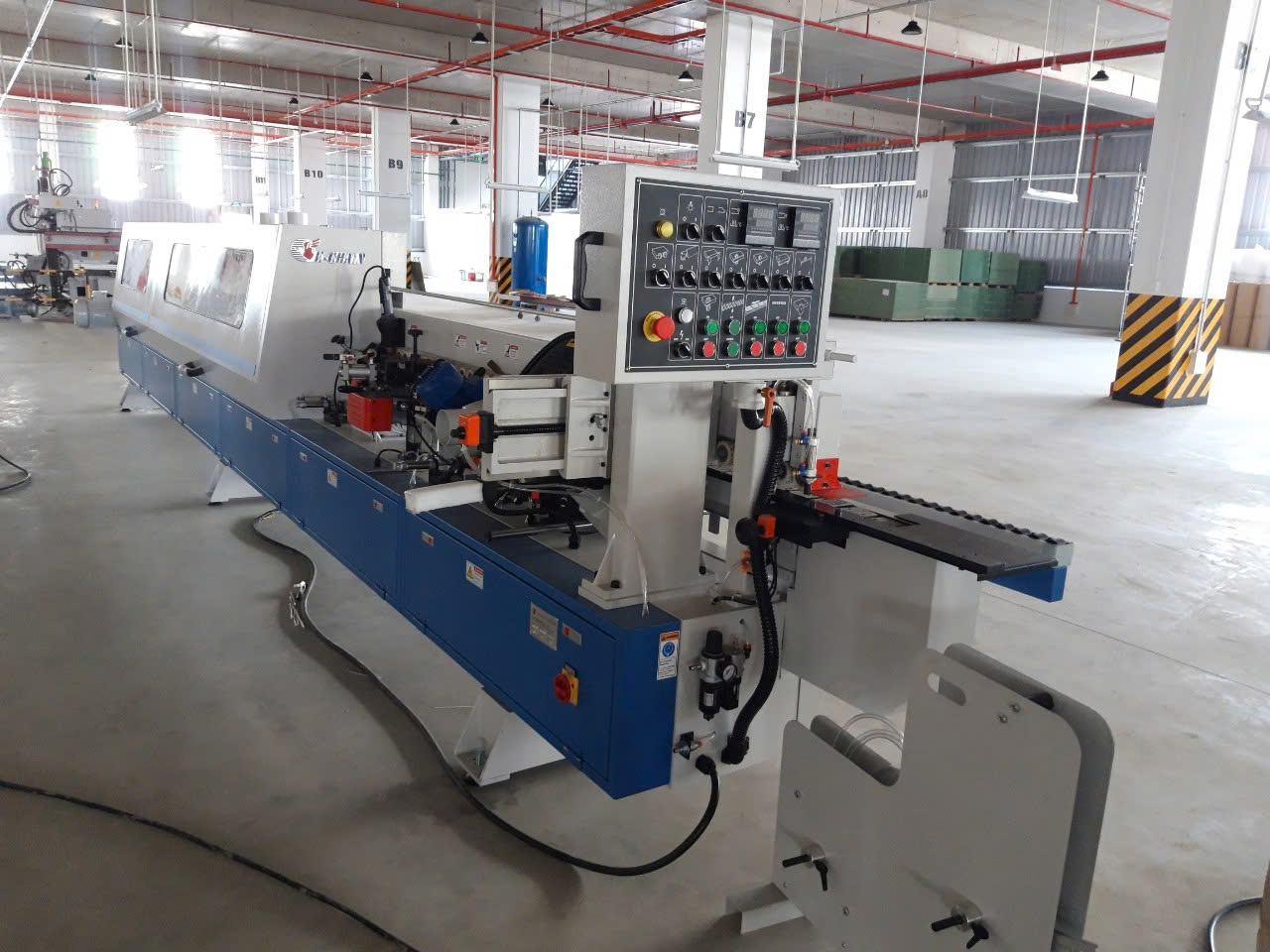

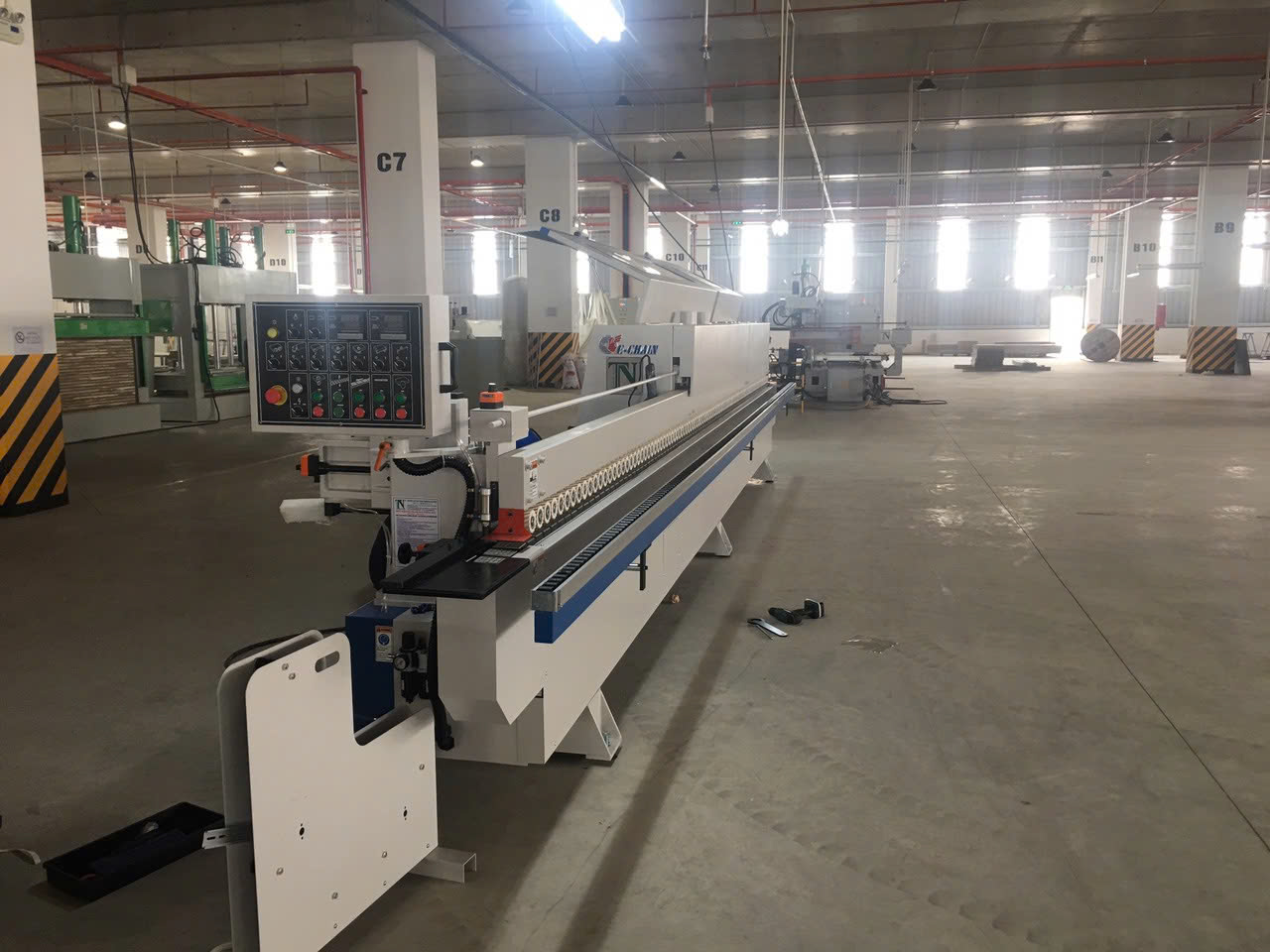

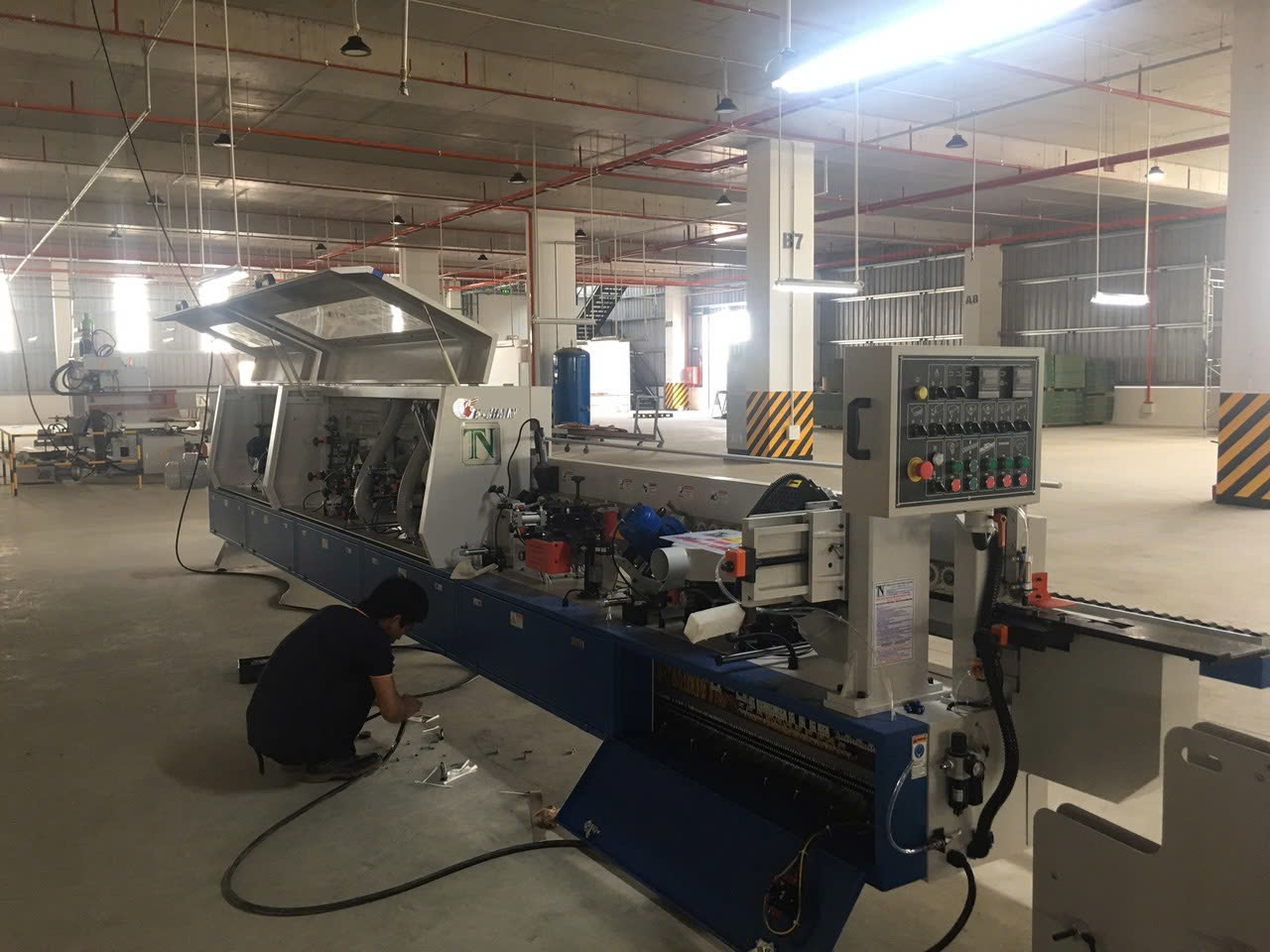

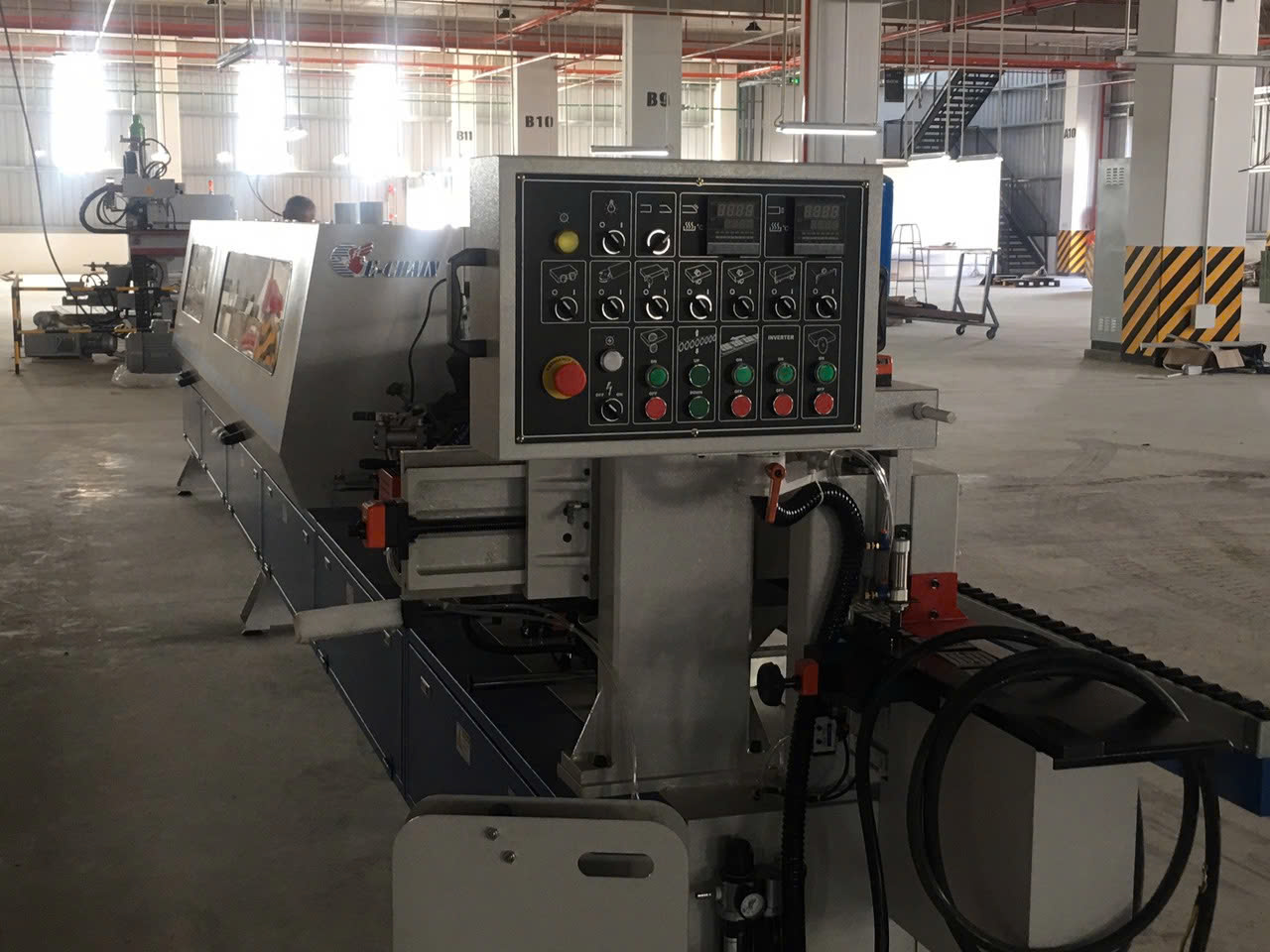

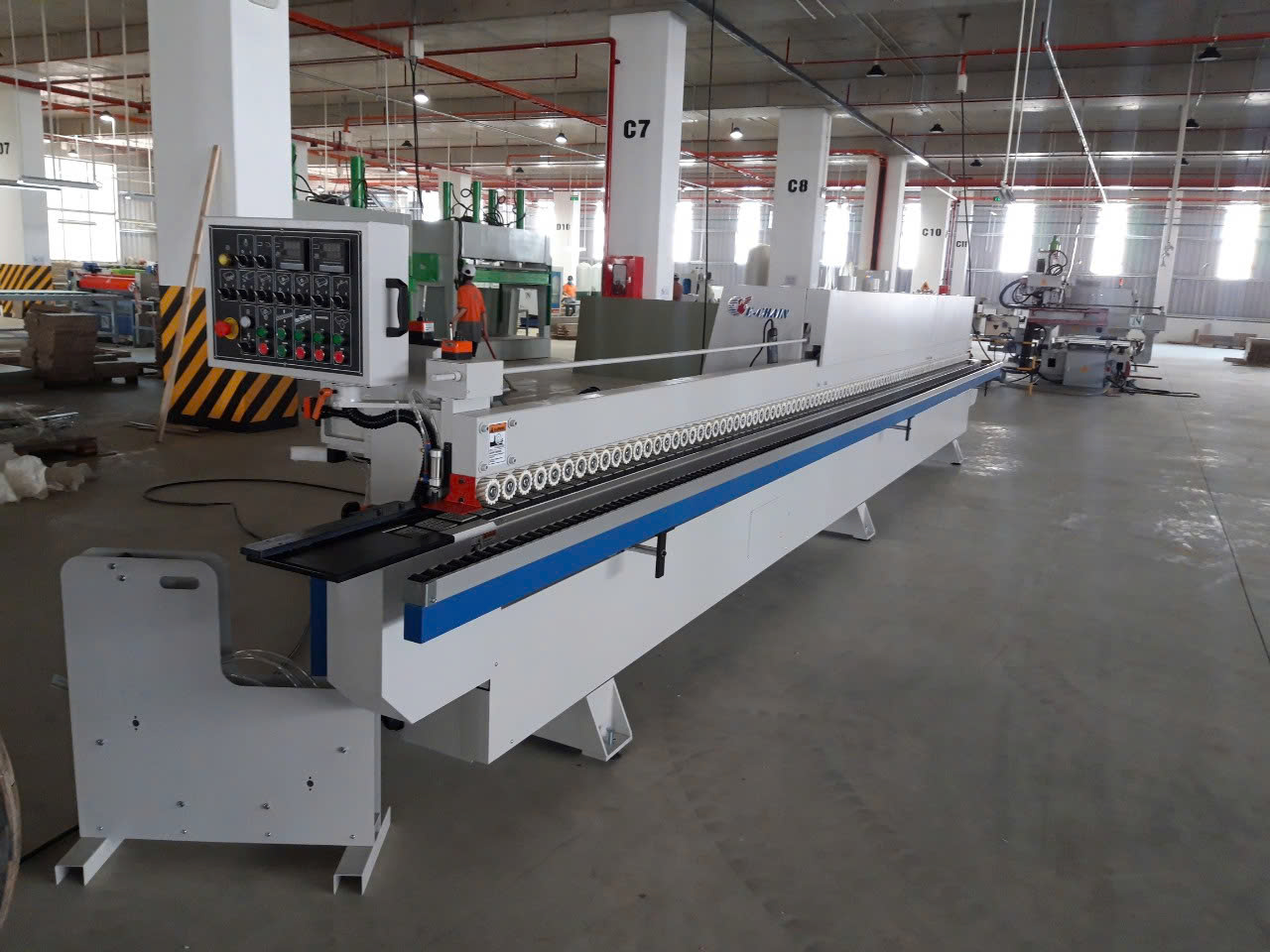

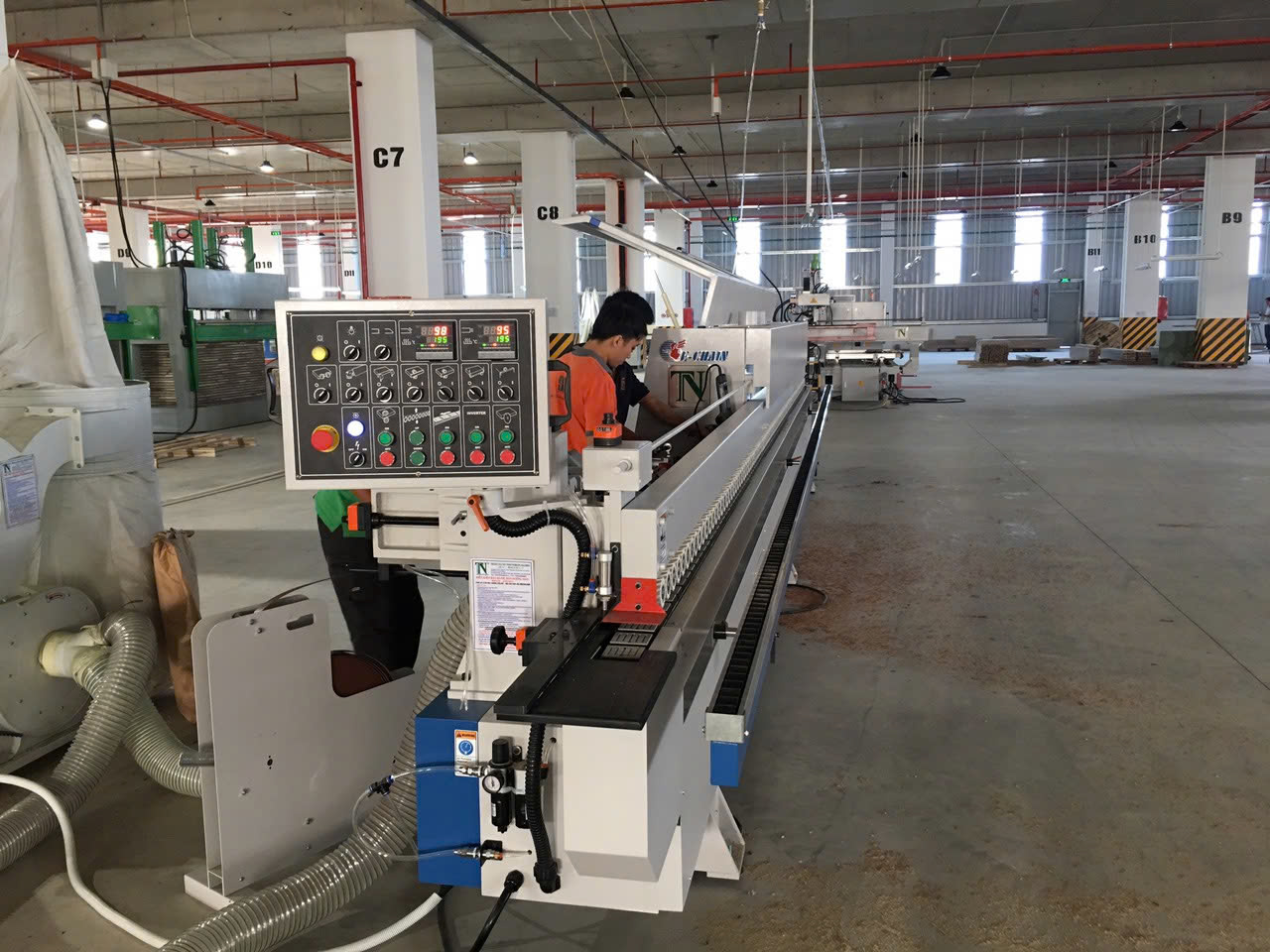

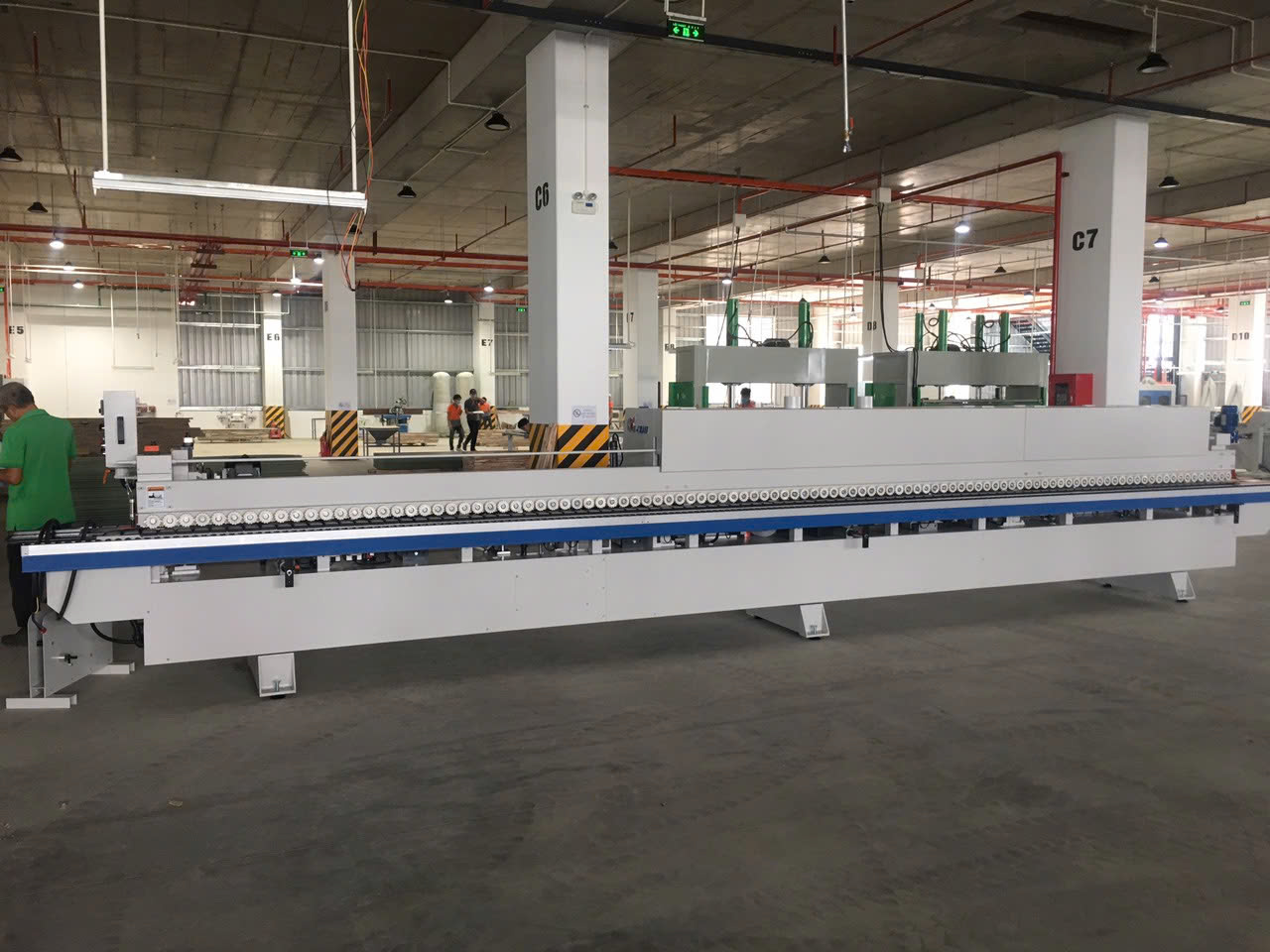

🪵 STRAIGHT / 45 DEGREE TILT EDGE BANDING MACHINE – MODEL: ECE-750J

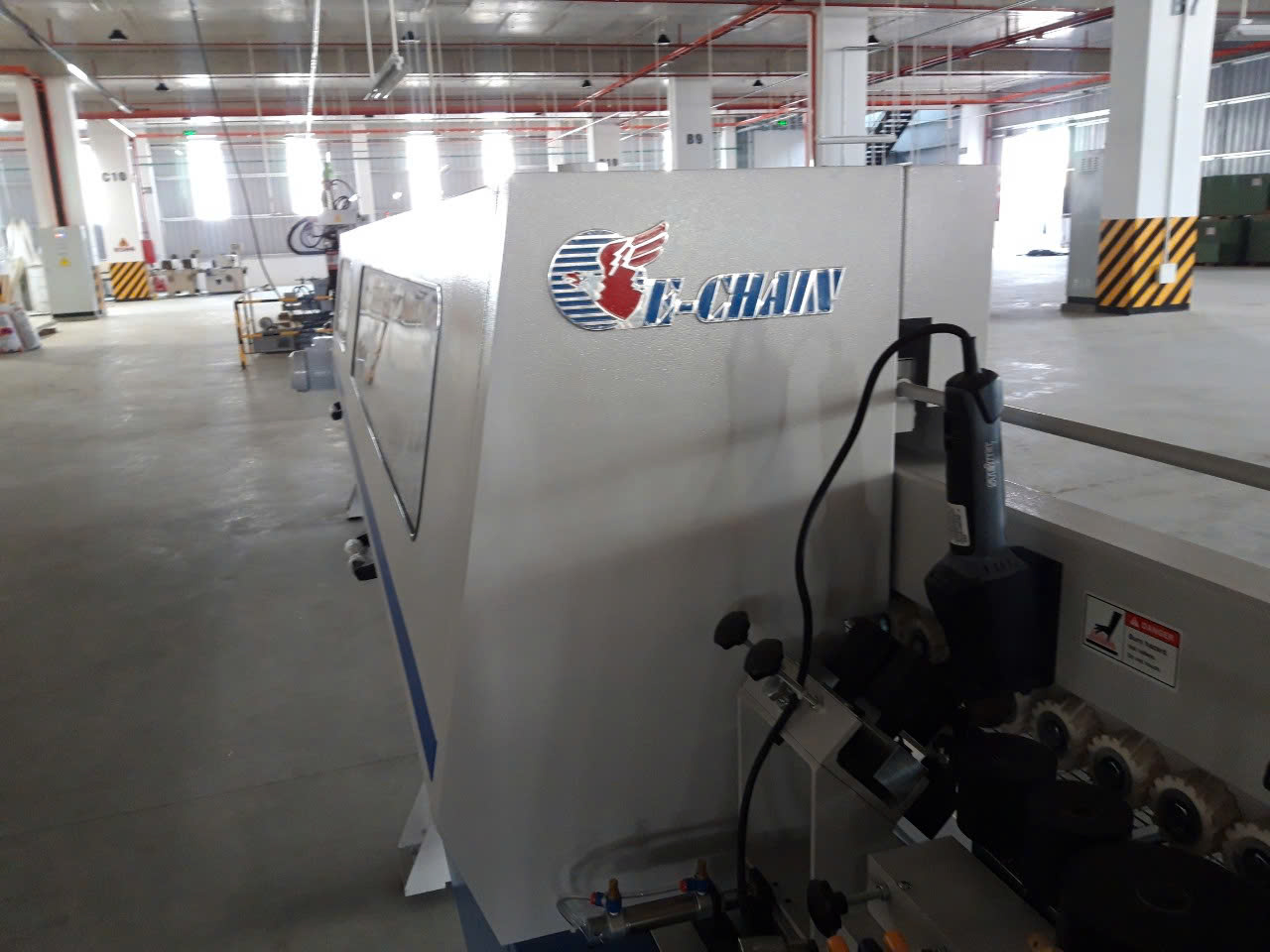

BRAND: ECHAIN – MADE IN TAIWAN

🎯 PRODUCT OVERVIEW

The ECE-750J is a next-generation edge banding machine from ECHAIN (Taiwan), specially designed for high-end furniture production. This machine supports both straight and bevel edge banding with high precision and speed.

✅ Bevel edge banding up to 45°
✅ High-speed processing – saves time and labor
✅ Stable and durable – ideal for continuous operation

⚙️ GENERAL SPECIFICATIONS

Specification	Value
Minimum panel length	160 mm
Minimum panel width	65 mm
Panel thickness	10 – 55 mm
Edge banding thickness	0.4 – 2 mm
Feed speed	10 – 20 m/min
Total motor power	26 HP
Machine weight	2800 / 3300 kg
Machine dimensions	8500 x 1300 x 1540 mm

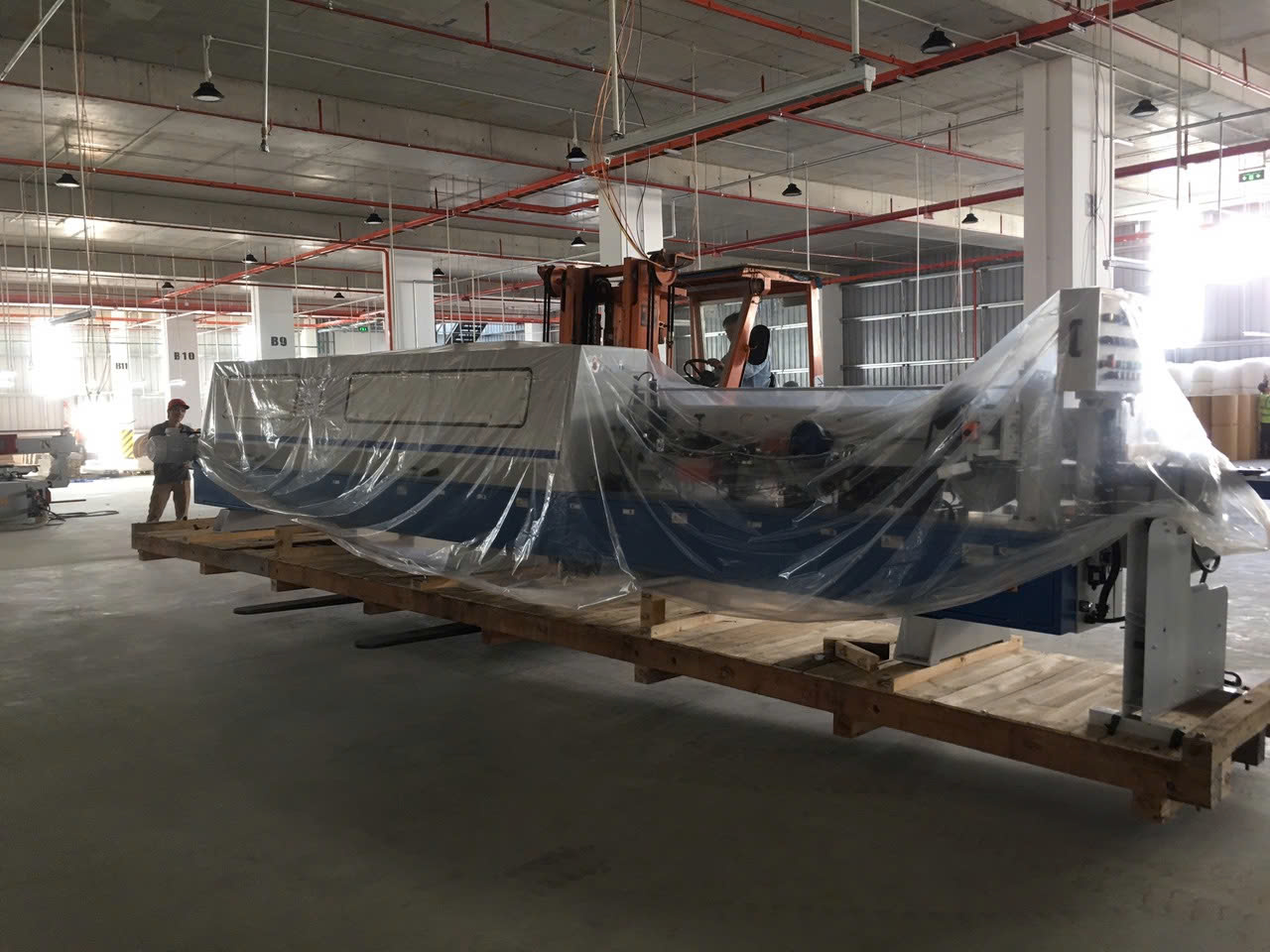

Packing dimensions	8700 x 1060 x 1800 mm

🧩 DETAILED CONFIGURATION

✅ Bevel Edge Banding System (0 – 45°)

• Motor power: 3.75 kW x1

• Speed: 3000 RPM

• Auxiliary bevel gluing motor: 0.56 kW x1

• Glue pot capacity: 2.5 kg

• Bevel gluing heater: 2.0 kW x1

✅ Straight Edge Banding

• Straight gluing motor: 3.0 kW x1

• Glue pot capacity: 4.0 kg

✅ Trimming and Milling Units

• Double spindle motors: 0.85 kW x2 – 12000 RPM

• Edge scraping: 0.35 kW x1 – 12000 RPM

• End trimming (front and rear): 0.35 kW x2 – 12000 RPM

• Top/bottom trimming: 0.55 kW x2 – 12000 RPM

✅ Corner Rounding & Finishing

• Upper/lower corner rounding: 0.55 kW x2 – 12000 RPM

• Front/rear corner rounding: 0.35 kW x2 – 12000 RPM

• Pressure rollers: 1 large straight, 2 small straight, 2 small bevel

• Buffing wheels (top & bottom): 0.5 HP x2 – 15000 RPM

🌟 HIGHLIGHTED FEATURES

• 🌐 Bevel edge banding up to 45° – supports modern furniture designs

• 🔧 High-speed, powerful motors – improve productivity

• 🛠️ User-friendly design – easy to operate and maintain

• 🏗️ Solid, industrial-grade build – suitable for 24/7 production

🎯 APPLICATIONS

👉 Ideal for industrial furniture workshops, kitchen cabinet & wardrobe manufacturers, MDF, HDF, plywood edge processing, etc.
👉 Provides a comprehensive solution for high-precision and aesthetic edge banding needs.
