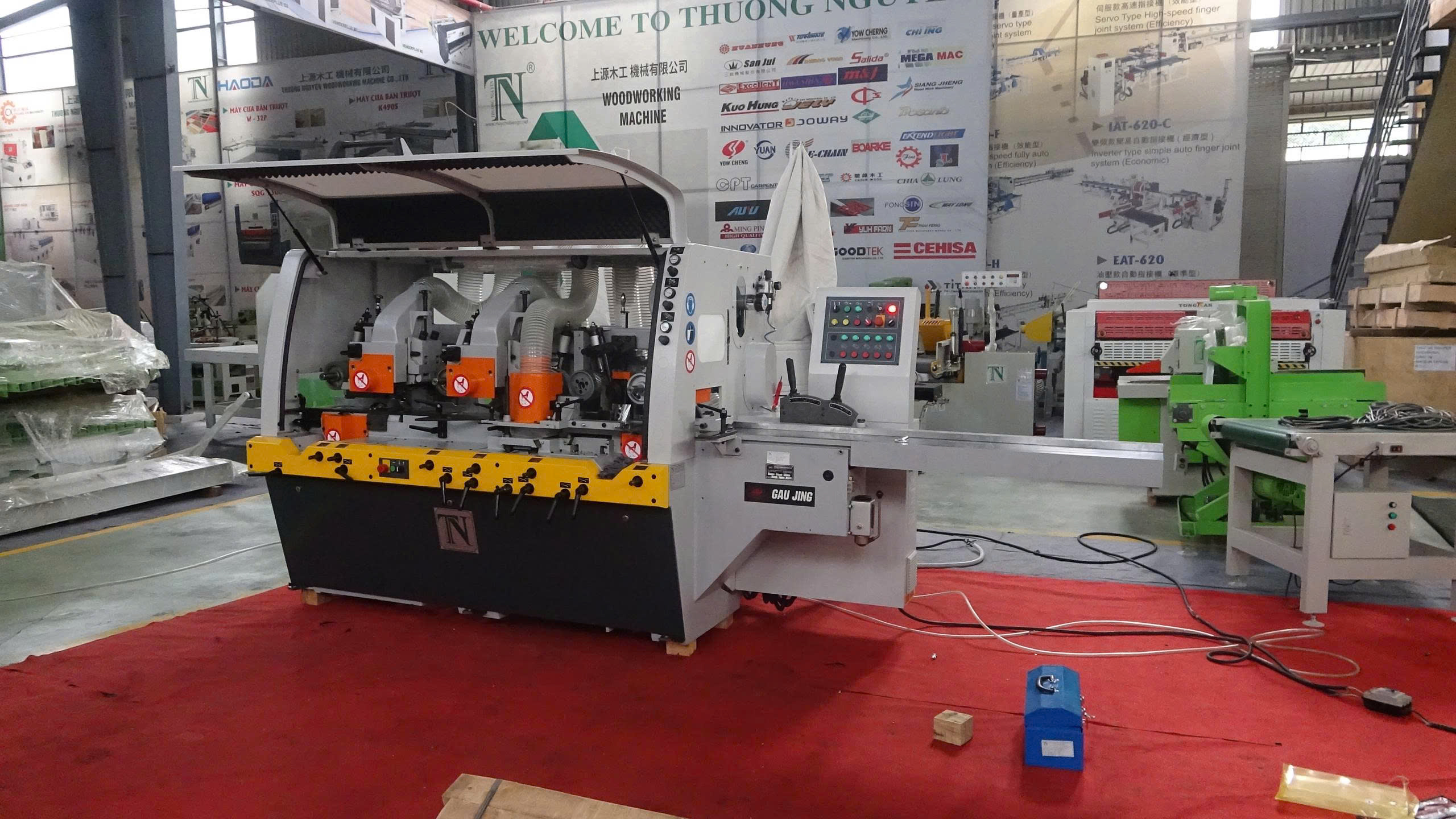

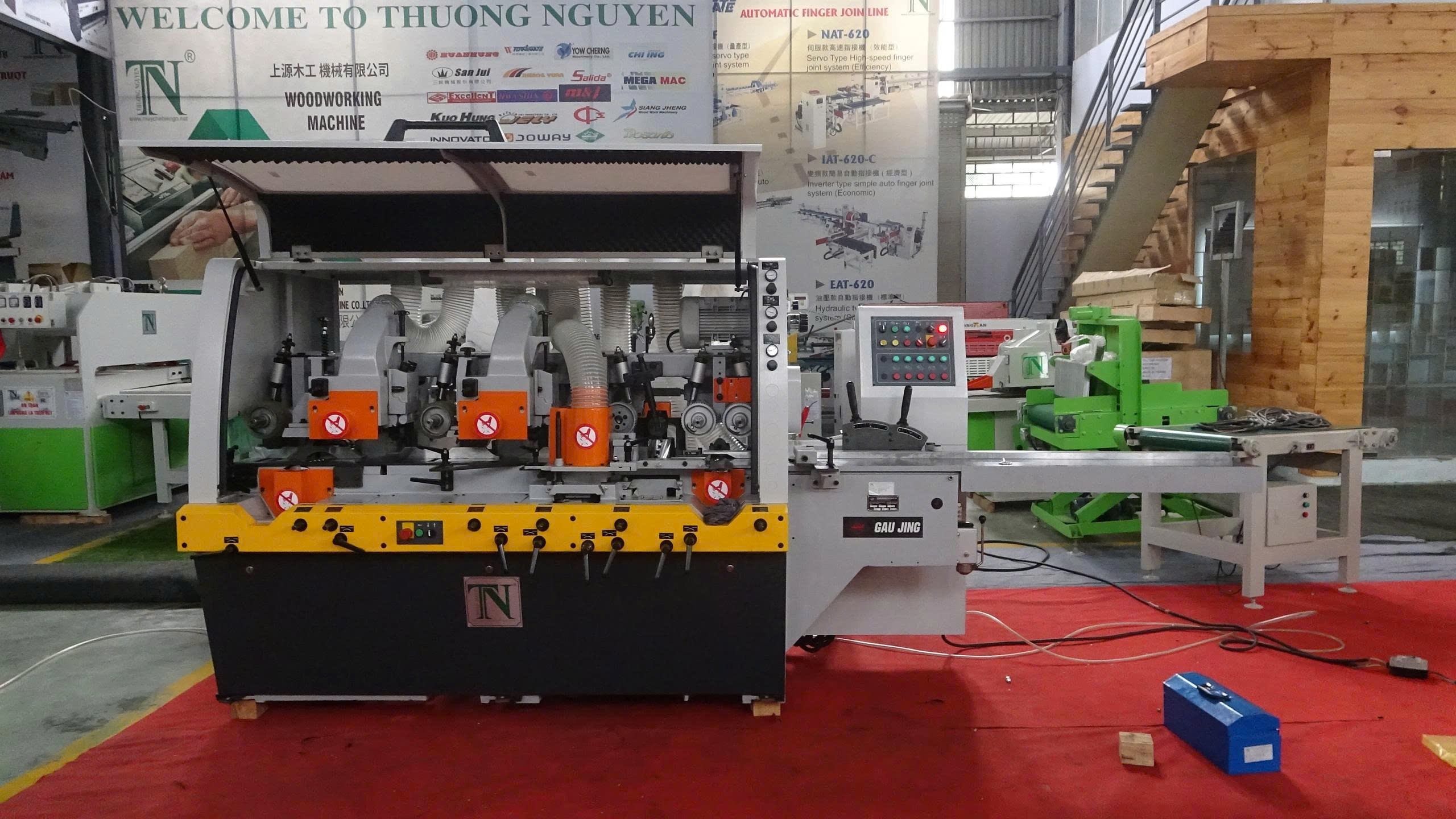

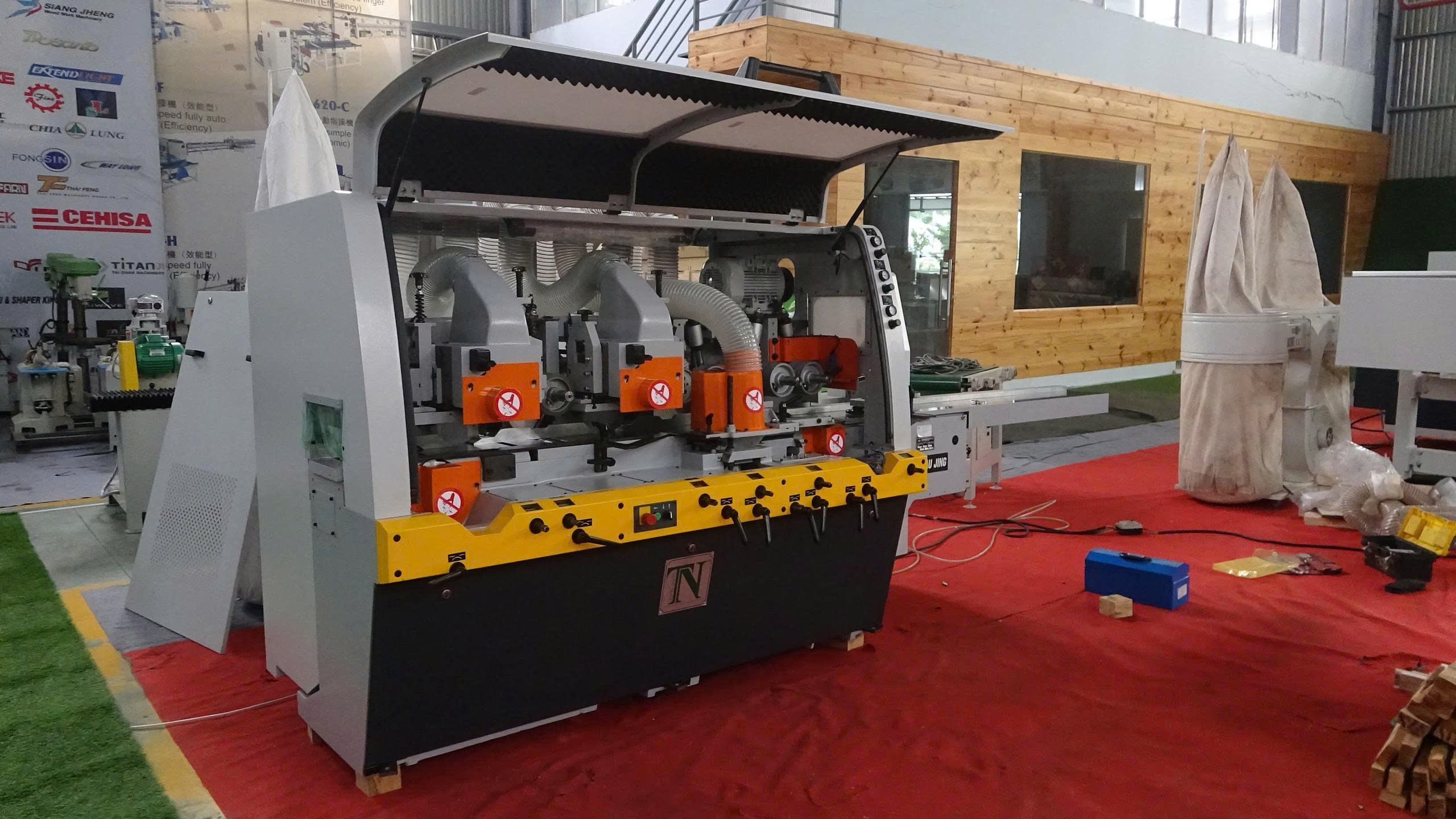

6-SPIN 4-SIDED PLANNER GS-623 | MCB THUONG NGUYEN WOOD

  • SKU: GS-623
  • Produced by: GAU JING
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

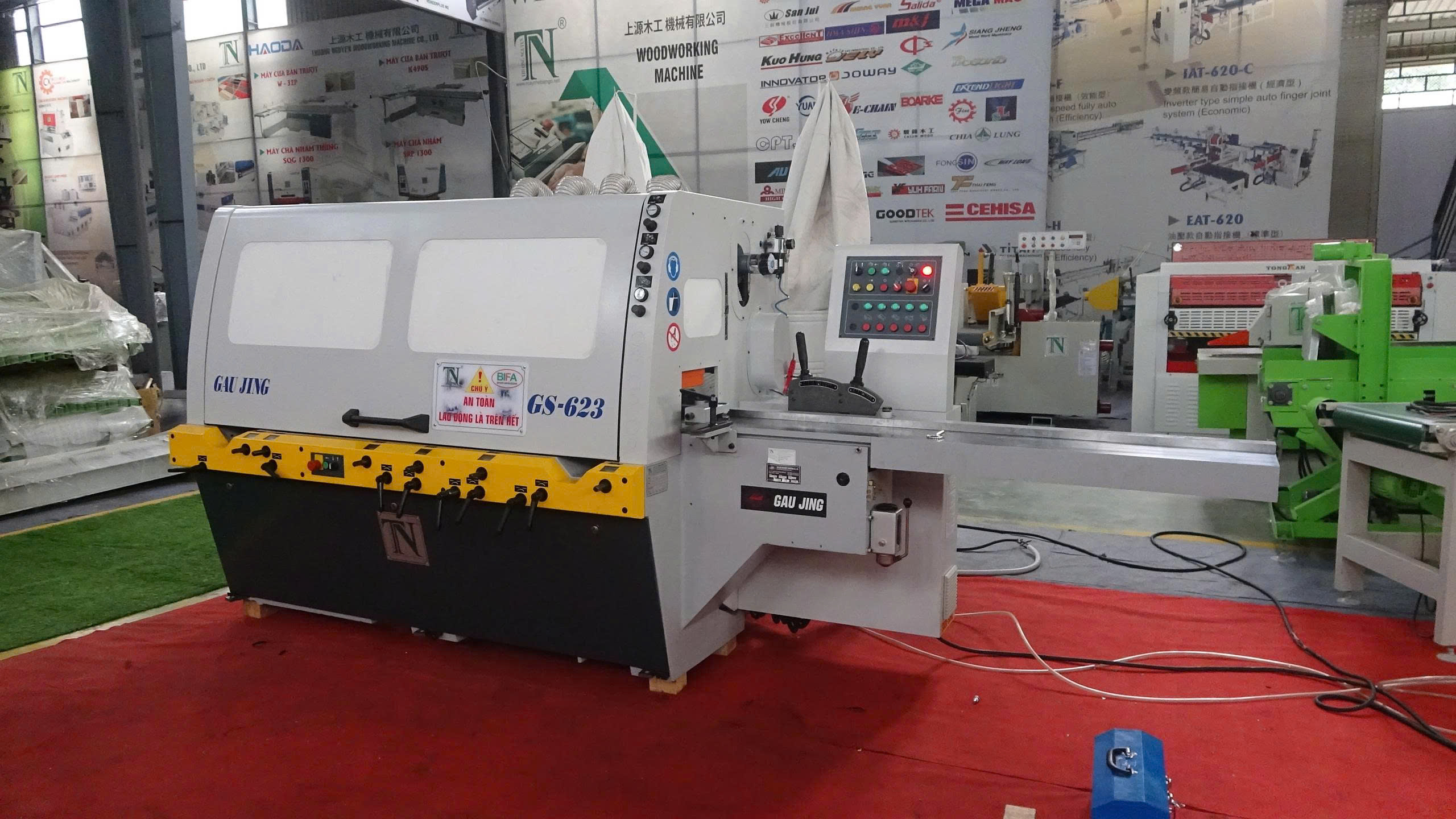

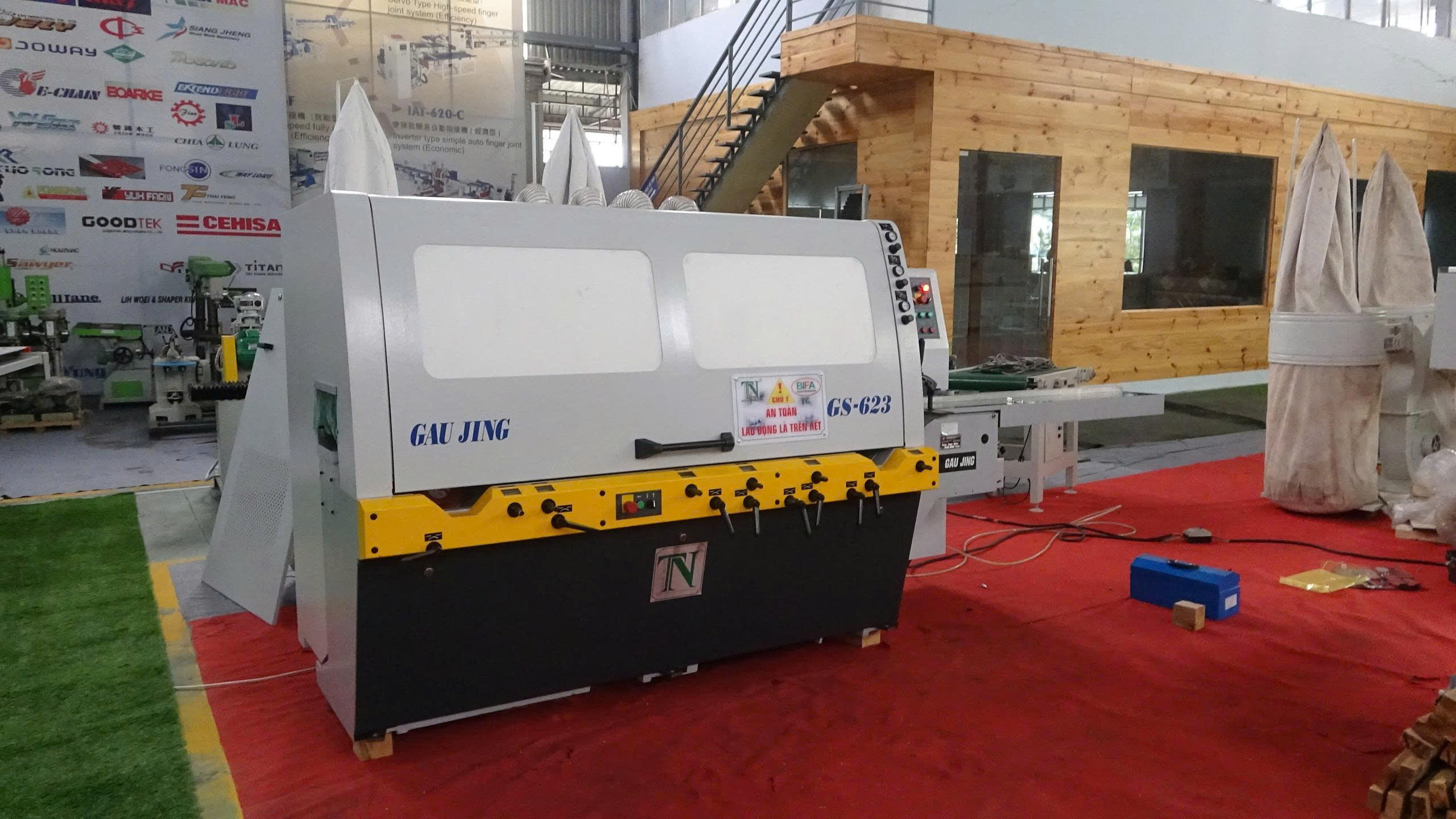

🪵 6-SPINDLE 4-SIDE PLANER – GAU JING GS-623

🇹🇼 Brand: GAU JING – Origin: Taiwan
100% Brand New – Superior Quality – Competitive Price


🔧 Key Technical Specifications:

  • Working width: 30 – 230 mm

  • Working thickness: 10 – 125 mm

  • Minimum working length: 230 mm

  • Feed speed: 6 – 25 m/min

  • Spindle speed: 6000 rpm

  • Spindle diameter: Ø 40 mm

🛠 Spindle Adjustment:

  • Vertical adjustment: 30 mm

  • Horizontal adjustment: 20 mm

⚙️ Spindle Sizes:

  • First bottom horizontal spindle: Ø 100 – 150 mm

  • Left/Right vertical spindles: Ø 100 – 180 mm

  • Top horizontal spindle: Ø 100 – 180 mm

  • Second bottom horizontal spindle: Ø 100 – 205 mm


💡 Powerful Motor System:

  • First bottom horizontal spindle: 7.5 HP

  • Left/Right vertical spindles: 15 HP

  • Top horizontal spindle: 7.5 HP x 2

  • Second bottom horizontal spindle: 7.5 HP

  • Feed motor: 3 HP

  • Table lifting motor: 1/3 HP


📏 Dimensions & Weight:

  • Infeed table length: 2000 mm

  • Machine size: 3360 x 1280 x 1720 mm

  • Packing size: 2320 x 1400 x 1960 mm

  • Machine weight: 3200 kg

  • Gross weight: 3500 kg


Ideal for professional woodworking workshops needing precision and high efficiency.

📦 Available Now – Nationwide Delivery – Official Warranty – On-site Technical Support.

📞 Contact us today for the best pricing!
