THE PEAK OF TECHNOLOGY – CUTTING CURVED BOARDS WITHOUT ADJUSTMENT | TS-MF2-4B 5-AXIS 2-HEAD CNC MACHINE – THE ULTIMATE WEAPON FOR HIGH-CLASS WOODEN FURNITURE INDUSTRY

✅ Are you having a headache because of the complex curved panel and chair back details that require absolute precision?

✅ It’s time to upgrade your woodworking shop with 5-axis dual-head CNC technology – specializing in smooth, mold-like curve cutting!

PRODUCT STRENGTHS

✅ Can cut curved chair backs, complex curved boards

– With multi-directional tilt axis, the machine allows processing of 3D curves, suitable for all modern interior designs.

✅ 2 cutting heads operate in parallel – double productivity

– Saves time and optimizes mass production efficiency.

✅ 5-axis flexible movement – Freedom in all cutting directions

– Unlimited angles, from bevel to 3D deep cuts, all accurate to the millimeter.

✅ Smart control interface – Easy to operate

– Integrated CAD/CAM software, supports direct programming or importing files from computer.

✅ Wide application

– Curved chair back, neoclassical chair legs, curved wooden details…

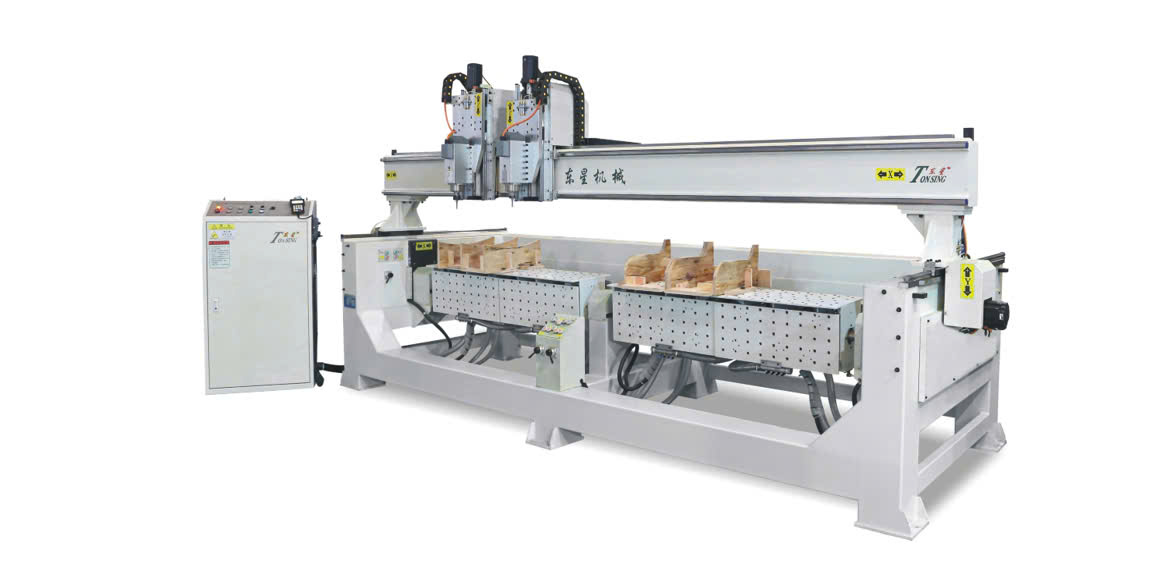

🛠️ 5-AXIS CNC PANEL CUTTING MACHINE – DUAL-SPINDLE

Brand: GOODTECH – Model: TS-MF2-4B – Origin: China

🎯 The ultimate solution for complex, curved wood machining with high productivity and precise accuracy!

Looking for a high-performance 5-axis CNC machine, optimized for mass production, and capable of dual-head simultaneous machining with exceptional stability?
The GOODTECH TS-MF2-4B is your ideal choice for woodworking factories, premium furniture manufacturers, curved panel processing, and more.

⚙️ TECHNICAL SPECIFICATIONS

• Model: TS-MF2-4B

• Spindles: 2 × 7.5kW high torque, air-cooled

• Spindle Speed: 18,000 RPM

• Drive System:

  • X and Y axes: Rack and pinion

  • Z axis: TBI-R25 ball screw

• Linear Rails: R30+25 – Imported from Germany

• Servo Motor: High-performance Hueichuan servo system

• Inverter: Fulling high-quality inverter

• Control System: Beijing Ruizhi Tianhong (with rotating A-axis)

• Rotary Worktable: 1500 × 400 – 650 mm

• Working Range: 3000 × 1200 × 300 mm

• Max Material Thickness: 25 mm

• Max Air Travel Speed: 25 m/min

• Max Cutting Speed: 12 m/min

• Vacuum Pump (Water-cooled): 7.5 kW

• Vacuum Cups:

  • Ø60 mm: 12 cups

  • Ø120 mm: 12 cups

• Working Air Pressure: 0.6 – 0.8 MPa

• Total Power: 26 kW

• Machine Dimensions (L × W × H): 5300 × 1800 × 2400 mm

• Machine Weight: 3000 kg

🌟 OUTSTANDING FEATURES

✅ Dual-head simultaneous machining – double productivity, reduce processing time
✅ Rigid frame with high-speed rack & pinion drive for precise, stable operation
✅ Rotating A-axis for complex curved surface machining
✅ Hueichuan servo & Fulling inverter – smooth, energy-efficient performance
✅ Strong vacuum holding with dual-sized suction cups for secure clamping
✅ User-friendly interface, easy to operate and maintain
✅ Ideal for mass production of premium furniture, curved doors, chairs, shaped panels, and more

📞 CONTACT US NOW FOR CONSULTATION OR LIVE MACHINE DEMO

• Nationwide installation – training – technology transfer

• Demo videos and detailed catalogs available

• Official warranty – Professional after-sales service
