4-SIDED 6-SPINCH PLANNER GN-6S23 | MCB THUONG NGUYEN WOOD

  • SKU: GN-6S23
  • Produced by: GAU JING
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

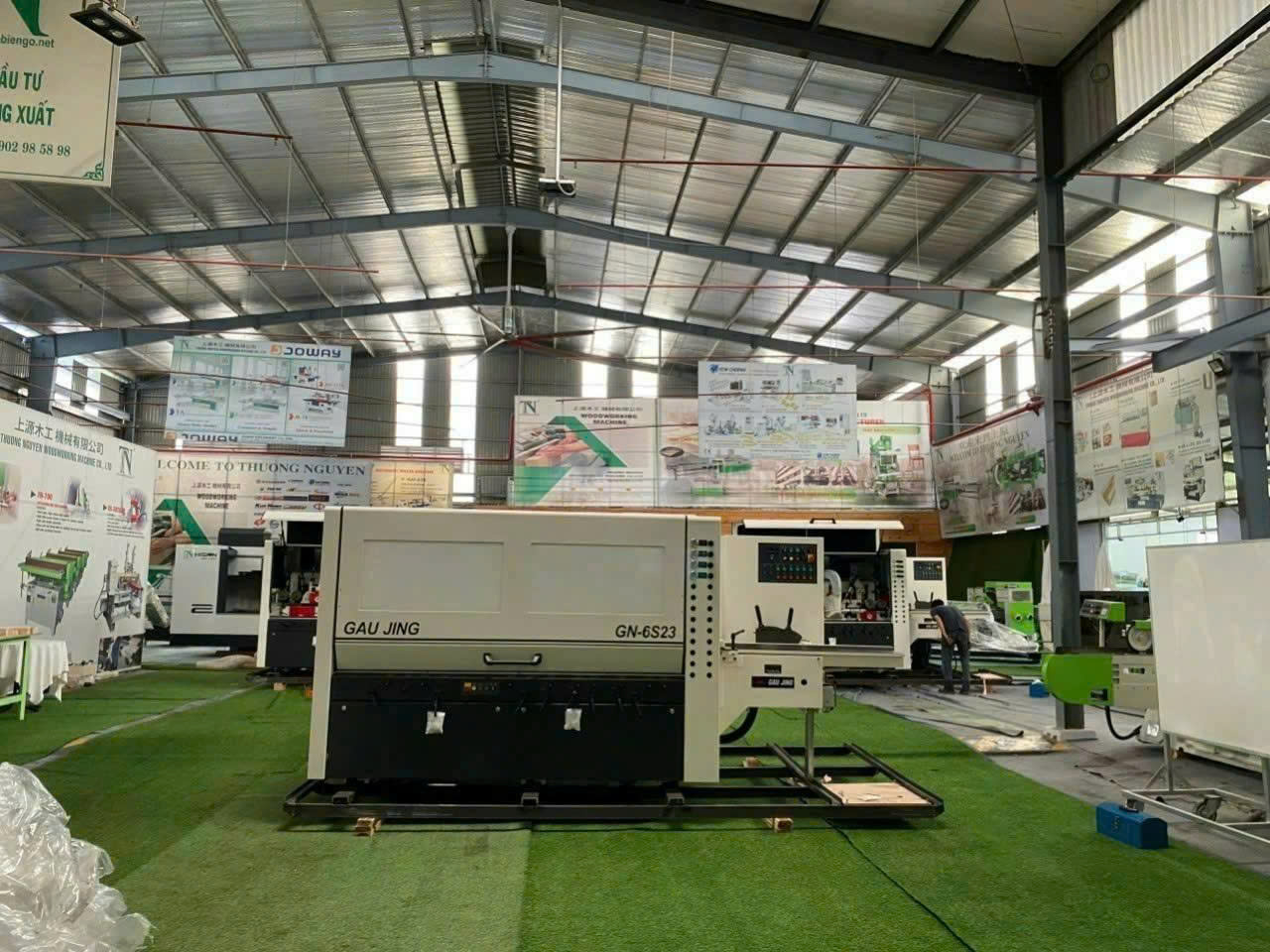

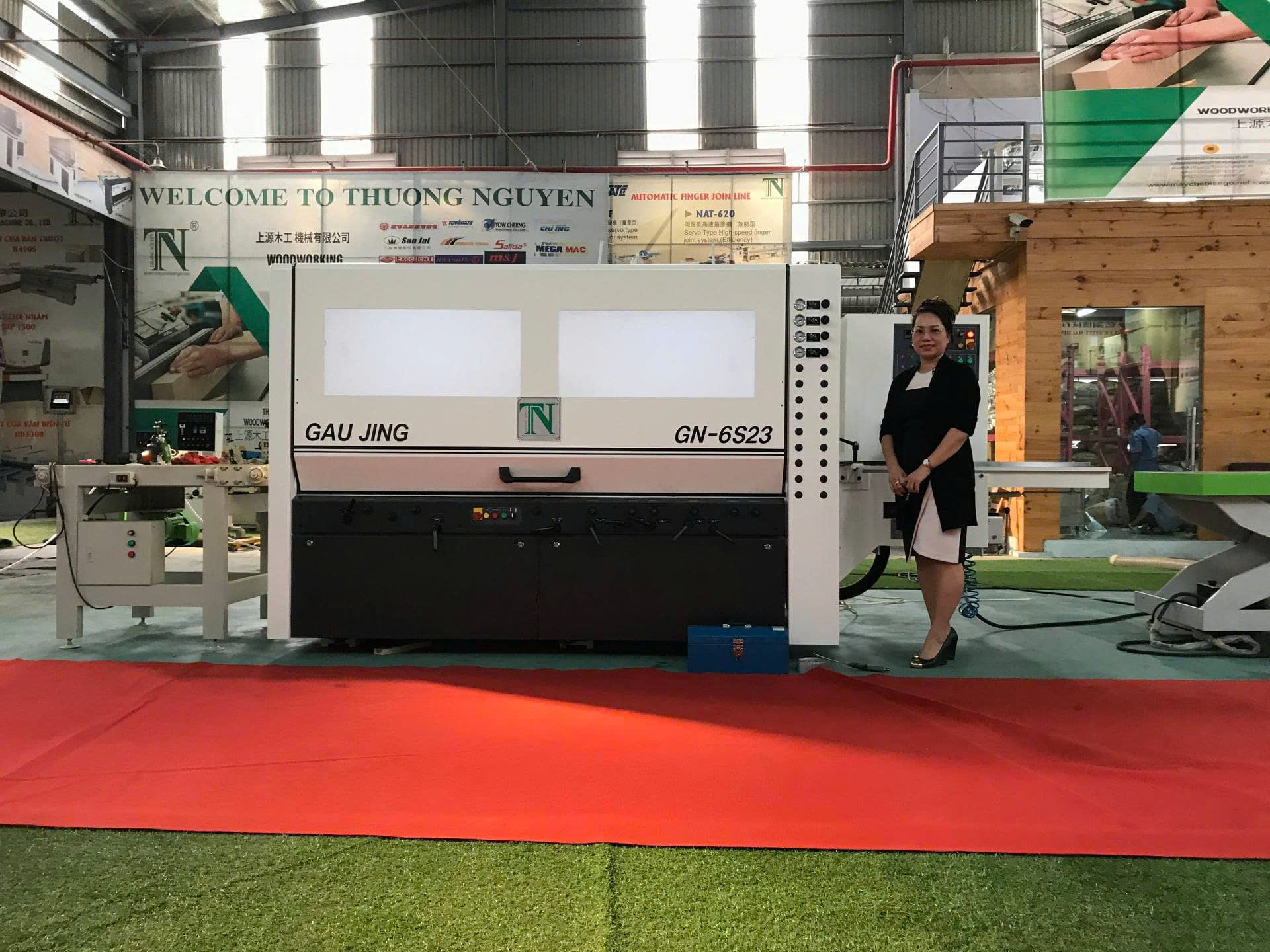

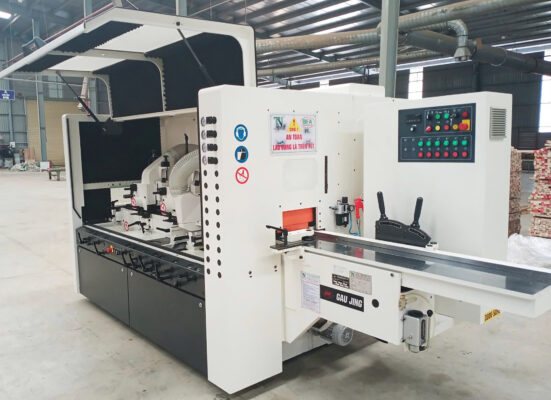

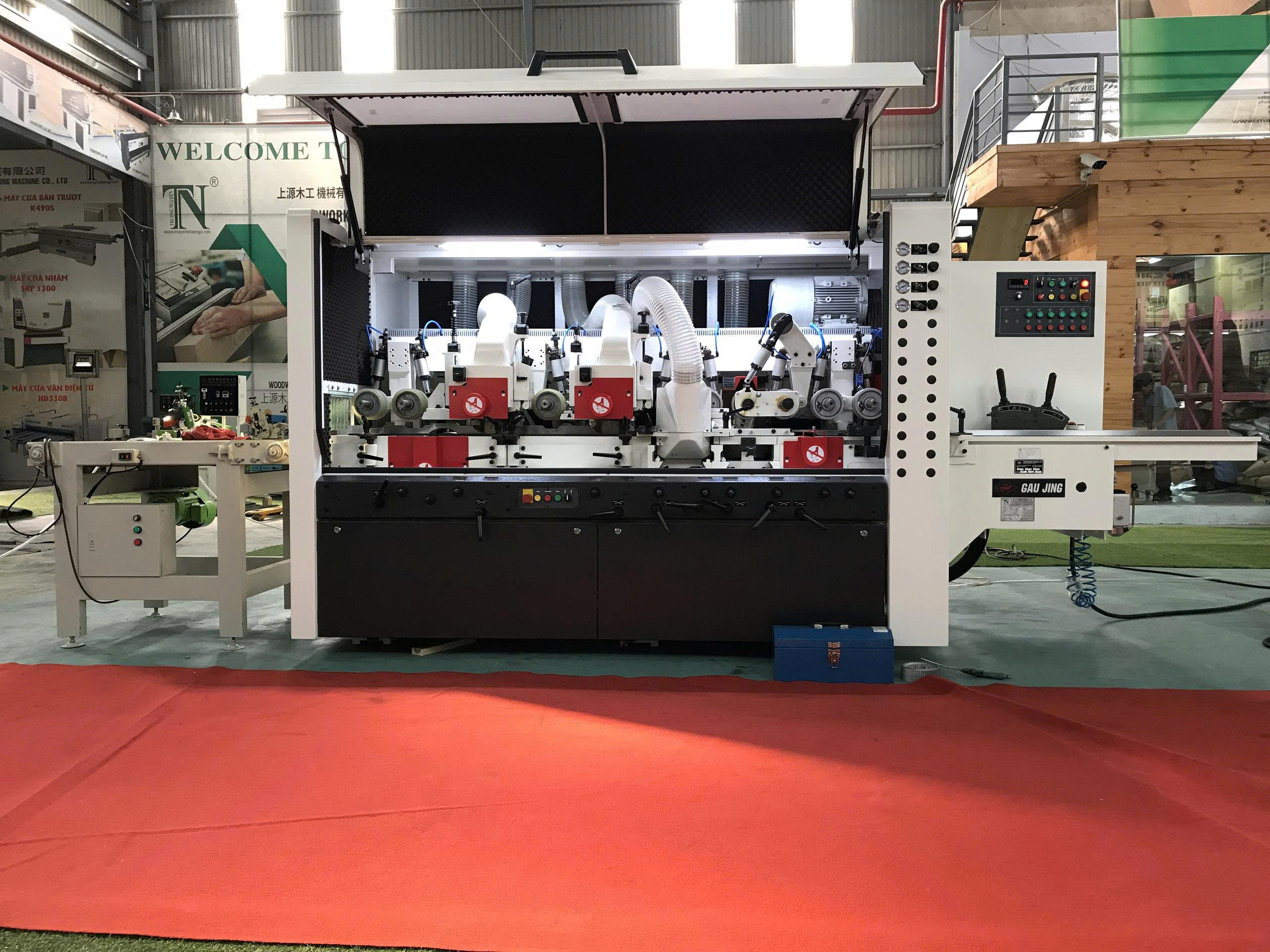

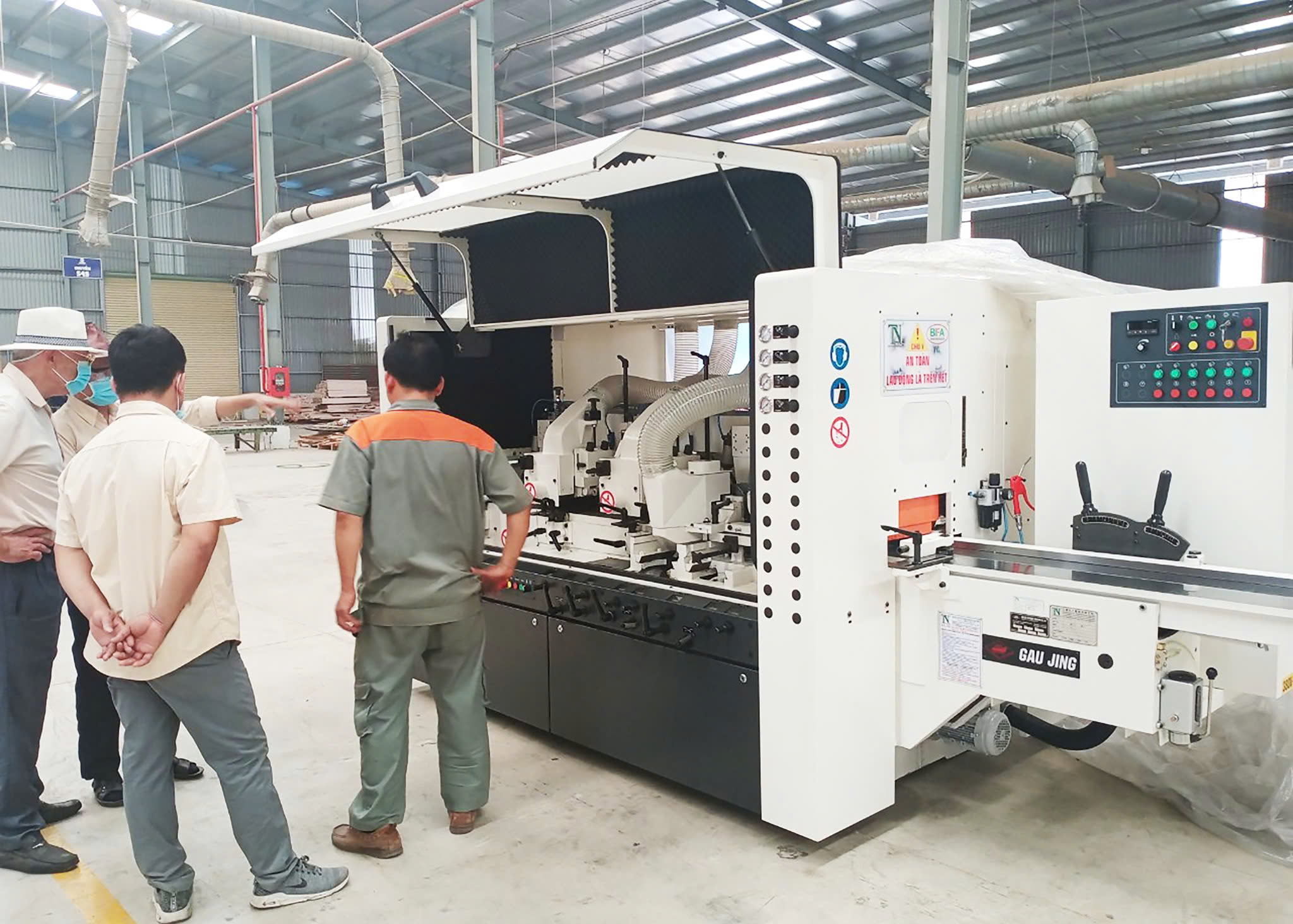

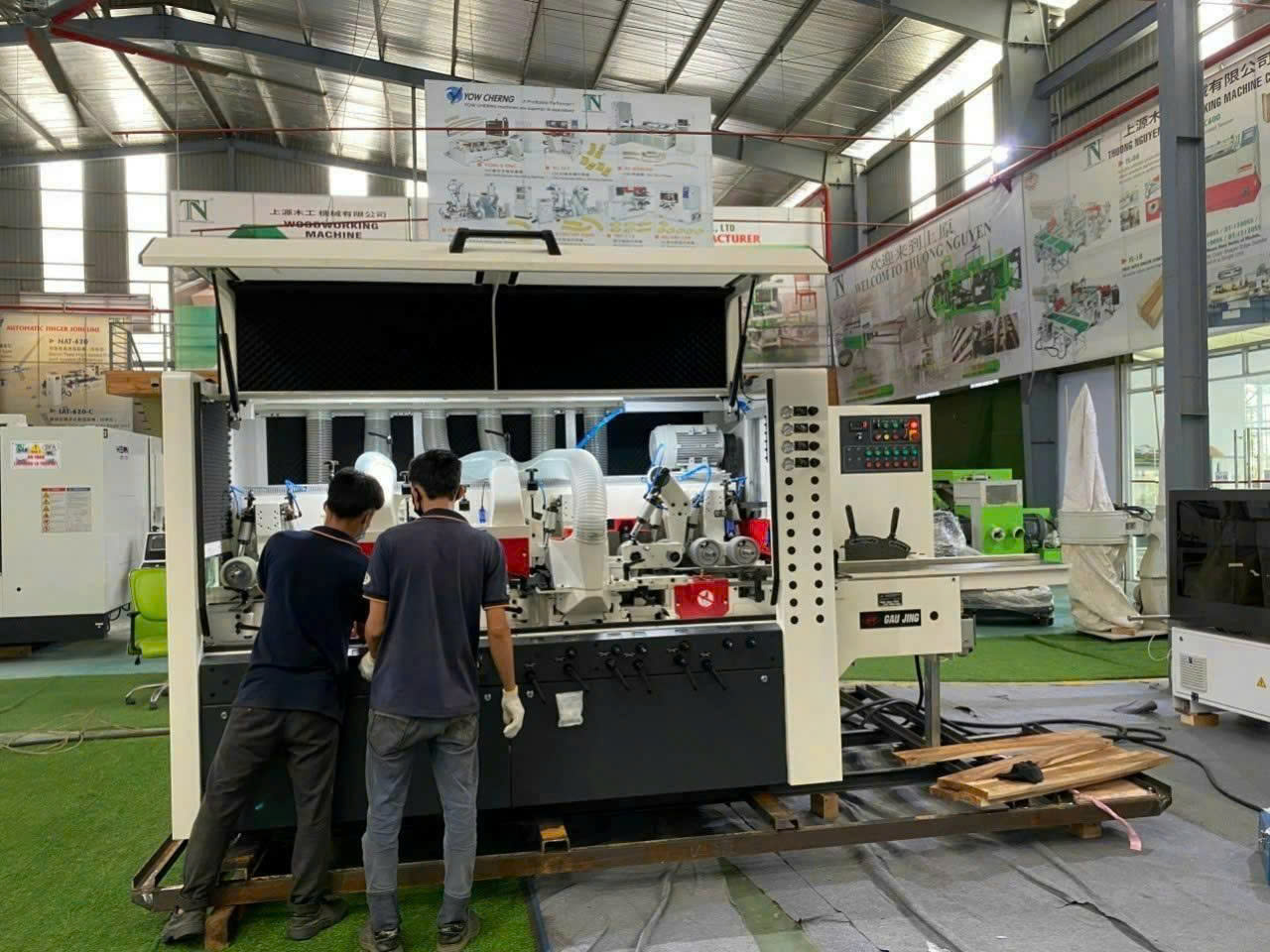

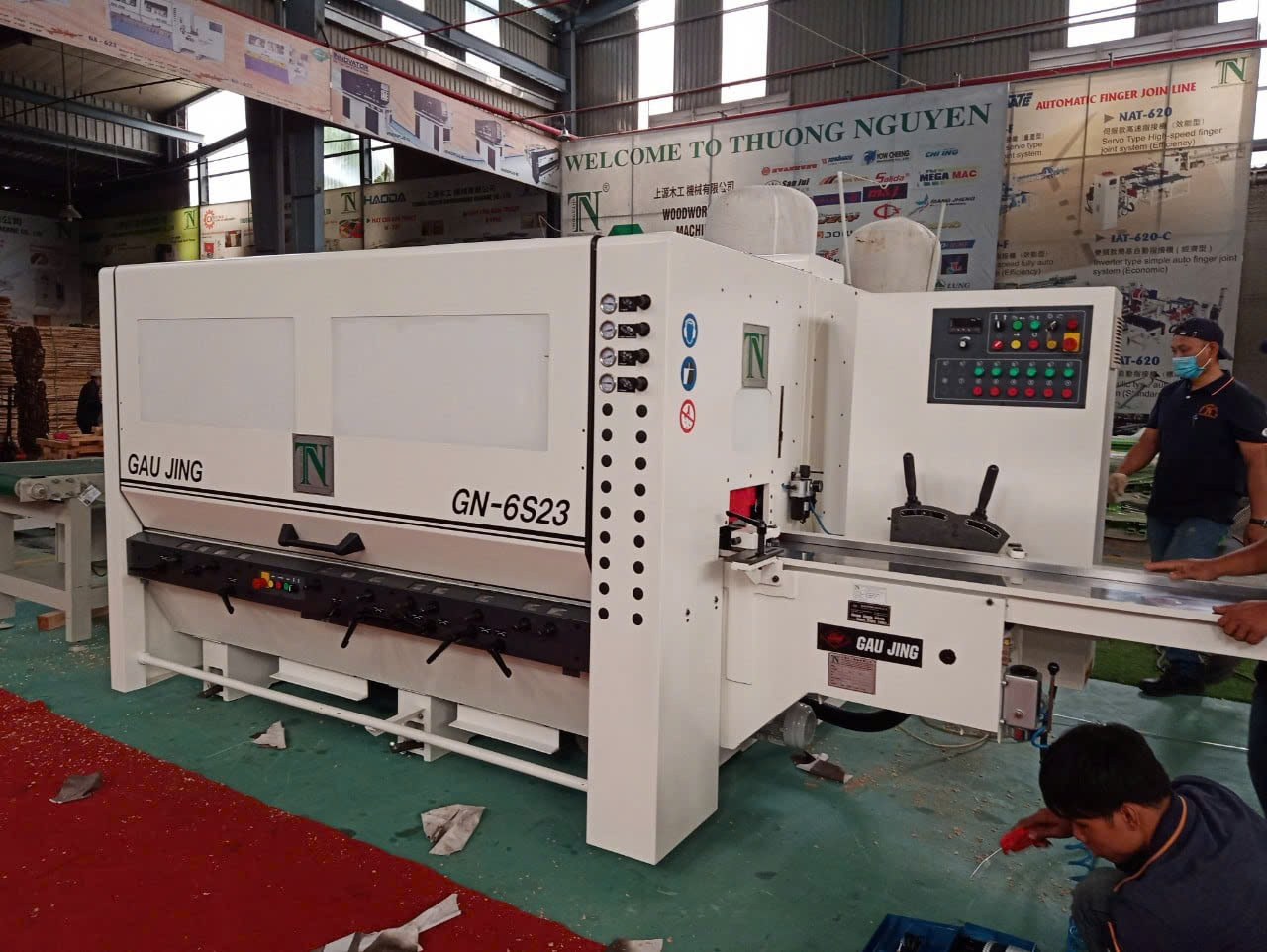

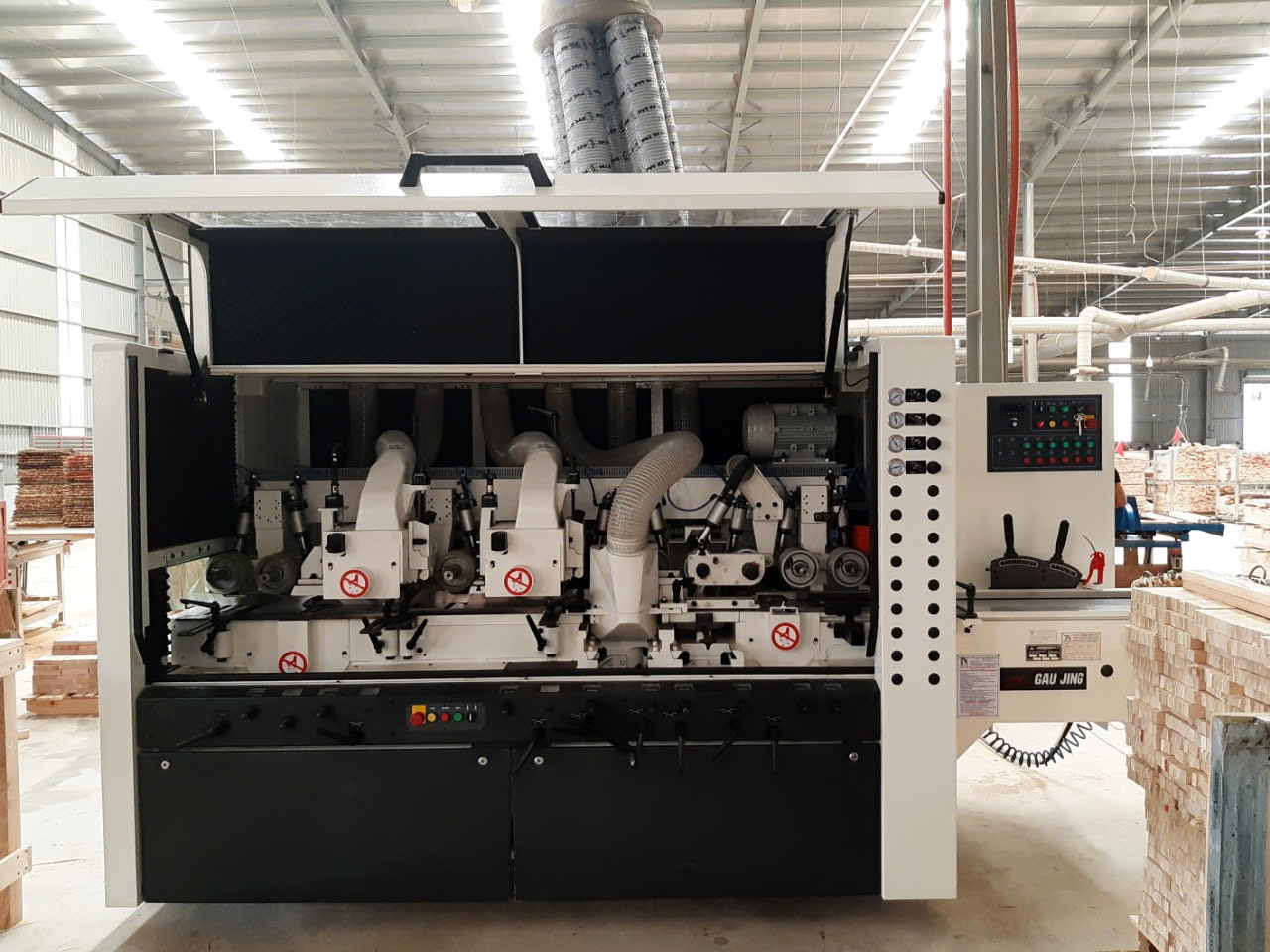

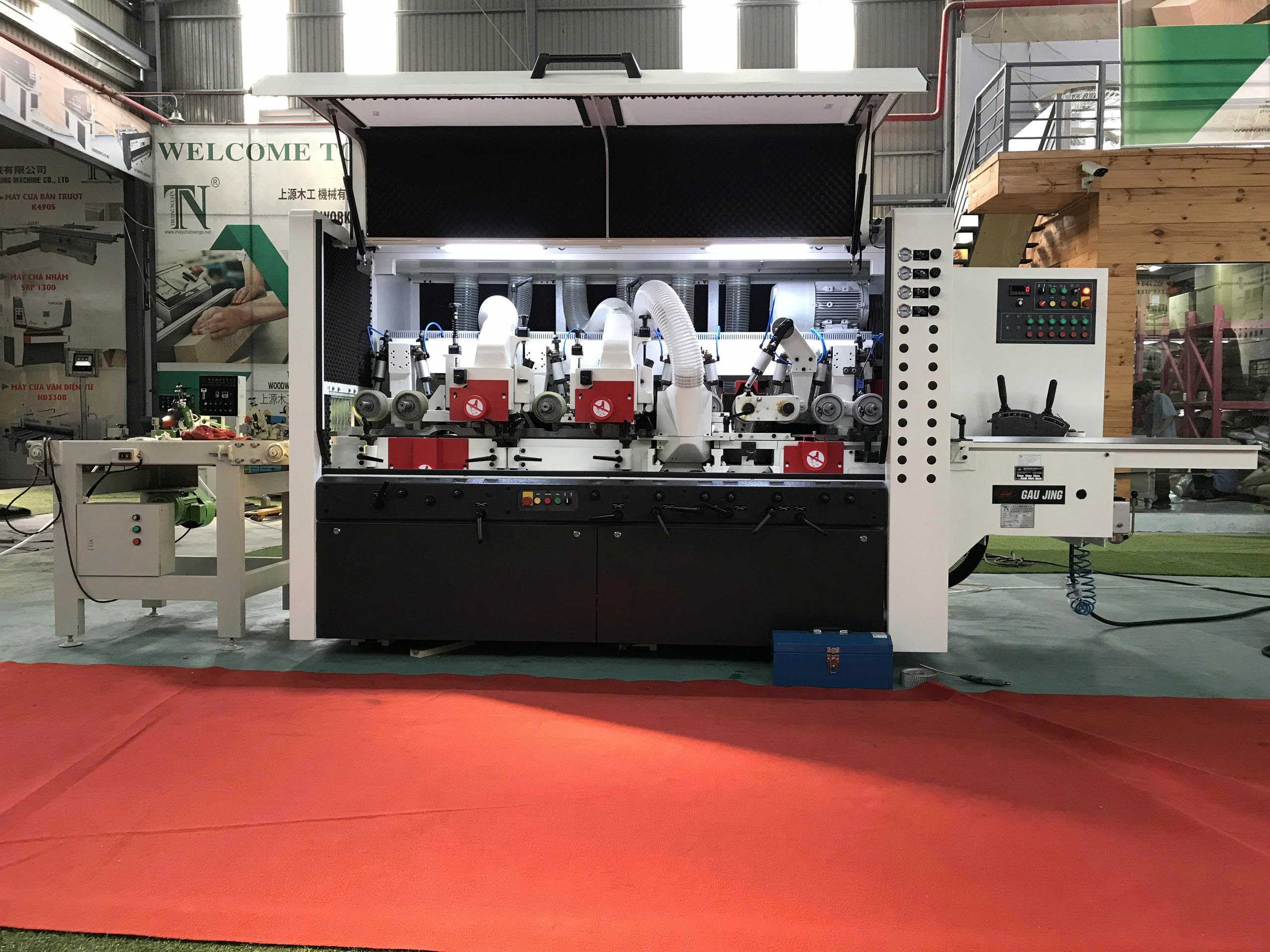

🪵 6-SPINDLE 4-SIDE PLANER – GAU JING GN-6S23

🇹🇼 Brand: GAU JING – Origin: Taiwan
100% Brand New – High Efficiency – Superior Precision


🔧 KEY SPECIFICATIONS:

  • Model: GN-6S23

  • Minimum working length: 200 mm

  • Working width: 10 – 230 mm

  • Working thickness: 7 – 160 mm

  • Feeding speed: 6 – 36 m/min (adjustable via inverter)

  • Infeed table length: 2000 mm

  • Spindle speed: 6000 rpm

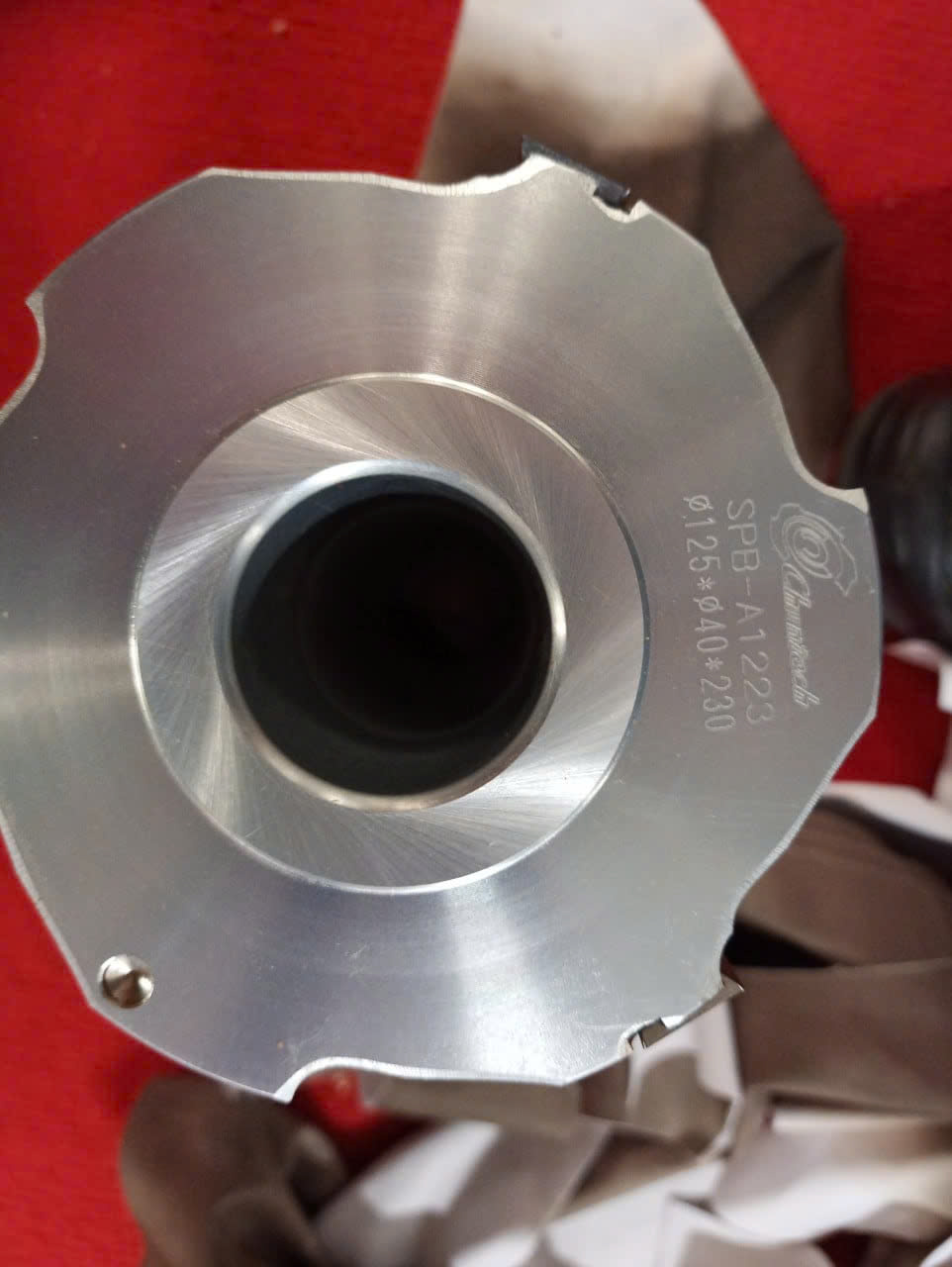

  • Spindle diameter: Ø 40 mm


⚙️ POWERFUL MOTOR SYSTEM:

  • Bottom horizontal spindle motor (1st): 5.6 kW (7.5 HP)

  • Left/right vertical spindle motors: 7.45 kW (10 HP) x2

  • Top horizontal spindle motors: 7.45 kW (10 HP) x2

  • Bottom horizontal spindle motor (2nd): 7.45 kW (10 HP)

  • Feeding motor: 5.6 kW (7.5 HP)

  • Table lifting motor: 0.37 kW (1/2 HP)


📏 DIMENSIONS & WEIGHT:

  • Infeed table height: 1800 mm

  • Machine dimensions: 4250 x 1930 x 1800 mm

  • Packing dimensions: 4400 x 2100 x 2120 mm

  • Net weight: 4100 kg

  • Gross weight (packed): 4700 kg


🚀 HIGHLIGHTS:

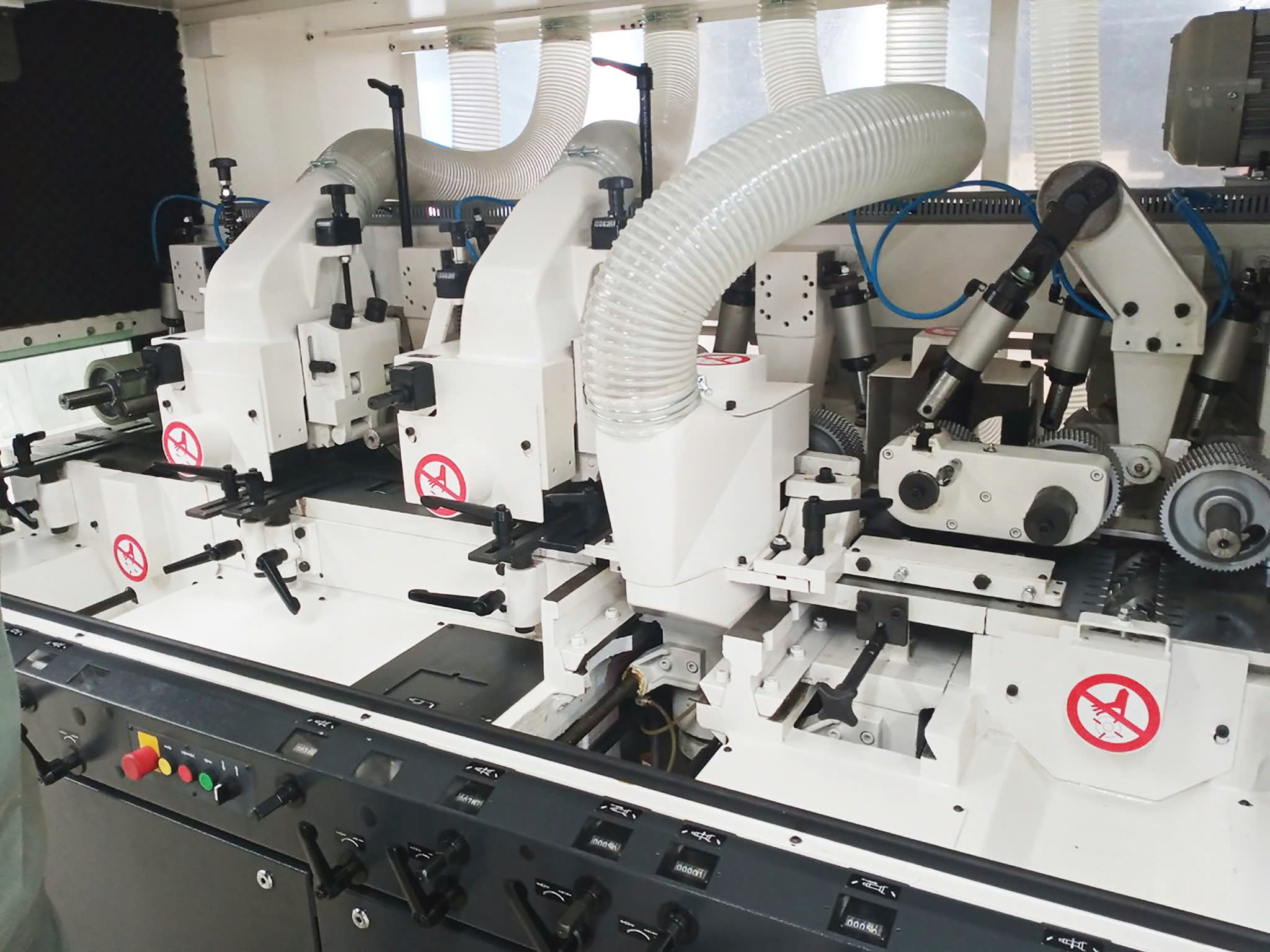

✅ Powerful and precise with 6 spindles for optimal productivity
✅ Ideal for mass production, saving time and labor
✅ Variable feed speed with inverter for easy adjustments
✅ Nationwide delivery & on-site technical support
