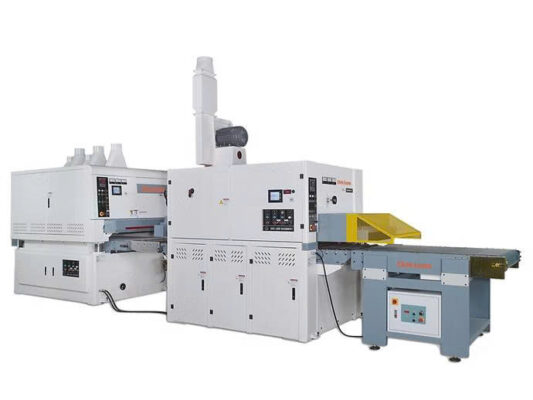

3-AXIS UPPER AND LOWER BOX SANDING MACHINE SYSTEM 3B25RRK | 225RRC-U | MCB WOOD THUONG NGUYEN

  • SKU: 3B25RRK | 225RRC-U
  • Produced by: CHIA LUNG
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

🔹 1. LOWER SANDING MACHINE – MODEL: 3B25RRK 🔹 2. TOP SANDER – MODEL: 225RRC-U
  • Processing width: 610 mm
  • Processing thickness: 5 – 150 mm

  • Sandpaper size: 2110 x 635 mm

  • Working height: 1000 mm

⚙️ SCRUB SHAFT CONFIGURATION:

  • R1 shaft:

    • Motor: 20HP – Diameter: 280 mm

    • Rubber: 85 shore

  • R1 shaft:

    • Motor: 15HP – Diameter: 280 mm

    • Rubber: 60 shore

  • K-axis (lead sandpaper):

    • Motor: 10HP – Sanding width: 95 mm

🔧 ADDITIONAL SPECIFICATIONS:

  • Lifting motor: 0.5HP

  • Feed speed: 5 – 20 m/min

  • Workpiece feed motor: 3HP

  • Brush shaft: 125 mm – Motor: 0.25HP

  • Voltage: 380V, 50Hz

  • Special features: Vacuum working table, keep the workpiece stable

  • Modern touch screen control

  • Processing width: 610 mm

  • Processing thickness: 5 – 150 mm

  • Sandpaper size: 2110 x 635 mm

  • Working height: 1000 mm

⚙️ SCRUB SHAFT CONFIGURATION:

  • R1 shaft:

    • Motor: 20HP – Diameter: 215 mm

    • Rubber: 85 shore

  • R2 shaft:

    • Motor: 15HP – Diameter: 215 mm

    • Rubber: 60 shore

  • C-axis (sand):

    • Motor: 10HP – Wide abrasive: 95 mm

🔧 ADDITIONAL SPECIFICATIONS:

  • Lifting motor: 0.5HP

  • Feed speed: 5 – 20 m/phút

  • Workpiece feed motor: 3HP

  • Brush shaft: 150 mm – Motor: 0.25HP

  • Voltage: 380V, 50Hz

  • Smart control touch screen
