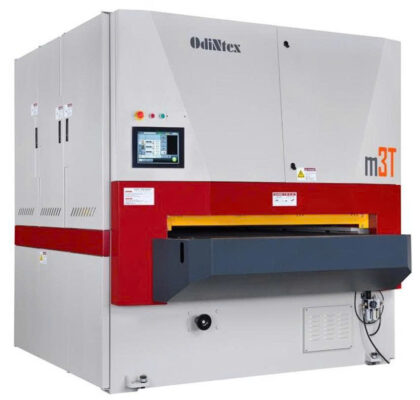

1300 MM BOX SANDER M3T-CRL | MCB THUONG NGUYEN WOOD

  • SKU: M3T-CRL
  • Produced by: CHIA LUNG
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

🔷 1300MM WIDE BELT SANDING MACHINE – 100% NEW
     BRAND: CHIA LUNG
     ORIGIN: TAIWAN
     MODEL: M3T-CRL (Cross + Drum + Longitudinal)

🪵 ADVANCED 3-HEAD SANDING TECHNOLOGY – SUPERIOR SURFACE FINISH

The CHIA LUNG M3T-CRL wide belt sander combines cross sanding, drum sanding, and longitudinal sanding in a single machine, delivering an exceptionally smooth surface even on thin or warped panels. With a built-in vacuum table and intuitive touchscreen control, this is the ideal solution for modern woodworking and furniture factories.


⚙️ MAIN TECHNICAL SPECIFICATIONS

  • Maximum working width: 1350 mm

  • Working thickness: 4 – 125 mm

  • Feeding speed: 5 – 20 m/min (adjustable via inverter)

  • Worktable: Vacuum suction hold-down system

  • Control panel: 12″ LCD touchscreen, 800×600 resolution, running on Windows OS

  • Program memory: Stores at least 100 programs, including feed settings, motor speed, sanding pressure, edge sanding intensity, and activation status – all auto-adjusted by selected program

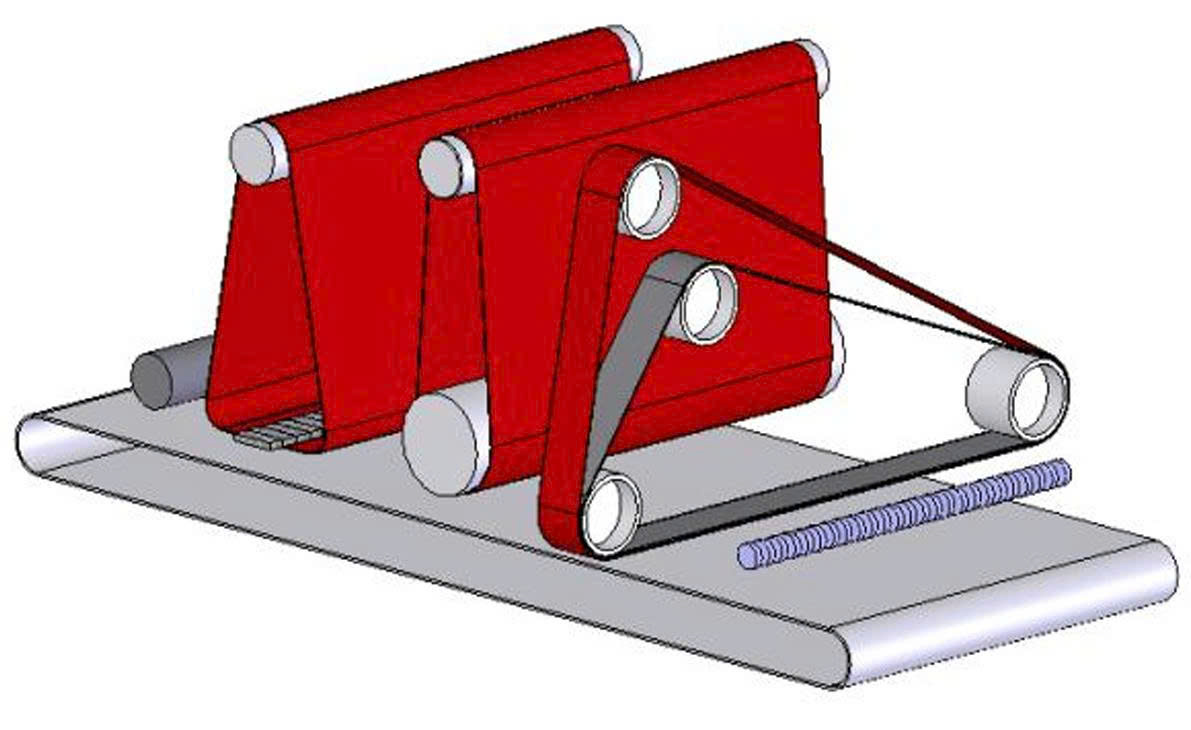

🌀 TRIPLE SANDING HEAD CONFIGURATION

🔹 1st Sanding Head (Cross Sanding):

  • Sandpaper size: 5400 x 150 mm

  • Scotch pad size: 4850 x 140 mm

  • Motor: 15 HP

  • Hardness: 50 Shore

🔹 2nd Sanding Head (Drum Sanding):

  • Sandpaper size: 2620 x 1370 mm

  • Drum diameter: Ø2780 mm

  • Motor: 30 HP

  • Drum hardness: 50 Shore

🔹 3rd Sanding Head (Longitudinal Sanding):

  • Sandpaper size: 2620 x 1370 mm

  • Brush diameter: Ø150 mm

  • Main motor: 15 HP

  • Brush motor: 0.5 HP


🧩 OUTSTANDING FEATURES

✔️ Idle support rollers at the machine’s base
✔️ Press rollers inside the machine to stabilize thin or warped panels
✔️ Thickness adjustment motor (0.5 HP) for table elevation
✔️ Spring-loaded rubber-covered hold-down rollers
✔️ Endless rubber feed belt for smooth material transfer
✔️ Industrial 12” touchscreen computer
✔️ Graphic interface for real-time function tracking
✔️ Left-side sanding belt loading position
✔️ Automatic brake system for fast sanding unit stop
✔️ Safety & fault alerts:
 ◾ Emergency stop buttons (front & rear)
 ◾ Door interlock switches
 ◾ Belt deviation / slack / missing
 ◾ No compressed air / power failure / motor overload

📦 Ideal for:
✅ Solid Wood | ✅ MDF | ✅ Veneer | ✅ Plywood | ✅ Engineered Panels
