1300 MM BOX SANDER M3T-CLF | MCB THUONG NGUYEN WOOD

  • SKU: M3T-CRF
  • Produced by: CHIA LUNG
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

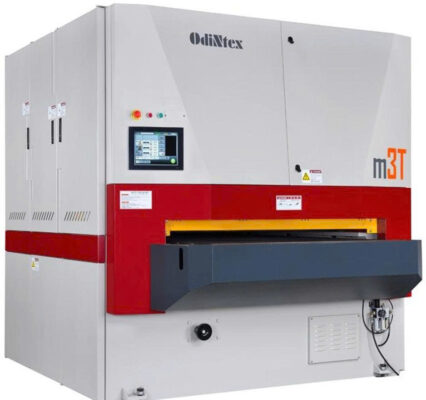

🔷 1300MM WIDE BELT SANDING MACHINE – 100% BRAND NEW

BRAND: CHIA LUNG
ORIGIN: TAIWAN
MODEL: M3T-CLF (Cross Sanding + Longitudinal + Longitudinal with Pressure Belt)


🪵 ADVANCED 3-SHAFT SANDING TECHNOLOGY – FOR PERFECT SURFACE FINISH

The CHIA LUNG M3T-CLF is a high-end wide belt sanding machine, designed with three independent sanding heads, combining cross sanding, dual longitudinal sanding, and pressure belt for optimal surface quality. Equipped with a vacuum working table and touch screen control, this machine is the top choice for professional wood processing workshops.


⚙️ TECHNICAL SPECIFICATIONS

  • Max. working width: 1350 mm

  • Working thickness: 4 – 125 mm

  • Feeding speed: 5 – 20 m/min (inverter controlled)

  • Working table: Vacuum hold-down system

  • Control system: 12” industrial touch screen
     ◾ LCD-TFT color screen, 800×600 resolution
     ◾ Operating system: Windows 7
     ◾ Stores up to 100 programs (including feed speed, motor speed, sanding pressure, edge sanding intensity, etc.)
     ◾ User-friendly graphic interface for easy monitoring and control

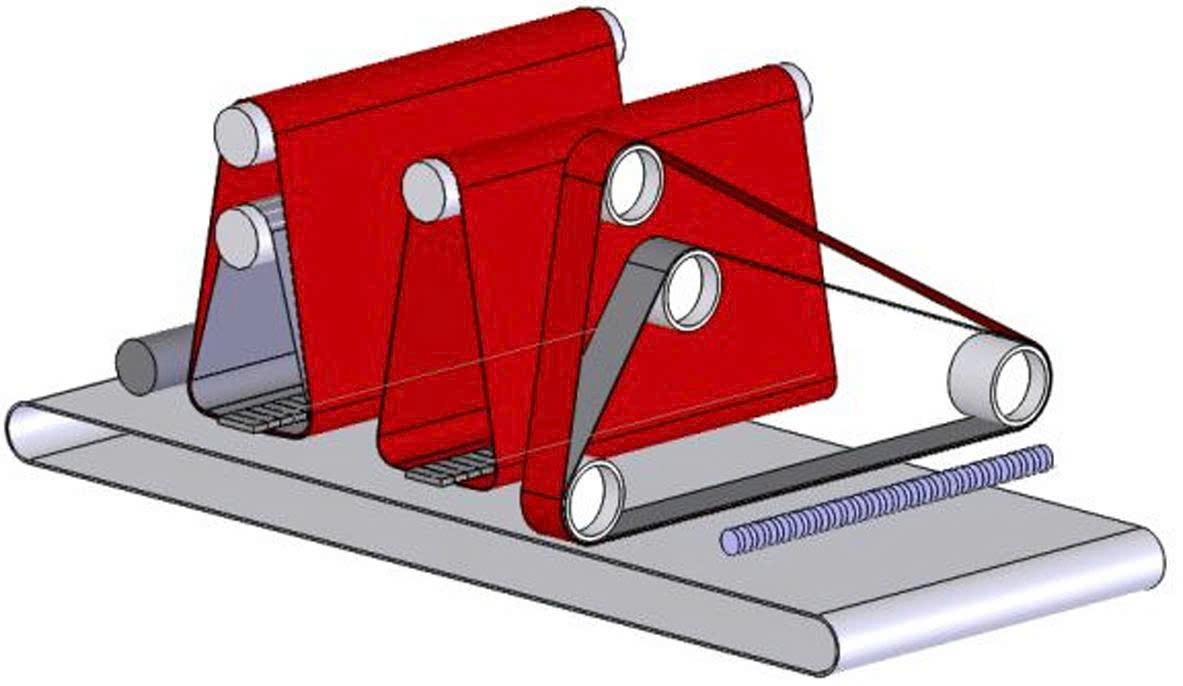

🌀 SANDING UNIT CONFIGURATION

🔹 1st Head – Cross Sanding

  • Abrasive size: 5400 x 150 mm

  • Scotch pad size: 4850 x 140 mm

  • Motor: 15 HP

🔹 2nd Head – Longitudinal Sanding

  • Abrasive size: 2620 x 1370 mm

  • Motor: 15 HP

🔹 3rd Head – Longitudinal Sanding with Brush

  • Abrasive size: 2620 x 1370 mm

  • Scotch pad size: 2250 x 1360 mm

  • Main motor: 15 HP
  • Brush diameter: Ø150 mm

  • Brush motor: 0.5 HP


🧩 STRUCTURE & OUTSTANDING FEATURES

✔️ Idle rollers under machine base for extra support
✔️ Pressure rollers for thin or warped panels
✔️ Height adjustment by 0.5 HP motor
✔️ Rubber-covered hold-down rollers with spring tension
✔️ Endless rubber conveyor belt for stable feeding
✔️ Touch screen interface with graphical layout
✔️ Abrasive belts loaded from left side
✔️ Automatic brake system for safety during emergencies


🔒 SAFETY FEATURES

🛑 Emergency stop buttons at both ends
🛑 Safety door interlock switches
🛑 Abrasive belt misalignment sensor
🛑 Loose belt detection
🛑 Air pressure loss warning
🛑 Power loss or motor overload monitoring


📦 SUITABLE FOR VARIOUS MATERIALS

✅ Solid wood
✅ MDF / HDF
✅ Veneered panels
✅ Engineered wood
✅ Plywood
