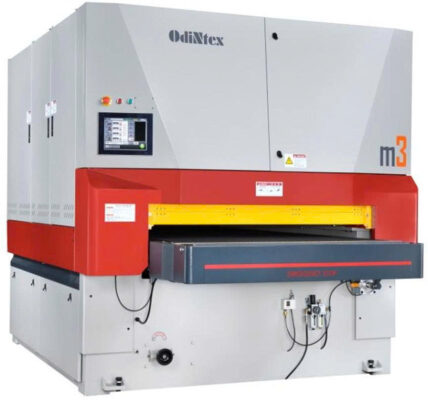

1300 MM BOX SANDER M3-RF | MCB THUONG NGUYEN WOOD

  • SKU: M3-RF
  • Produced by: CHIA LUNG
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

🔹 1300MM WIDE BELT SANDER – 100% BRAND NEW
     BRAND: CHIA LUNG – MADE IN TAIWAN
     MODEL: M3-RF (Drum + Longitudinal with Pressure Belt)

🪵 PREMIUM SANDING SOLUTION FOR PANELS & WOOD PRODUCTS

The CHIA LUNG M3-RF sanding machine is a professional solution designed for panel processing, MDF, blockboard, and natural wood applications. It features two independent sanding heads, a vacuum hold-down conveyor table, and a pressure belt system, delivering excellent performance and a flawless surface finish.


⚙️ MAIN SPECIFICATIONS:

  • Maximum working width: 1350 mm

  • Working thickness range: 4 – 125 mm

  • Fixed working height: 920 mm

  • Feeding speed: 5 – 20 m/min (Inverter-controlled)

  • Power supply: 380V / 50Hz

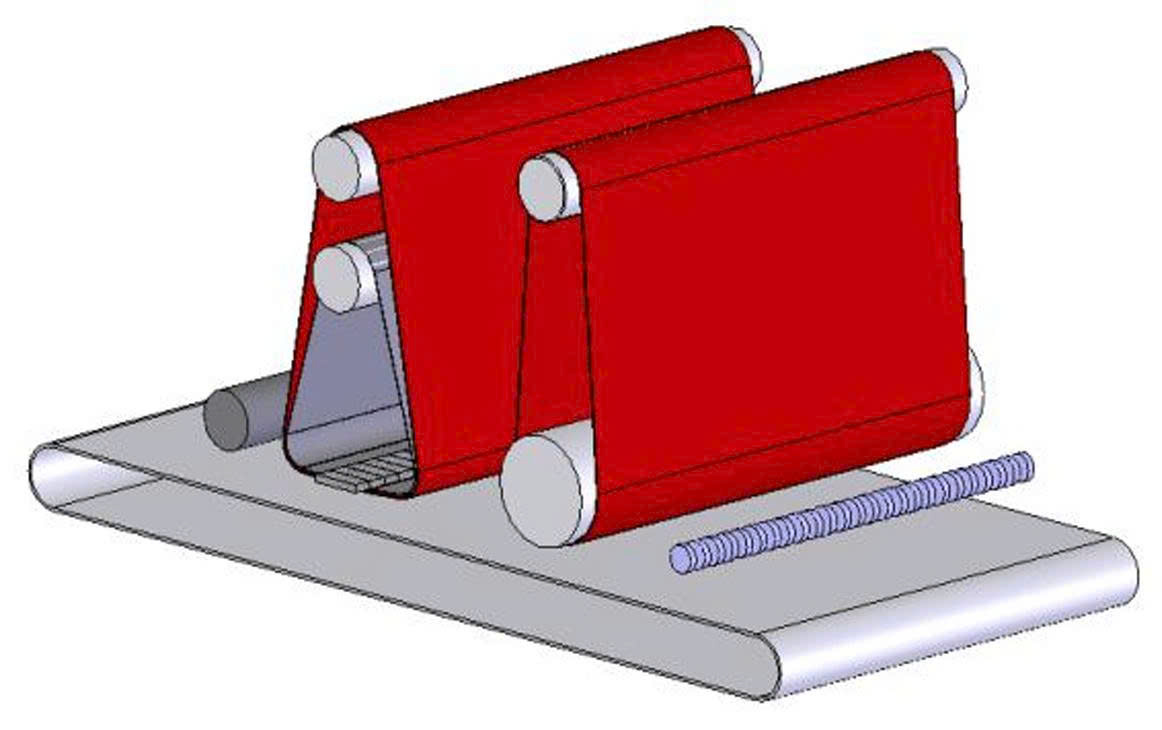

🌀 SANDING HEAD CONFIGURATION:

🔸 First Sanding Head (Drum):

  • Hardness: 30 Shore

  • Sandpaper size: 2620 x 1370 mm

  • Drum diameter: Ø280 mm

  • Motor: 25 HP

🔸 Second Sanding Head (Longitudinal + Polishing Fleece):

  • Sandpaper size: 2620 x 1370 mm

  • Fleece size: 2250 x 1360 mm

  • Motor: 15 HP


🔧 ADDITIONAL FEATURES:

  • Cleaning brush roller: Ø150 mm – Motor: 0.5 HP

  • Dust extraction fan motor: 5 HP

  • Vacuum hold-down conveyor table – ensures steady workpiece movement

  • Touchscreen control panel – user-friendly interface



◎ Idle support roller at the machine foot
◎ Pressing roller inside the machine feeder to hold thin and warped workpieces, including excessive workpiece thickness control
◎ Motor-operated thickness adjustment (1HP) by
adjusting the upper frame
◎ Tightening roller with rubber-covered spring
◎ Conveyor unit with single rubber endless feed belt

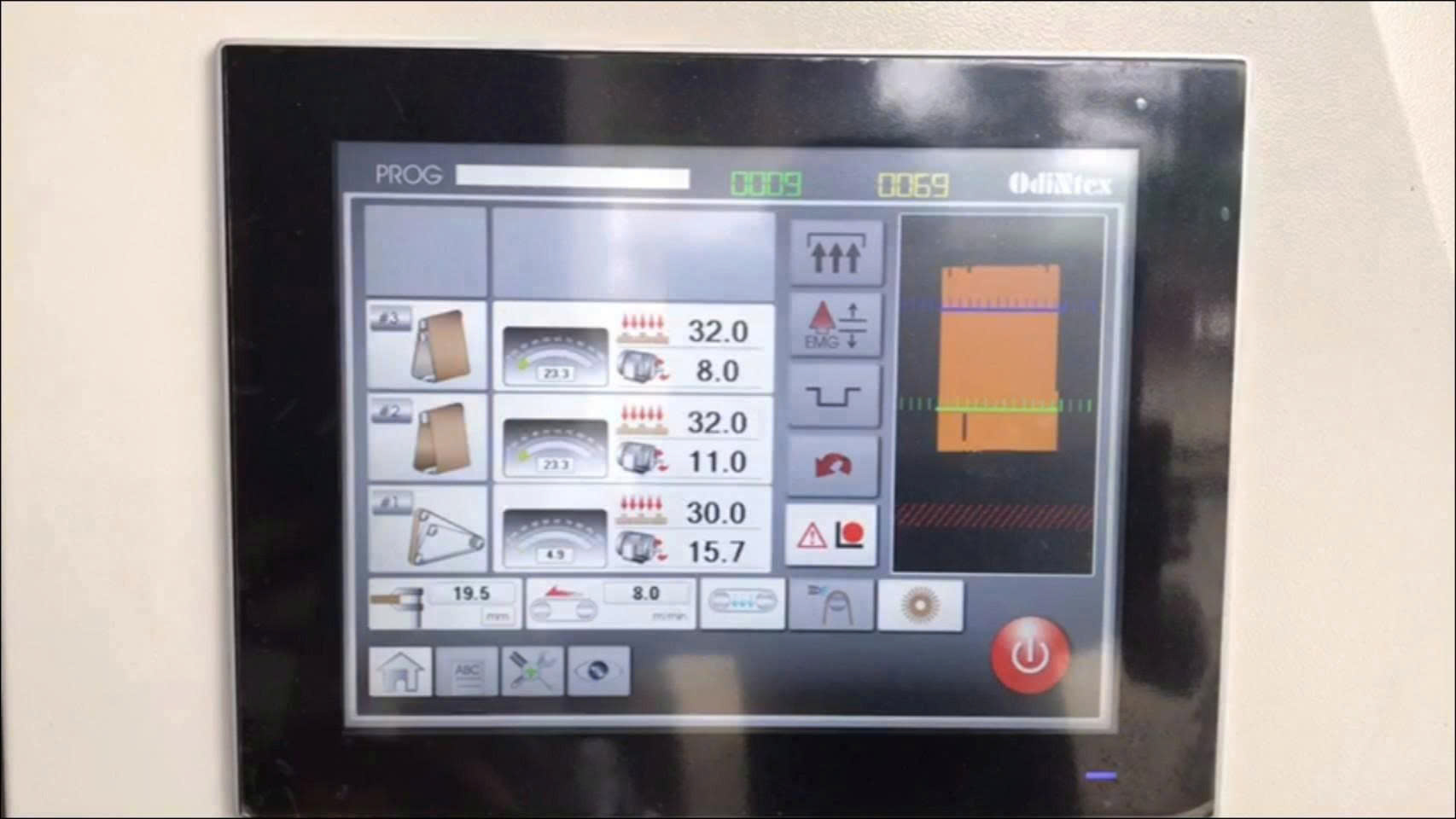

◎ 12″ industrial computer: LCD-TFT color display
@ Windows OS
Execution on touch screen
Program memory for at least 100 programs, feed data
and motor speed, activated status, sanding intensity on
edges and sanding pressure are memorized and automatically
set according to the selected program.
All functions are monitored and controlled by graphic symbols on the screen

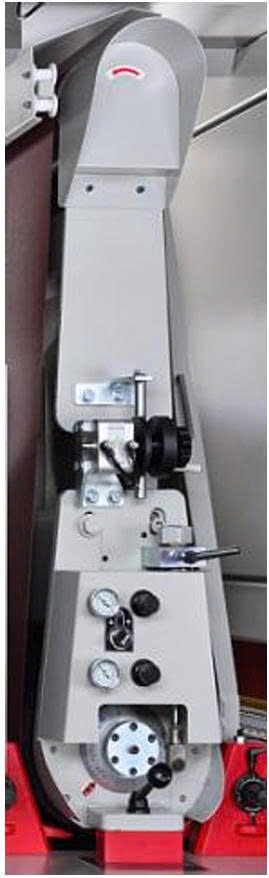

◎ Sanding belt placement from the left side
◎ Automatic brake to turn off fast sanding parts – EMG. stop button at front and rear – Operation door switch – wrong tracking of sanding belt – sanding belt no tension – no air compression force – power failure – motor overload

🌟 OUTSTANDING ADVANTAGES:

✔️ High-quality sanding finish
✔️ Vacuum table prevents workpiece shifting
✔️ Pressure belt improves feed stability and surface quality
✔️ Ideal for interior furniture, MDF, veneer, and solid wood production lines
