1300 MM BOX SANDER M3T-RF | MCB THUONG NGUYEN WOOD

  • SKU: M3T-RF
  • Produced by: CHIA LUNG
  • Country of origin: Taiwan
  • Status: 100%
  • Warranty: 12 months
Product details

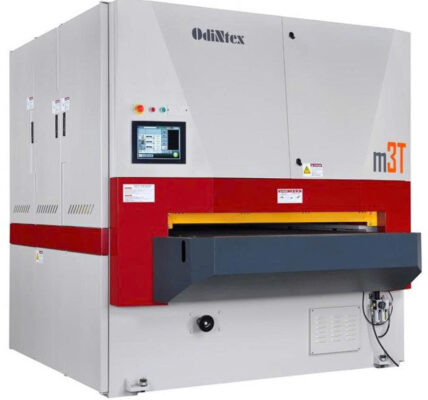

🔹 WIDE BELT SANDER 1300MM – 100% BRAND NEW
     BRAND: CHIA LUNG – ORIGIN: TAIWAN
     MODEL: M3T-RF (Drum + Longitudinal with Pressure Belt)

🪵 PROFESSIONAL SANDING SOLUTION FOR INDUSTRIAL & SOLID WOOD

The M3T-RF wide belt sander by Chia Lung is a high-performance machine designed for industrial wood sanding applications, delivering superior surface finishing thanks to its dual sanding system combined with vacuum hold-down and pressure belt feeding.


⚙️ TECHNICAL SPECIFICATIONS:

  • Maximum working width: 1350 mm

  • Working thickness range: 4 – 125 mm

  • Fixed working height from floor: 920 mm

  • Feeding speed: 5 – 20 m/min (frequency inverter controlled)

  • Voltage: 380V / 50Hz

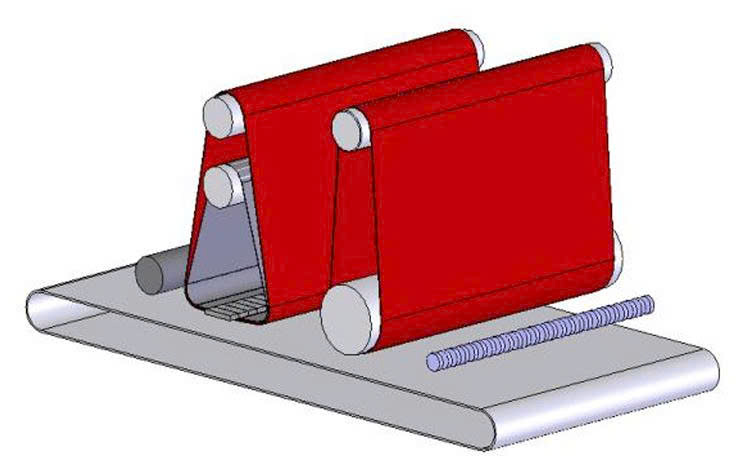

🌀 SANDING HEAD CONFIGURATION:

1st Sanding Head (Drum Type):

  • Hardness: 30 Shore

  • Sanding belt size: 2620 x 1370 mm

  • Roller diameter: Ø280 mm

  • Motor power: 25 HP

2nd Sanding Head (Longitudinal + Non-woven Pad):

  • Sanding belt size: 2620 x 1370 mm

  • Non-woven pad size: 2250 x 1360 mm

  • Motor power: 15 HP


🔧 SUPPORTING SYSTEMS:

  • Cleaning Brush Roller: Ø150 mm – Motor: 0.5 HP

  • Vacuum hold-down worktable – ensures stability during sanding

  • Dust Extraction Fan Motor: 5 HP

  • Touchscreen control panel – intuitive and easy to operate


🌟 KEY ADVANTAGES:

✔️ Combined sanding system for enhanced surface quality
✔️ Touchscreen interface for user-friendly control
✔️ Vacuum table prevents material shifting
✔️ Optimized for medium to large-scale production lines

MACHINE BASE
◎ Idle support roller at the machine foot
◎ Motor (0.5HP) adjusts the operating thickness by
adjusting the worktable
◎ Roller pressed into the machine to hold thin and warped workpieces, including excessive workpiece thickness control
◎ Tightening roller with rubber-covered spring
◎ Conveyor unit with single rubber endless feed belt

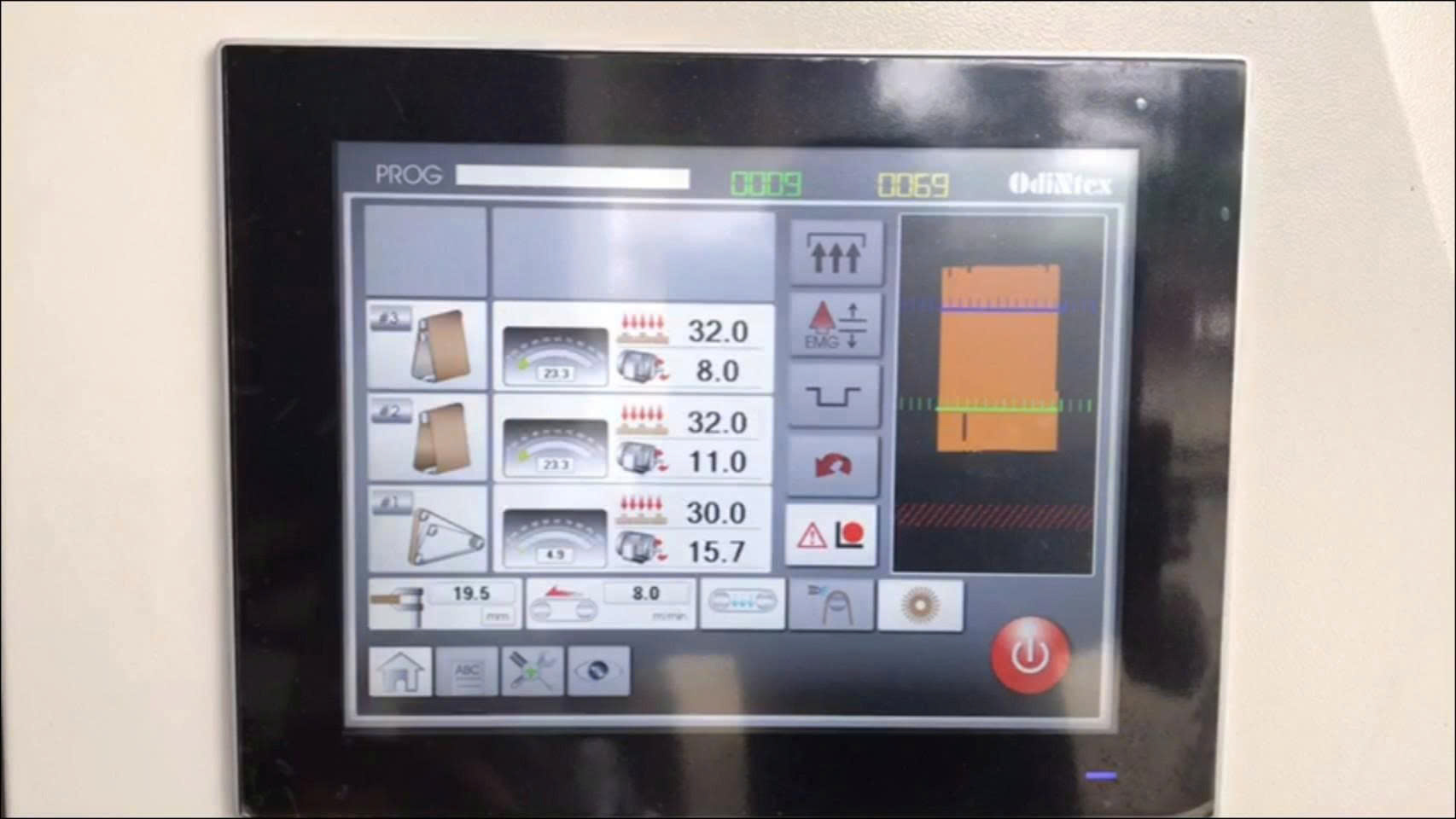

◎ 12″ industrial computer: LCD-TFT color display
@Windows OS
Execution on touch screen
Program memory for at least 100 programs, feed data
and motor speed, activated status, sanding intensity on
edges and sanding pressure are memorized and automatically
set according to the selected program.
All functions are monitored and controlled by graphic symbols on the screen
◎ Sanding belt position from the left side
◎ Automatic brake quick shut-off of sanding units – EMG. stop button at front and rear – Operation door switch – sanding belt misaligned – sanding belt not tensioned – no air compression – power failure – motor overload
